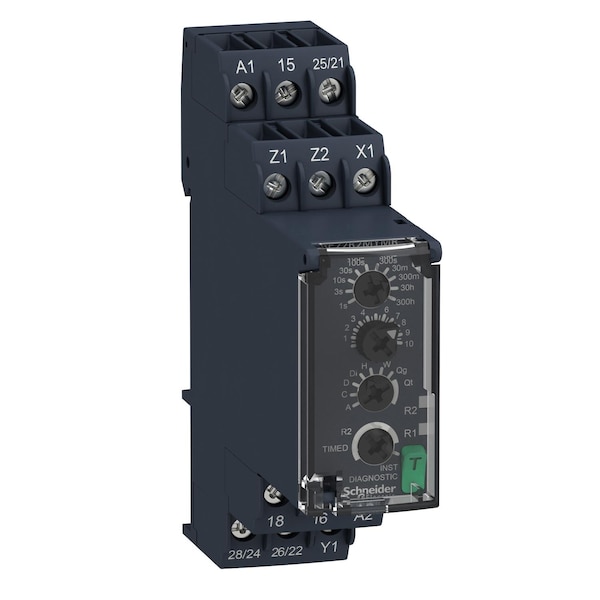

Temporizador, 24-240VCA/VCC, 8A de entrada, salida DPDT múltiple.
| Item | Timer,24-240VAC/VDC,In 8A,Dpdt Out Mu |
|---|---|
| Standards | UL 508 || IEC 61812-1 |
| Width | 22.5 mm |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Minimum Pulse Duration | 100 ms with load in parallel || 30 ms |
| Reset Time | 120 ms on de-energisation |
| Discrete Output Type | relay |
| Relative Humidity | 95-95 % 25-55°C |
| Ip Degree Of Protection | housing IP40 IEC 60529 || terminals IP20 IEC 60529 || front panel IP50 IEC 60529 |
| Function Available | A- Power on-delay relay-2 C/O || At- Power on-delay relay w/ pause/summation (X1)-2 C/O || Aw- Power on-delay relay w/ retrigger/restart-2 C/O || C- Off-delay relay w/ control signal-2 C/O || Ct- Off-delay relay w/ control signal and pause/summation-2 C/O || D- Symmetrical flashing relay (starting pulse-off)-2 C/O || Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-2 C/O || Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-2 C/O || Di- Symmetrical flashing relay (starting pulse-on)-2 C/O || Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-2 C/O || Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-2 C/O || H- Interval relay-2 C/O || Ht- Interval relay w/ pause/summation (X1)-2 C/O || Hw- Interval relay w/ retrigger/restart-2 C/O || Qg- Star-delta relay (2 CO outputs w/ same common)-2 C/O || Qgt- Star-delta relay (2 CO outputs w/ same common) w/ pause/summation-2 C/O || Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O || Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (X1)-2 C/O || W- Interval relay w/ control signal off-2 C/O || Wt- Interval relay w/ control signal off and pause/summation-2 C/O |
| Maximum Delay Response | 100 msec |
| Supply Frequency | 50...60 Hz +/- 5 % |
| Setting Accuracy Of Time Delay | +/- 10 % of full scale 25°C IEC 61812-1 |
| Switching Capacity In Va | 2,000 VA |
| Time Delay Range | 3...30 min || 30...300 min || 0.3...3 s || 3...30 h || 10...100 s || 1...10 s || 0.05...1 s || 30...300 s || 30...300 h || 3...30 s |
| Time Delay Type | power on-delay || off-delay || symmetrical flashing || interval || star-delta |
| Product Certifications | RCM || CE || EAC || CSA || CCC || UL || GL |
| Housing Material | self-extinguishing |
| Shock Resistance | 15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27 |
| Pollution Degree | 3 IEC 60664-1 |
| Maximum Switching Voltage | 250 V AC |
| Repeat Accuracy | +/- 0.5 % IEC 61812-1 |
| Insulation Resistance | 100 MOhm 500 V DC IEC 60664-1 |
| Maximum Switching Current | 8 A |
| [Uimp] Rated Impulse Withstand Voltage | 5 kV 1.2-50µs IEC 60664-1 |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz |
| Control Type | rotary knob |
| Temperature Drift | °, +/- 0.05 % C |
| Voltage Range | 0.85...1.1 Us |
| Nominal Output Current | 8 A |
| Electrical Durability | 100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1 |
| Product Or Component Type | multifunction relay |
| Ambient Air Temperature For Storage | -40-70°C |
| Power Consumption In W | 1.5 W 240 V DC |
| Vibration Resistance | 20 m/s² 10-150 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -20-60°C |
| Dielectric Strength | 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1 |
| Overvoltage Category | III IEC 60664-1 |
| Minimum Switching Current | 10 mA 5 V DC |
| Input Voltage | <= 2.4 V |
| Status Led | Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised |
| Connections - Terminals | screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Immunity To Microbreaks | 10 msec |
| Electromagnetic Compatibility | fast transients immunity test 1 kV capacitive connecting clip)level 3 IEC 61000-4-4 || surge immunity test 1 kV differential mode)level 3 IEC 61000-4-5 || surge immunity test 2 kV common mode)level 3 IEC 61000-4-5 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/m 80 MHz...1 GHz)level 3 IEC 61000-4-3 || conducted RF disturbances 10 V 0.15...80 MHz)level 3 IEC 61000-4-6 || fast transient bursts 2 kV direct contact)level 3 IEC 61000-4-4 || immunity to microbreaks and voltage drops 30 % 500 ms) IEC 61000-4-11 || immunity to microbreaks and voltage drops 100 % 20 ms) IEC 61000-4-11 |
| Mounting Support | 35 mm DIN rail conforming to EN/IEC 60715 |
| Mounting Position | any position |
| Mechanical Durability | 10000000 cycles |
| Device Short Name | RE22 |
| Power Consumption In Va | 3-3 VA 240 V AC |
| Voltage Drift | +/- 0.2 %/V |
| Contacts Type And Composition | 1 C/O timed || 2 C/O timed contact, cadmium free, cadmium free, instantaneous contact |
| Creepage Distance | 4 kV/3 IEC 60664-1 |
| Package Quantity | 1 |
