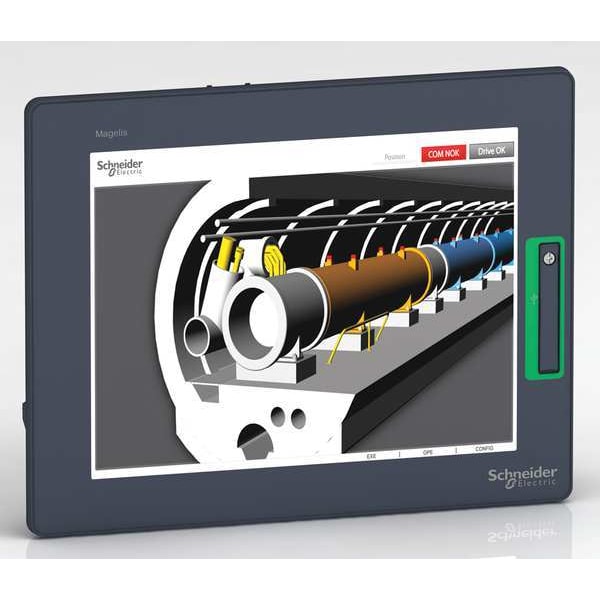

Panel táctil, 10.4 pulgadas TFT a color, 24VDC
| Item | Touch Panel |
|---|---|
| Display Type | TFT Color |
| Port Type | USB Type A, USB Type Mini-B |
| Display | 800 pixels x 600 pixels |
| Height | 8.46 in |
| Width | 8.31 in |
| Depth | 2.64 in |
| Voltage | 24V DC |
| For Use With | Magelis GTU W-LAN Wireless Display |
| Display Resolution | 800 pixels x 600 pixels SVGA |
| [Us] Rated Supply Voltage | 12...24 V DC power supply |
| Product Certifications | cULus || CE || KC || RCM || UKCA || UKEX |
| Touchscreen Resolution | 1024 x 1024 |
| Relative Humidity | 10-90 % non-condensing |
| Display Colour | 16 million colours |
| Power Consumption In W | 15 W |
| Electromagnetic Compatibility | electrostatic discharge immunity testlevel 3 EN/IEC 61000-4-2 |
| Supply Voltage Limits | 10.8 to 28.8 V |
| Ambient Air Temperature For Operation | 0-60°C EN 61131-2 |
| Backlight Lifespan | 50,000 hr |
| Nema Degree Of Protection | NEMA 4X front panel |
| Pixel Resolution | 800 x 600 |
| Shock Resistance | 147 m/s²EN/IEC 61131-2 |
| Ip Degree Of Protection | front panel IP66 || front panel IP67 |
| Terminal Type | touchscreen display |
| Display Size | 10.4 in |
| Operating Altitude | 6561.68 ft (2000 m) |
| Cut-Out Dimensions | 259 (+ 1/- 0) x 201 (+ 1/- 0) mm |
| Aspect Ratio | 0.1688 |
| Inrush Current | 30 A |
| Ambient Air Temperature For Storage | -20-60°C |
| Integrated Connection Type | USB 2.0 type A || USB 2.0 type mini B |
| Vibration Resistance | 3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz) EN/IEC 61131-2 |
| Type Of Installation | indoor installation |
| Type Of Cooling | natural convection |
| Function Available | brightness sensor |
| Touch Panel | multi touch analogue resistive |
| Standards | UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2 |
| Product Or Component Type | flat screen |
| Rated Supply Voltage | 12 to 24 V DC power supply |
| Package Quantity | 1 |
