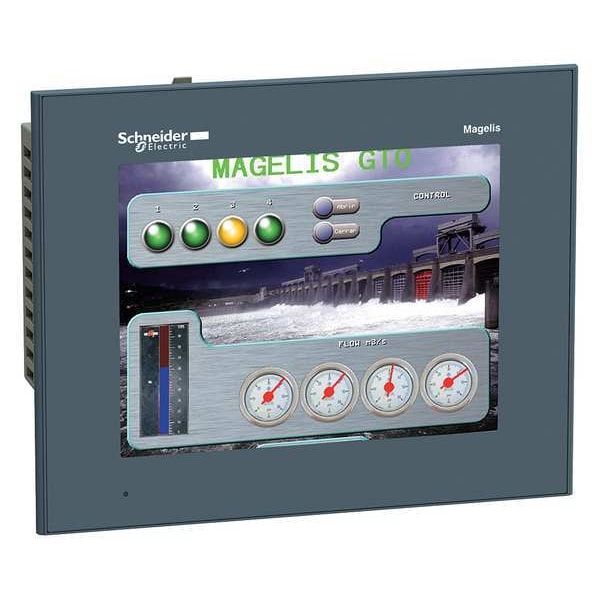

Panel táctil, 7.5 pulgadas, color TFT, 96 MB de memoria Flash.
| Item | Touch Panel |
|---|---|
| Display Type | TFT Color |
| Port Type | USB 2.0, USB-Mini B |
| Memory | 96 Mb (Flash) |
| Display | 640 pixels x 480 pixels |
| Height | 5.6 in |
| Width | 10.4 in |
| Depth | 11.8 in |
| Special Features | Display of Text Messages, Graphic Objects and Synoptic Views, Control and Con¿guration of Data |
| Voltage | 24V DC |
| For Use With | Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens |
| Product Certifications | CE || cULus || KCC || C-tick || UKCA || UKEX |
| Terminal Type | touchscreen display |
| Product Or Component Type | advanced touchscreen panel |
| Enclosure Material | PPT |
| Front Material | PPT |
| Operating System | Harmony |
| Data Backed Up | 512 kB internal RAM SRAM) |
| Display Colour | 65536 colours |
| Ip Degree Of Protection | IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel) |
| [Us] Rated Supply Voltage | 24 V DC |
| Shock Resistance | 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2 |
| Battery Type | lithium internal RAM 100 days 5 day(s) 10 year(s) |
| Data Storage Equipment | SD card, <= 32 GB || SDHC card, <= 32 GB |
| Local Signalling | status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed |
| Fixing Mode | by 4 screw clamps |
| Relative Humidity | 10-90 % without condensation |
| Inrush Current | 30 A |
| Downloadable Protocols | Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP |
| Standards | EN 61131-2 || IEC 61000-6-2 || UL 508 |
| Vibration Resistance | 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 |
| Display Resolution | 640 pixels x 480 pixels VGA |
| Ambient Air Temperature For Storage | -20-60°C |
| Nema Degree Of Protection | NEMA 4X front panel |
| Software Designation | Vijeo Designer configuration software >= V6.1 |
| Ambient Air Temperature For Operation | 0-55°C |
| Backlight Lifespan | 50000 hours white 25°C |
| Product Mounting | flush mounting |
| Type Of Cooling | natural convection |
| Supply | external source |
| Display Size | 7-1/2 in |
| Integrated Connection Type | COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T / 100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B |
| Operating Altitude | < 6561.68 ft (2000 m) |
| Brightness | 16 levels by touch panel || 16 levels by software |
| Resistance To Electrostatic Discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
| Touch Panel | resistive film, 1000000 cycles |
| Memory Description | flash EPROM, 96 MB |
| Touch Sensitive Zone | 1024 x 1024 |
| Maximum Power Consumption In W | 8 W when power is not supplied to external devices || 5 W when backlight is OFF || 5.5 W when backlight is dimmed || 12 W |
| Supply Voltage Limits | 19.2 to 28.8 V |
| Character Font | Korean || Taiwanese (traditional Chinese) || Japanese (ANK, Kanji) || ASCII || Chinese (simplified Chinese) |
| Package Quantity | 1 |
