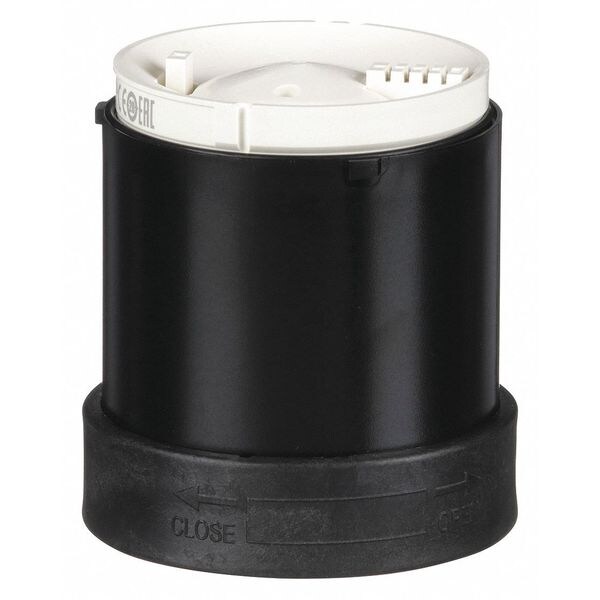

Tower Light Sounder Tier, 70mm, 12-48VDC
| Item | Tower Light Sounder Tier |
|---|---|
| Standards | CCC, CSA C22.2 No. 14, EAC, EN/IEC 60947-5-1, UL 508 |
| Voltage | 12/48V DC |
| Diameter | 70 mm |
| Housing Material | Polycarbonate, ABS |
| Current Drawn | 0.02 A |
| Includes | Not Applicable |
| Height | 2-1/2 in |
| Color | Black |
| For Use With | Harmony (R) XVB Tower Lights |
| Operating Temp. | -13 to 122 deg F |
| Sound Level | 75dB to 85dB |
| Sound Modes | Pulse, Continuous |
| Watts | 0.24 to 0.96 |
| Tower Light Series | XVB |
| NEMA Rating | NEMA 4X |
| Overall Height | 2-1/2 in |
| Wattage | 0 W |
| Lamp Watts | 0.24 to 0.96 |
| Overall Length | Not Applicable |
| For Location | Indoor |
| Sound Volume - Maximum | 90 dB |
| Overall Diameter | 2-3/4 in |
| Sound Operating Mode | Intermittent |
| Number of Sound Patterns | 2 |
| For Hazardous Location | Not Applicable |
| Sound Volume - Minimum | 70 dB |
| Operating Temperature - Maximum | 50 deg C |
| Operating Temperature - Minimum | -25 deg C |
| Sound Style | Buzzer |
| Operating Current | 0.015 A |
| Overall Width | Not Applicable |
| Compatible Series | XVB |
| Volume Selection | Selectable Volume |
| Housing Color | Black |
| IP Rating | IP65, IP66 |
| Country of Origin (subject to change) | Indonesia |
| Package Quantity | 1 |
