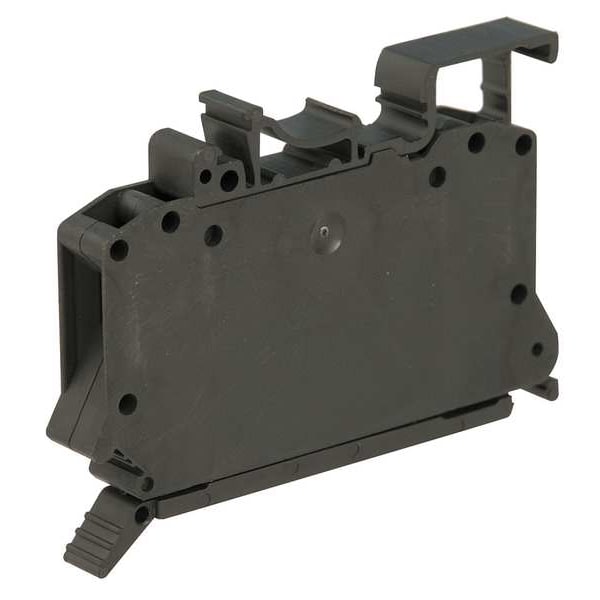

Trmnl Blk, Screw Clmp Tech Fused Blk
| Item | Fused Terminal Block |
|---|---|
| Amps | 10 |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 26 AWG |
| Voltage | 500 V |
| Number of Poles | 1 |
| Number of Connections | 2 |
| Terminal Type | Lever-Type Fuse, No Lamp |
| Temp. Range | -76 to 266 deg F |
| Mounting Type | DIN |
| Pieces per Foot | 30 |
| Block Material | Polyamide 6/6 |
| Color | Black |
| Connection Type | Screw Clamp |
| Depth | 3.11 in |
| Description/Special Features | Accepts 1/4 in X 1-1/4 in Glass or Ceramic Fuse |
| Channel Size | 35mm |
| Height | 2.38 in |
| Standards | CSA Certified, CURus, EAC |
| Width | 0.4 in |
| Length | 79 mm |
| Material | polyamide 6/6 insulating case |
| Number of Tiers | 2 |
| For Minimum Wire Size | 26 AWG |
| Minimum Operating Temperature | -40 deg F |
| Current | 10 A |
| For Maximum Wire Size | 8 AWG |
| Strip Length | 11/32 in |
| Housing Color | Black |
| Housing Material | Polyamide 6/6 |
| Termination Style | Screw |
| End Barrier Compatibility | Not Applicable |
| Overall Length | 3.11 in |
| Torque | 7 in-lb |
| Overall Depth | 3.11 in |
| Special Features | Accepts 1/4 in X 1-1/4 in Glass or Ceramic Fuse |
| Termination Screw Size | M3 |
| RoHS Compliant | Yes |
| For Conductor Material | Copper |
| Maximum Operating Temperature | 266 deg F |
| Terminal Block Type | Disconnect |
| UL 94 Flammability Rating | V-0 |
| Circuit Protection Type | Fuse |
| For Channel Rail Size | 35 mm |
| Terminal Material | Copper |
| Maximum Voltage | 500 V AC |
| Overall Width | 0.4 in |
| For Conductor Type | Solid, Stranded |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4 |
| Range | Linergy |
| Dielectric Constant | 3.7 at 1 MHz |
| Tool Type | connection screwdriver || disconnection screwdriver |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30 |
| [Ue] Rated Operational Voltage | 500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA |
| Fuse Size | 6.3 mm x 32 mm |
| Flame Retardance | V0 0.8 mm UL 94 |
| Resistivity | 10000 Ω.cm IEC 60093 || 10000 Ω.cm VDE 0303-T30 |
| Line Rated Current | 10-10 A EN/IEC 60947-7-1 || 10-10 A cURus || 10-10 A CSA |
| Number Of Measurement Input | 0 |
| Terminal Block Level | 1 |
| Connections - Terminals | 1 x screw terminal upstream || 1 x screw terminal downstream |
| Product Certifications | CSA || EAC || cURus |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Nominal Cross Section | 16 mm² |
| Range Compatibility | Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys |
| Tightening Torque | 0.6-0.8 N.m |
| Number Of Terminals | 2 |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21 |
| Product Compatibility | Spacial enclosures |
| Mounting Mode | clip-on |
| Cable Cross Section | 0.2-4 mm², flexible without cable end || 0.2-4 mm², flexible with cable end || 0.5-16 mm², solid with cable end |
| Device Application | protection |
| Device Short Name | TRV |
| Product Or Component Type | terminal block |
| Surface Resistance | 1000 MOhm IEC 60093 || 1000 MOhm VDE 0303-T30 |
| Connection Position | sideways |
| Product Name | Linergy TR |
| Wire Stripping Length | 9 mm |
| Package Quantity | 1 |
