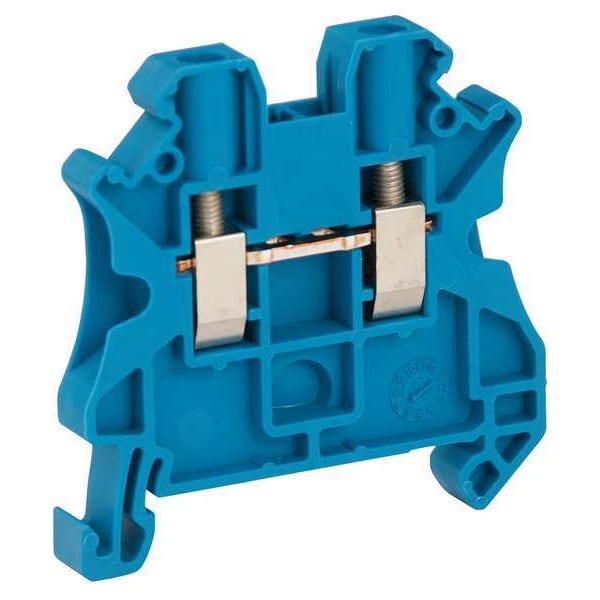

Trmnl Blk, Screw Clmp Tech Pssthrgh
| Item | Terminal Block |
|---|---|
| Amps | 30 |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 26 AWG |
| Voltage | 600 V |
| Number of Poles | 1 |
| Number of Connections | 2 |
| Terminal Type | Pass-Through |
| Pieces per Foot | 50 |
| Color | Blue |
| Width | 0.24 in |
| 2-Pole Jumpers | 23NY20 |
| Depth | 1.88 in |
| Mounting Type | DIN |
| End Barrier | Mfr. No. NSYTRAP22BL |
| Block Material | Polyamide 6/6 |
| Standards | ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, VDE |
| Channel Size | 35mm |
| Temp. Range | -76 to 266 deg F |
| Connection Type | Screw Clamp |
| Height | 1.87 in |
| 6-Pole Jumpers | Mfr. No. NSYTRAL45 |
| Length | 47.7 mm |
| Material | polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring |
| For Conductor Type | Solid, Stranded |
| Terminal Material | Copper |
| Torque | 7 in-lb |
| For Conductor Material | Copper |
| Current | 30 A |
| Housing Material | Polyamide 6/6 |
| For Minimum Wire Size | 26 AWG |
| UL 94 Flammability Rating | V-0 |
| RoHS Compliant | Yes |
| For Maximum Wire Size | 10 AWG |
| Circuit Protection Type | None |
| Minimum Operating Temperature | -40 deg F |
| Overall Width | 0.24 in |
| Overall Length | 1.88 in |
| Terminal Block Type | Pass-Through |
| Termination Style | Screw |
| Strip Length | 11/32 in |
| Overall Depth | 1.88 in |
| 2-Pole Jumper Compatibility | 23NY20 |
| Termination Screw Size | M3 |
| Maximum Voltage | 1,000 V AC |
| For Channel Rail Size | 35 mm |
| Number of Tiers | 2 |
| Maximum Operating Temperature | 266 deg F |
| Housing Color | Blue |
| Tool Type | connection screwdriver || disconnection screwdriver |
| Flame Retardance | V0 0.8 mm UL 94 |
| Dielectric Constant | 3.7 at 1 MHz |
| Product Compatibility | Spacial enclosures |
| Connections - Terminals | 1 x screw terminal upstream M3) || 1 x screw terminal downstream M3) |
| Mounting Mode | clip-on |
| Terminal Block Level | 1 |
| Range Compatibility | Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys |
| Device Short Name | TRV |
| Surface Resistance | 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30 |
| Cable Cross Section | 0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.2-6 mm², solid without cable end || 0.2-6 mm², flexible without cable end |
| Nominal Cross Section | 4 mm² |
| [Ue] Rated Operational Voltage | 1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4 |
| Line Rated Current | 32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A ATEX Exe II Ex II 2 GD || 30-30 A cURus |
| Number Of Terminals | 2 |
| Wire Stripping Length | 9 mm |
| Resistivity | 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30 |
| Product Name | Linergy TR |
| Connection Position | sideways |
| Number Of Measurement Input | 2 |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21 |
| Product Or Component Type | terminal block |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30 |
| Range | Linergy |
| Accessory / Separate Part Category | connection accessory |
| Product Certifications | DNV || VDE || cURus || ATEX || GL || CSA || IEC-Ex || EAC || LR |
| Tightening Torque | 0.6-0.8 N.m |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Package Quantity | 1 |
