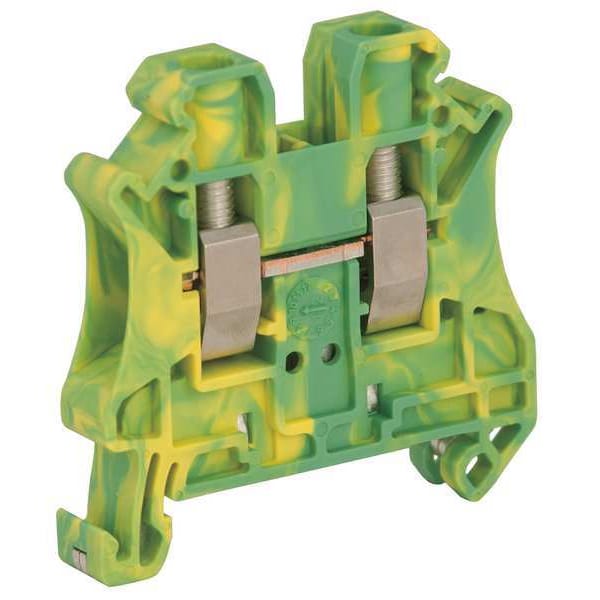

Trnnl Blk, Screw Clmp Tech Grndg Blk
| Item | Terminal Block |
|---|---|
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 24 AWG |
| Number of Poles | 1 |
| Number of Connections | 2 |
| Terminal Type | Grounding |
| 2-Pole Jumpers | 23NY21 |
| Mounting Type | DIN |
| Connection Type | Screw Clamp |
| Temp. Range | -76 to 266 deg F |
| Width | 0.32 in |
| Standards | ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, VDE |
| Channel Size | 35mm |
| Depth | 1.88 in |
| End Barrier | 23NY30 |
| Color | Green, Yellow |
| Pieces per Foot | 37 |
| Height | 1.87 in |
| Block Material | Polyamide 6/6 |
| Length | 47.7 mm |
| Material | polyamide 6/6 insulating case |
| Termination Style | Screw |
| RoHS Compliant | Yes |
| Torque | 16 in-lb |
| Terminal Material | Copper |
| Overall Depth | 1.88 in |
| Strip Length | 3/8 in |
| For Maximum Wire Size | 8 AWG |
| For Minimum Wire Size | 24 AWG |
| Minimum Operating Temperature | -40 deg F |
| Overall Width | 0.32 in |
| Maximum Operating Temperature | 266 deg F |
| Housing Material | Polyamide 6/6 |
| Circuit Protection Type | None |
| For Channel Rail Size | 35 mm |
| UL 94 Flammability Rating | V-0 |
| For Conductor Type | Solid, Stranded |
| For Conductor Material | Copper |
| Number of Tiers | 2 |
| Terminal Block Type | Grounding |
| Overall Length | 1.88 in |
| 2-Pole Jumper Compatibility | 23NY21 |
| End Barrier Compatibility | 23NY25 |
| Termination Screw Size | M4 |
| Compatible Manufacturer Model Number | NSYSDR200BD, NSYTRAAB35, NSYTRAABV35, NSYTRAATM1, NSYTRAATP1, NSYTRAC22, NSYTRAC22BL, NSYTRACS6, NSYTRAFT, NSYTRAL610, NSYTRAL62, NSYTRAL63, NSYTRAL65, NSYTRAP22, NSYTRAP22BL, NSYTRASB4 |
| Housing Color | Green, Yellow |
| Resistivity | 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30 |
| Wire Stripping Length | 10 mm |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21 |
| Product Name | Linergy TR |
| Product Certifications | ATEX || cURus || VDE || EAC || IEC-Ex || DNV || CSA || LR || GL |
| Range Compatibility | Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys |
| Number Of Measurement Input | 2 |
| Tool Type | connection screwdriver || disconnection screwdriver |
| Flame Retardance | V0 0.8 mm UL 94 |
| Terminal Block Level | 1 |
| Device Short Name | TRV |
| Number Of Terminals | 2 |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Product Compatibility | Spacial enclosures |
| Mounting Mode | clip-on |
| Tightening Torque | 1.5-1.8 N.m |
| Product Or Component Type | terminal block |
| Connection Position | sideways |
| Nominal Cross Section | 6 mm² |
| Dielectric Constant | 3.7 at 1 MHz |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30 |
| Connections - Terminals | 1 x screw terminal upstream || 1 x screw terminal downstream |
| Cable Cross Section | 0.2-10 mm², solid || 0.2-10 mm², flexible without cable end || 0.2-6 mm², flexible with cable end |
| Range | Linergy |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4 |
| Surface Resistance | 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30 |
| Package Quantity | 1 |
