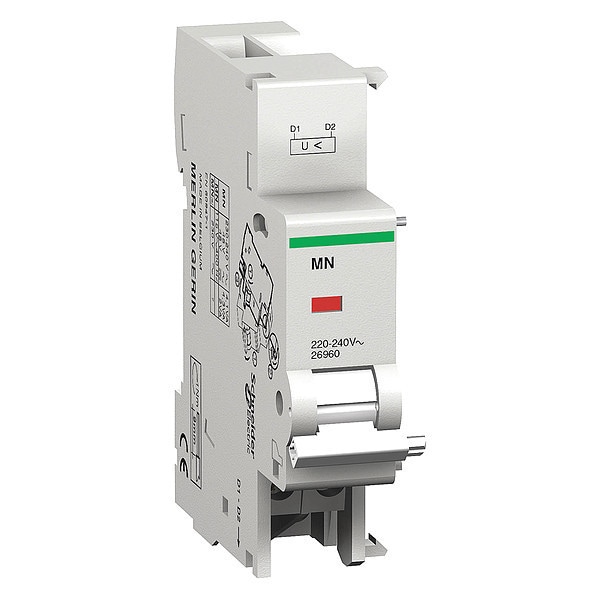

Undervoltage Release, Multi 9 Circuit Breakers, 120V AC/24V DC, 0 Poles
| Item | Undervoltage Release |
|---|---|
| For Use With | Multi 9 Circuit Breakers |
| Voltage | 120V AC/24V DC |
| Number of Poles | 0 |
| Height | 82.5 mm |
| Standards | CSA Certified, EN 60947-2, EN/IEC 60947-1, PCT, UL Listed, UR |
| Width | 18 mm |
| Ambient Air Temperature For Operation | -25-50 2°C |
| Local Signalling | action indicator |
| Product Certifications | UR || CSA || PCT || UL |
| Tightening Torque | 1-1 N.m bottom |
| Wire Stripping Length | 9 mm bottom |
| Ambient Air Temperature For Storage | -40-85 2°C |
| Range Compatibility | Multi9 (Multi9 C60) C60BP || Multi9 (Multi9 C60) C60BPR || Multi9 (Multi9 C60) C60SP || Multi9 (Multi9 GFP) GFP || Multi9 (Multi9 C60H-DC) C60H-DC |
| 9 Mm Pitches | 2 |
| Mounting Mode | fixed |
| Device Short Name | MN |
| Connections - Terminals | clamp terminal bottom) - 1 2.5-2.5 mm2² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm2² AWG 16) - rigid |
| Depth | 68 mm |
| Pollution Degree | 3 |
| Range | Multi9 |
| Control Type | standard |
| Mounting Support | DIN rail |
| Product Or Component Type | undervoltage release |
| Comb Busbar And Distribution Block Compatibility | top YES |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz || 24 V DC |
| Package Quantity | 1 |
