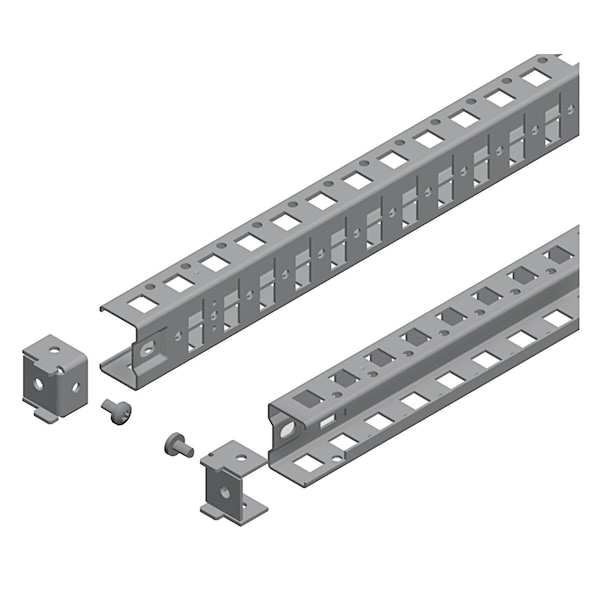

Universal cross rail, 600 mm. H x 40 mm. W x 27 mm. L, Steel
| Item | Universal cross rail |
|---|---|
| Dimension | 600 mm. H x 40 mm. W x 27 mm. L |
| Height | 600 mm |
| Width | 40 mm |
| Material | Steel |
| Finish | Galvanized |
| Depth | 27 mm |
| Length | 27 mm |
| Thickness | 1.5 mm |
| Mounting Location | on structure of enclosure, between cross rails |
| Device Composition | fixing elements, 2 cross rails, 4 supports |
| Fixing Mode | by screws |
| Number of Horizontal Rows | 1 |
| Maximum Load | 50 kg |
| Device Application | multi-purpose |
| Range | Spacial |
| Mounting Support | adaptation profile, on SM enclosures |
| Adjustment | adjustable with a pitch of 25 mm |
| Range Compatibility | Spacial Spacial SF, Spacial Spacial SM, Spacial Spacial SFX, Spacial Spacial SMX |
| Package Quantity | 1 |
