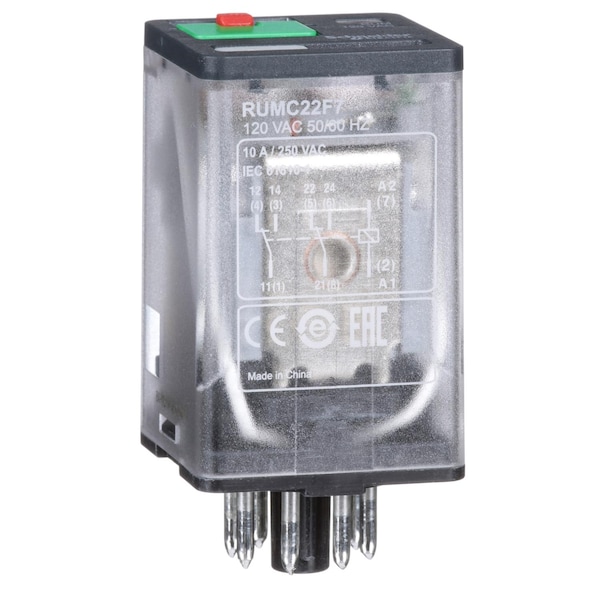

Relé universal con conexión de enchufe, 120 VCA, bobina de 120 VCA, 2 contactos normalmente abiertos/cerrados.
| Item | Universal Plug-In Relay,120 VAC |
|---|---|
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 10A @ 250V AC |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Contact Form - Relay | 2 C/O |
| Power Consumption - Relay | 3 VA |
| Contact Material | AgNi |
| Features | Lockable Test Button; Status LED |
| Standards | EN/IEC 61810-1; UL 508 C22.2 No 14; EAC |
| Operating Temp. Range | -40-55°C |
| Switching Power | Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V |
| Operating Time | 20 ms at nominal voltage |
| Protection Category | RT I |
| Switching Voltage | 250 V IEC |
| Dielectric Strength | 1500 V AC between contacts with micro disconnection; 2500 V AC between coil and contact with reinforced; 2000 V AC between poles with basic |
| Current Rating | 10 A at 277 V AC conforming to UL; 10 A at 30 V DC conforming to UL; 10 A at 30 V DC conforming to CSA; 5 A at 250 V AC (NC) conforming to IEC; 5 A at 28 V DC (NC) conforming to IEC; 10 A at 250 V AC (NO) conforming to IEC; 10 A at 28 V DC (NO) conforming to IEC; 10 A at 277 V AC conforming to CSA |
| Coil Resistance | 1,700 ohms |
| Series | RUM; Universal |
| Pin Shape | cylindrical |
| Package Quantity | 1 |
