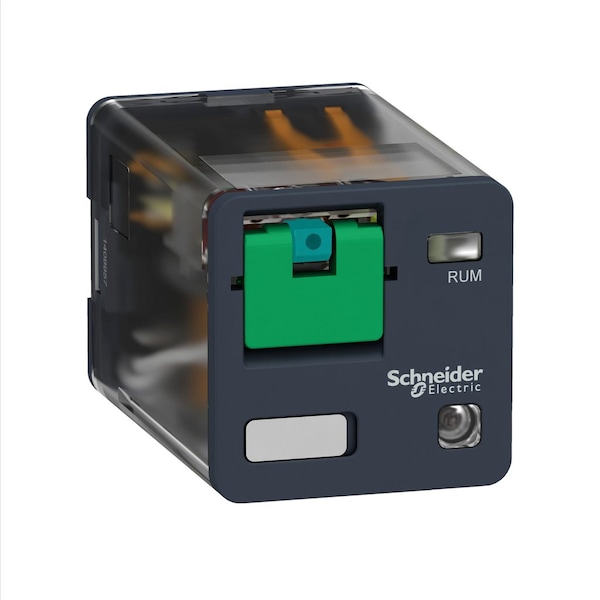

Relé enchufable universal - Zelio RUM - 3, 12V DC bobina volts, 3 N/A
| Item | Universal plug-in relay - Zelio RUM - 3 |
|---|---|
| Coil Volts | 12V DC |
| AC Contact Rating - Relay | 10A @ 250V AC |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Contact Form - Relay | 3 C/O |
| Power Consumption - Relay | 1.4 W |
| Contact Material | AgNi |
| Features | Lockable Test Button; Status LED |
| Standards | EN/IEC 61810-1; UL 508; CSA C22.2 No 14; EAC |
| Operating Temp. Range | -40-55°C |
| Dielectric Strength | 1500 V AC between contacts with micro disconnection; 2500 V AC between coil and contact with reinforced; 2000 V AC between poles with basic |
| Coil Resistance | 120 ohms |
| Pin Shape | cylindrical |
| Current Rating | 10 A at 277 V AC conforming to UL; 10 A at 30 V DC conforming to UL; 10 A at 277 V AC (same polarity) conforming to CSA; 10 A at 30 V DC conforming to CSA; 5 A at 250 V AC (NC) conforming to IEC; 5 A at 28 V DC (NC) conforming to IEC; 10 A at 250 V AC (NO) conforming to IEC; 10 A at 28 V DC (NO) conforming to IEC |
| Series | RUM; Universal |
| Operating Time | 20 ms at nominal voltage |
| Switching Voltage | 250 V IEC |
| Switching Power | Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V |
| Protection Category | RT I |
| Electrical Durability | 100000 cycles resistive |
| Status Led | with |
| Maximum Switching Capacity | 2500 VA/280 W |
| Load Current | 10 A 250 V AC, 10 A 28 V DC |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| [Ui] Rated Insulation Voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Ambient Air Temperature For Operation | -40-55°C |
| Operating Position | any position |
| Test Levels | level A group mounting |
| Device Presentation | complete product |
| Rated Operational Voltage Limits | 9.6...13.2 V DC |
| [Ie] Rated Operational Current | 10 A at 277 V AC conforming to UL, 10 A at 30 V DC conforming to UL, 10 A at 277 V AC (same polarity) conforming to CSA, 10 A at 30 V DC conforming to CSA, 5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC, 10 A at 28 V DC (NO) conforming to IEC |
| Pollution Degree | 2 |
| Shock Resistance | 10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27 |
| [Uc] Control Circuit Voltage | 12 V DC |
| Drop-Out Voltage Threshold | >= 0.1 Uc DC |
| Control Type | Lockable test button |
| Ip Degree of Protection | IP40 |
| Utilisation Coefficient | 0.2 |
| Device Short Name | RUM |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV 1.2/50µs) |
| Vibration Resistance | 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating |
| [Ithe] Conventional Enclosed Thermal Current | 10 A -40-55°C |
| Product or Component Type | plug-in relay |
| Ambient Air Temperature For Storage | -40-85°C |
| Operating Rate | <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load |
| Mechanical Durability | 5,000,000 cycle |
| Average Resistance | 120 Ohm 20°C +/- 15 % |
| Series Name | Universal |
| Range of Product | Harmony Electromechanical Relays |
| Package Quantity | 1 |
