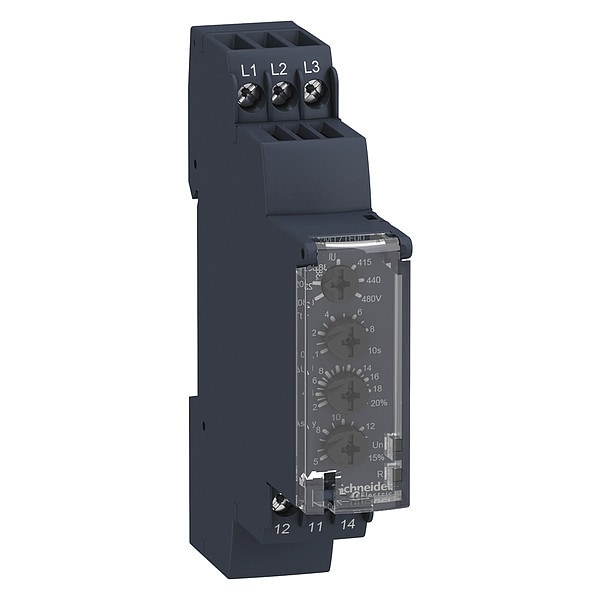

Relevador de control de voltaje, Harmony Control Relays, 5A, 1NA, 208...480V AC
| Coil Volts | 250VAC/DC |
|---|---|
| Item | 3 Phase Relay 250V 5Amp Rm17 |
| Standards | EN/IEC 60255-1 |
| Response Time | < 200 ms (in the event of a fault) |
| Measurement Accuracy | +/- 10 % of the full scale value |
| Hysteresis | 2-2 % |
| Electromagnetic Compatibility | emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2 |
| Relay Name | RM17UB3 |
| Voltage Detection Threshold | 183 V |
| Ambient Air Temperature For Operation | -20-50°C |
| Dielectric Test Voltage | 2 kV AC 50 Hz, 1 min |
| Functionality | overvoltage and undervoltage detection |
| Relay Monitored Parameters | overvoltage and undervoltage between phases |
| Electrical Durability | 100000 cycles |
| Contacts Type And Composition | O, 1 C |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 5 gn IEC 60068-2-27 |
| Minimum Switching Current | 10 mA 5 V DC |
| Output Contacts | 1 C/O |
| Quality Labels | CE |
| Relay Type | control |
| Operating Position | any position without derating |
| Maximum Switching Voltage | 250 V AC/DC |
| [Ui] Rated Insulation Voltage | 400 V IEC 60664-1 |
| Insulation Resistance | > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1 |
| Ip Degree Of Protection | IP20 IEC 60529 terminals) || IP30 IEC 60529 casing) |
| Reset Time | 1500 ms time delay |
| Supply Voltage Limits | 183-528 V AC |
| Power Consumption In Va | 0-22 VA 400 V AC 50 Hz |
| Utilisation Category | AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1 |
| Product Specific Application | for 3-phase supply |
| Product Certifications | GOST || UL || GL || C-tick || CSA |
| Vibration Resistance | 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1 |
| Mounting Support | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Compatibility Code | RM17 |
| Operating Rate | <= 360 operations/hour full load |
| Mechanical Durability | 30000000 cycles |
| Relative Humidity | 95-95 % 55-55°C IEC 60068-2-30 |
| Non-Dissipating Shock Wave | 4 kV |
| Measurement Error | < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation |
| Overvoltage Category | III IEC 60664-1 |
| Local Signalling | for power ON LED (green) || for relay ON LED (yellow) |
| Product Or Component Type | control relay |
| Measurement Range | 183...528 V voltage AC |
| Connections - Terminals | screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Width | 17.5 mm |
| Nominal Output Current | 5 A |
| Switching Capacity In Va | 1,250 VA |
| [Us] Rated Supply Voltage | 208...480 V AC 50/60 Hz +/- 10 % |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Maximum Measuring Cycle | 150 msec |
| Control Circuit Frequency | 50...60 Hz +/- 10 % |
| Repeat Accuracy | +/- 0.5 % input and measurement circuit || +/- 1 % time delay |
| Run-Up Delay At Power-Up | 650 msec |
| Pollution Degree | 3 IEC 60664-1 |
| Time Delay Type | adjustable 0.3...30 s, 0 + 10 % on crossing the threshold |
| Housing Material | self-extinguishing plastic |
| Maximum Switching Current | 5 A AC/DC |
| Threshold Adjustment Voltage | 2...20 % of Un selected, -2...-17 % in the range 220 V AC, +2...+10 % in the range 480 V AC, -2...-12 % in the range 208 V AC |
| Control Type | without test button |
| Range of Product | Harmony Control Relays |
| Package Quantity | 1 |
