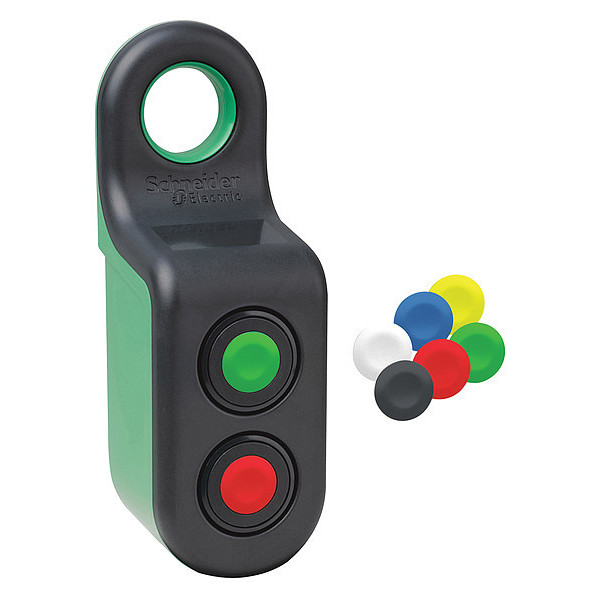

WirelessHandyBoxKit, 0.87inMastDia, Green
| Item | Wireless Handy Box |
|---|---|
| Material | Plastic |
| Color | Green |
| Mast Diameter | 0.87" |
| Standards | EN, IEC 60947-1, No 14 UL 508, IEC 60947-5-1, CSA, EN C22.2 |
| Overall Length | 6.42" |
| Power Rating | 3mW |
| For Use With | ZBRT1, ZBRT2 Wireless Transmitter, Mobile and Static Applications |
| Features | Wireless, No Battery Needed, Handy Box With 1 Double and 1 Simple Action Button |
| Compatible with Manufacturer Model Number | ZBRT1, ZBRT2 |
| Compatible with Series | XB5R |
| Compatible Product Type | Mobile and Static Applications, Wireless Transmitters |
| Fixing Collar Material | plastic |
| Mechanical Robustness | free fall resistance 1000 mm EN/IEC 60068-2-32 |
| Shock Resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Response Time | < 2 ms |
| Acquisition Time | 2 ms |
| Operator Profile | flush |
| Mechanical Durability | 400,000 cycle |
| Contact Operation | 1 |
| Bezel Material | Plastic |
| Ambient Air Temperature For Storage | -40-70 °C |
| Communication Port Protocol | Zigbee green power 2.4 GHz |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Product Or Component Type | wireless and batteryless transmitter |
| Electromagnetic Compatibility | electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80...3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000...6000 MHz, distance = 20 m) IEC 61000-4-3 |
| Operating Force | 25 N C/O changing electrical state |
| Ip Degree Of Protection | IP65 IEC 60529 front face) || IP65 UL Type 12 front face) |
| Emission Power | 3 mW |
| Kit Composition | 1 transmitter || 1 set of caps || 1 handy box || 2 push-button head 22 mm || 2 fixing collars |
| Operator Additional Information | set of caps |
| Shape Of Signaling Unit Head | round |
| Ambient Air Temperature For Operation | -25-55 °C |
| Vibration Resistance | 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6 |
| Type Of Operator | spring return push-button with transmitter |
| Relative Humidity | 95-95 % 70-70 °C without condensation |
| Maximum Sensing Distance | 100 m in free field || 25 m transmitter in the handy box and receiver in a metal enclosure || 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna |
| Mounting Diameter | 22 mm |
| Operating Travel | 4.3 mm total travel) |
| Product Certifications | CSA || UL || CCC || C-tick || BT 2006/95/EC || EAC |
| Compatible Manufacturer Part Number | ZBRT1, ZBRT2 |
| Compatible Manufacturer Model Number | ZBRT1, ZBRT2 |
| Compatible with Mfr. Model No. | ZBRT1, ZBRT2 |
| For Use with Mfr Model Number | ZBRT1, ZBRT2 |
| For Use With Mfr. Model Number | ZBRT1, ZBRT2 |
| Country of Origin (subject to change) | France |
| Package Quantity | 1 |
