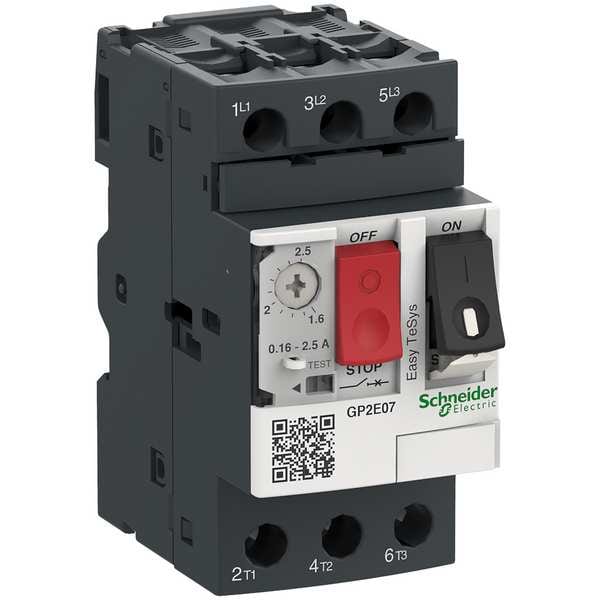

Arrancador manual de motor, IEC, botón pulsador, térmico.
| Operator | Push Button |
|---|---|
| NEMA Size | Not Applicable |
| Enclosure NEMA Rating | 4, 3R |
| Number of Required Thermals | Not Applicable |
| Depth | 3.09 in |
| Amps AC | 2.5 A |
| Height | 3-1/2 in |
| Item | Manual Motor Starter |
| Width | 1.77 in |
| Starter Type | Manual |
| Number of Poles | 3 |
| Max. Voltage | 690 V AC |
| HP @ 3 Phase - 480V | 1 1/2 hp |
| HP @ 3 Phase - 240V | 1/2 hp |
| Pilot Light | No |
| Description/Special Features | Thermal-Magnetic Trip Unit Technology |
| HP @ 3 Phase - 460-575V | 1 hp |
| Phase Loss Sensitivity | Yes |
| HP @ 1 Phase - 230V | 1/6 hp |
| Standards | cUL, EN/IEC 60947-2, EN/IEC 60947-4-1, RoHS, UL 60947-4-1 |
| HP @ 3 Phase - 575V | 1 1/2 hp |
| Overall Width | 1.77 in |
| Overall Height | 3-1/2 in |
| Fixing Mode | 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate) |
| Product Or Component Type | motor controller |
| Trip Unit Technology | thermal-magnetic |
| Trip Unit Rating | 1.6 to 2.5 A |
| Rated Duty | continuous IEC 60947-4-1 |
| Magnetic Tripping Current | 33.5-33.5 A |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| Network Frequency | 50/60 Hz IEC 60947-4-1 |
| Network Type | AC |
| Line Rated Current | 2.5 A |
| Mechanical Durability | 100,000 cycle |
| Connections - Terminals | screw clamp terminals 1-6 mm² - solid || screw clamp terminals 1.5-6 mm² - flexible without cable end || screw clamp terminals 1-4 mm² - flexible with cable end || screw clamp terminals AWG 18 to AWG 8) |
| Utilisation Category | AC-3 IEC 60947-4-1 || category A IEC 60947-2 |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Tightening Torque | 1.7 N.m screw clamp terminals |
| [Ith] Conventional Free Air Thermal Current | 2.5 A IEC 60947-4-1 |
| Operating Position | any position |
| Ambient Air Temperature For Storage | -40-80°C |
| Suitability For Isolation | yes IEC 60947-1 |
| Poles Description | 3P |
| Power Dissipation Per Pole | 2.5 W |
| Ik Degree Of Protection | IK04 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Product Certifications | cUL |
| Device Short Name | GP2E |
| Electrical Durability | 100000 cycles AC-3 440 V |
| Range | Easy TeSys |
| [Ics] Rated Service Short-Circuit Breaking Capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2 |
| Fire Resistance | 960°C IEC 60695-2-1 |
| Control Type | push-button |
| Ambient Air Temperature For Operation | -20-60°C |
| Maximum Operating Rate | 25 cyc/h |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Product Name | Easy TeSys GP2E |
| Device Application | motor |
| Breaking Capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| Operating Altitude | 6,561.68 ft |
| Protective Treatment | TH |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Three Phase - 208V AC | 0.5 HP |
| Includes Pilot Light | No |
| Minimum Operating Temperature | -4 deg F |
| Series | TeSys Easy |
| Frequency | 50/60 Hz |
| Mounting Style | DIN Rail |
| Starter Style | IEC |
| Current AC | 2.5 A |
| Overall Depth | 3.09 in |
| Resistance Properties | Fire Resistant |
| Terminal Connection Type | Screw Clamp Terminals |
| Minimum Overload Relay Current Setting | 1.6 A |
| Maximum Overload Relay Current Setting | 2.5 A |
| Mounting Hole Distance - Width | 1.38 in |
| Overload Protection Type | Thermal |
| Phase | Three |
| IP Rating | IP20 |
| Mechanical Operating Durability | 100,000 |
| Horsepower @ Single Phase - 240V AC | 0.1667 HP |
| Horsepower @ Three Phase - 480V AC | 1 HP |
| Horsepower @ Three Phase - 600V AC | 1.5 HP |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 240V AC | 0.5 HP |
| Mounting Hole Distance - Height | 1.97 in |
| Maximum Operating Temperature | 140 deg F |
| Electrical Operating Durability | 100,000 |
| Rated Service Short-Circuit Breaking Capacity | 100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 100% 500 V AC 50/60 Hz IEC 60947-2; 75% 690 V AC 50/60 Hz IEC 60947-2 |
| Thermal Protection Adjustment Range | 1.6 to 2.5 A |
| Package Quantity | 1 |
