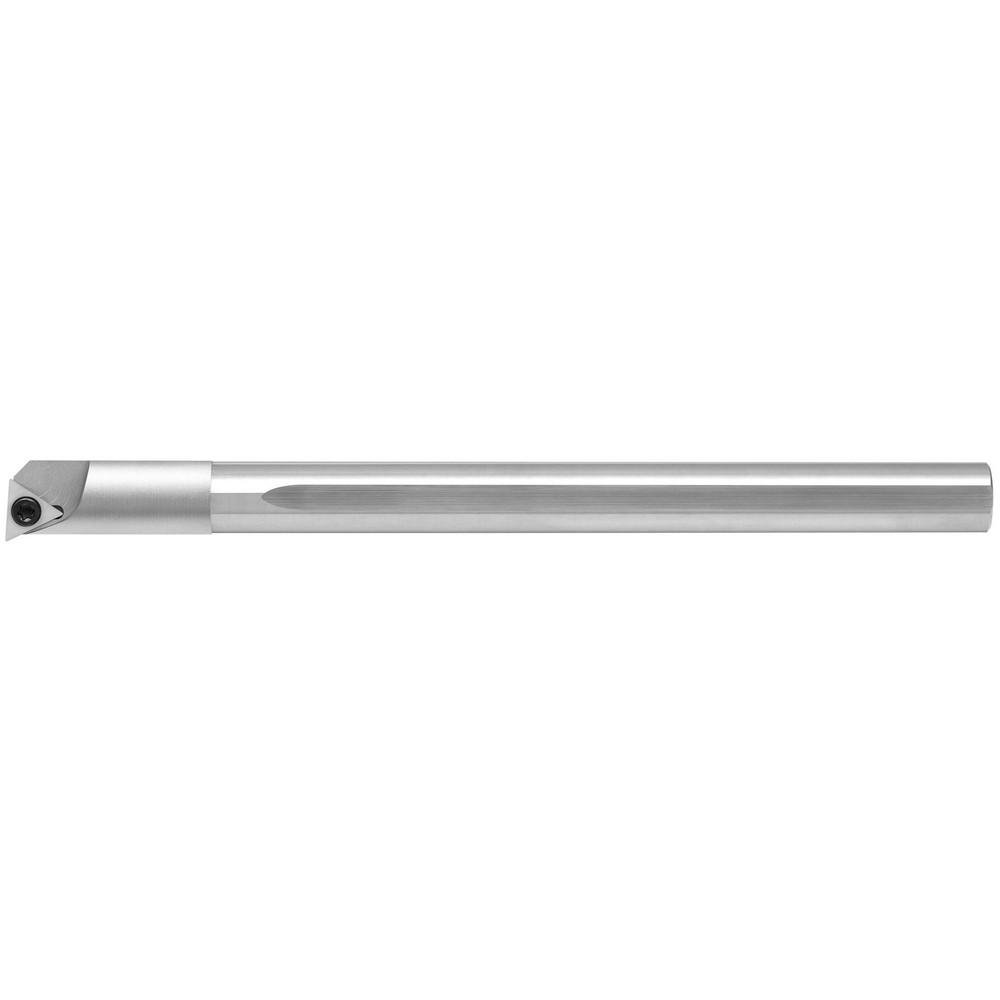

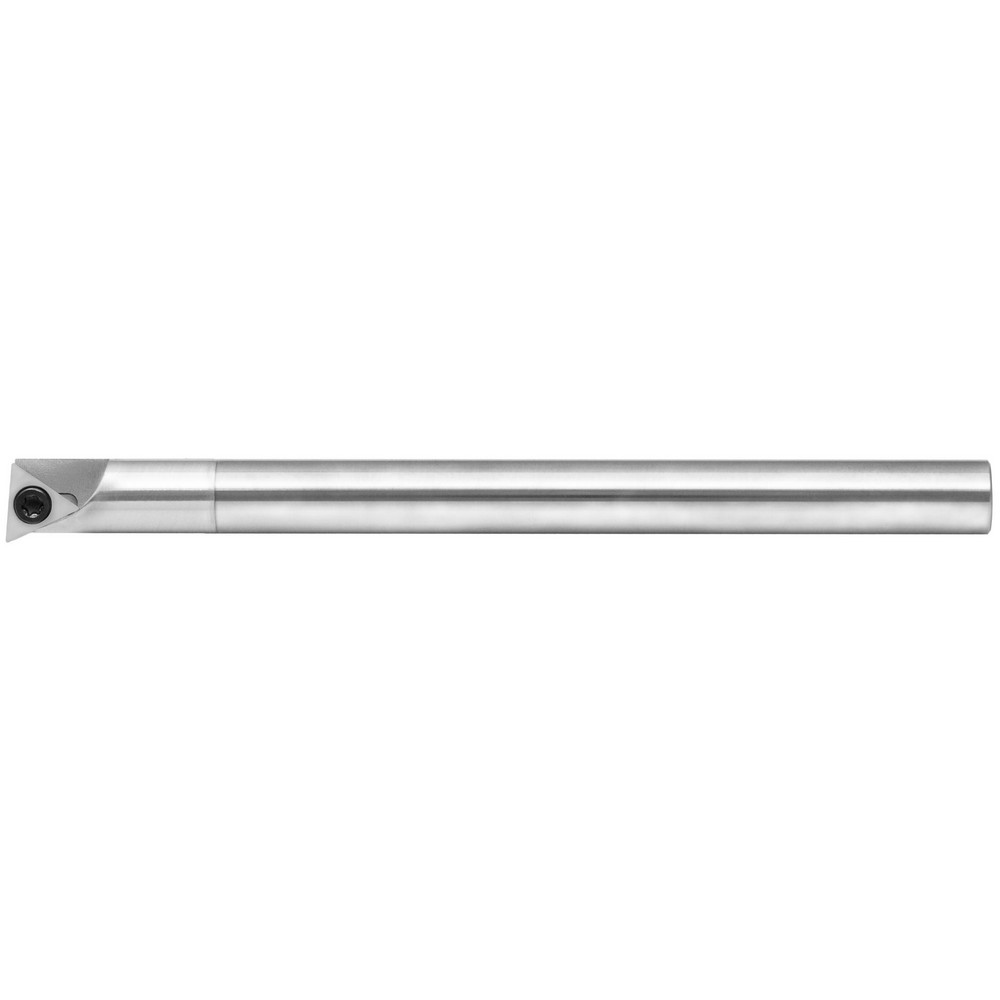

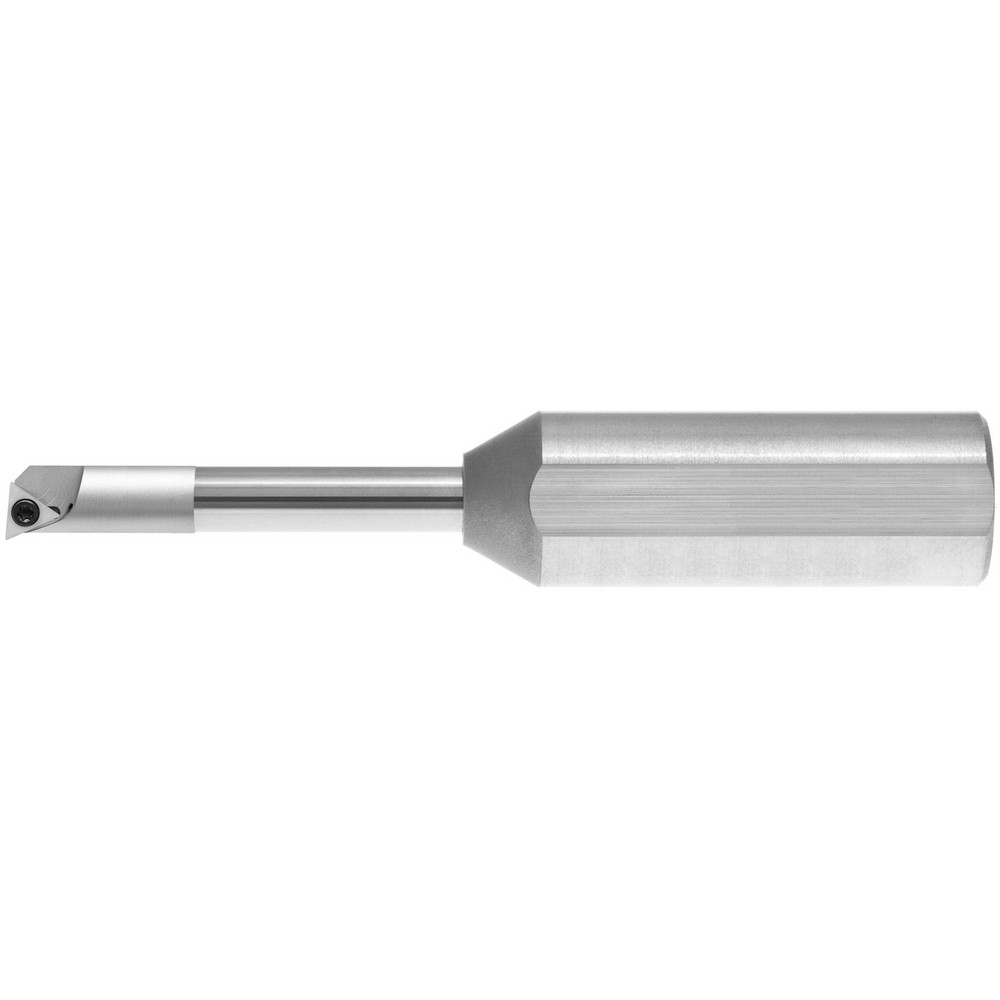

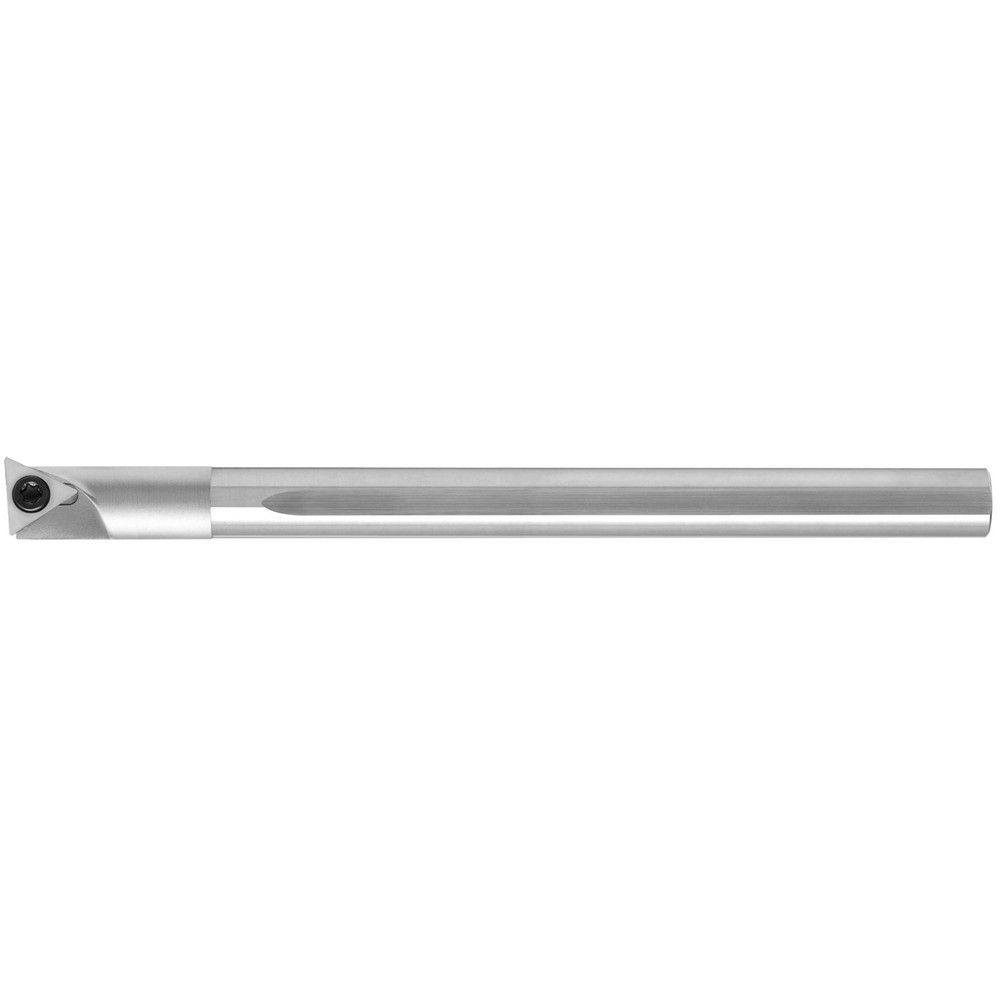

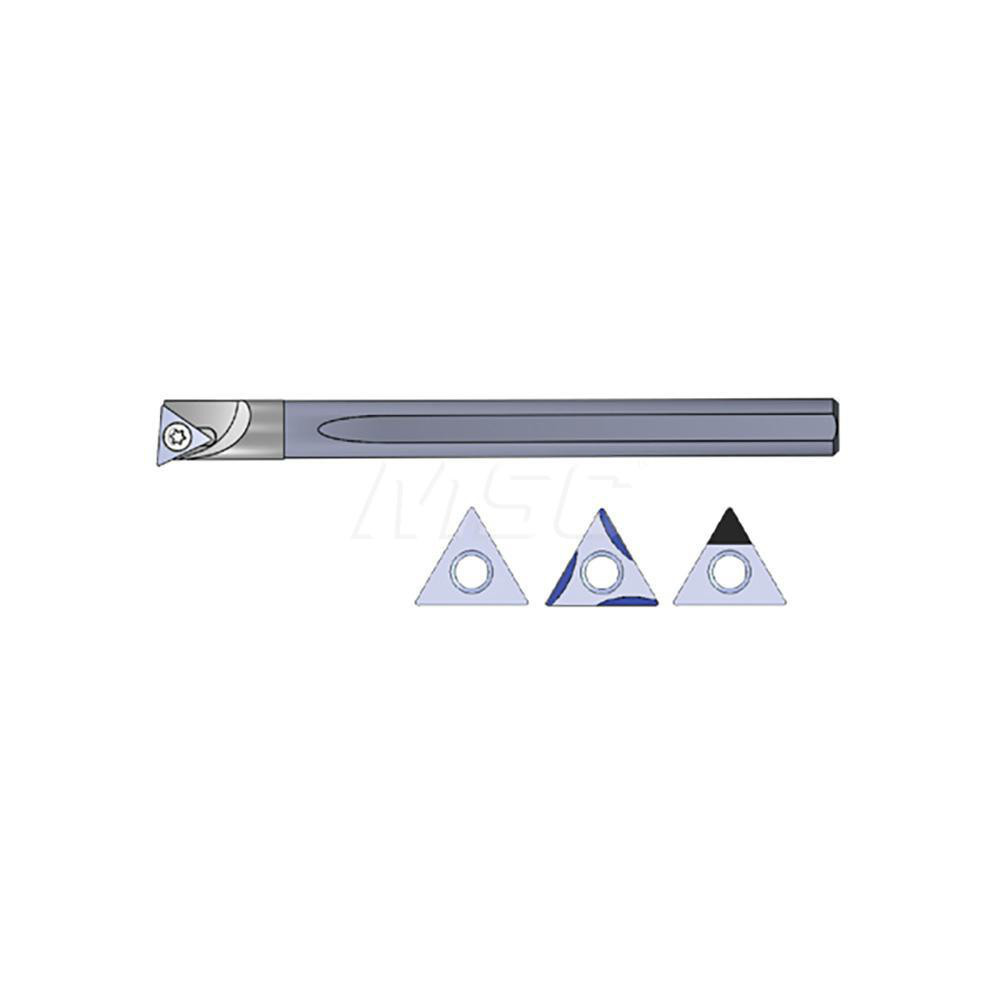

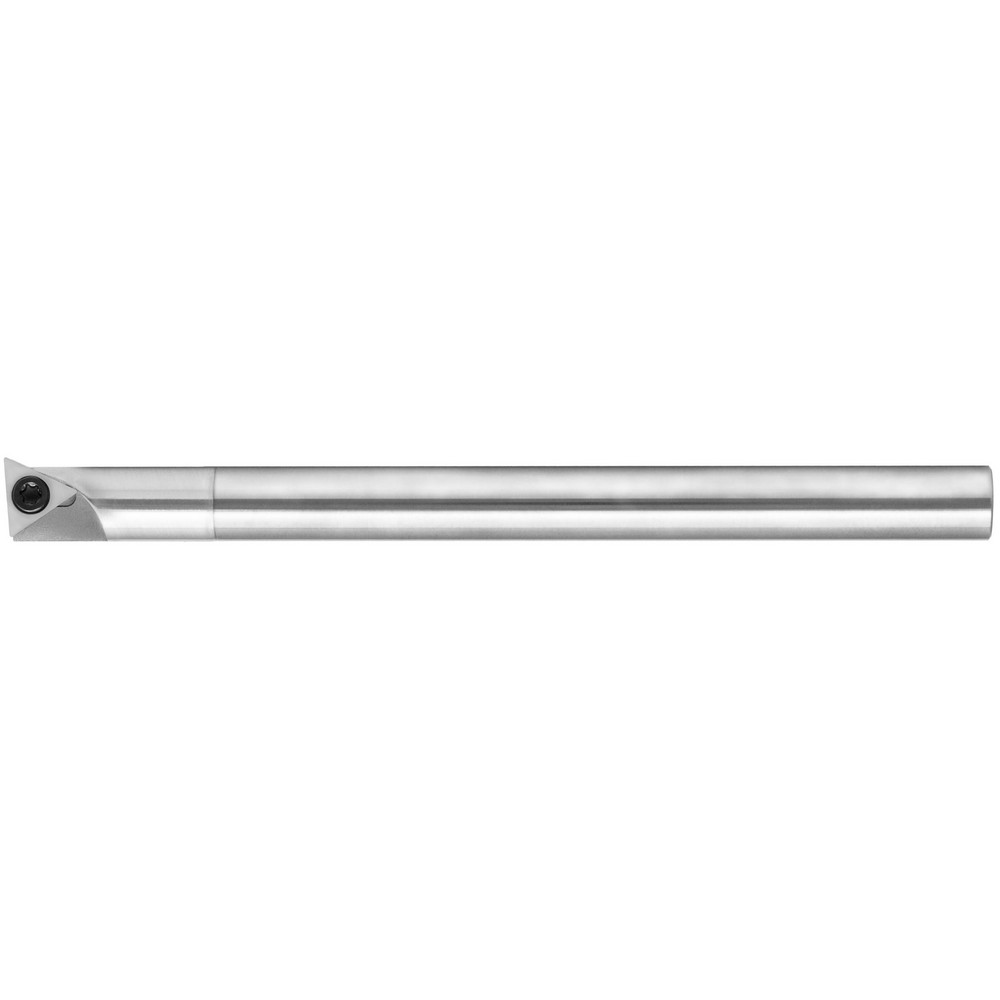

3.6000" OAL, Screw, Uses ATD5.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.3630 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 2.1900 |
| Toolholder Style | ACBT |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.3630 |
| Tool Material | Steel (Shank); Steel (Head); Solid Carbide (Body) |
| Insert Compatibility | ATD5.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 3.6000 |
| Compatible Insert Size Code | 5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Lead Angle | 0 |
| Insert Inscribed Circle (Decimal Inch) | 0.1600 |
| Compatible Insert Thickness (Decimal Inch) | 0.4700 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1920 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0470 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 44040343 |
