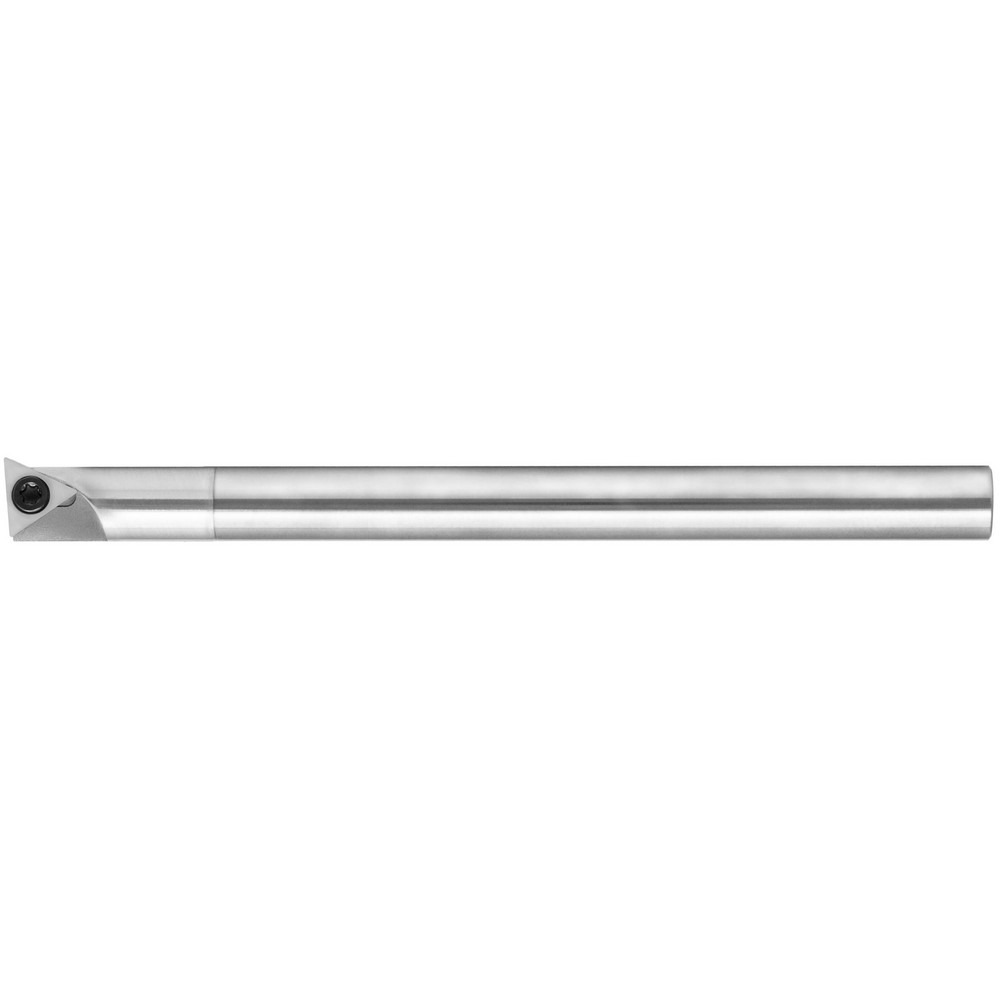

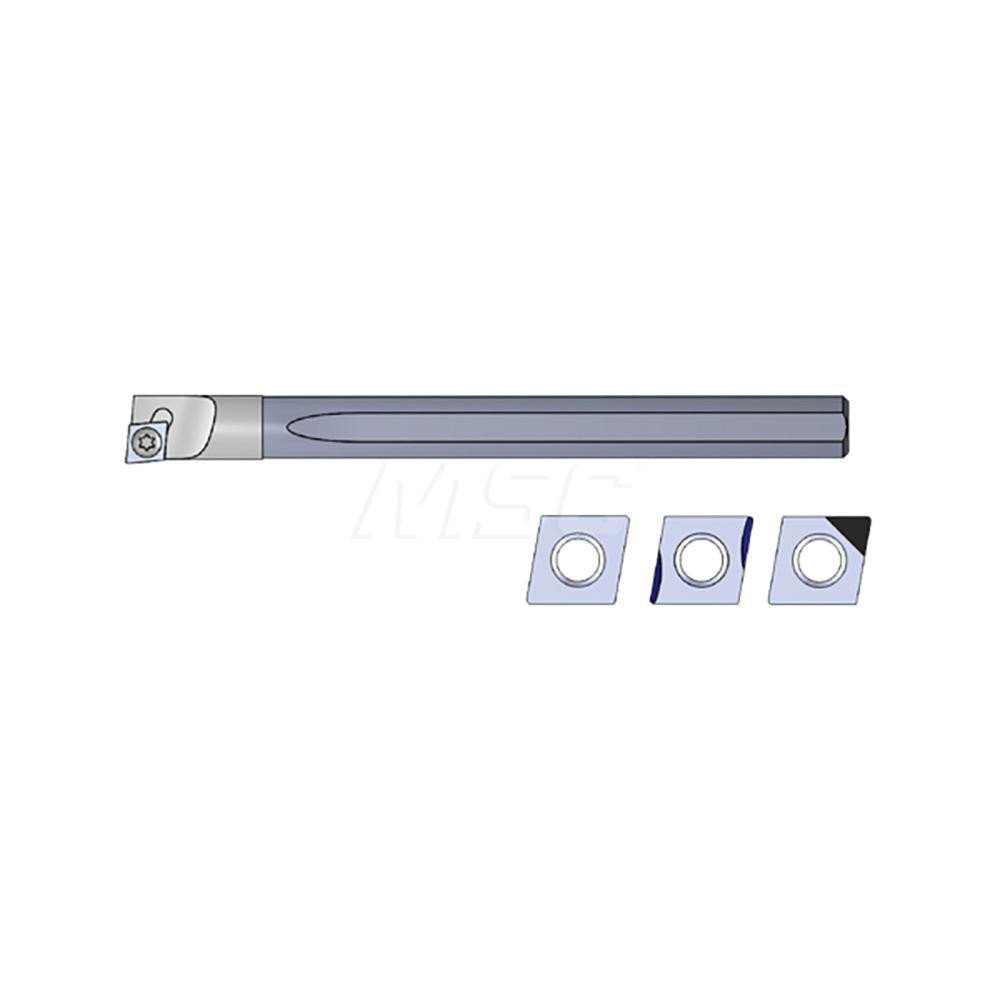

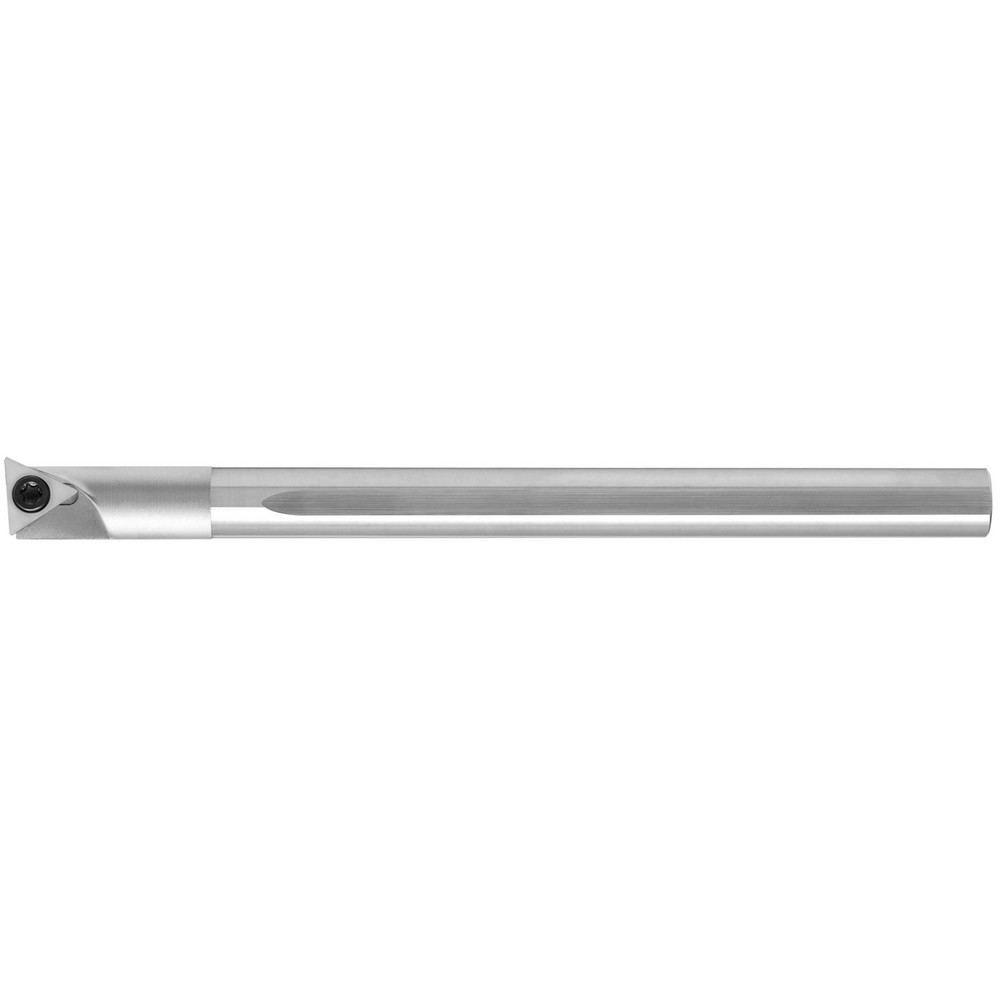

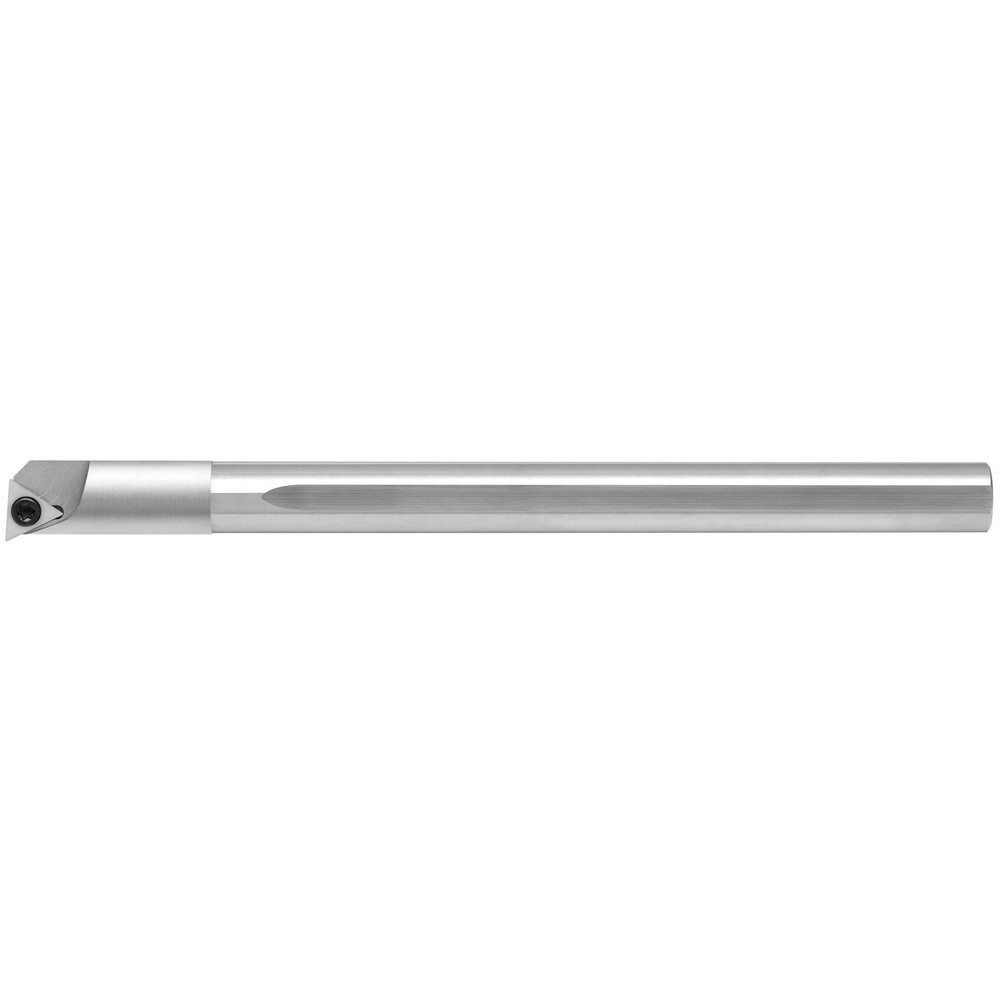

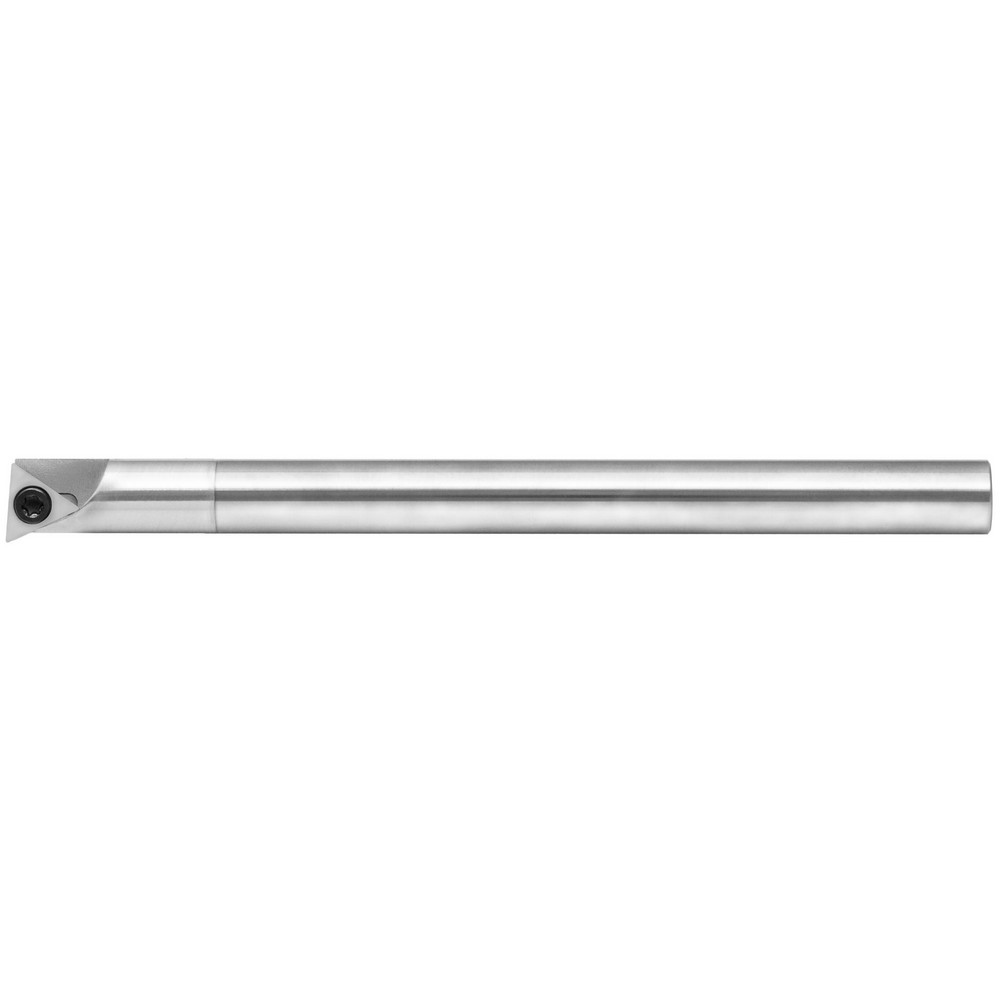

6.6250" OAL, Screw, Uses ATP2.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.5600 |
|---|---|
| Toolholder Style | ACBT |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.5600 |
| Tool Material | Steel (Head); Solid Carbide (Shank) |
| Insert Compatibility | ATP2.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.6250 |
| Overall Length (Inch) | 6-5/8 |
| Compatible Insert Size Code | 2 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Lead Angle | 5 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0960 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2950 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0960 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 44039949 |
