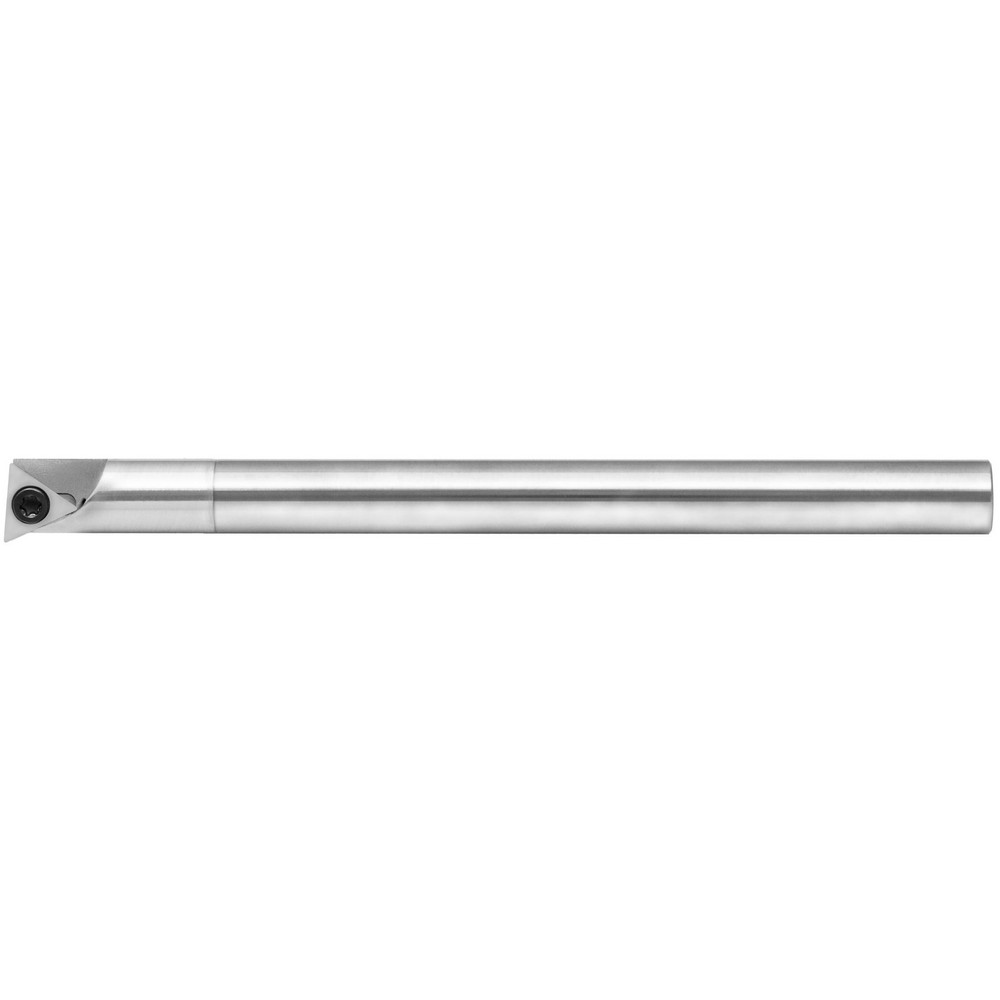

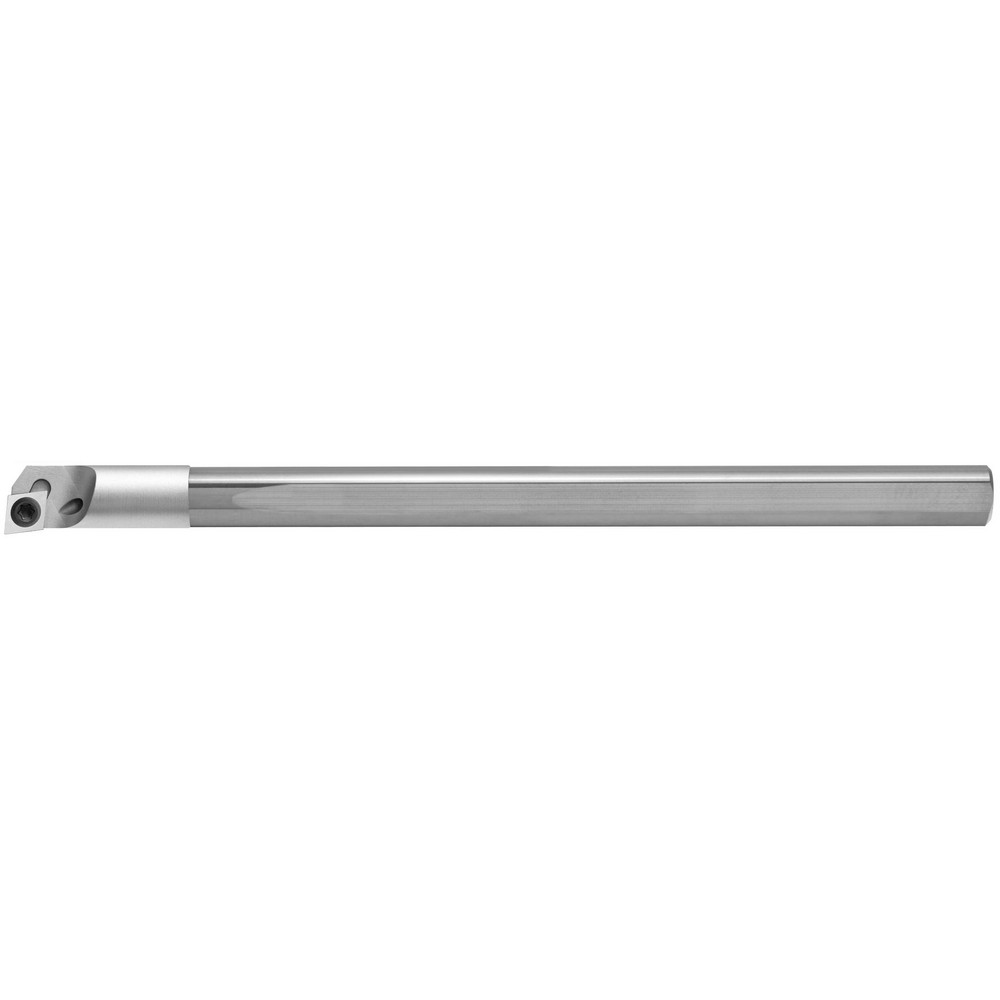

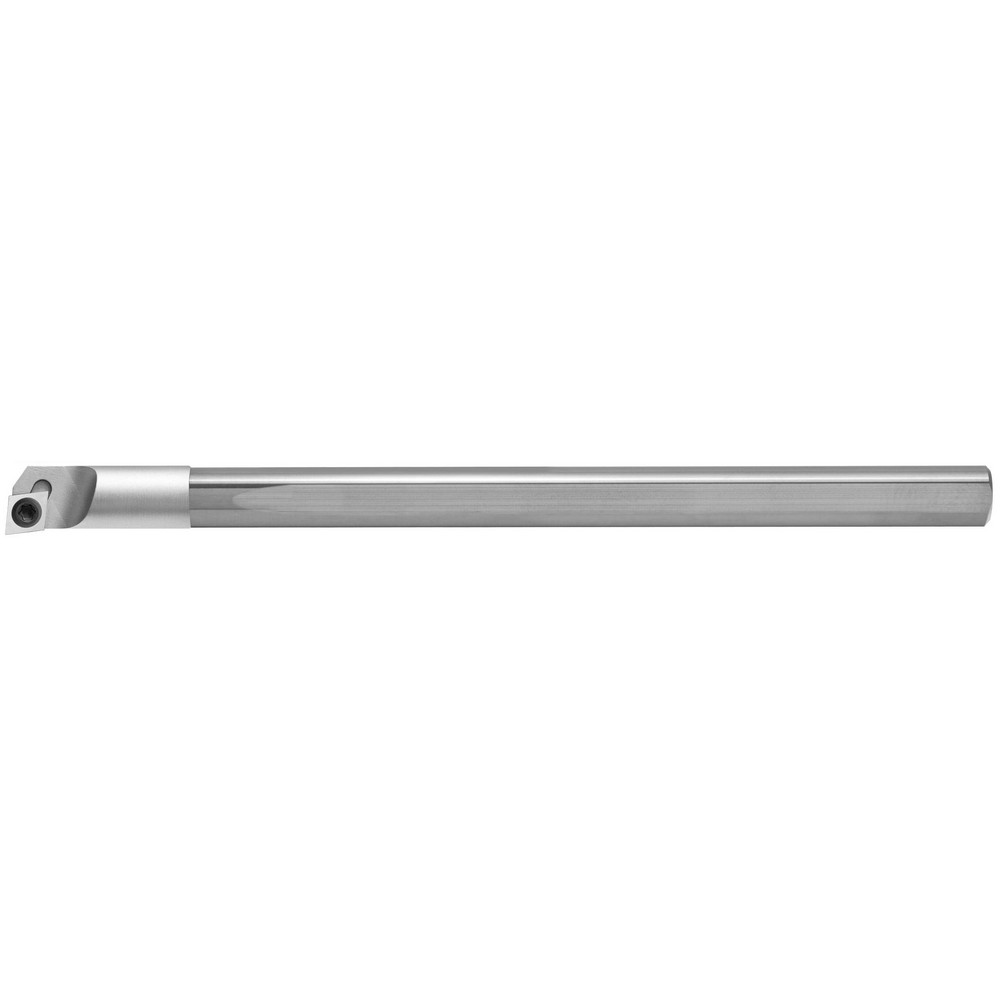

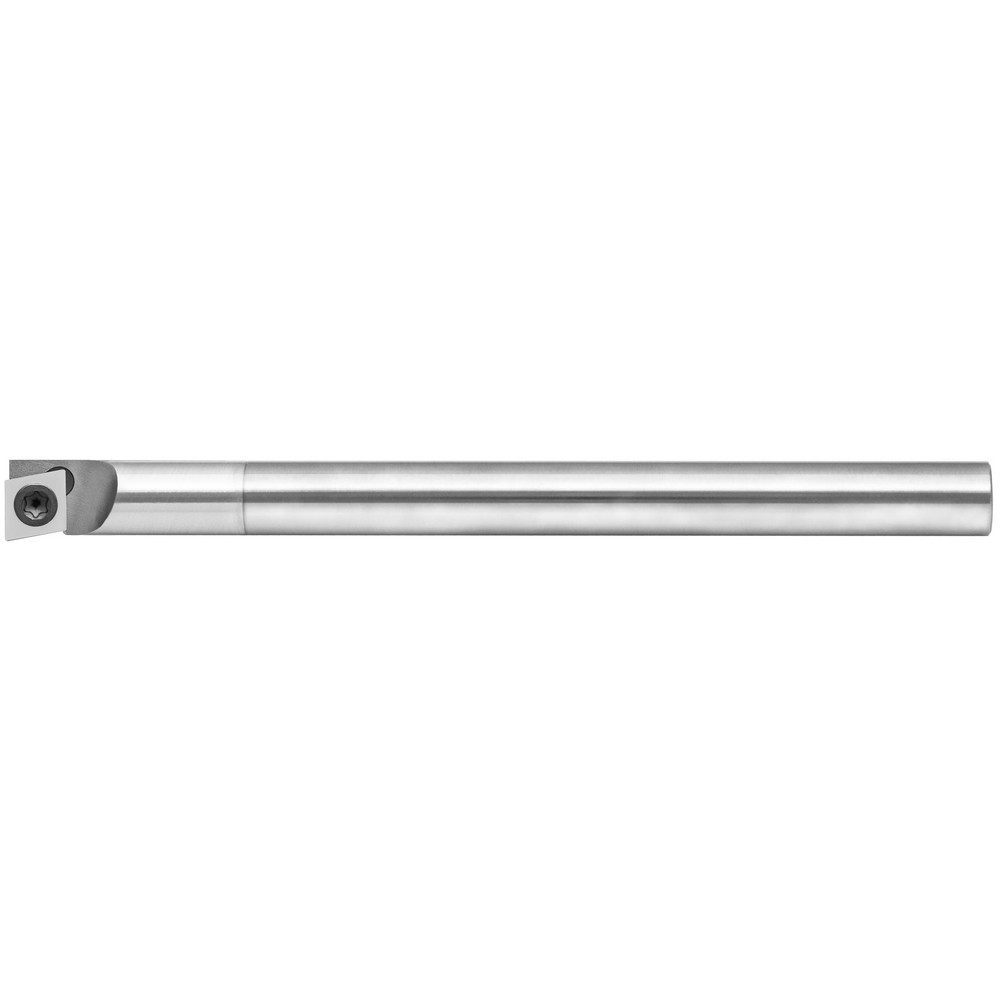

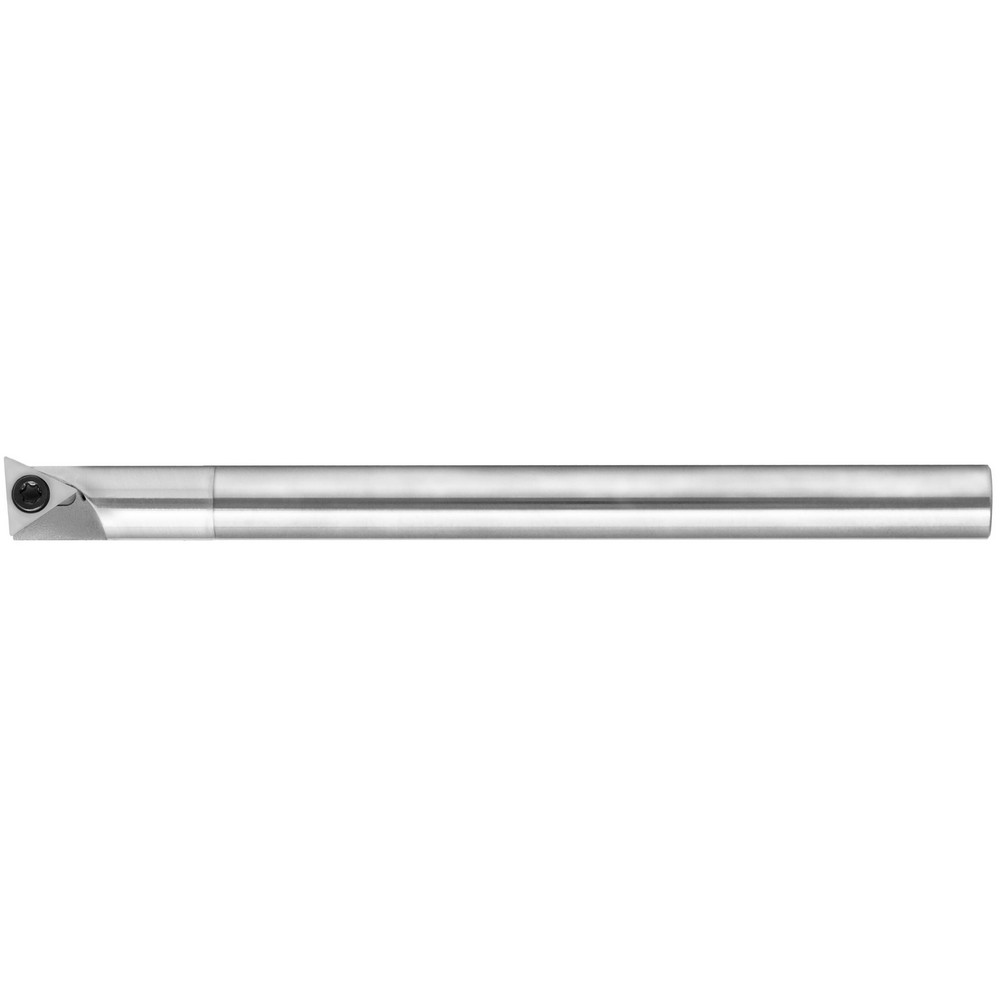

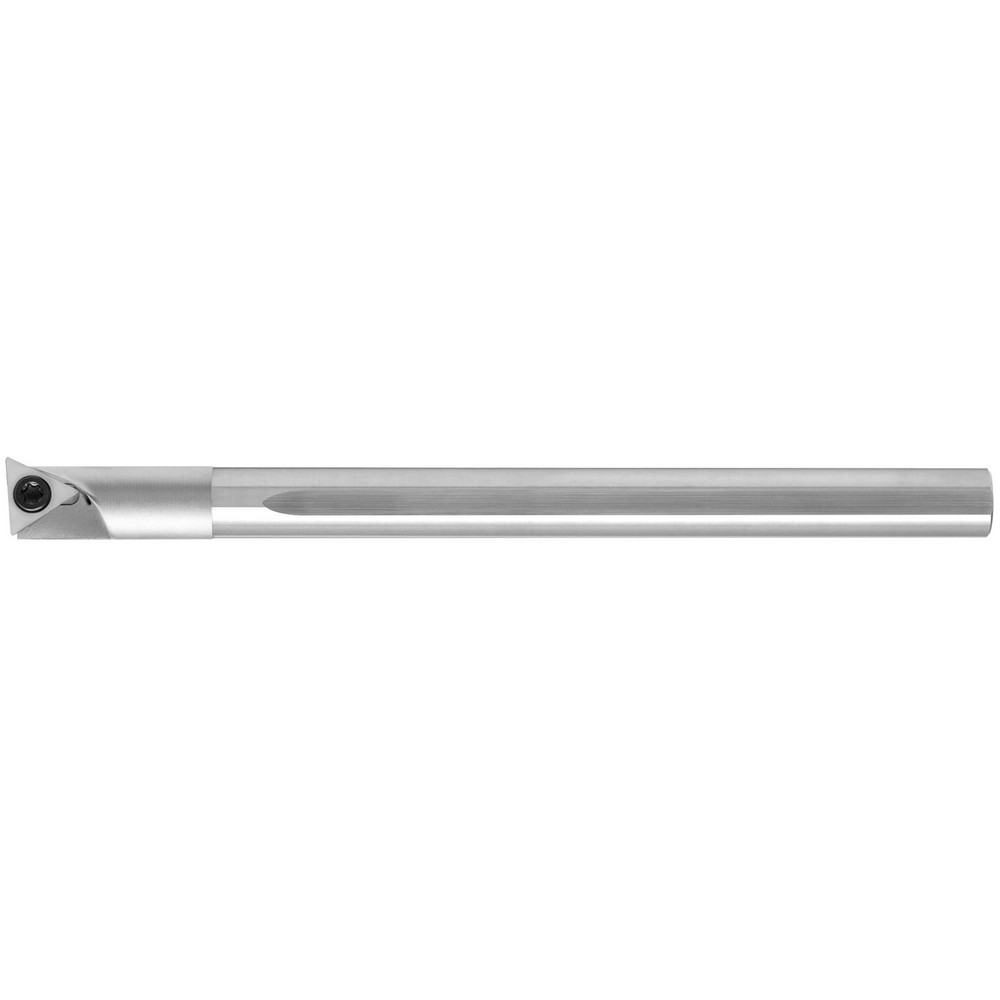

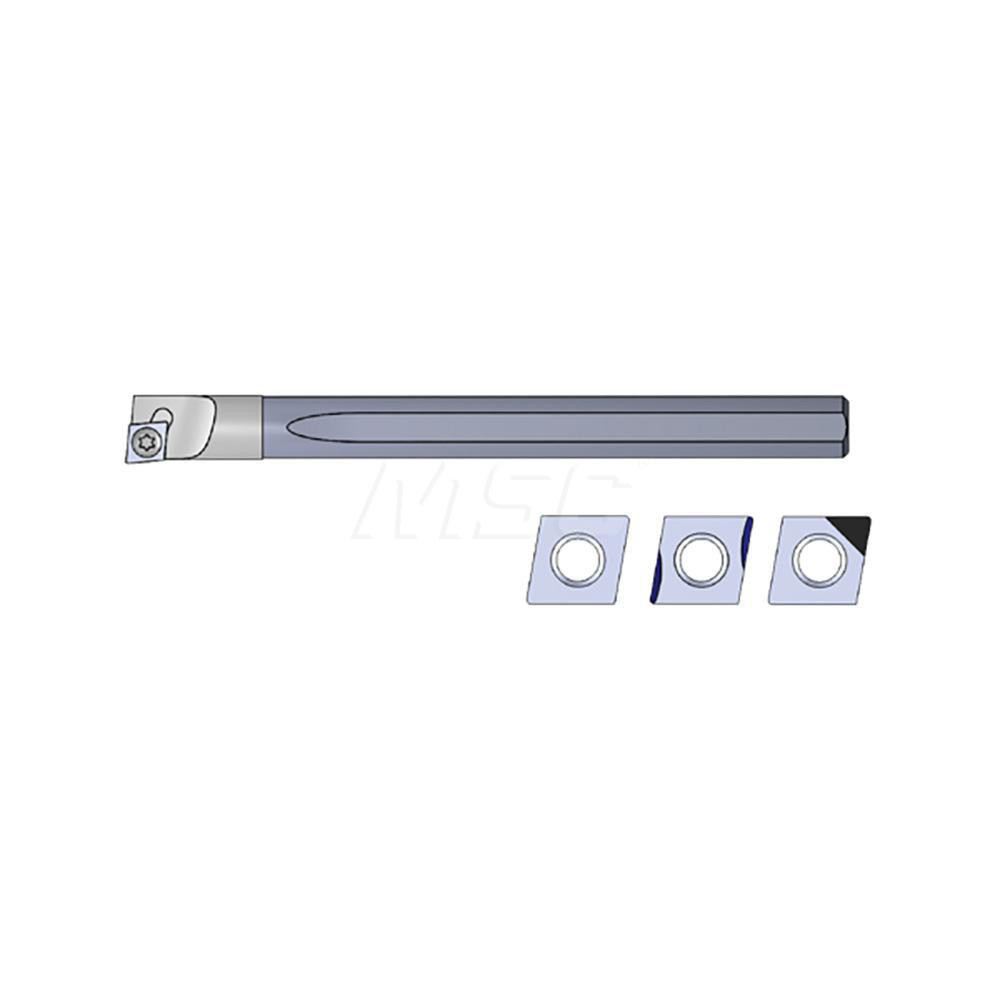

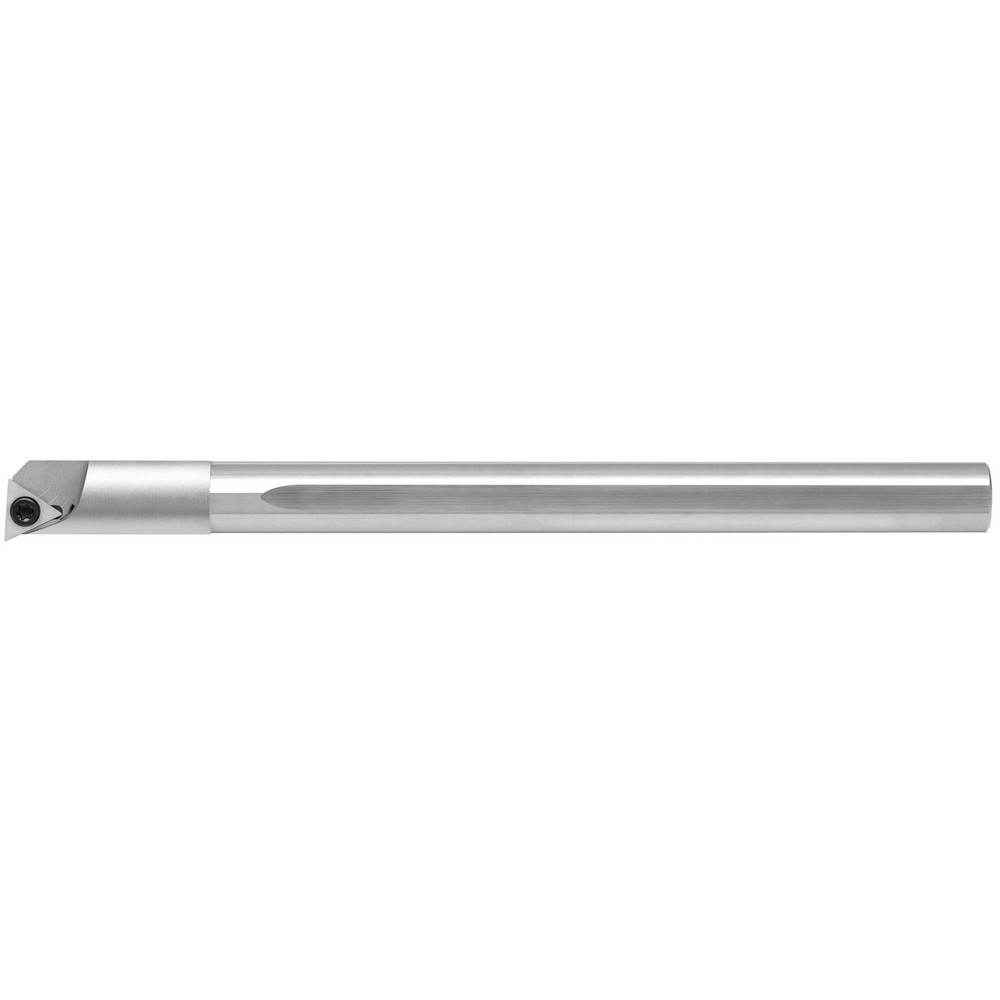

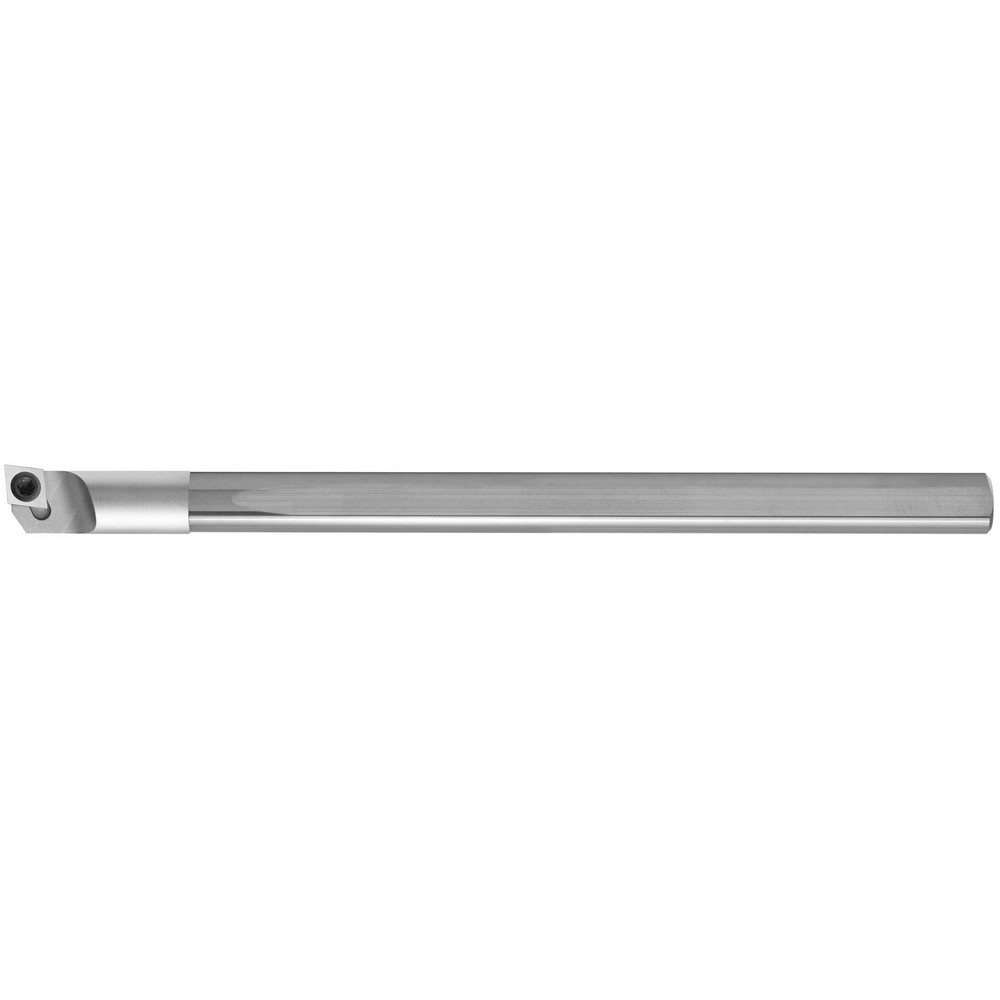

6.6250" OAL, Screw, Uses ACD5.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.5600 |
|---|---|
| Toolholder Style | ADBT |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.2860 |
| Tool Material | Steel (Head); Solid Carbide (Shank) |
| Insert Compatibility | ACD5.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 6.6250 |
| Overall Length (Inch) | 6-5/8 |
| Compatible Insert Size Code | 2 |
| Insert Holding Method | Screw |

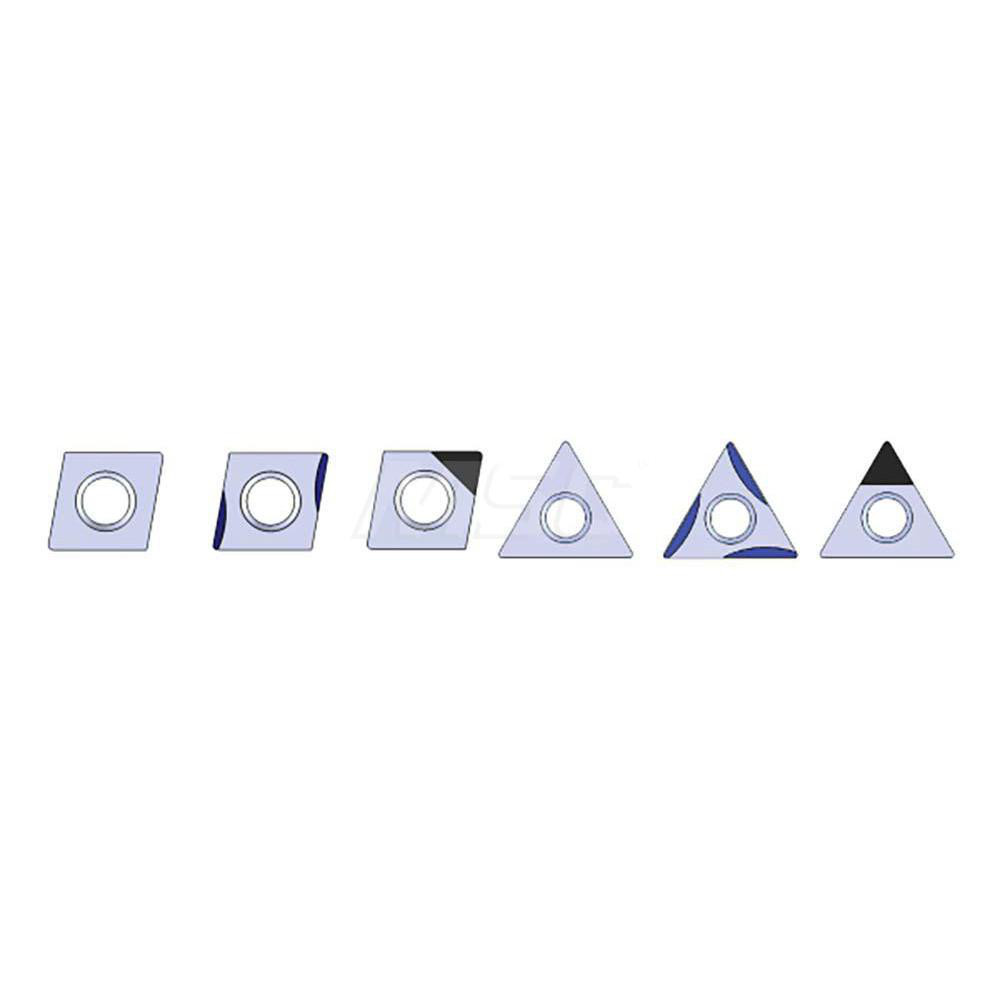

| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Lead Angle | 0 |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Compatible Insert Thickness (Decimal Inch) | 0.0960 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1460 |
| Primary Workpiece Material | Non-Ferrous Metal |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 43913375 |
