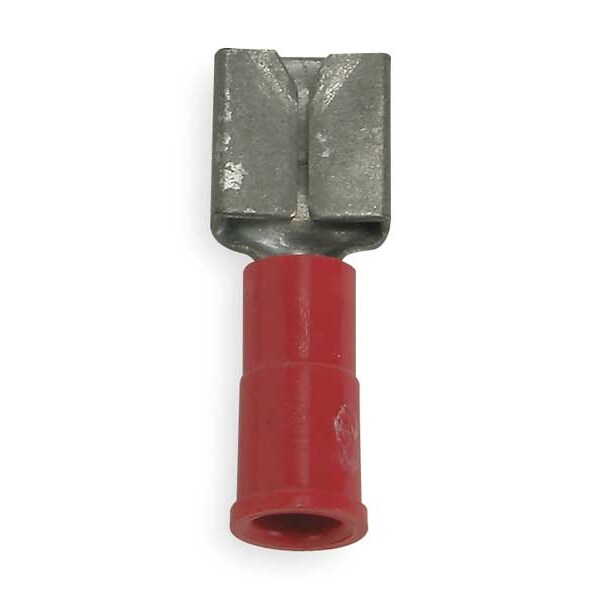

Female Disconnect, Red, 22 to 18 AWG, PK100
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| Material | Copper |
| Insulation Color | Red |
| Connection Type | Crimp |
| Insulation Type | Vinyl |
| Wire Range | 22 to 18 AWG |
| Overall Length | 0.87 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Connection Material | Tin-Plated Copper |
| Barrel Inside Dia. | 0.08 in |
| Terminal Type | Female Disconnect |
| Mates with Male Tab Width (W') | 1/4 in |
| Barrel Length | 1/4 in |
| Maximum Conductor Size | 22 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Connection Width | 1/4 in |
| Fastener Orientation | Female |
| Maximum Insulation Outside Diameter | 0.145 in |
| Minimum Conductor Size | 18 AWG |
| Connector Style | Insulation Displacement |
| Overall Width | 0.37 in |
| Tab Width | 0.187 in |
| Barrel Inside Diameter | 0.08 in |
| Mates with Female Width | 1/4 in |
| Overall Diameter | 0.23 in |
| Terminal Style | Standard |
| Disconnect Type | Female Disconnect |
| Diameter (D) | 0.23 in |
| Pad Width | 1/4 in |
| Connector / Connector Tool | Connector |
| Maximum Insulation Outer Diameter | 0.145 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Package Quantity | 100 |
