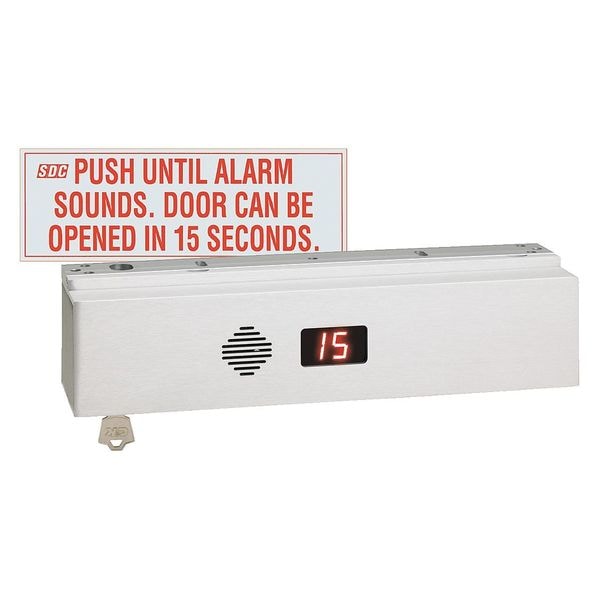

Delayed Egress Maglock, 1650lb., 2-3/8in.L
| Item | Electromagnetic Delay Egress |
|---|---|
| Finish | Satin Aluminum |
| Type | Delayed Egress |
| Input Voltage | 12/24V DC |
| For Use With | Mortise or Cylindrical Locksets, Pairs of Doors Equipped With Mortise or Rim Mount Exit Devices, Surface or Concealed Vertical Rod Exit Devices With Surface or Concealed Strikes and Triggers |
| Material | Aluminum |
| Includes | Mounting Hardware |
| Opening Action | Electromagnetic |
| Options Included | Dual Voltage |
| Features | Alternating Verbal Message, Blind and Hearing Impaired Accessible, Verbal Countdown and Alarm Tone |
| Holding Force (Lb.) | 1,650 |
| Armature Width (In.) | 9/16 |
| Standards | BOCA, CBC, CSFM Listed, IBC, IFC, NFPA 1-UFC, NFPA 101, SBC, UBC 7-2 (1997), UL 294, ULC S104, ULC S533 |
| Amp Draw @ 12V | 1500mA |
| Release Delay | 15 to 30 sec |
| Amp Draw @ 24V | 850mA |
| Armature Depth (In.) | 7-3/8 |
| Armature Length (In.) | 2-3/8 |
| Holding Force - Maximum | 1,650 lb |
| Armature Width | 9/16 in |
| Lock Body Width | 2-5/8 in |
| UL Fire Rating | UL10C, UL10B |
| Compatible Product Type | Systems |
| Armature Length | 2-3/8 in |
| Amp Draw @ Voltage | 1.5 A to 12 V DC, 850 mA to 24 V DC |
| Lock Body Depth | 2-3/4 in |
| Lock Body Length | 11 in |
| Armature Depth | 7-3/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
