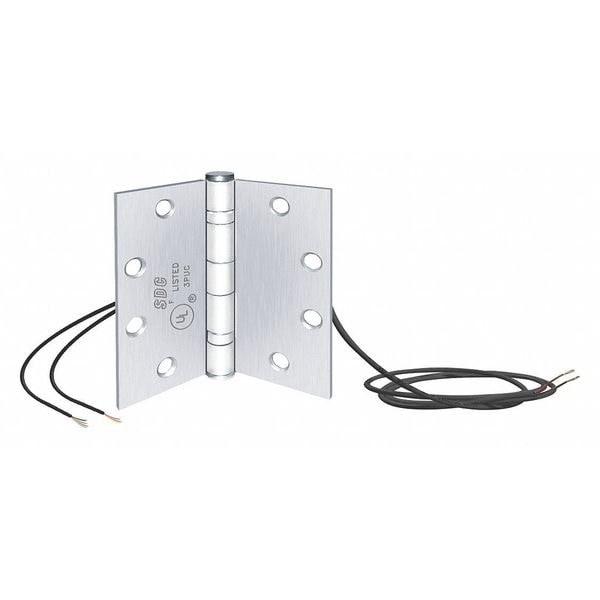

Electrified Hinge, Stainless Steel, Satin Chrome, Includes: MOUNTING HARDWARE
| Item | Electrified Hinge |
|---|---|
| Input Voltage | 30V DC |
| Finish | Satin Chrome |
| Includes | MOUNTING HARDWARE |
| Frame Leaf Thickness | 0.134 in |
| Ligature Resistant | No |
| Standards | ANSI/BHMA A156.1 |
| Orientation | Non Handed |
| Material | Stainless Steel |
| Mounting Style | Full Mortise |
| Features | 4 Conductor |
| Door Leaf Height | 4 in |
| Frame Leaf Height | 4 in |
| Hinge Type | Butt |
| Corner Type | Square |
| Door Leaf Width | 2-1/4 in |
| UL Fire Rating | UL10C |
| Door Leaf Thickness | 0.134 in |
| Frame Leaf Width | 2-1/4 in |
| Includes Hardware | Hardware Included |
| Resistance Properties | Vandal-Resistant |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
