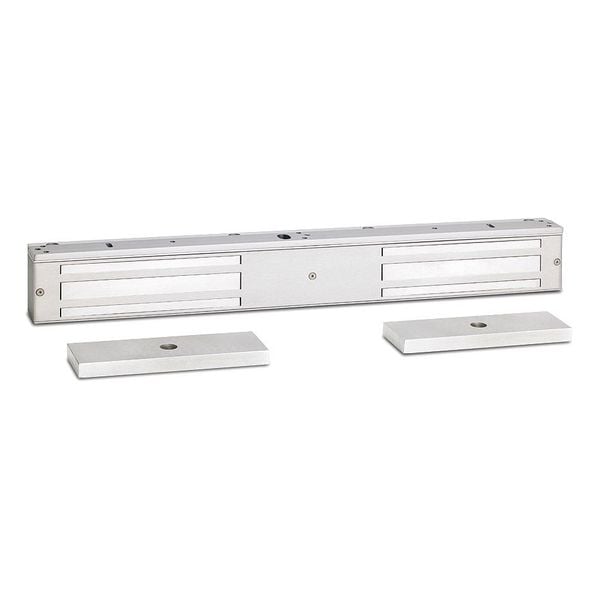

Electromagnetic Lock, 1650 lb., 1.34A at 12V
| Item | Electromagnetic Lock |
|---|---|
| Finish | Aluminum |
| Type | Lock |
| Input Voltage | 12/24V DC |
| For Use With | Access Control |
| Material | Aluminum |
| Includes | Machine Screws |
| Opening Action | Electromagnetic |
| Options Included | Dual Voltage |
| Features | Door Position Switch |
| Release Delay | Instantaneous |
| Holding Force (Lb.) | 1,650 |
| Amp Draw @ 24V | 700mA |
| Amp Draw @ 12V | 1.34A |
| Standards | ANSI/BHMA A156.23, CSFM Listed 3774 0324:100, UL 1034, ULC S104, ULC S533 |
| Current @ 24V | 700 mA |
| Current @ 12V | 1.34 mA |
| Overall Height | 2-3/4 in |
| Overall Length | 22 in |
| UL Fire Rating | UL10C, UL10B |
| Lock Body Depth | 1-5/8 in |
| Includes Hardware | Hardware Included |
| Holding Force - Maximum | 1,650 lb |
| Armature Width | 5/8 in |
| Overall Width | 1-9/16 in |
| Lock Body Width | 11 in |
| Armature Length | 7-3/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
