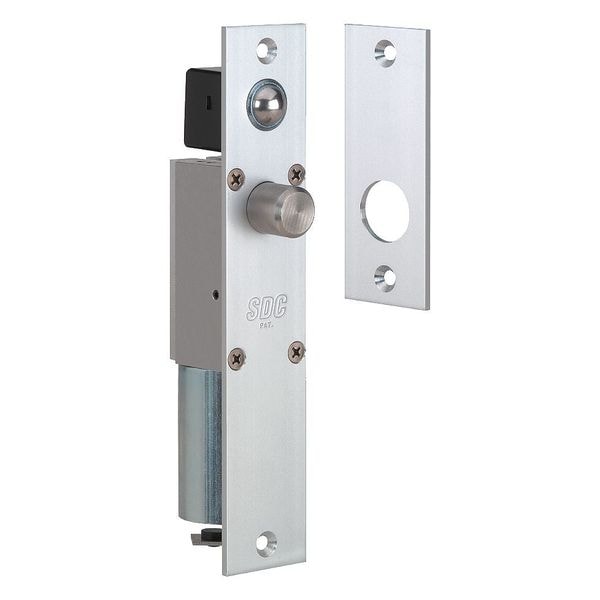

Mortise Bolt Lock, 700mA at 24V, Satin Alum
| Item | Door Bolt |
|---|---|
| Finish | Satin Aluminum |
| Type | bolt |
| Input Voltage | 12/24V DC |
| For Use With | Access Control |
| Material | Aluminum |
| Color | Stainless Steel |
| Includes | Mounting Tabs, Power Regulator |
| Opening Action | Electromagnetic, Manual |
| Series | 1190 |
| Features | Automatic Door Unlock when Power is Interrupted By Access control, Extra heavy-duty mortise bolt locks, Locked when Energized, Power Failure or Fire Life Safety System Signal |
| Standards | UL Listed |
| Amp Draw @ 24V | 700mA |
| Lock Body Width (In.) | 1-1/2 |
| Package Quantity | 1 |
| Lock Body Depth (In.) | 8 |
| Lock Body Length (In.) | 1-1/2 |
| Release Delay | Instantaneous |
| Operation Type | Electromagnetic, Manual |
| Product Type | Bolt Lock |
| Throw Size | 3/4 in |
| Chain Length | Not Applicable |
| Overall Width | 1/8 in |
| Bolt Head Diameter | 1/2 in |
| Overall Length | 1-1/2 in |
| Overall Height | 8 in |
| Country of Origin (subject to change) | United States |
