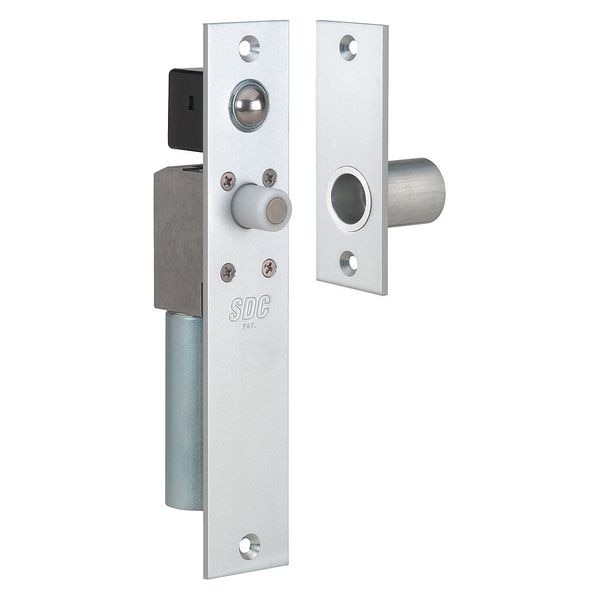

Mortise Bolt Lock, Aluminum, 1-1/2 in. L
| Item | Door Bolt |
|---|---|
| Finish | Aluminum |
| Type | bolt |
| Input Voltage | 12/24V DC |
| For Use With | Access Control |
| Material | Aluminum |
| Includes | Mounting Tabs, Power Regulator |
| Opening Action | Electromagnetic, Manual |
| Options Included | Dual Voltage |
| Features | Bolt Retracted with Spring by Power Interruptions, Dual FAilsafe, Large Repelling Magnets, Narrow Mortise, Perimeter Entrance and Emergency Exitdoor Lock Listed by California State Fire Marshal |
| Lock Body Depth (In.) | 8 |
| Package Quantity | 1 |
| Lock Body Width (In.) | 1-5/8 |
| Release Delay | Instantaneous |
| Amp Draw @ 12V | 900mA |
| Standards | UL Listed |
| Amp Draw @ 24V | 450mA |
| Lock Body Length (In.) | 1-1/2 |
| Product Type | Bolt Lock |
| Operation Type | Electromagnetic, Manual |
| Overall Width | 1/8 in |
| Overall Length | 1-1/2 in |
| Overall Height | 8 in |
| Chain Length | Not Applicable |
| Bolt Head Diameter | 1/2 in |
| Throw Size | 5/8 in |
| Country of Origin (subject to change) | United States |
