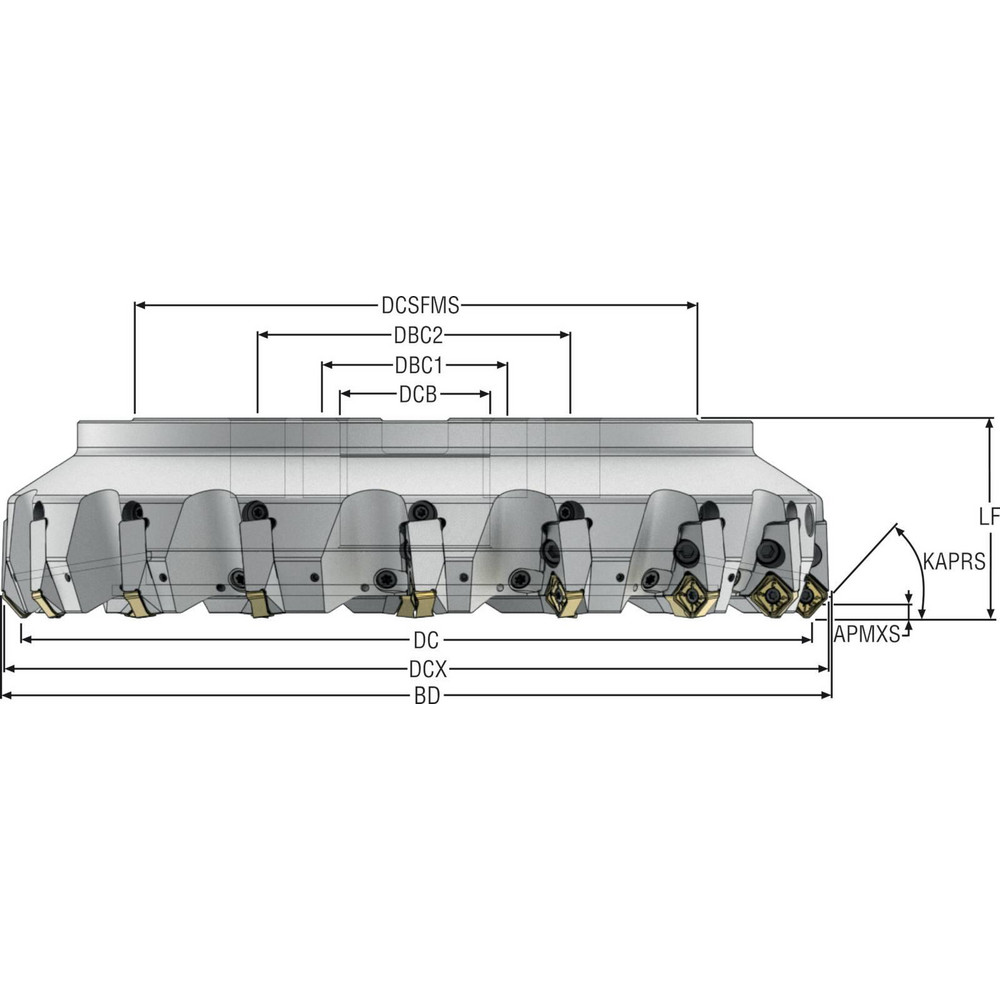

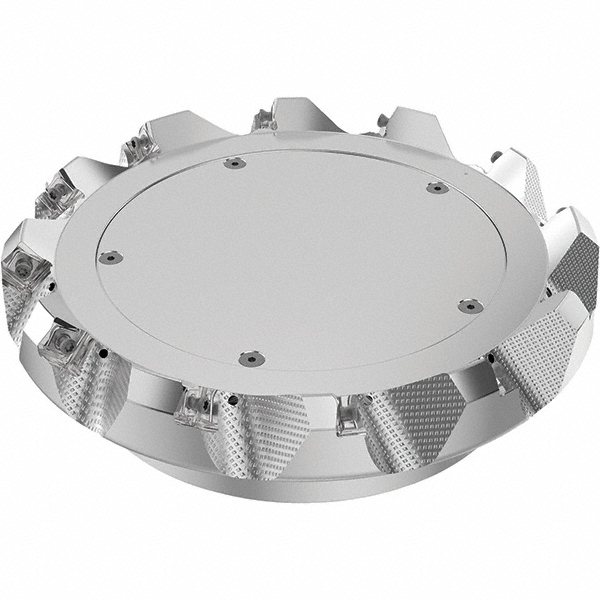

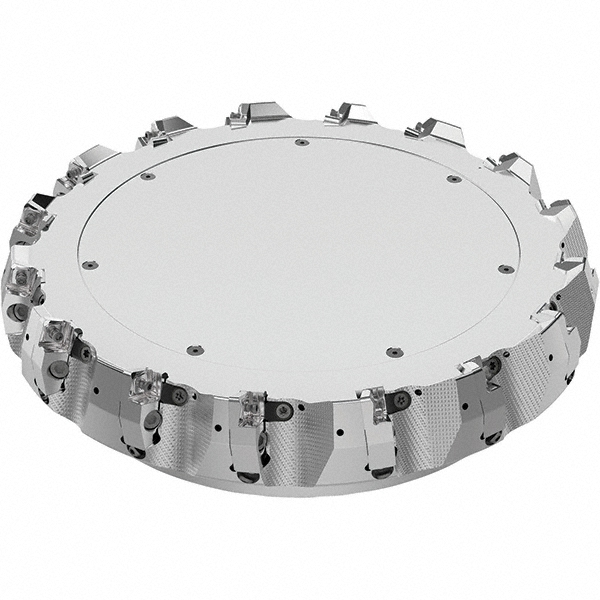

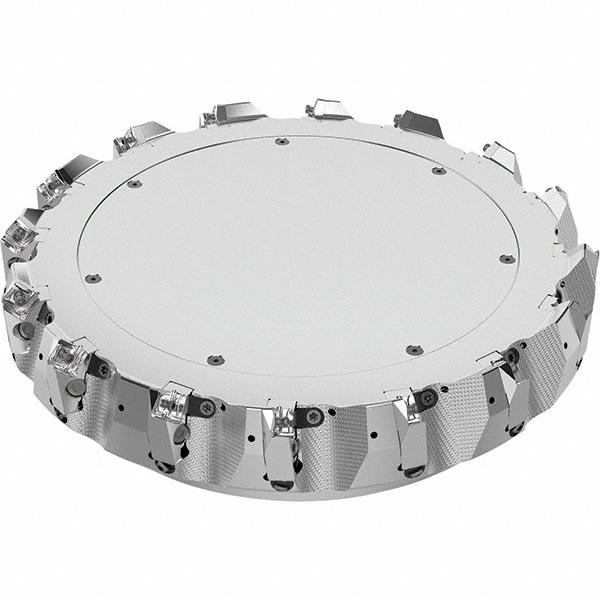

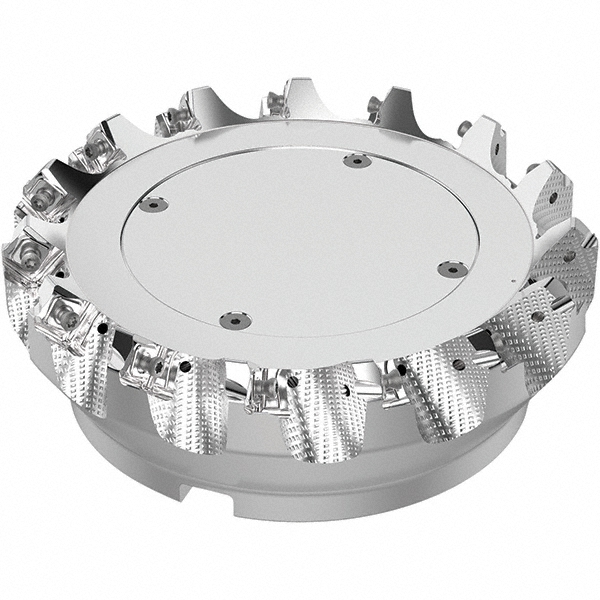

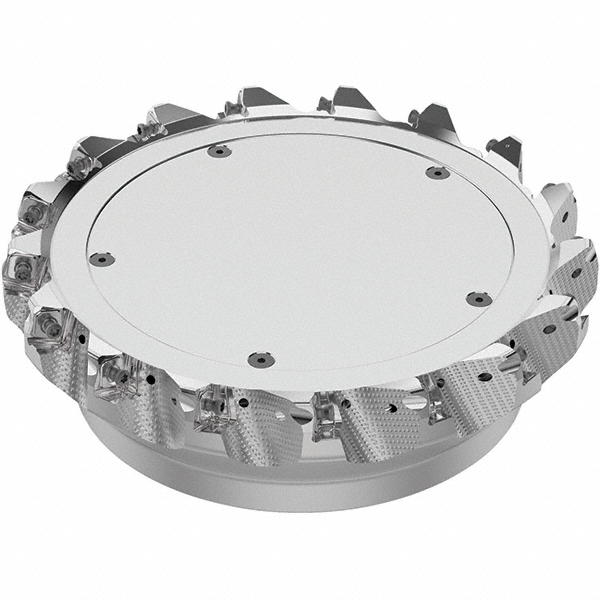

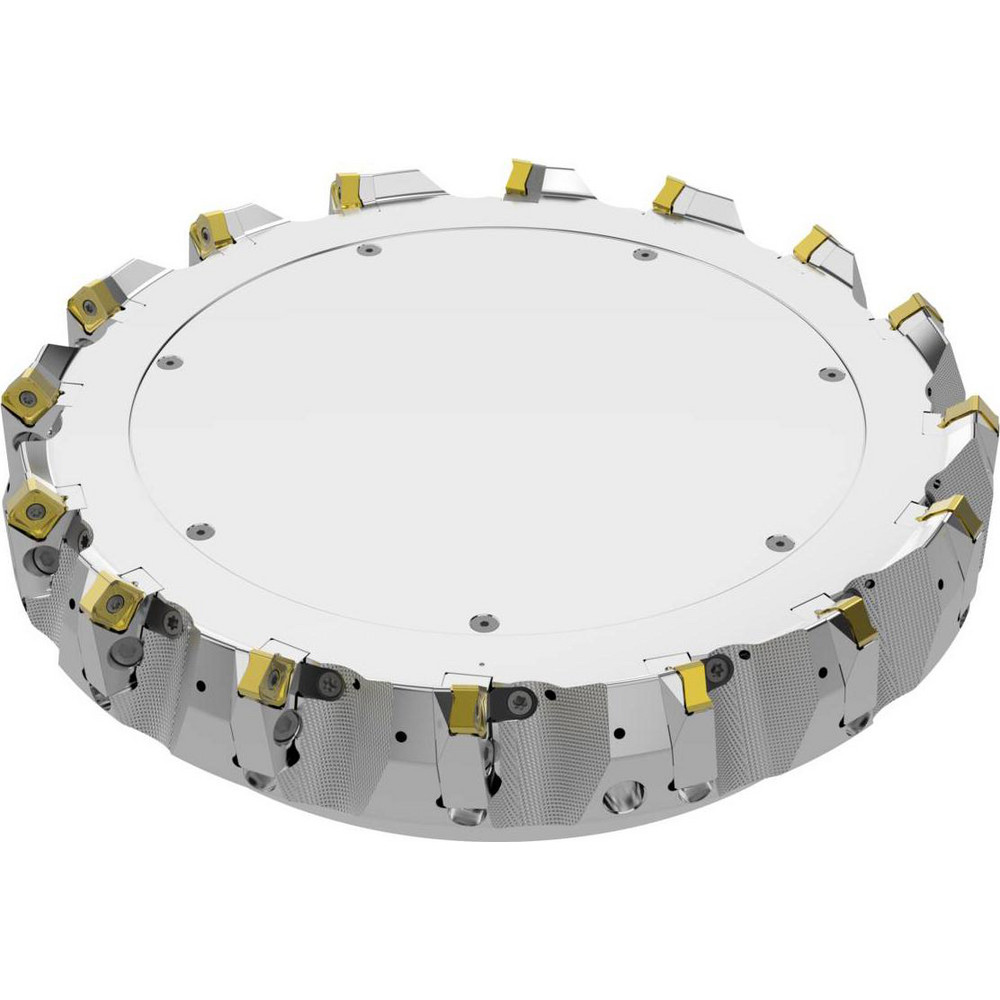

Takes 16 Inserts, SN.. Insert, Right Hand Cut, 16 Flutes, Through Coolant, Series R220.54
| Minimum Cutting Diameter (Decimal Inch) | 12.4020 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 12.9920 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Compatible Insert Size Code | SN |
| Cutter Style | R220.54 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake Angle | -6 |
| Series | R220.54 |
| Hub Diameter (Decimal Inch) | 8.8580 |
| Keyway Width (Decimal Inch) | 1.0000 |
| Keyway Width (Inch) | 1 |
| Overall Height (Decimal Inch) | 80.00 |
| Maximum Body Diameter (Decimal Inch) | 12.8350 |
| Pitch Type | Normal |
| Maximum RPM | 3400 |

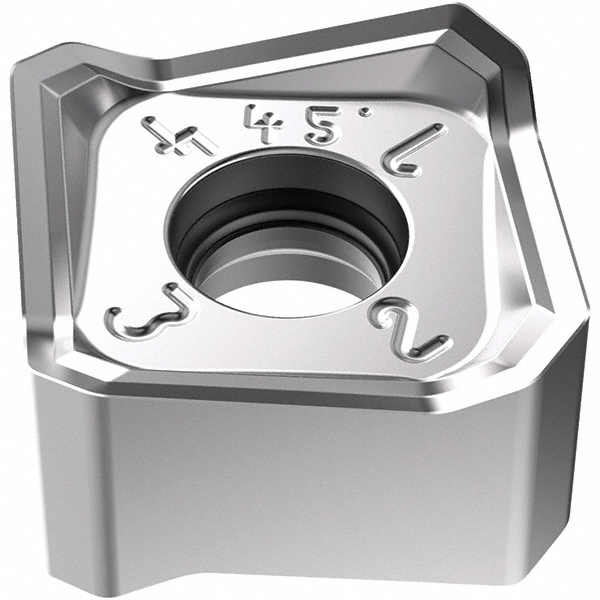

| Complete Insert Compatibility | SN..14..ANTR |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 16 |
| Coolant Through | Yes |
| Number Of Flutes | 16 |
| UNSPSC Code | 23291600 |
| Country of Origin | Belgium |
| MSC Number | MSC# 99877250 |
