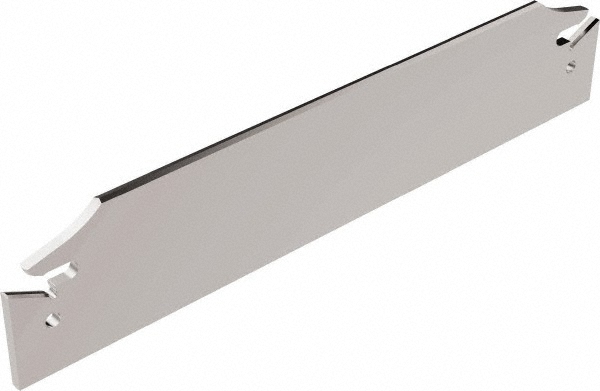

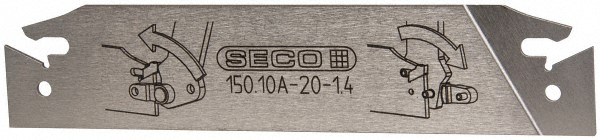

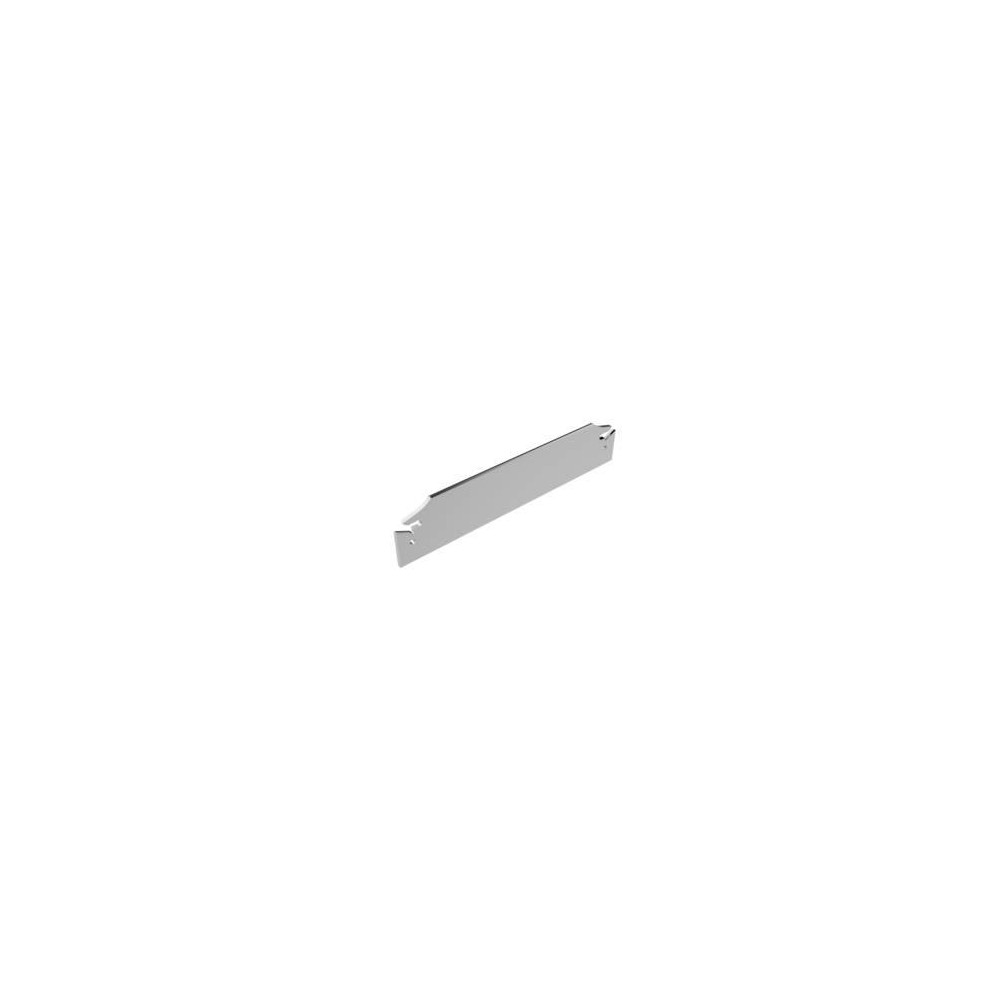

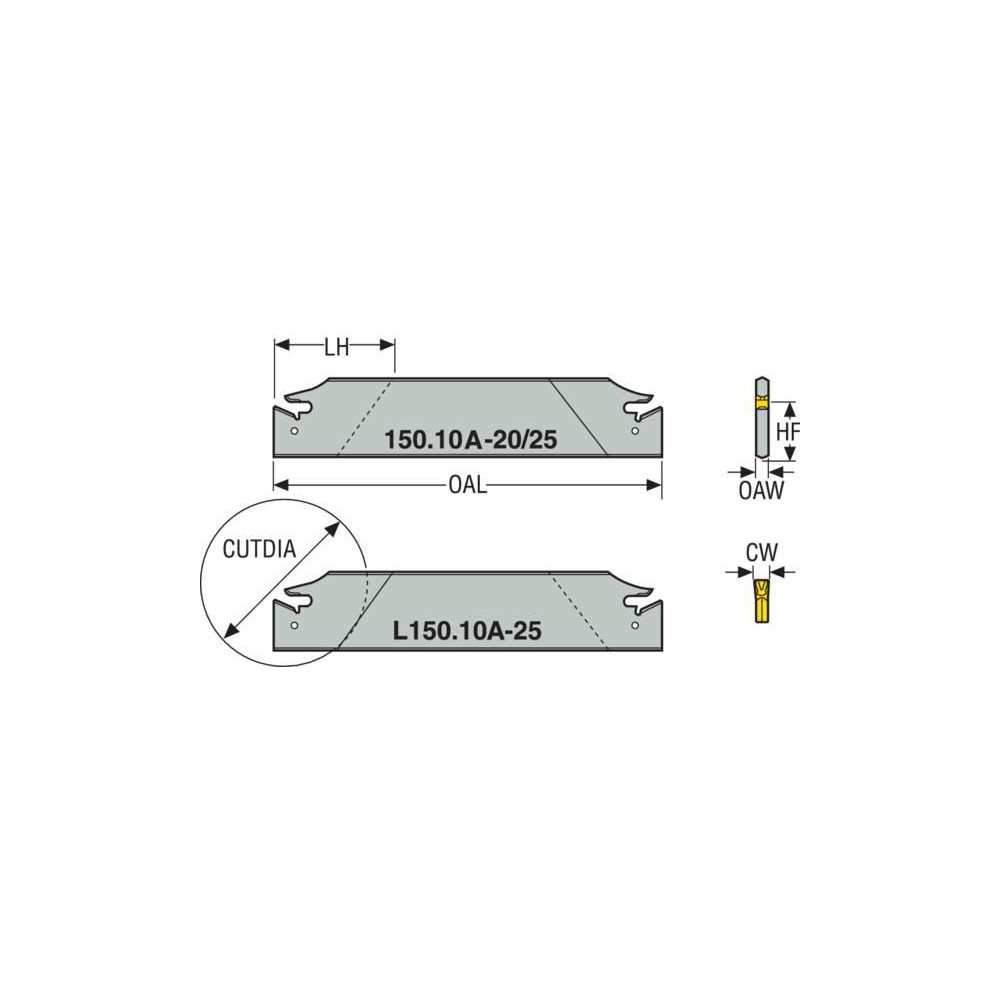

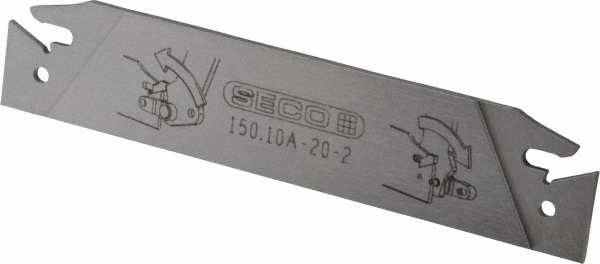

0.843" High x 0.047" Wide x 4.72" OAL, 0.055" Insert Width, Series 150.10
| End Type | Double |
|---|---|
| Cutting Direction | Neutral |
| Hand | Left Hand; Right Hand |
| Blade Height (Decimal Inch) | 0.8430 |
| Blade Width (Decimal Inch) | 0.0470 |
| Blade Overall Length (Decimal Inch) | 4.7200 |
| Blade Style | 150.10A |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.4000 |
| Series | 150.10 |
| Tool Block Style | 150.10-20 |
| Cutting Tool Application | Parting |
| Standards | ISO |
| Insert Seat Size | 1.4 |
| Cutting Height (Decimal Inch) | 0.8430 |
| Minimum Insert Width (Decimal Inch) | 0.0550 |
| Insert Corner Radius (Decimal Inch) | 0.0060 |
| Complete Insert Compatibility | 150.10-1.4.. |
| Complete Tool Block/Toolholder Style Compatibility | 150.10-...-20 |
| MSC/Manufacturer Number | 150.10A-20-1.4 |
| Insert Width | 0.0550 |
| UNSPSC Code | 23241600 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 69303410 |
