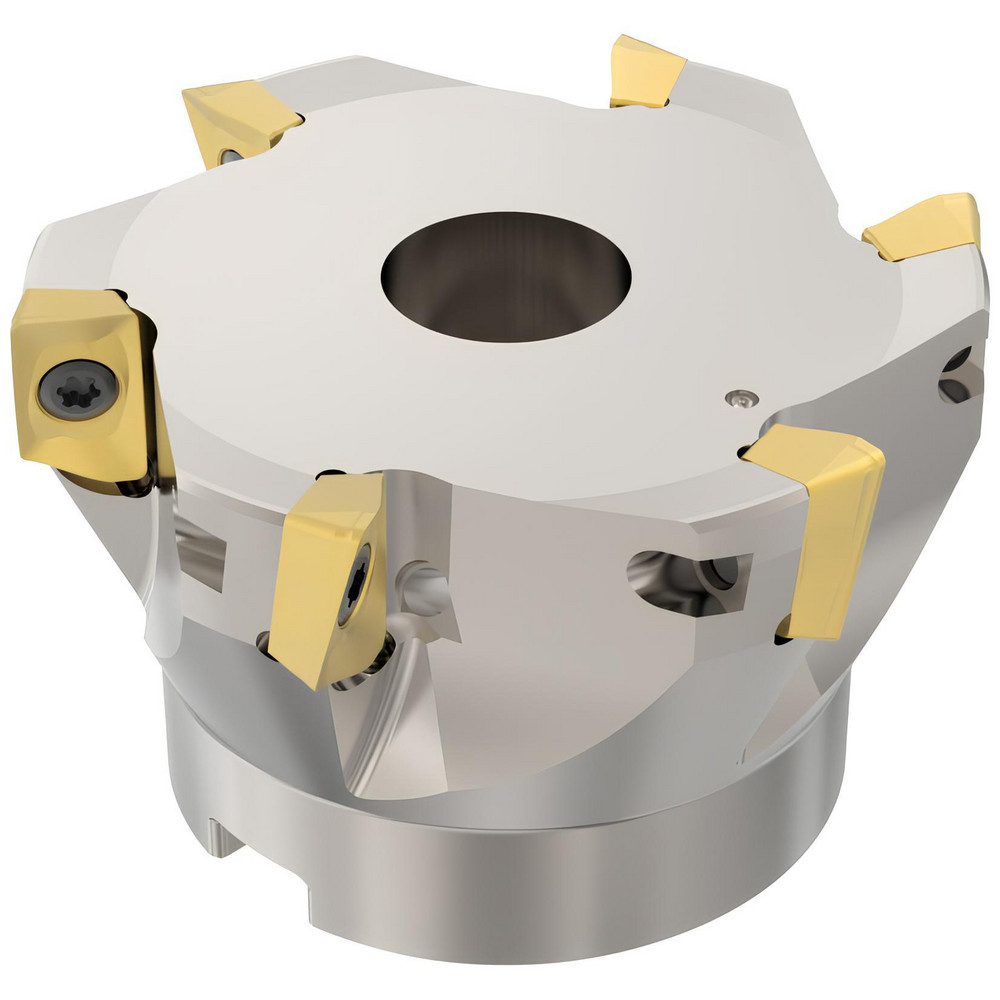

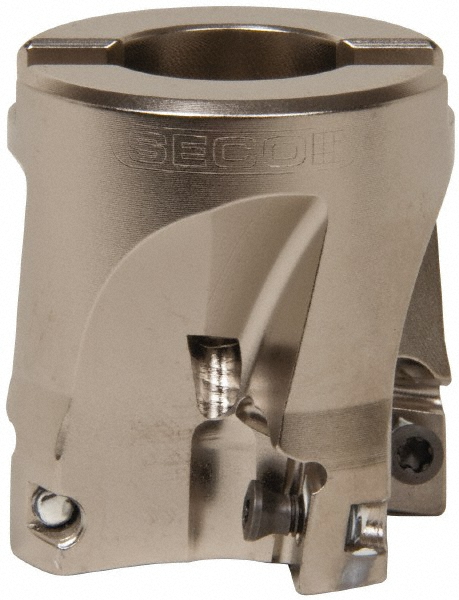

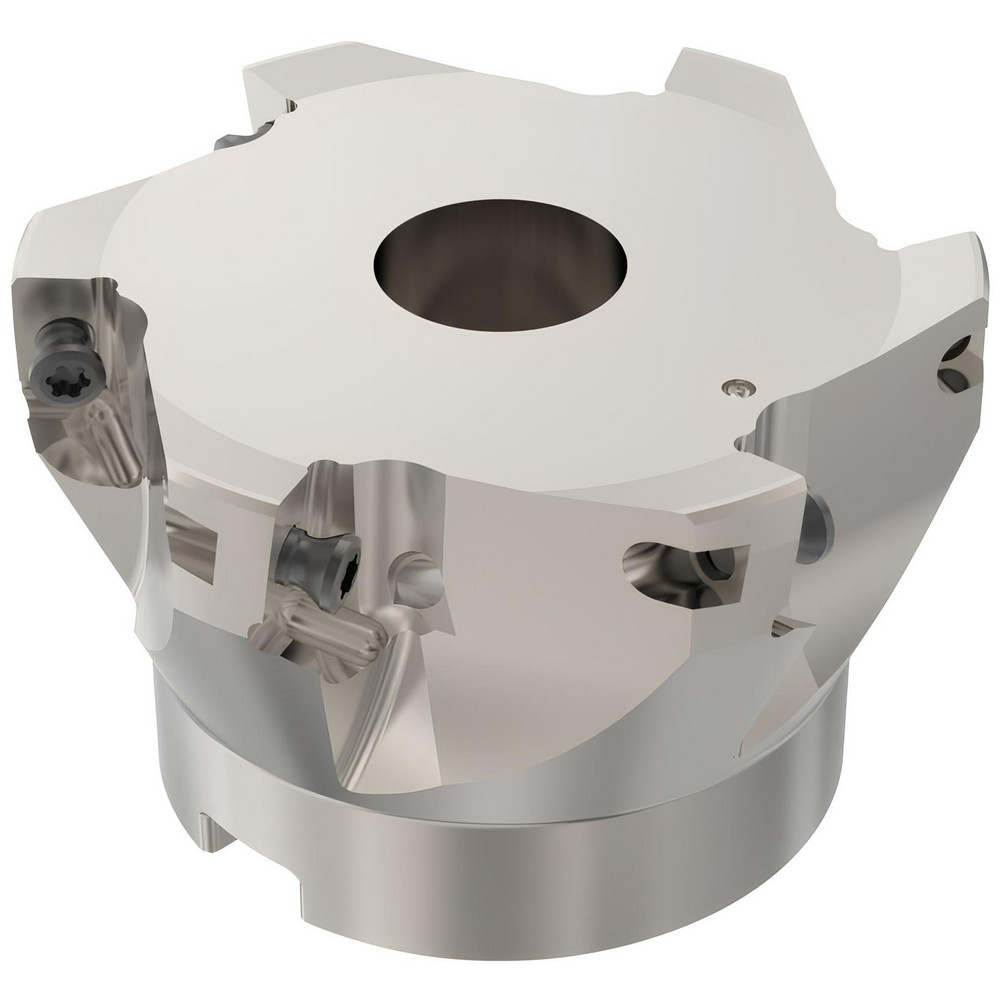

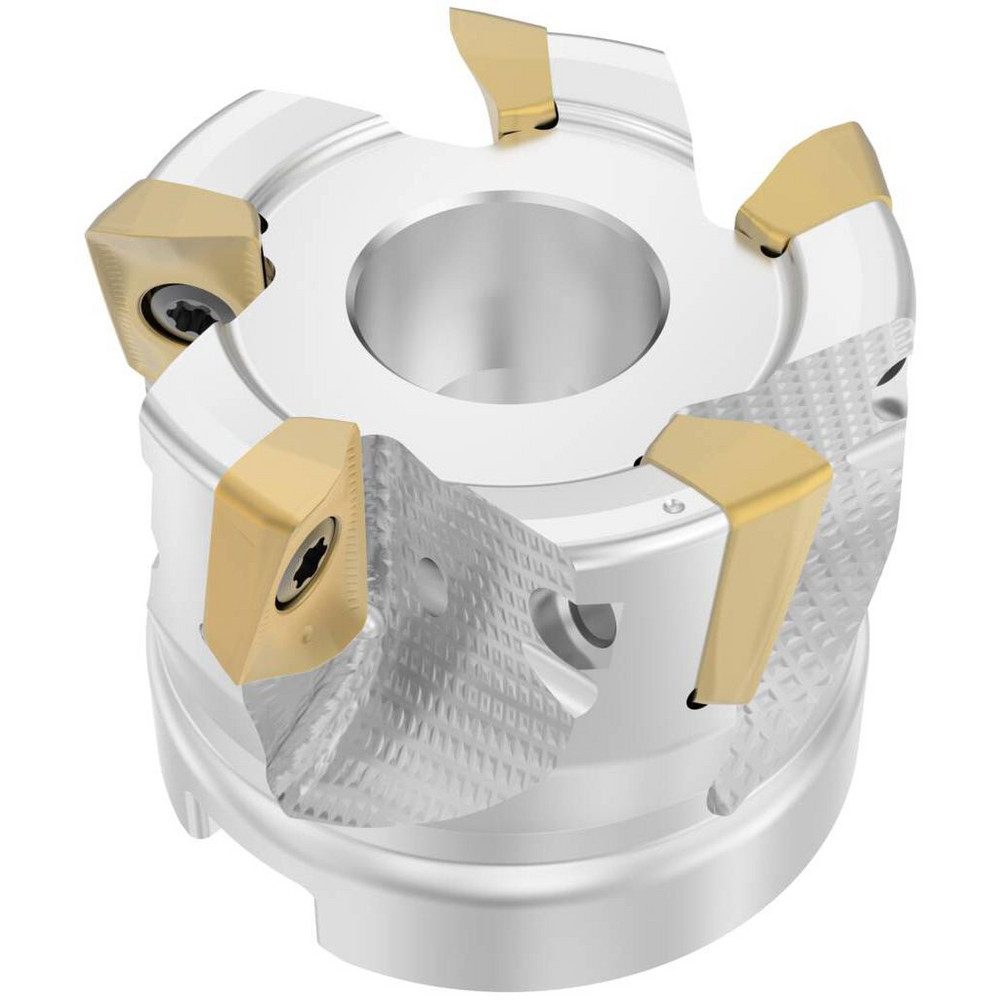

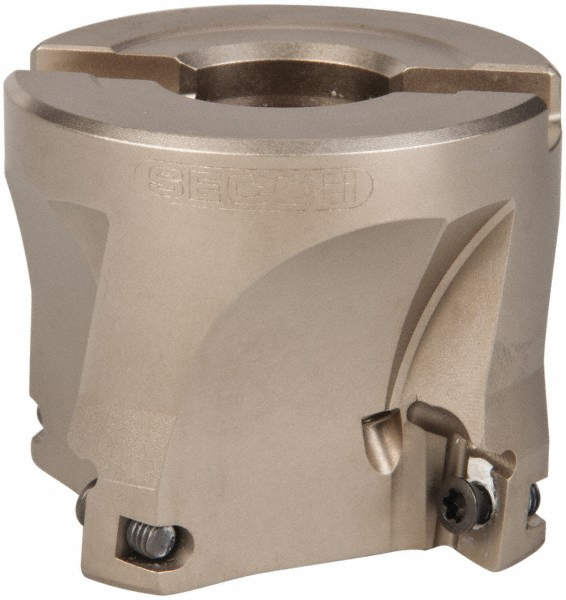

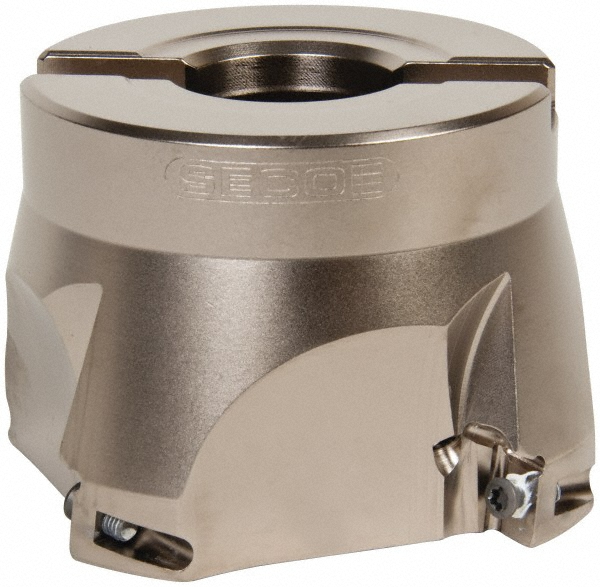

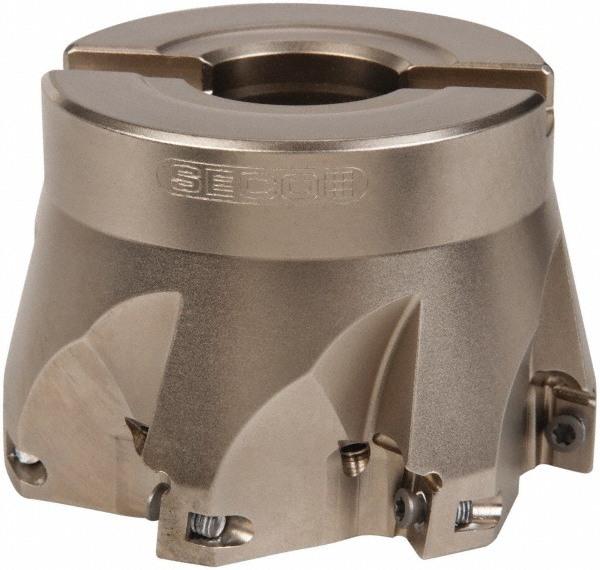

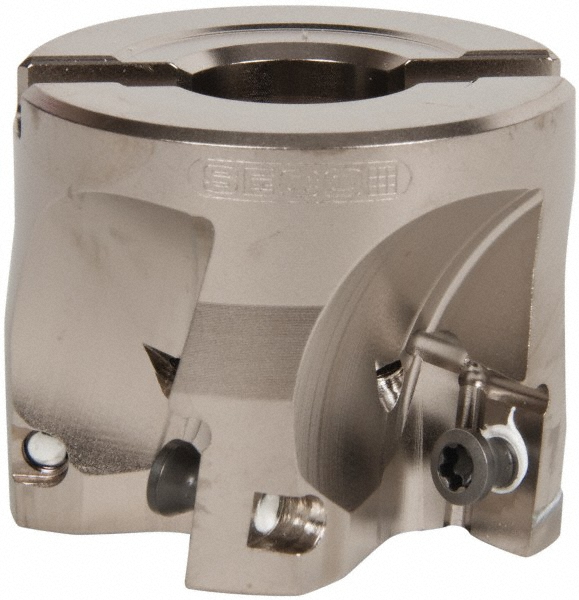

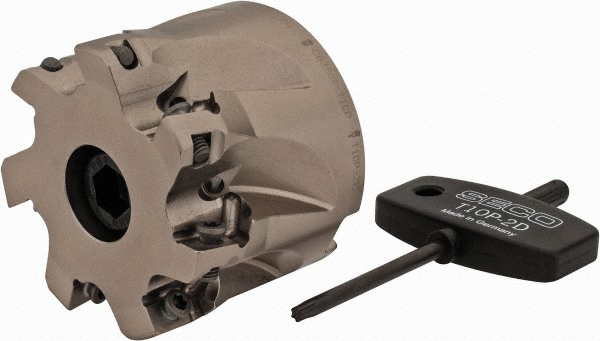

Takes 6 Inserts, 0/90° Lead Angle, 1.57" High, XO.X 1204.. Insert Style, Through Coolant, Series Super Turbo

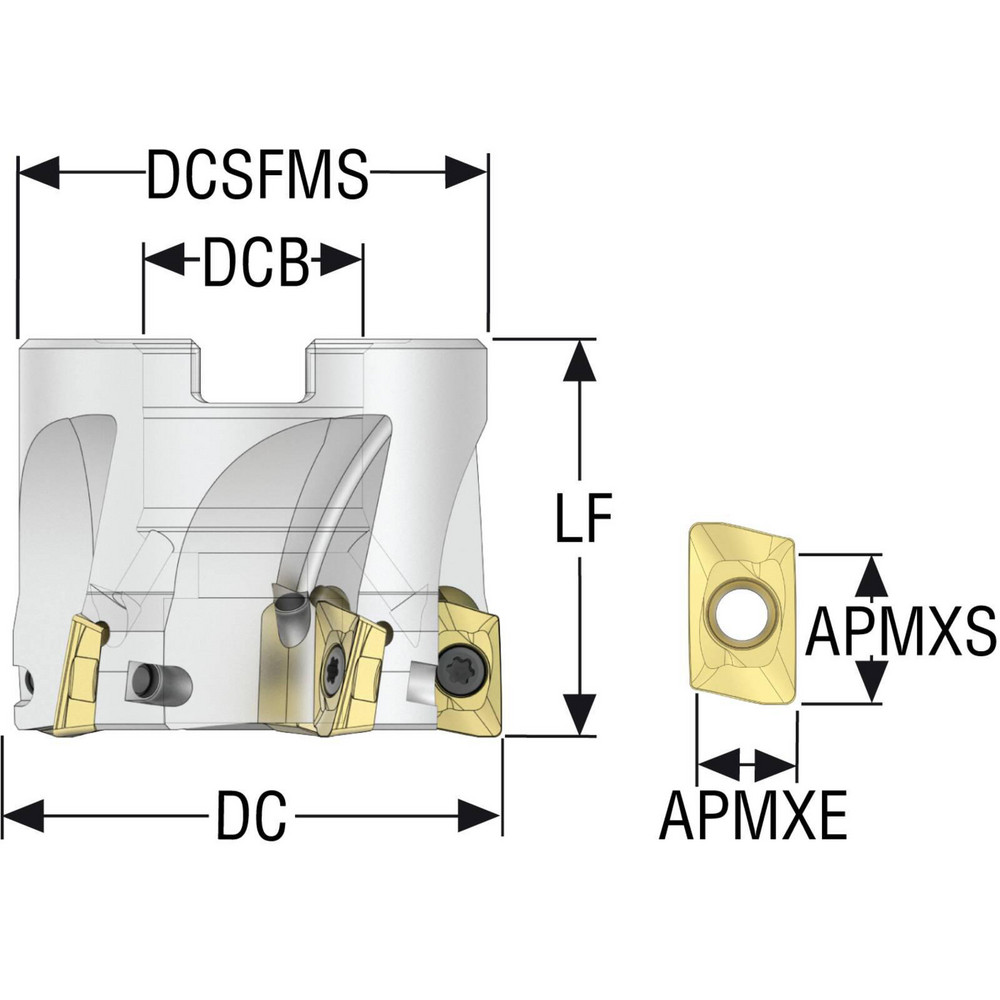

| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XO X1204 |
| Cutter Style | R220.69 |
| Cutting Direction | Right Hand |

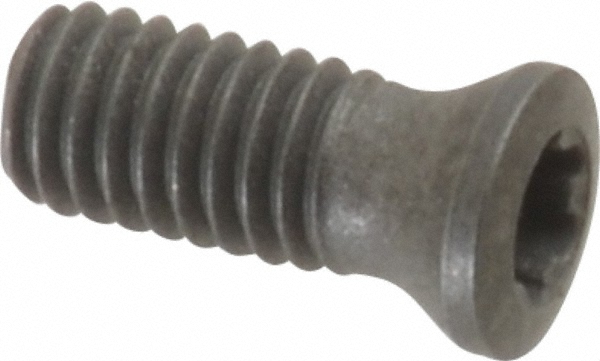

| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Rake | Positive (Axial); Negative (Radial) |
| Series | Super Turbo |
| Maximum Ramping Angle | 1.50 |
| Overall Height (Decimal Inch) | 1.5700 |
| Keyway Width (mm) | 8.20 |
| Hub Diameter (mm) | 47.00 |
| Tool Application | Helical Interpolation; Ramping; Slotting |

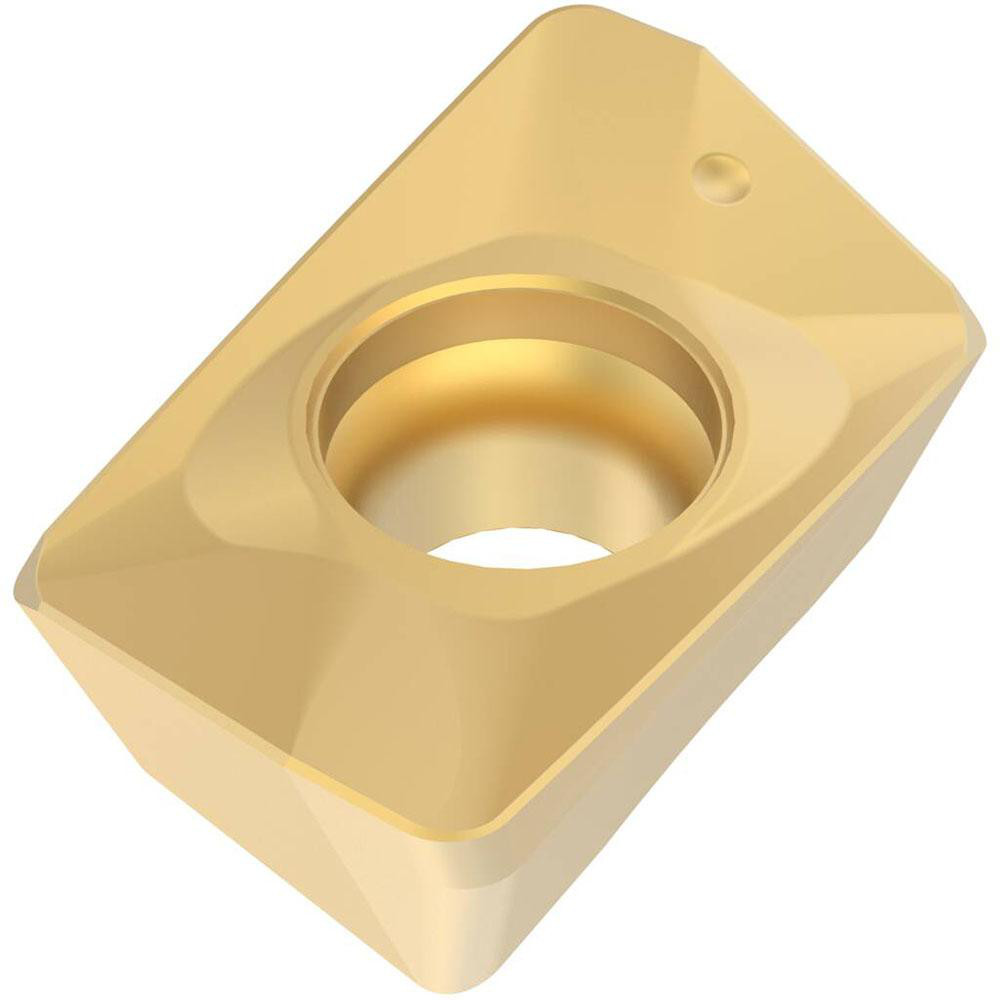

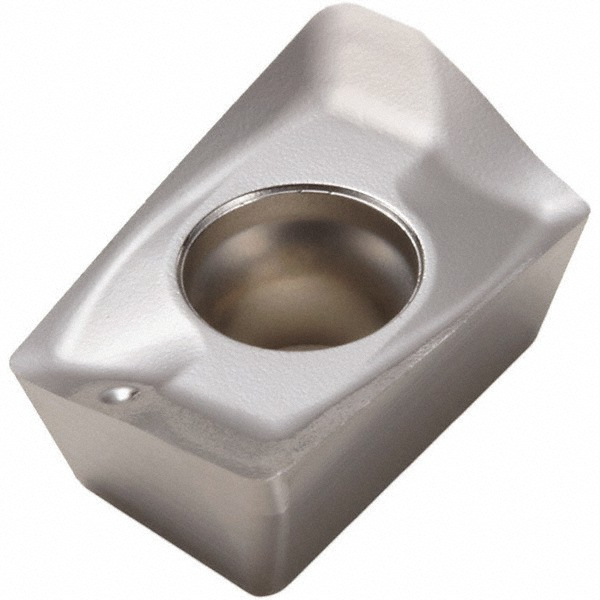

| Complete Insert Compatibility | XOMX 1204; XOEX1204 |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | India |
| MSC Number | MSC# 83251413 |
