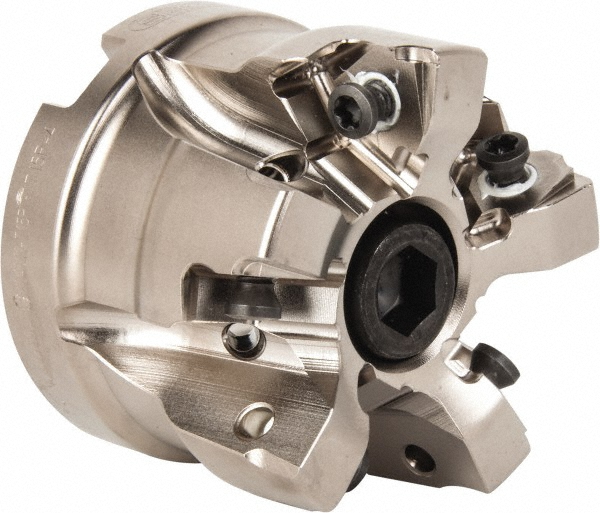

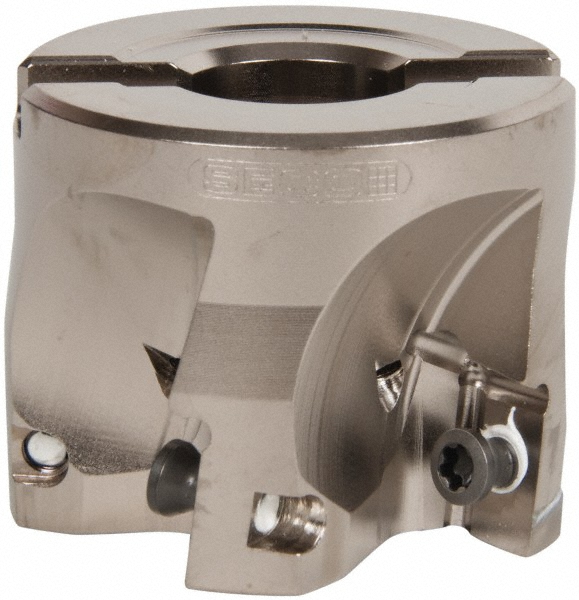

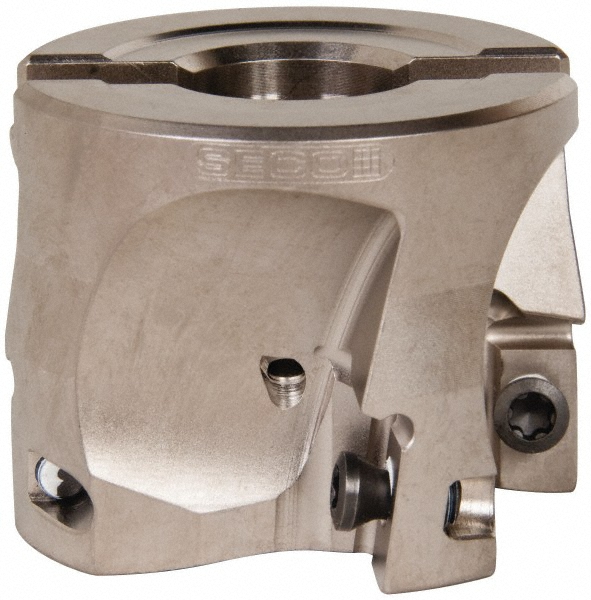

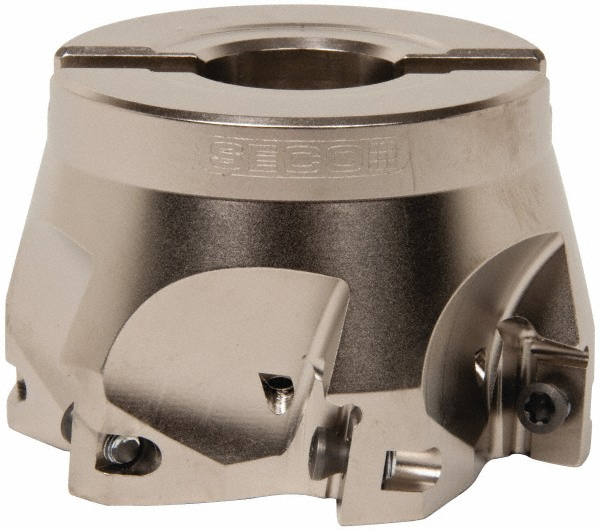

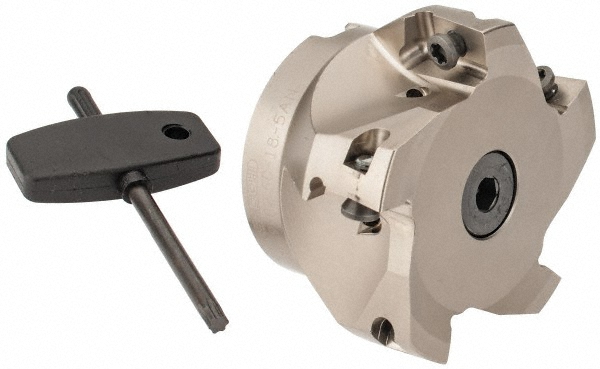

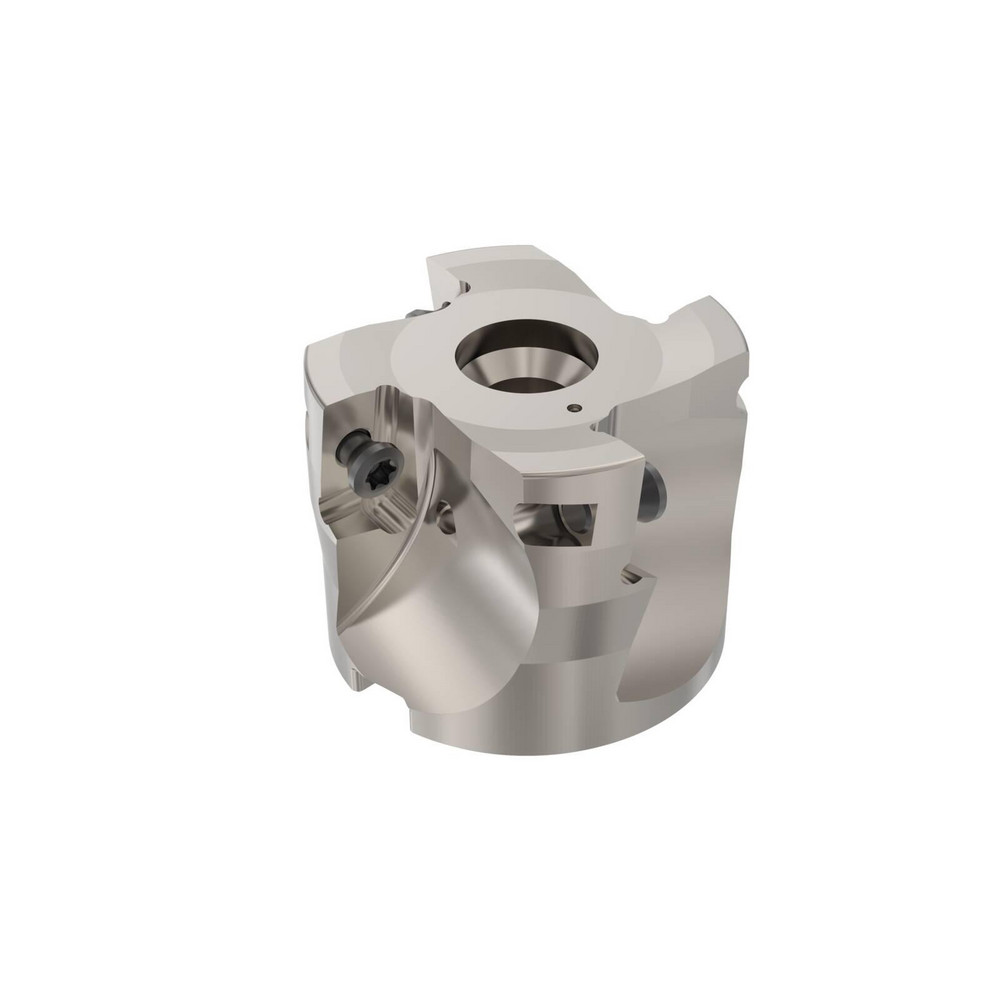

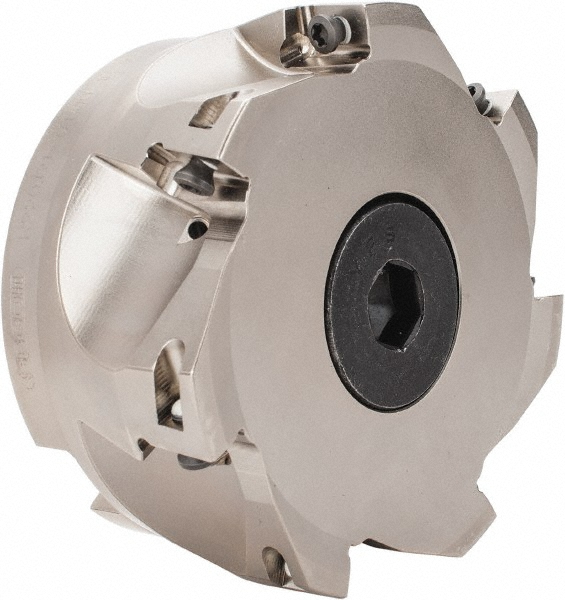

Takes 4 Inserts, 0/90° Lead Angle, 1.575" High, XO.X 1806.. Insert Style, Through Coolant, Series Power Turbo

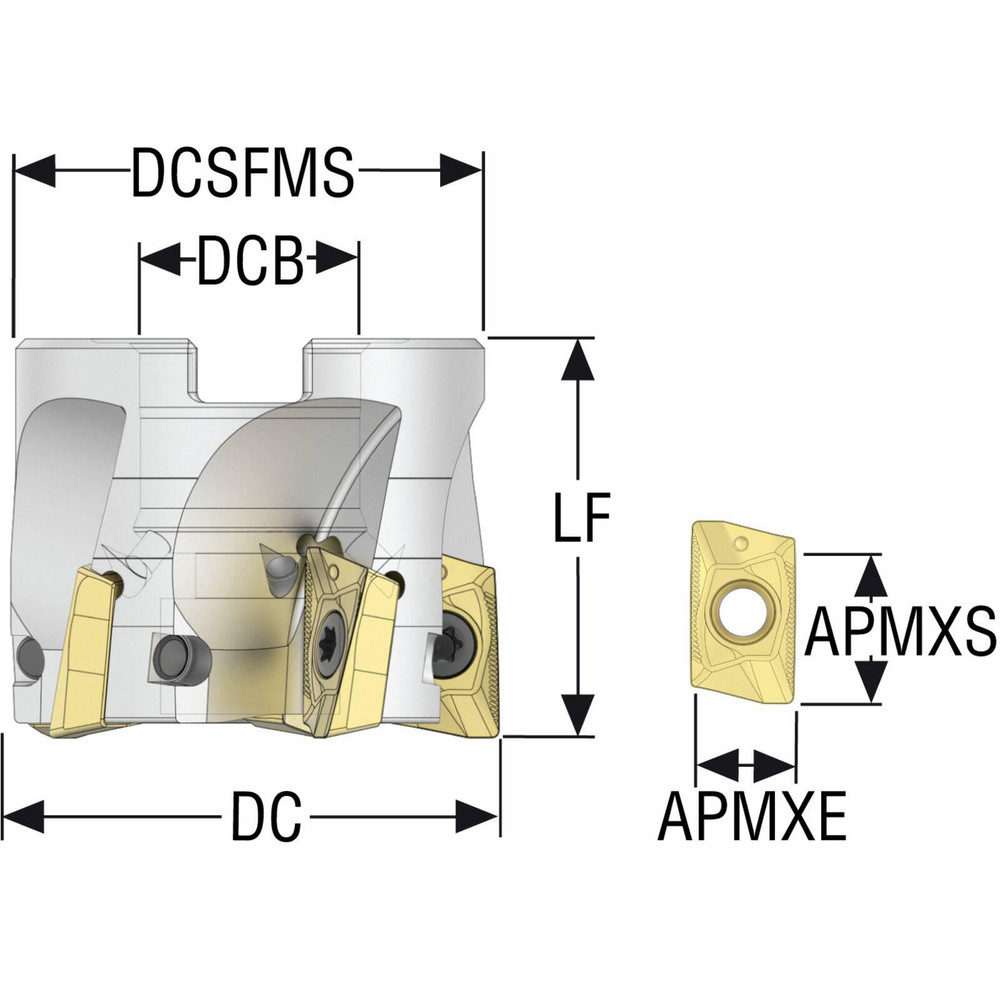

| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XO X1806 |
| Cutter Style | R220.69 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Rake | Positive (Axial); Negative (Radial) |
| Series | Power Turbo |
| Maximum Ramping Angle | 3.00 |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (mm) | 8.20 |
| Hub Diameter (mm) | 47.00 |
| Pitch Type | Medium |
| Tool Application | Helical Interpolation; Ramping; Slotting |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 83250738 |
