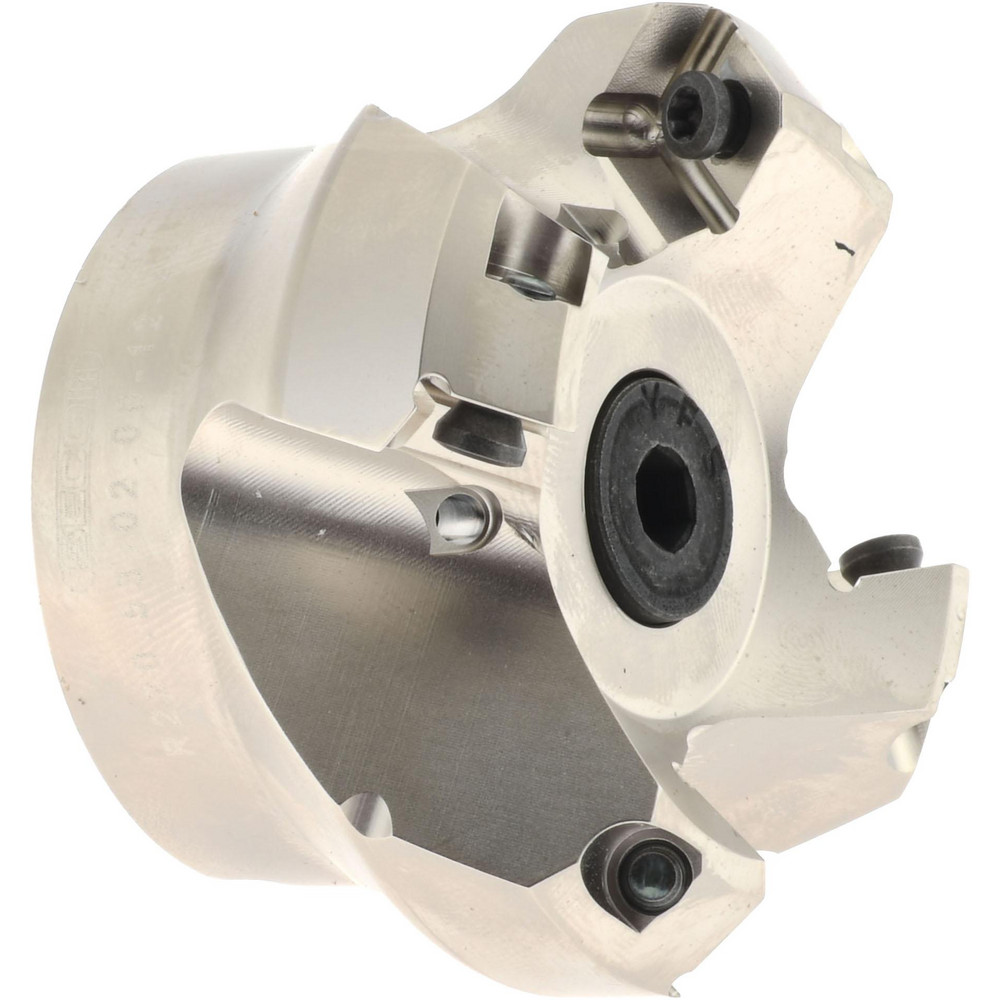

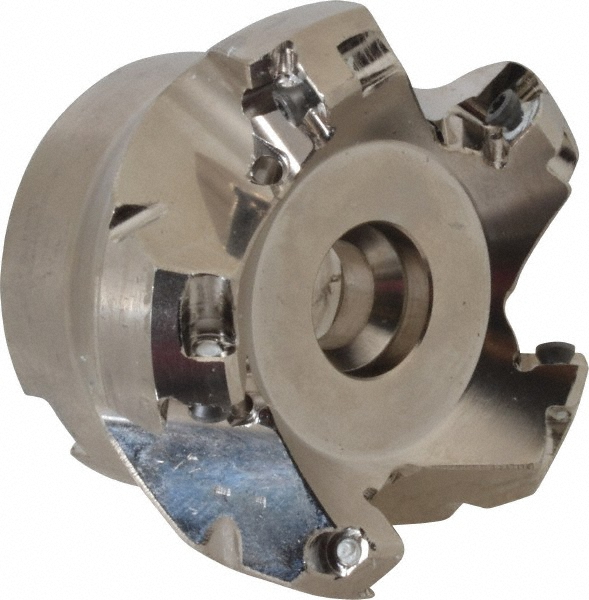

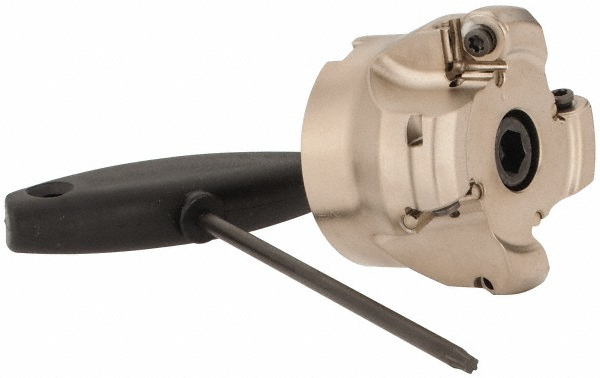

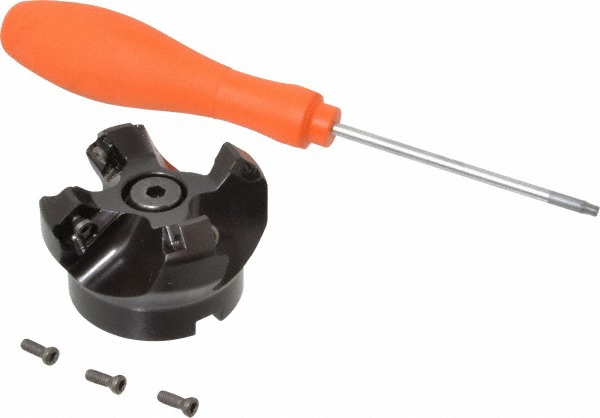

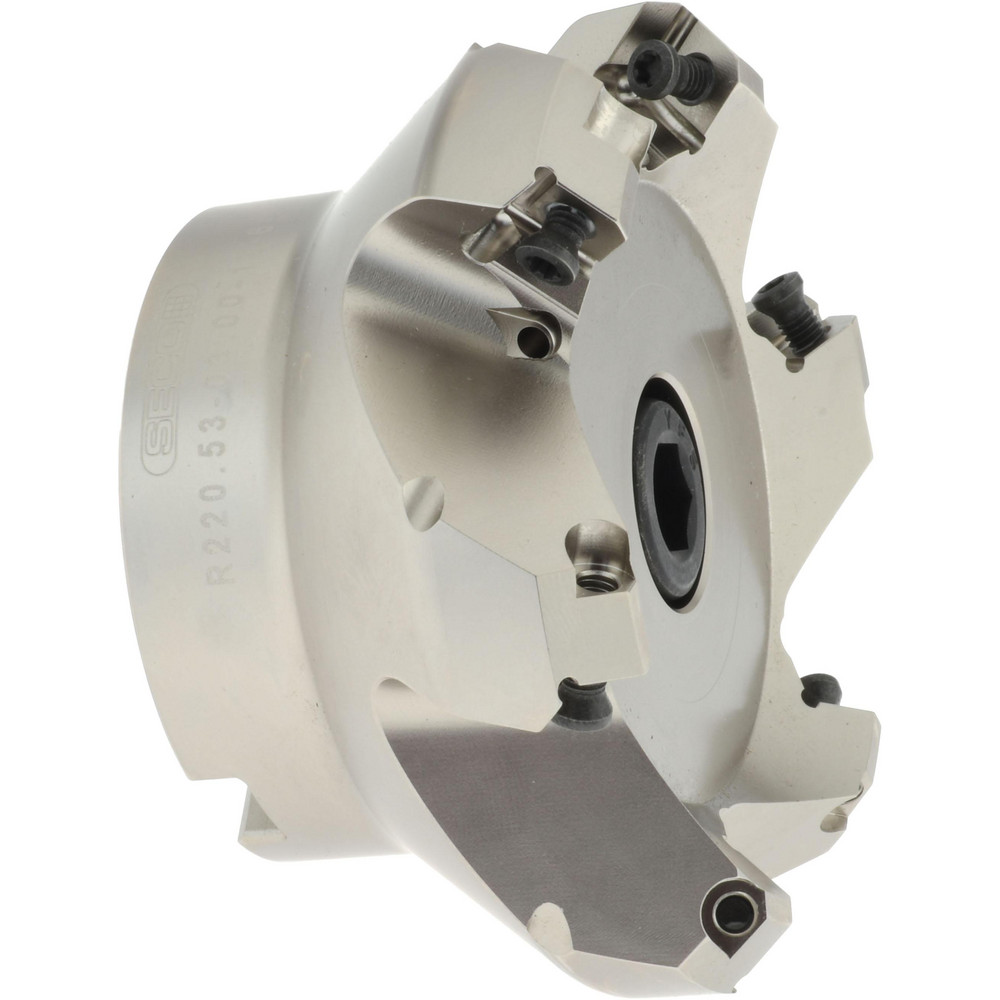

Takes 5 Inserts, SE.X 43 Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series R220.53

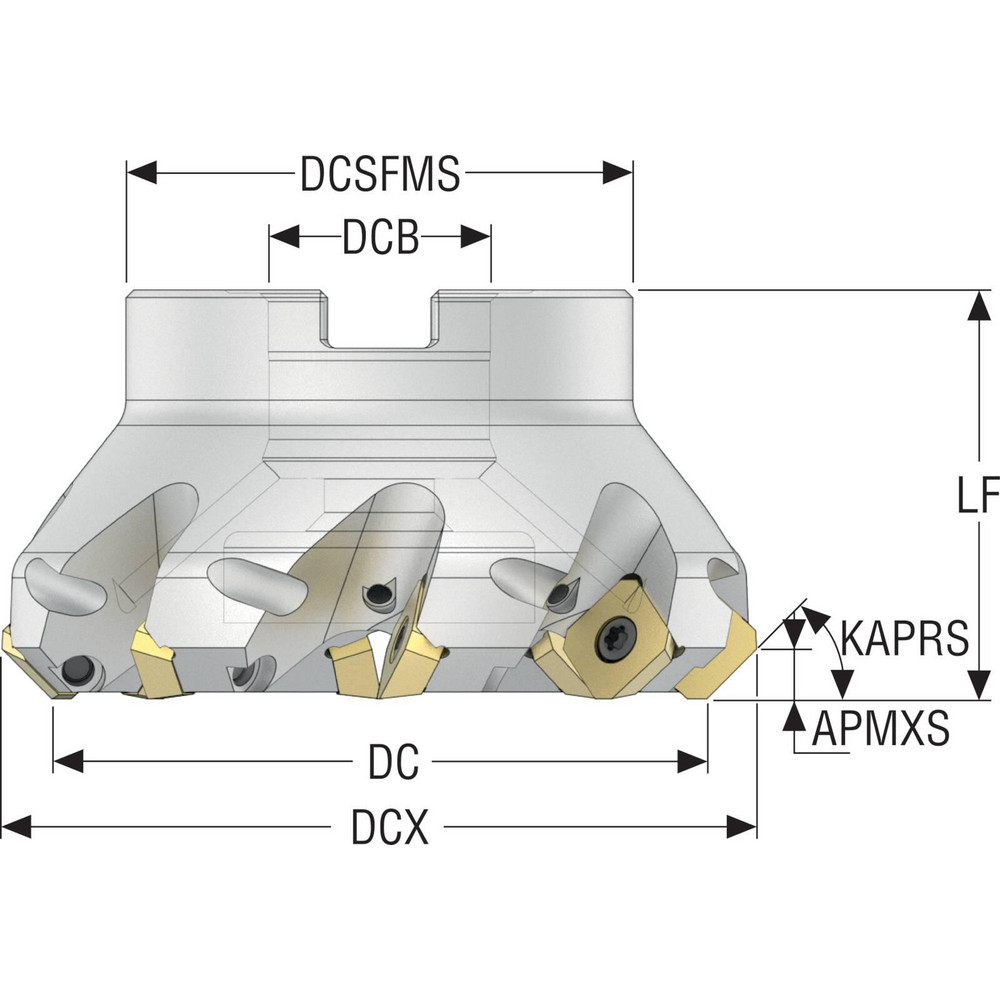

| Minimum Cutting Diameter (Decimal Inch) | 1.9700 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.4400 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | SE X 43 |
| Cutter Style | R220.53 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative (Radial); Positive (Axial) |
| Series | R220.53 |
| Hub Diameter (Decimal Inch) | 1.8500 |
| Keyway Width (mm) | 8.20 |
| Overall Height (Decimal Inch) | 1.5700 |
| Pitch Type | Close |
| Tool Application | Facing |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| Number Of Flutes | 5 |
| UNSPSC Code | 23291600 |
| Country of Origin | France |
| MSC Number | MSC# 09293028 |
