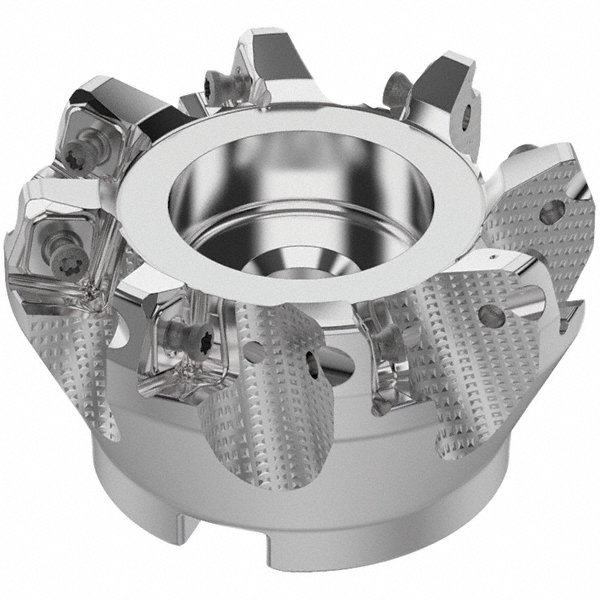

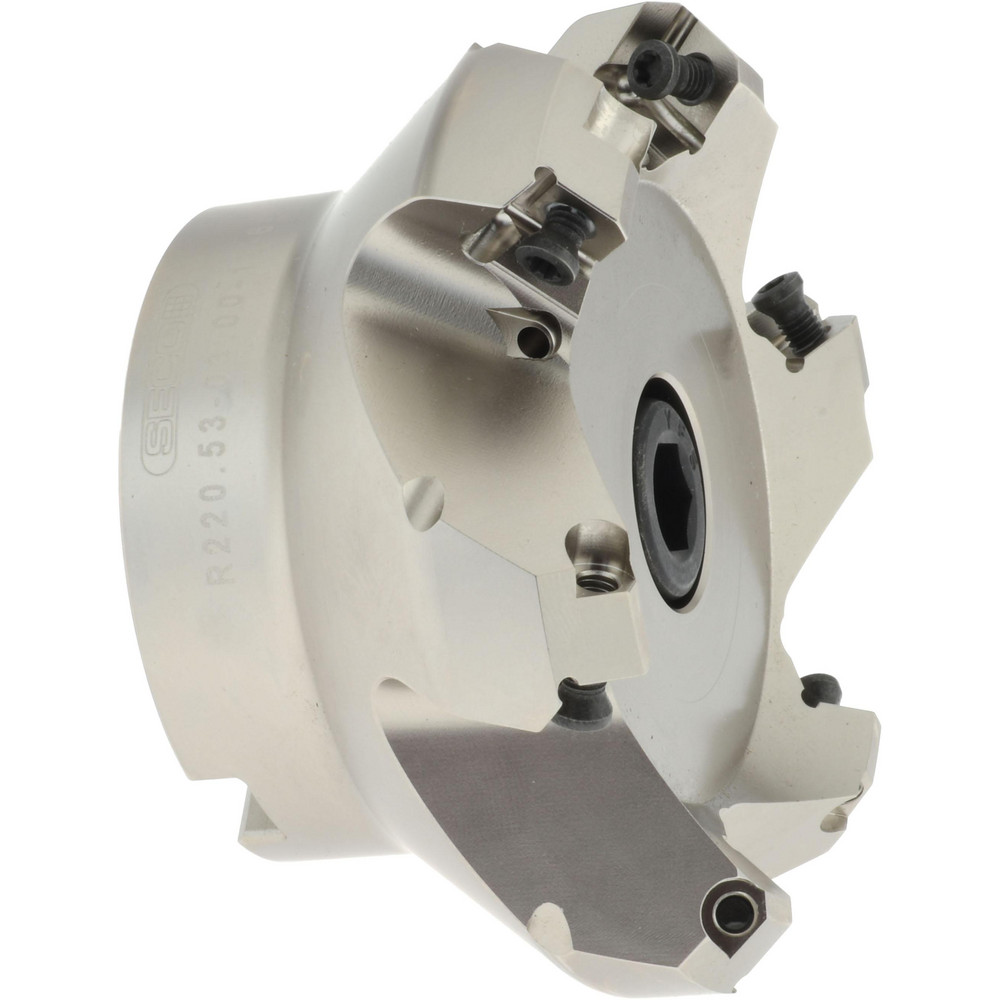

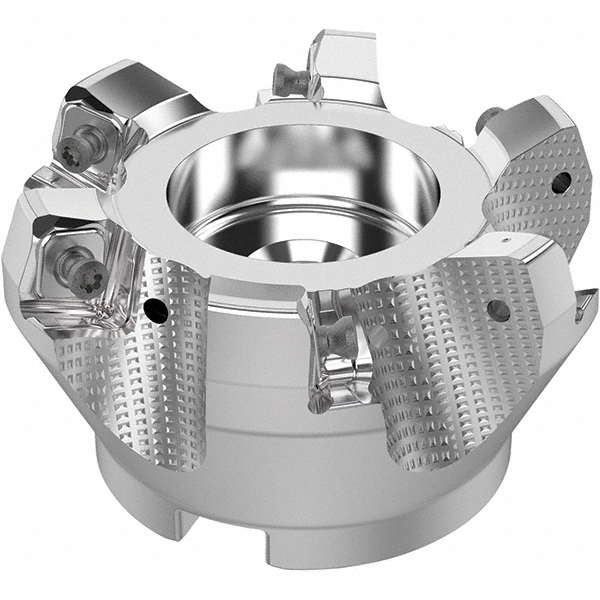

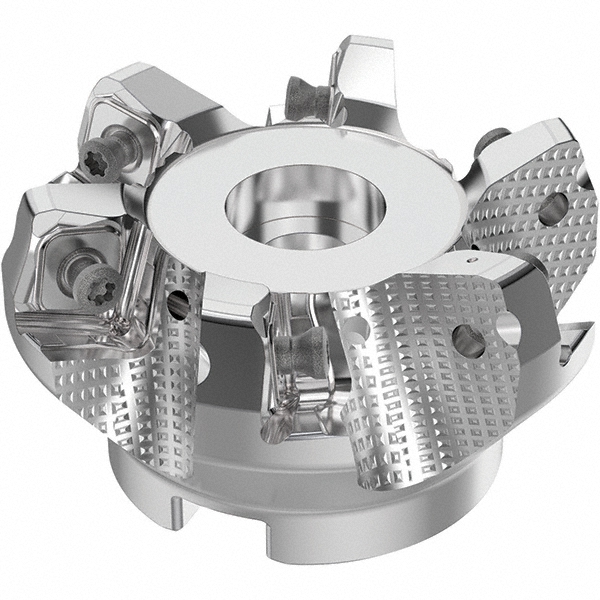

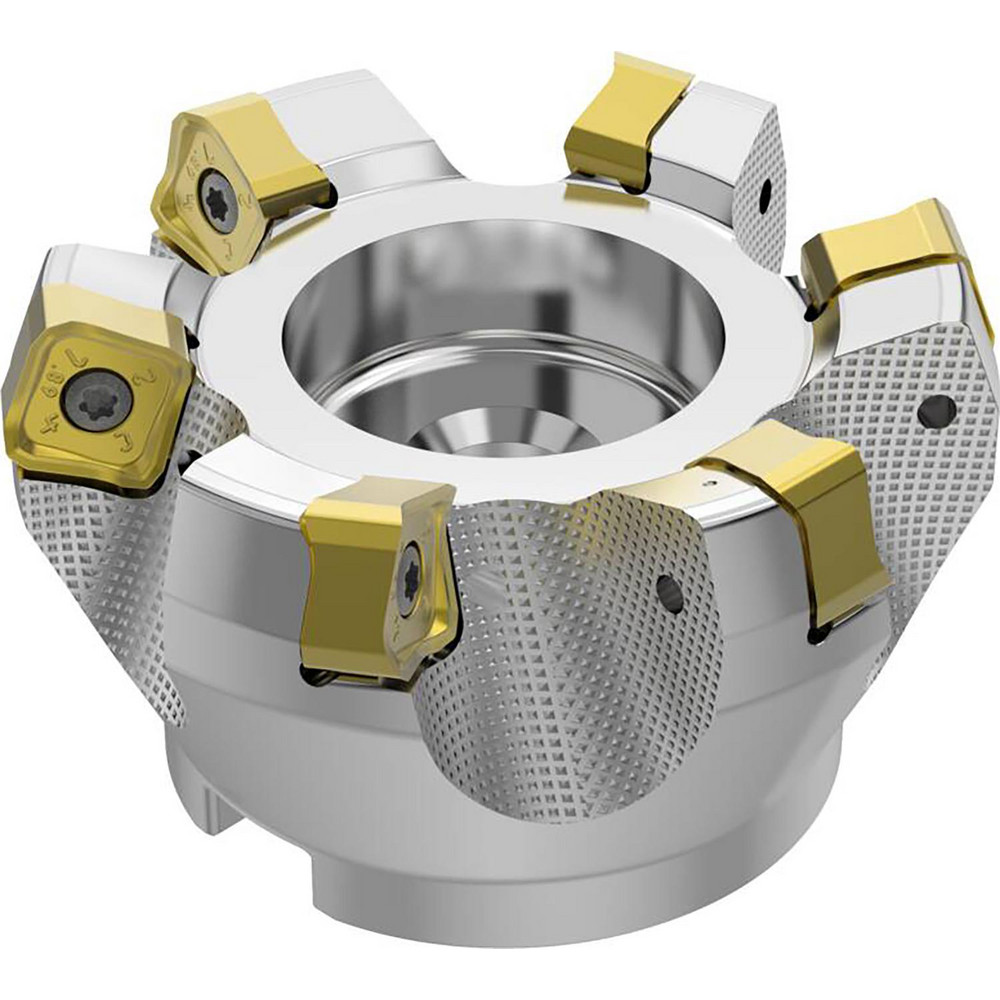

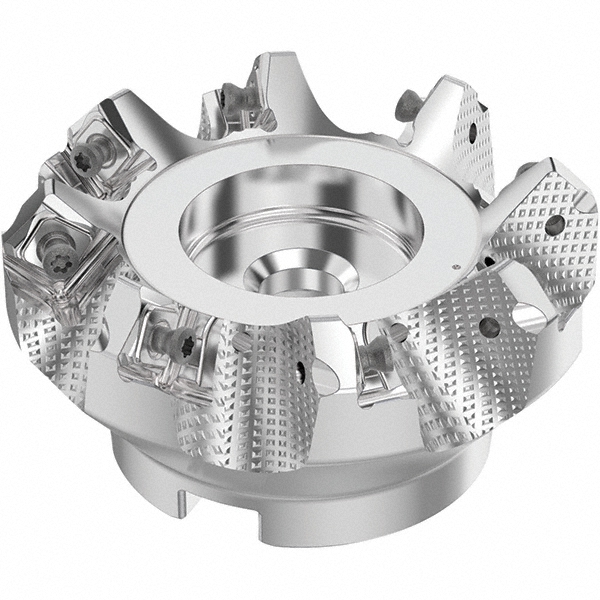

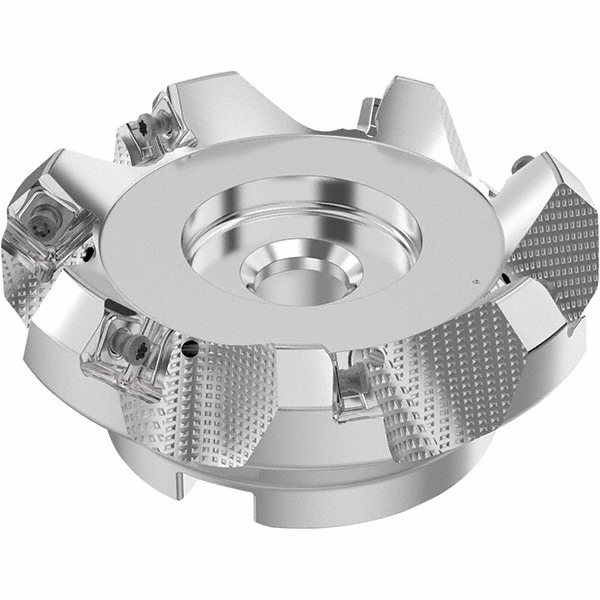

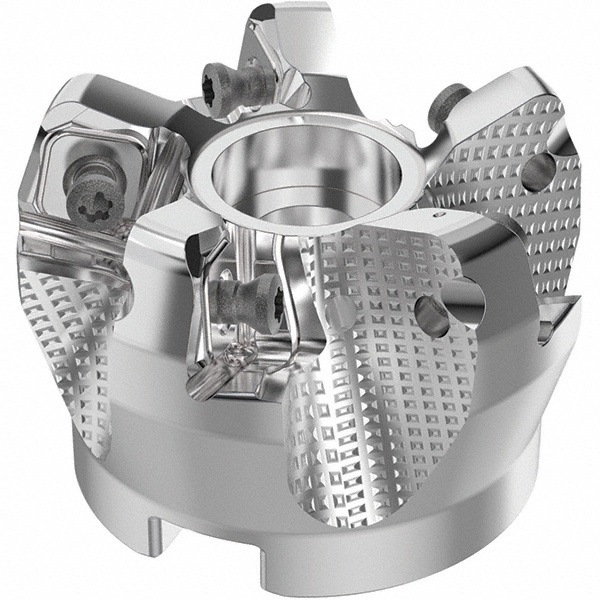

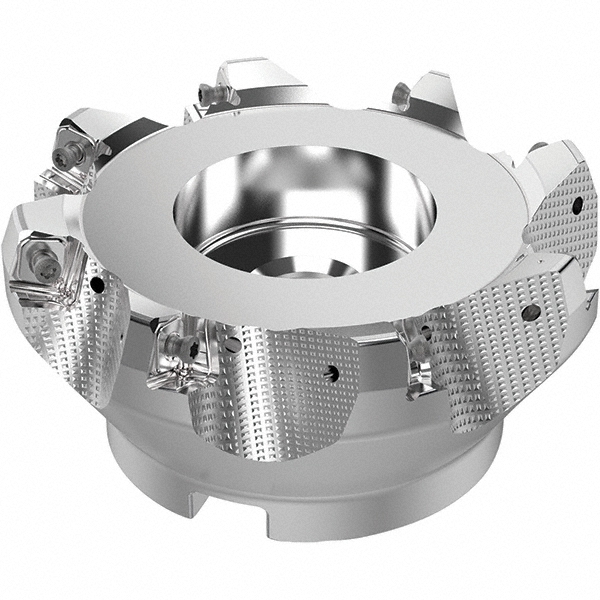

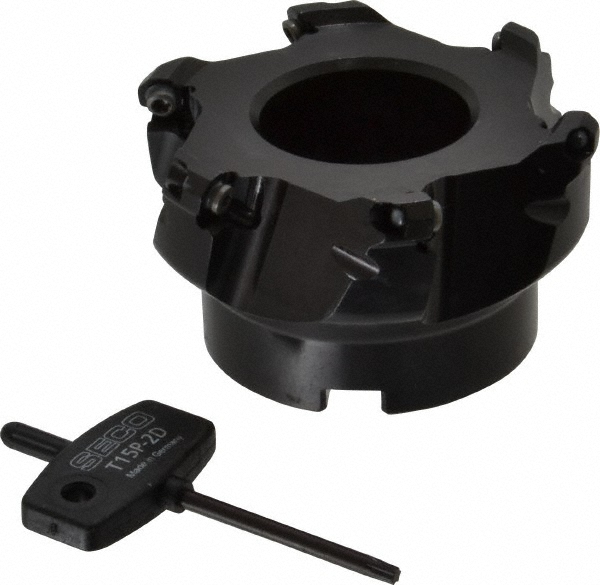

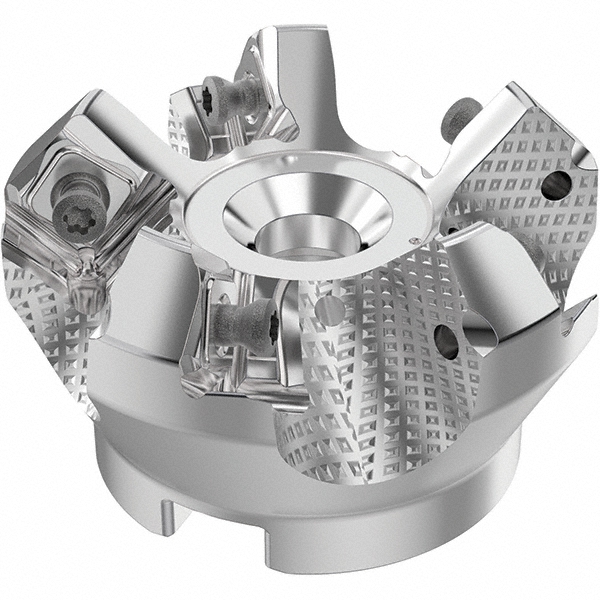

Takes 6 Inserts, SN.. Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series R220.56

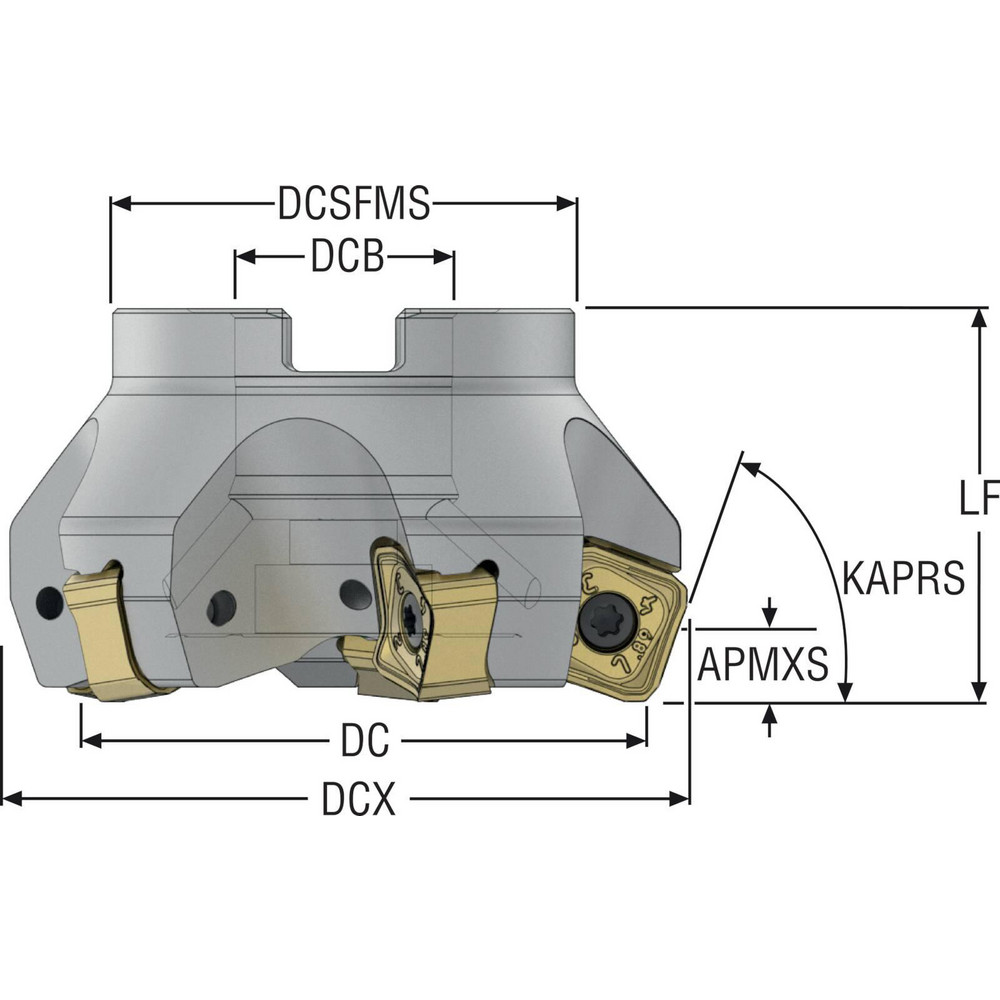

| Minimum Cutting Diameter (Decimal Inch) | 3.1500 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.4250 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | SN |
| Cutter Style | R220.56 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake Angle | -6 |
| Series | R220.56 |
| Hub Diameter (Decimal Inch) | 2.4410 |
| Keyway Width (Decimal Inch) | 0.4880 |
| Overall Height (Decimal Inch) | 50.00 |
| Maximum Body Diameter (Decimal Inch) | 3.3460 |
| Pitch Type | Normal |
| Maximum RPM | 6700 |
| Complete Insert Compatibility | SN..14..ZNTR |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
| Number Of Flutes | 6 |
| UNSPSC Code | 23291600 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 13265681 |
