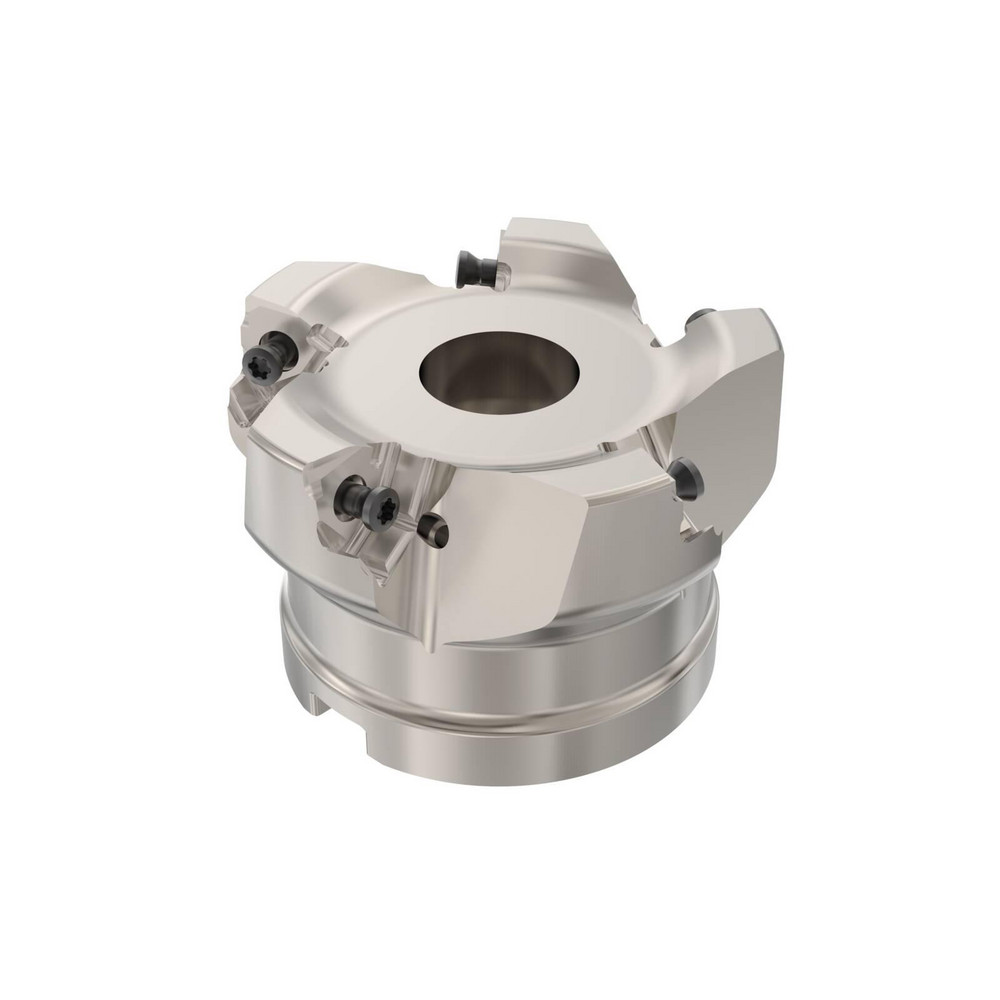

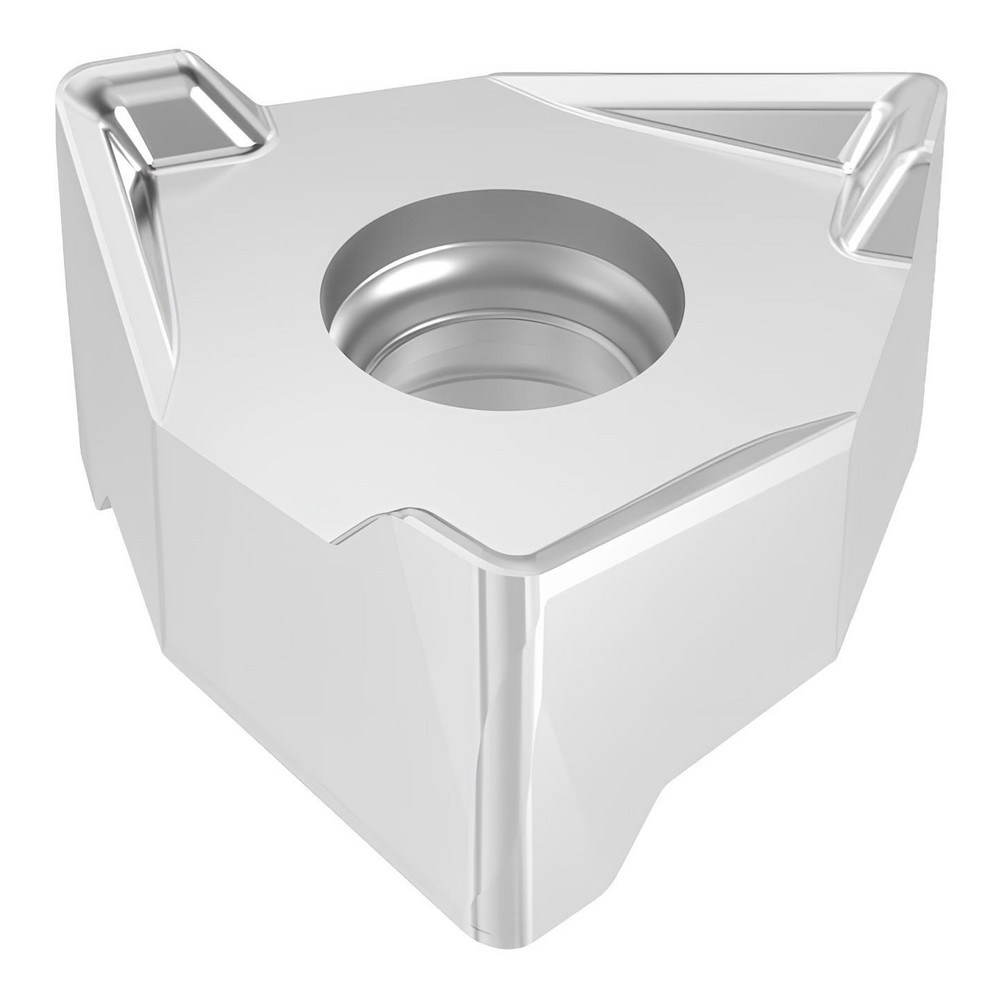

Takes 5 Inserts, 0/90° Lead Angle, 1.97" High, XNEX 0806.. Insert Style, Through Coolant, Series Square 6

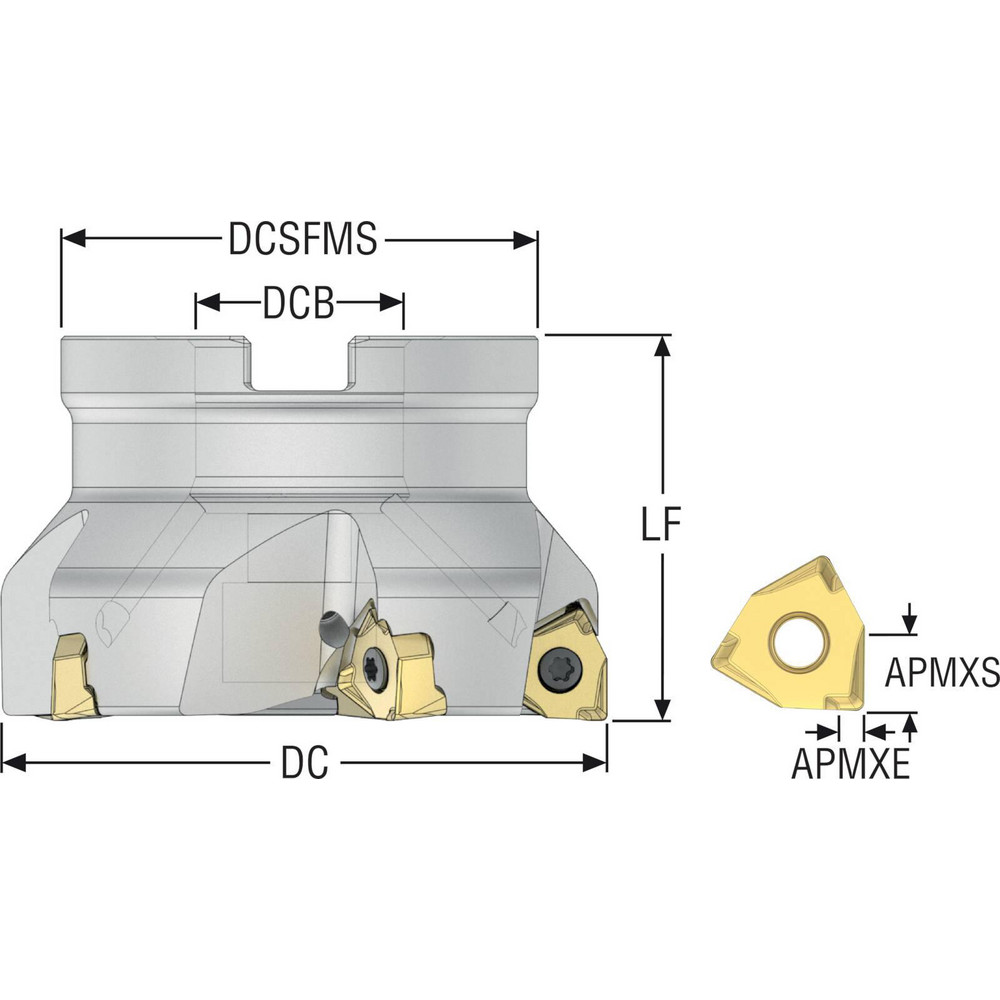

| Maximum Cutting Diameter (Inch) | 3 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |

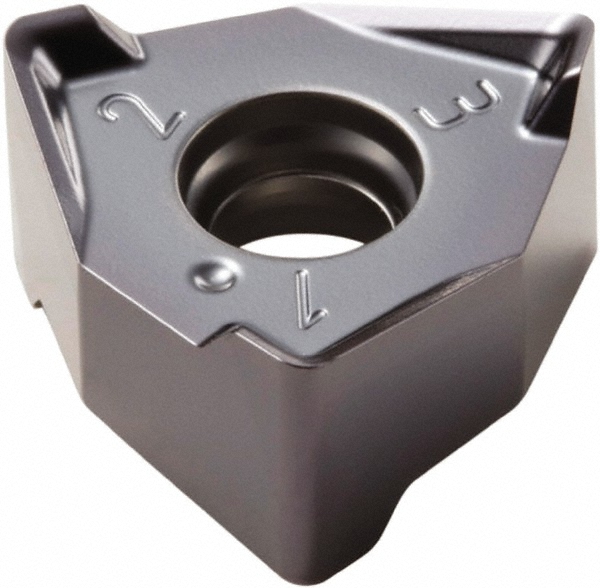

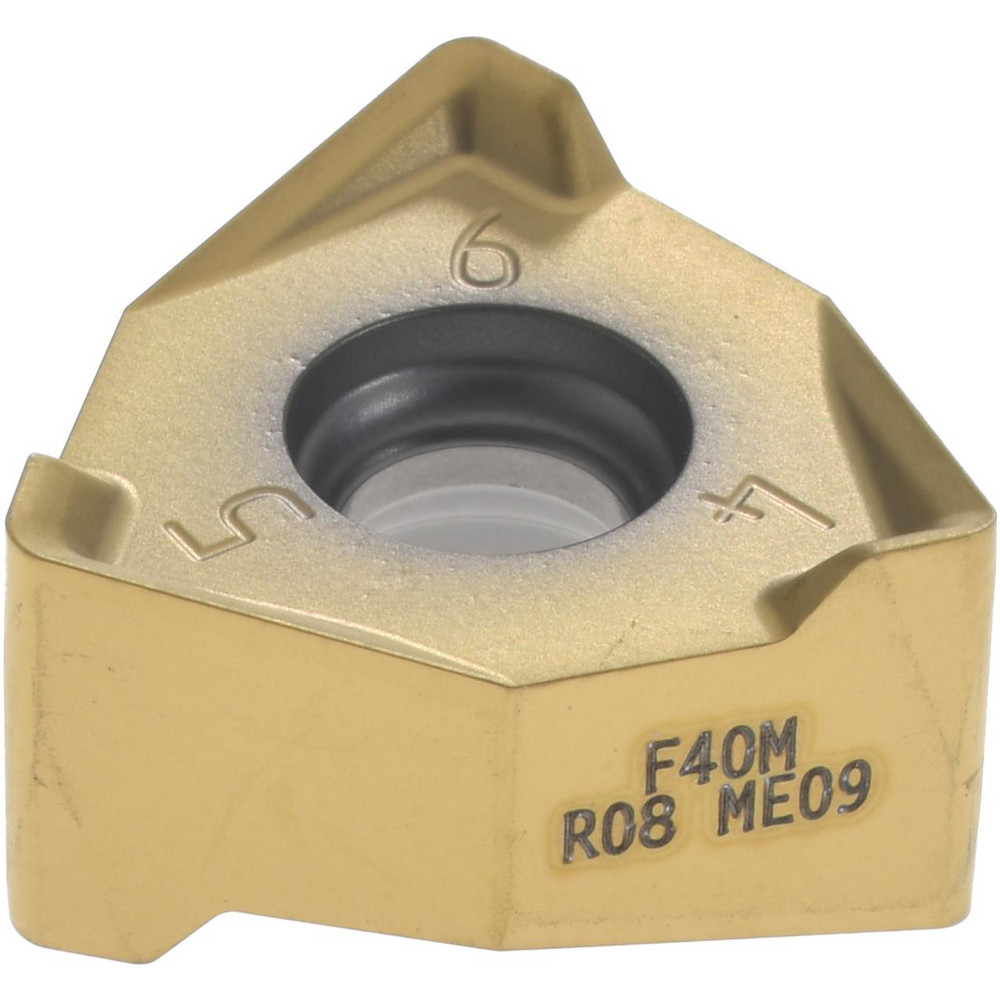

| Compatible Insert Size Code | XNEX 0806 |
| Cutter Style | R220.96 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Rake | Negative |
| Series | Square 6 |
| Maximum Ramping Angle | 0.00 |
| Overall Height (Decimal Inch) | 1.9700 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Hub Diameter (mm) | 62.00 |
| Pitch Type | Coarse |
| Tool Application | Slotting |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 55189799 |
