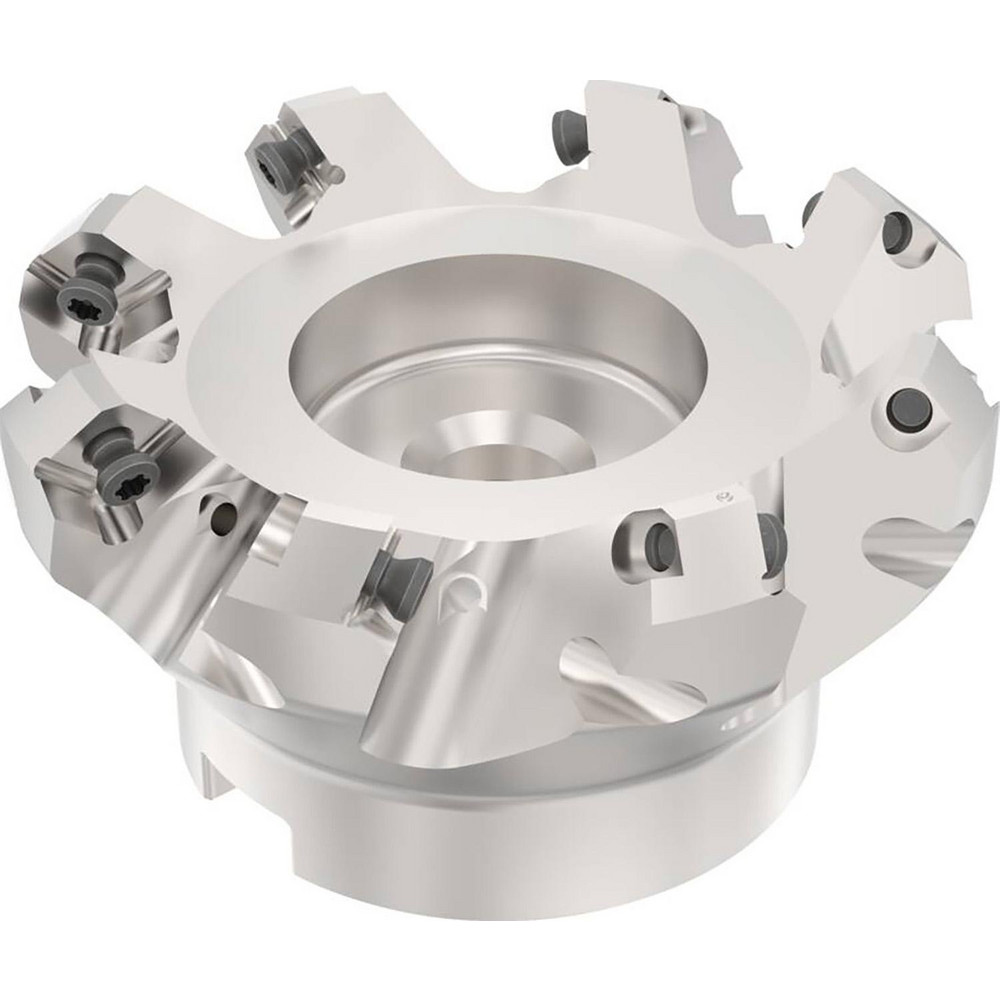

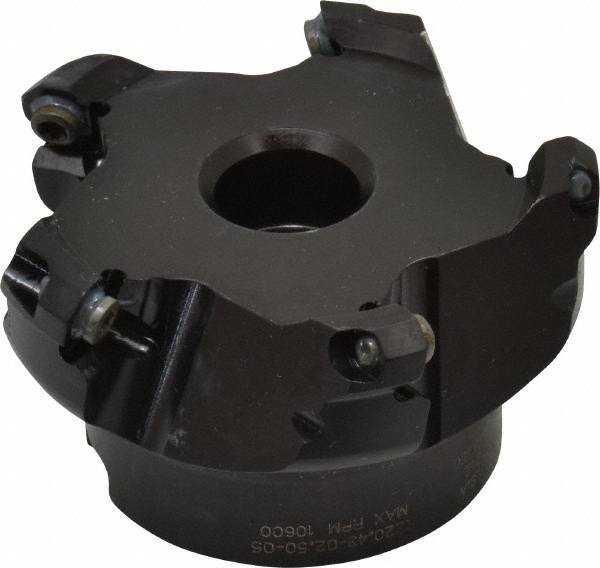

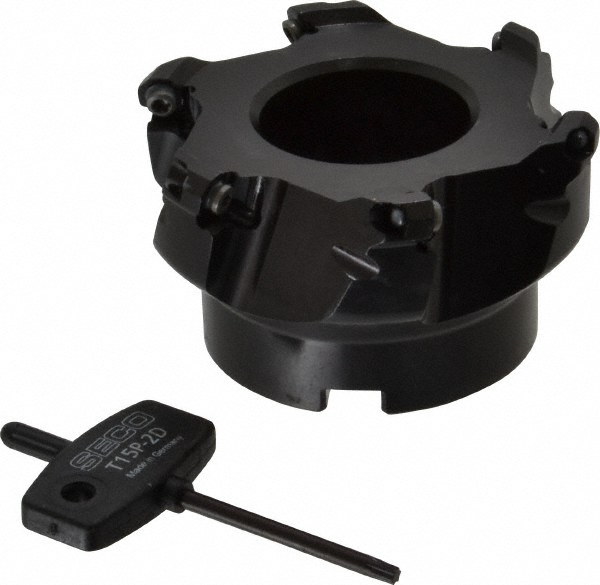

Takes 6 Inserts, OF.. 05T305 Insert, Right Hand Cut, 6 Flutes, Series R220.43

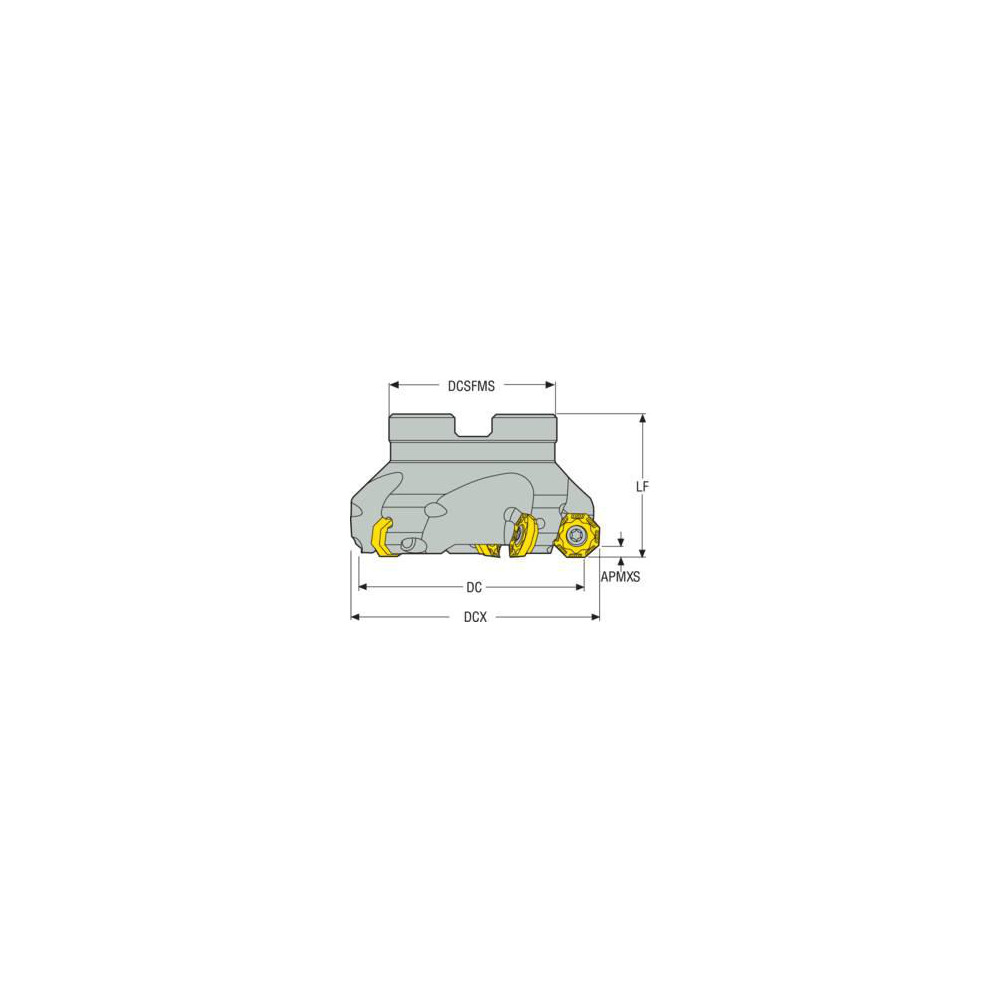

| Minimum Cutting Diameter (Decimal Inch) | 3.1500 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.6200 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | OF 05T305 |
| Cutter Style | R220.43 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | R220.43 |
| Hub Diameter (Decimal Inch) | 2.4410 |
| Keyway Width (mm) | 9.70 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum Body Diameter (Decimal Inch) | 3.5000 |
| Pitch Type | Normal |
| Maximum RPM | 9400 |
| Tool Application | Facing |
| Number Of Cutter Inserts | 6 |
| Coolant Through | No |
| Number Of Flutes | 6 |
| UNSPSC Code | 23291600 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 06322119 |
