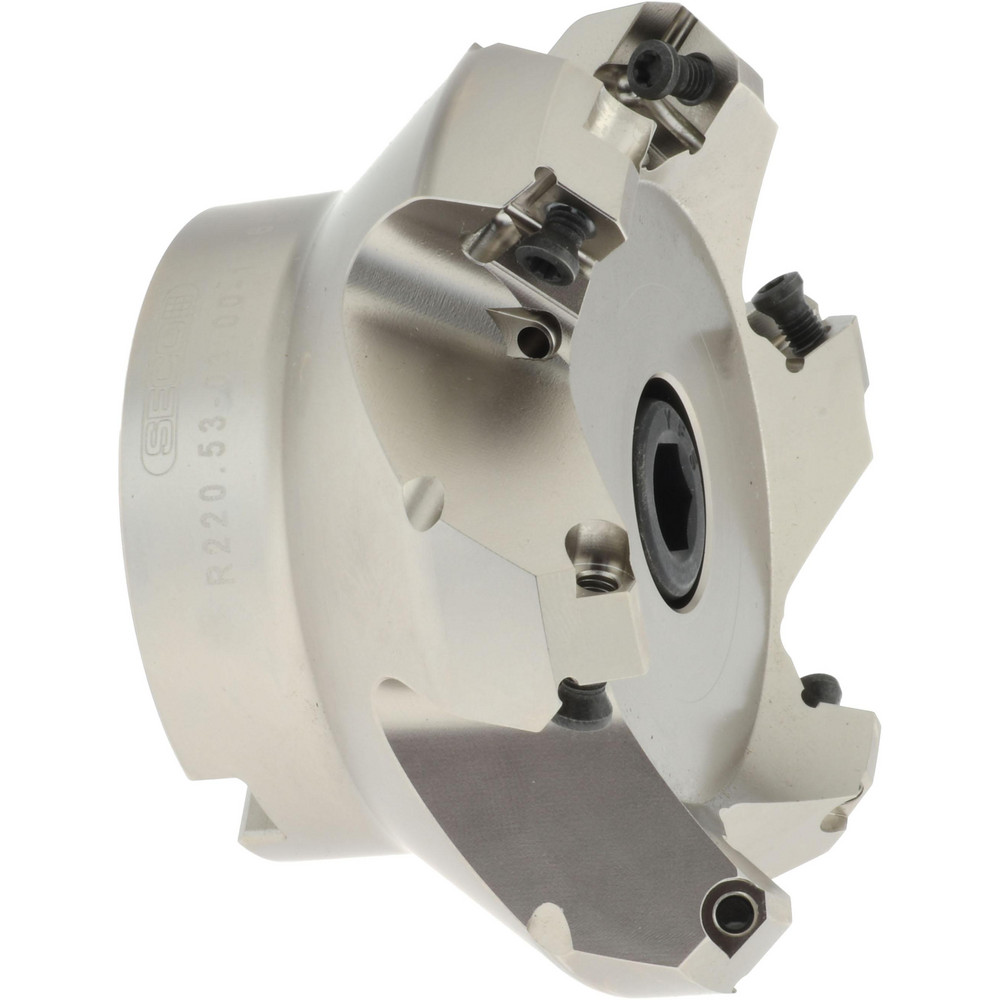

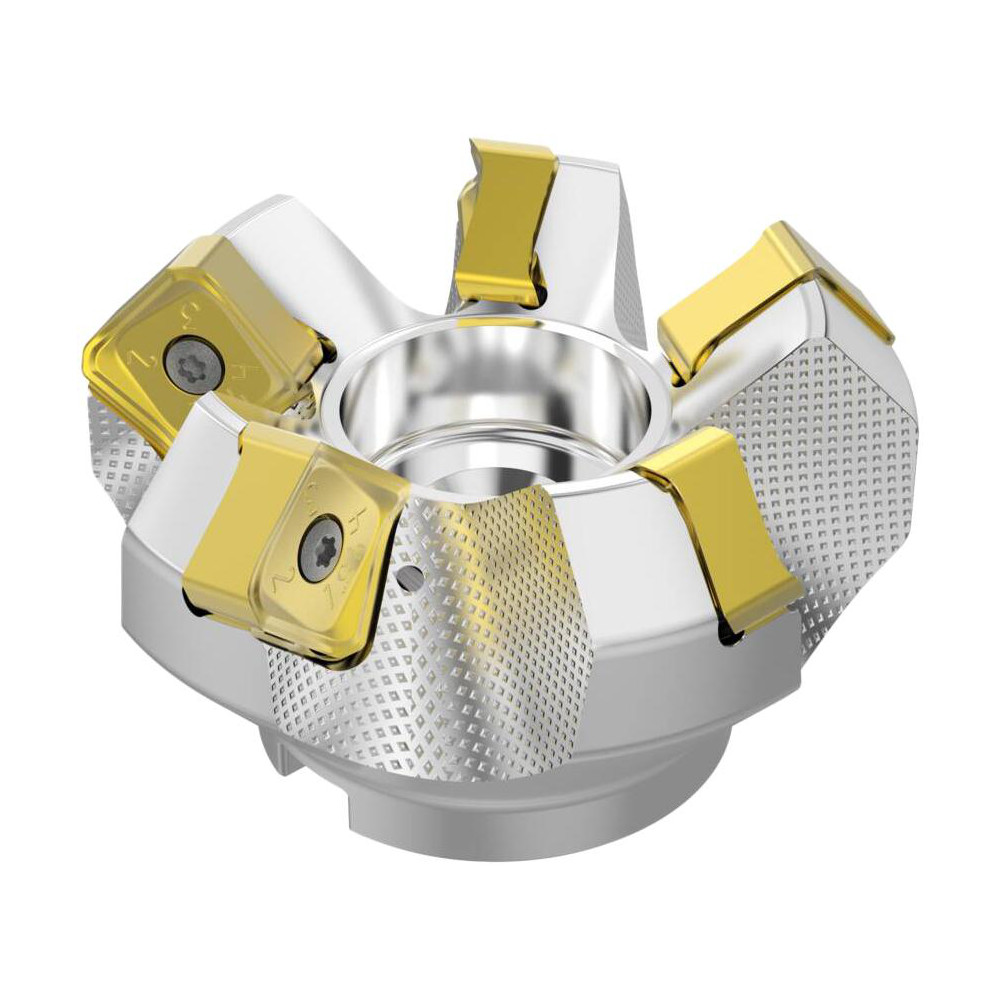

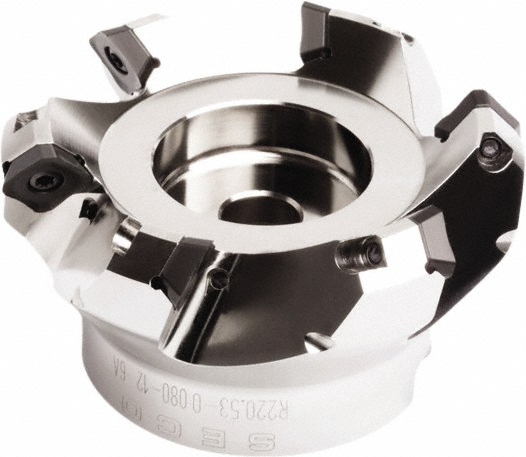

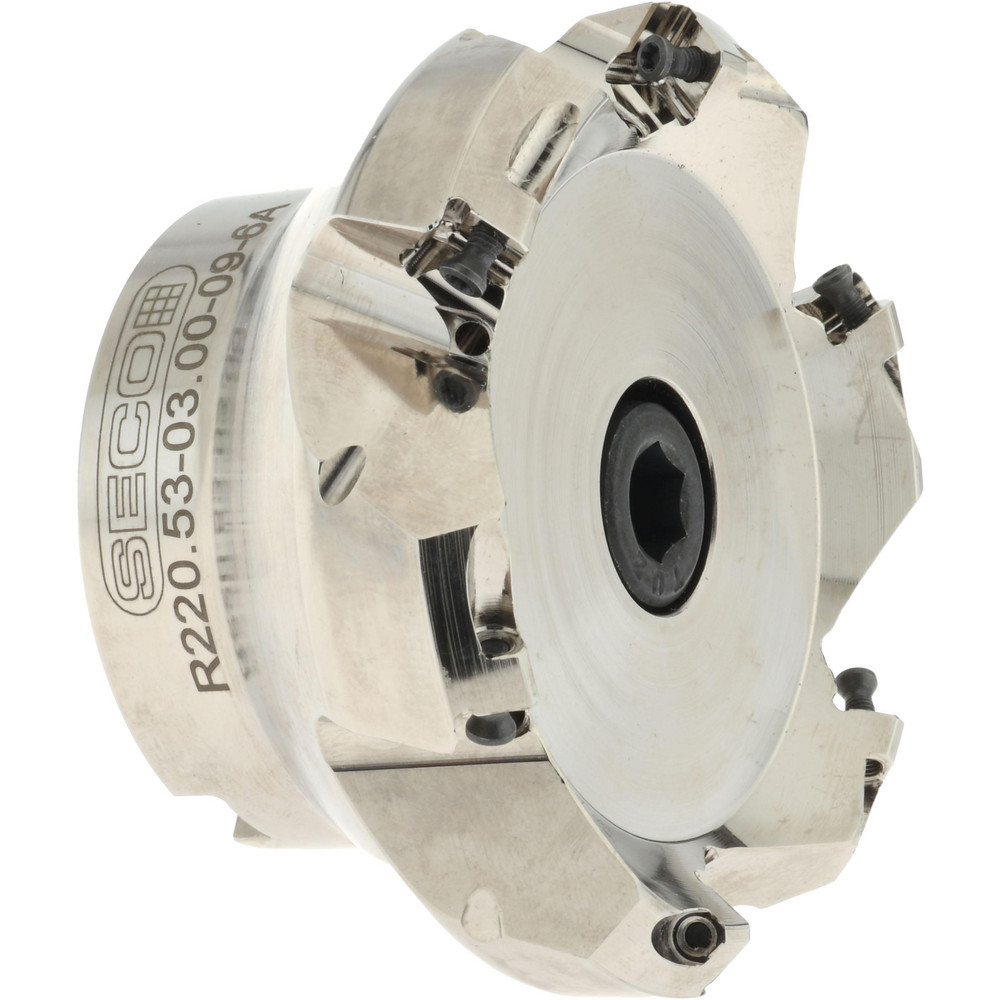

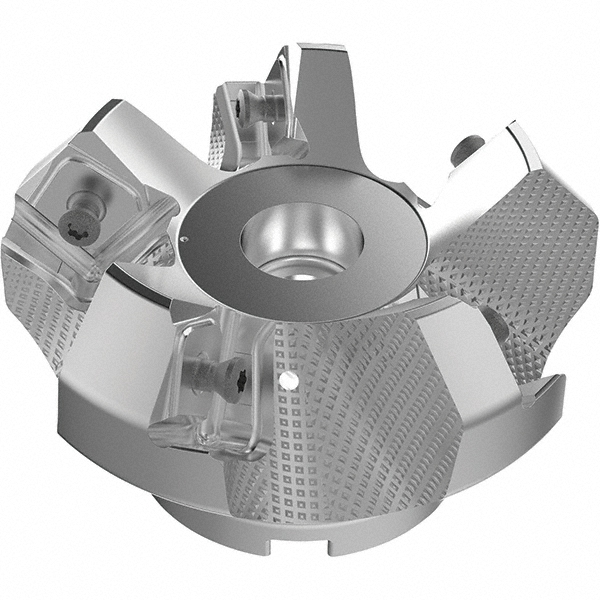

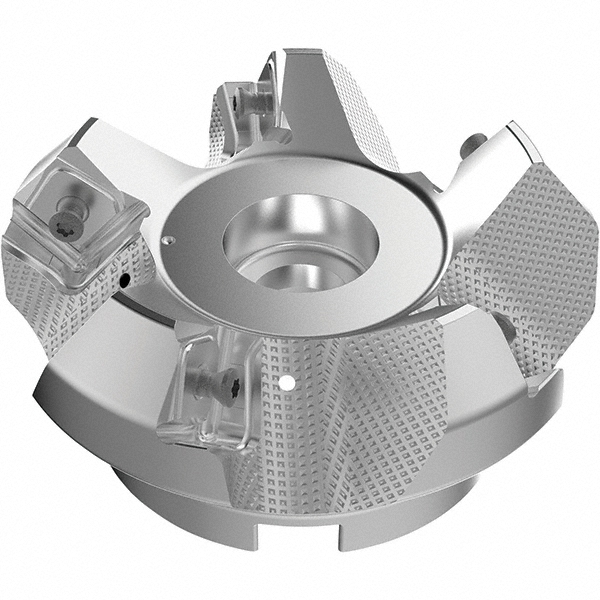

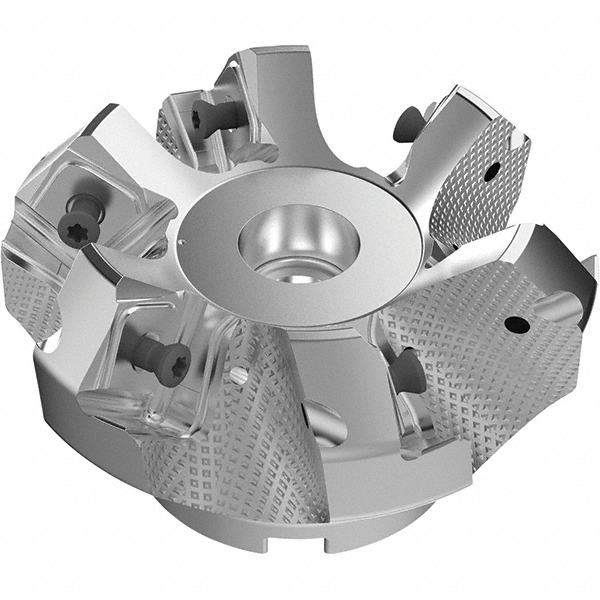

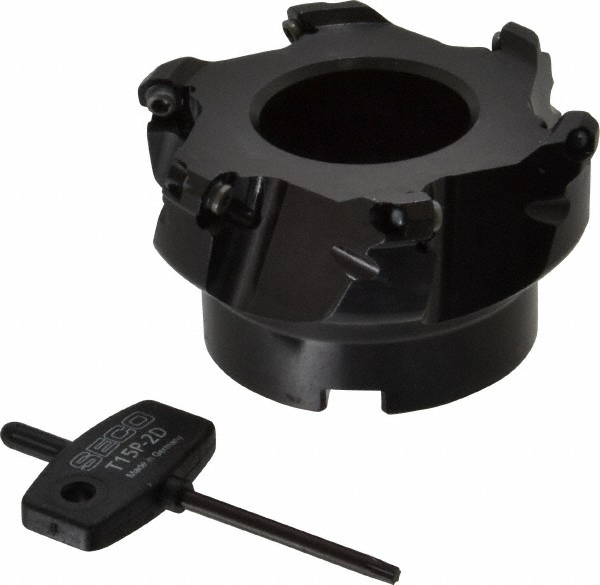

Takes 5 Inserts, Right Hand Cut, 5 Flutes, Through Coolant, Series R220.54
| Minimum Cutting Diameter (Decimal Inch) | 3.1500 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.0940 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Cutter Style | R220.54 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -7 |
| Series | R220.54 |
| Hub Diameter (Decimal Inch) | 2.4410 |
| Keyway Width (Decimal Inch) | 0.3819 |
| Overall Height (Decimal Inch) | 2.4803 |
| Pitch Type | Normal |
| Maximum RPM | 4600 |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| Number Of Flutes | 5 |
| UNSPSC Code | 23291600 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 47378955 |
