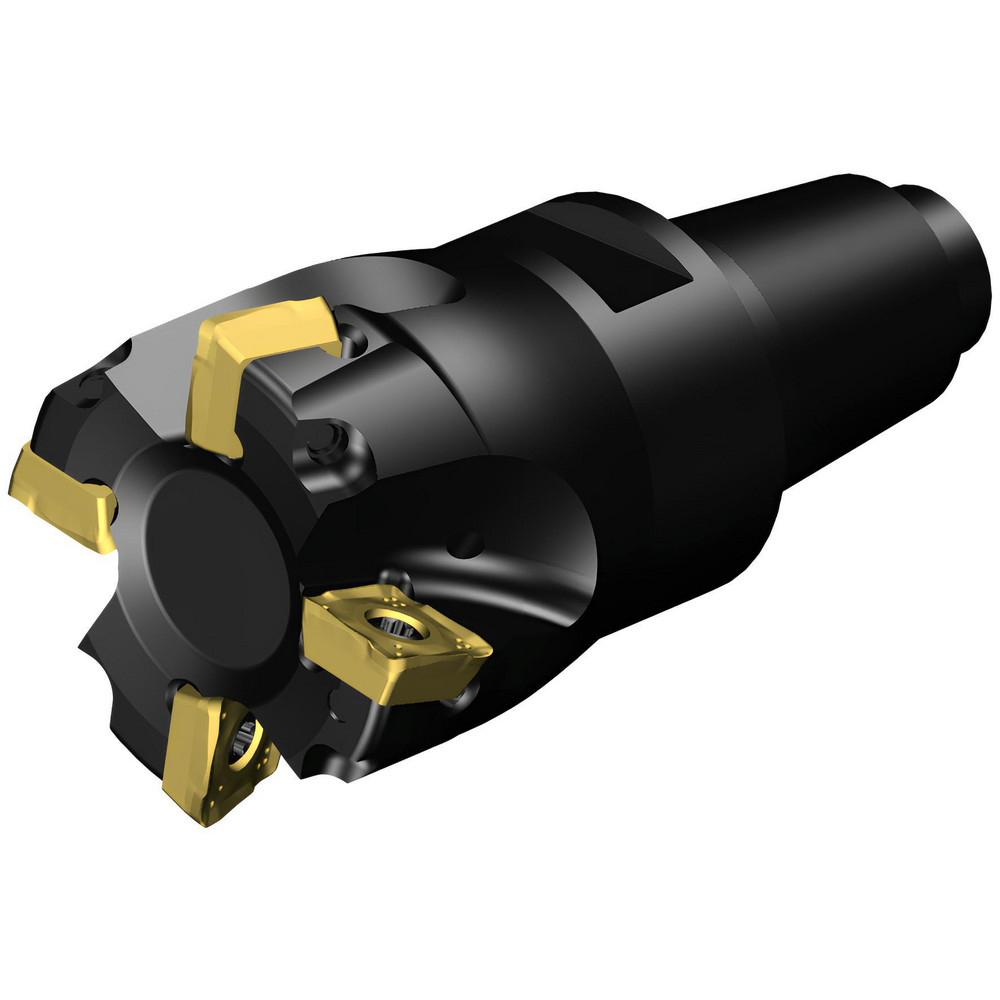

Takes 5 Inserts, 90° Lead Angle, 35mm High, LOEX08.. Insert Style, Through Coolant, Series 220.94-08

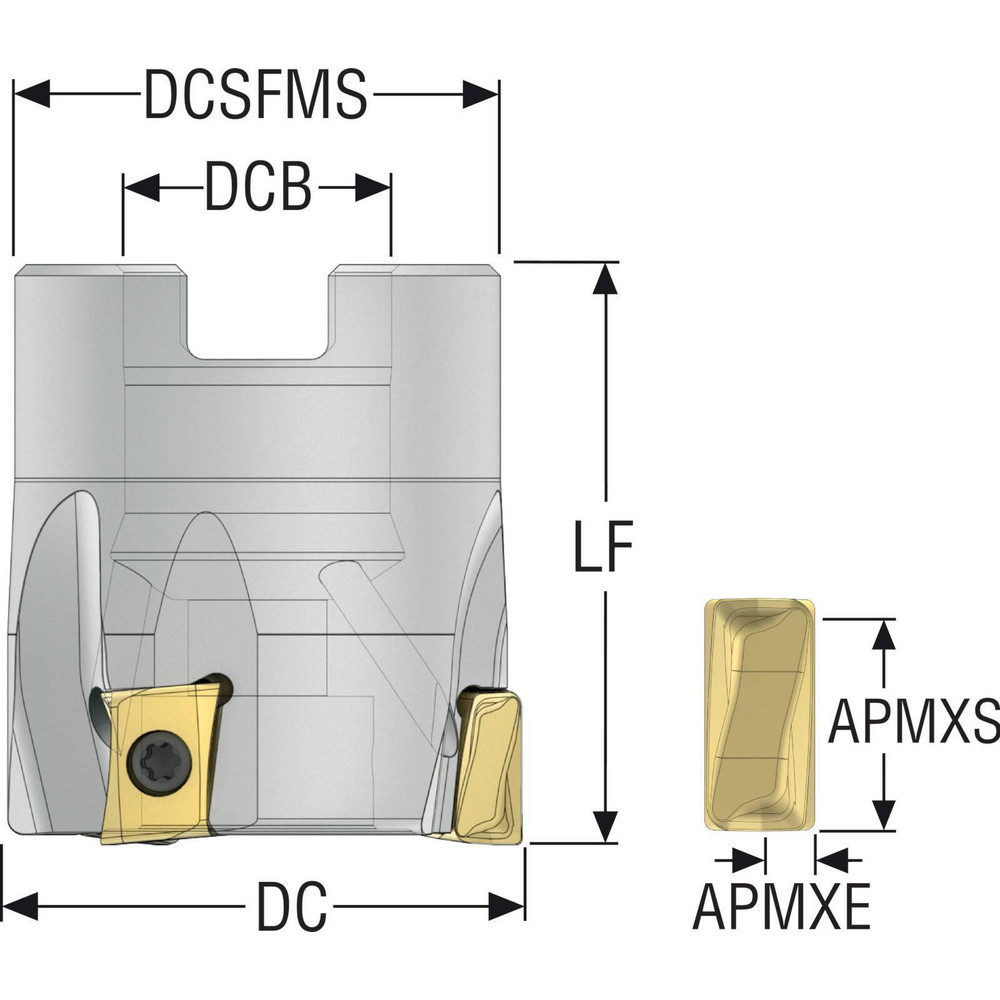

| Maximum Cutting Diameter (Decimal Inch) | 1.2598 |
|---|---|
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Compatible Insert Size Code | LOEX08.. |
| Cutter Style | 220.94-08 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | 220.94-08 |
| Overall Height (Decimal Inch) | 35.00 |
| Keyway Width (mm) | 8.40 |
| Hub Diameter (mm) | 29.30 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 47969084 |
