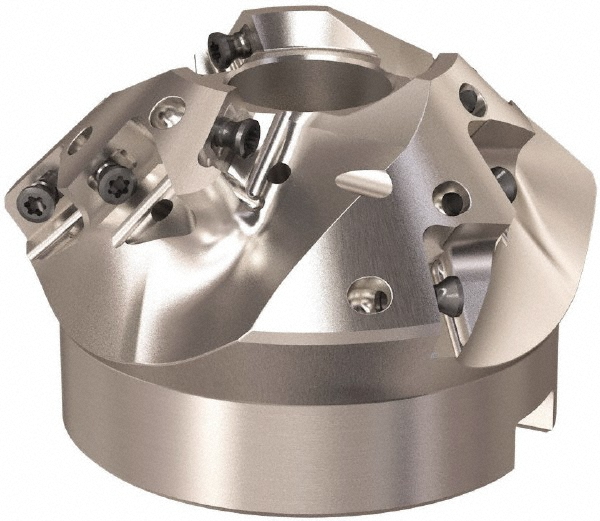

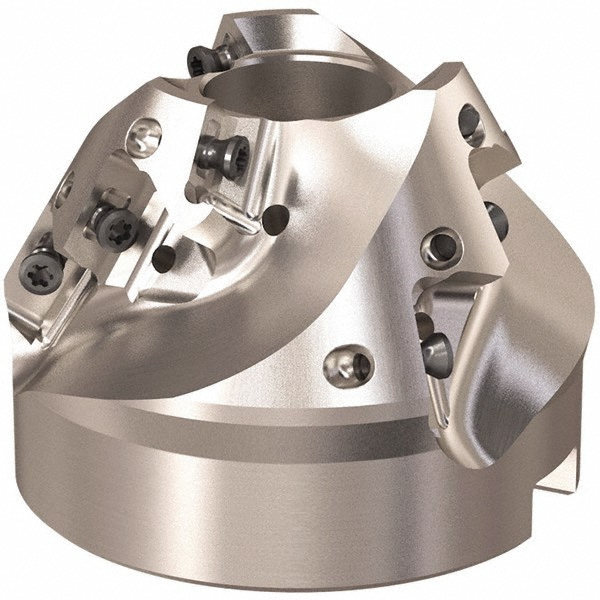

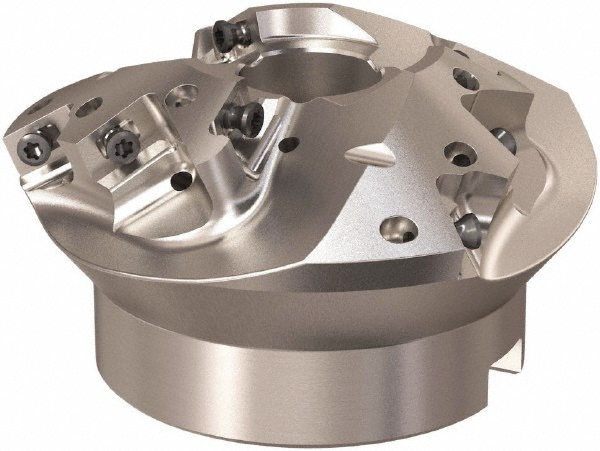

Takes 9 Inserts, XO.. 1204 Insert, Right Hand Cut, 3 Flutes, Through Coolant, Series R220.49

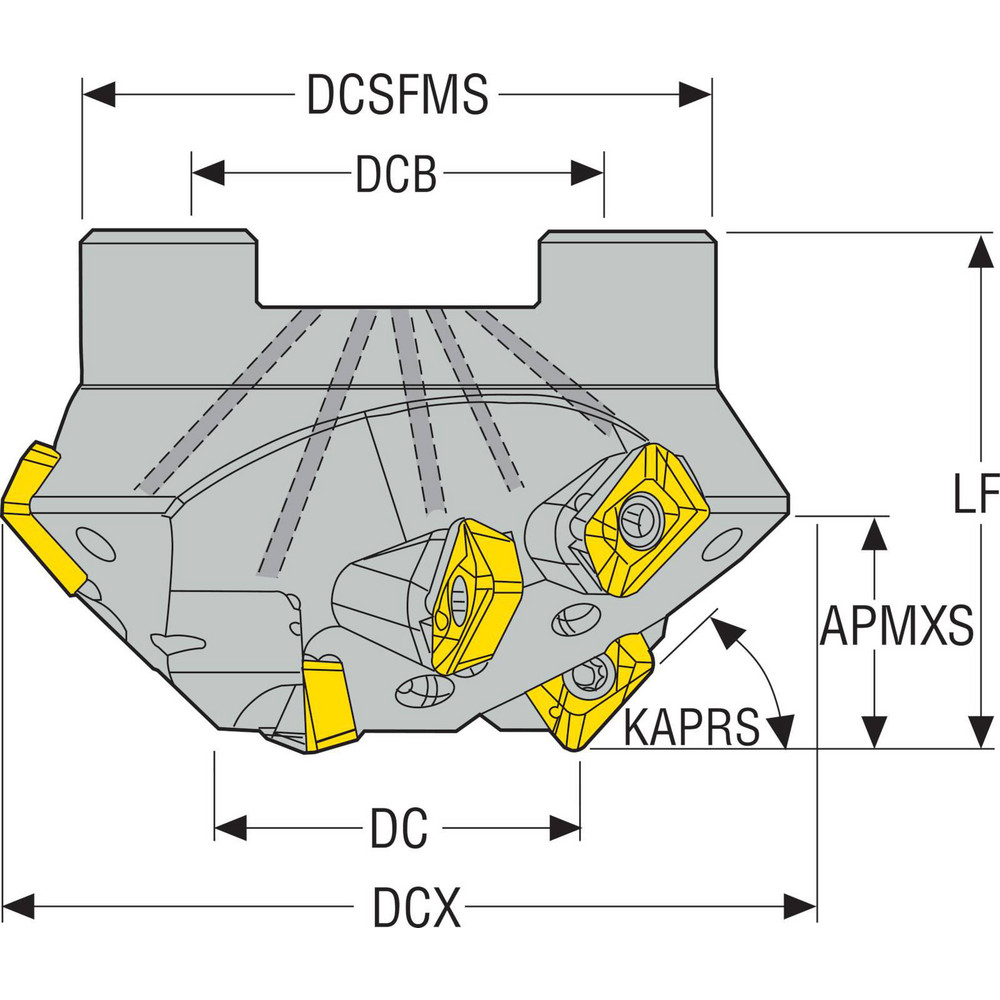

| Minimum Cutting Diameter (Decimal Inch) | 1.3700 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.6200 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | XO 1204 |
| Cutter Style | R220.49 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive (Radial); Negative (Axial) |
| Series | R220.49 |
| Hub Diameter (Decimal Inch) | 2.4400 |
| Keyway Width (mm) | 9.70 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Overall Height (Decimal Inch) | 1.9680 |
| Maximum Body Diameter (Decimal Inch) | 1.3740 |
| Maximum RPM | 11000 |
| Tool Application | Chamfering |

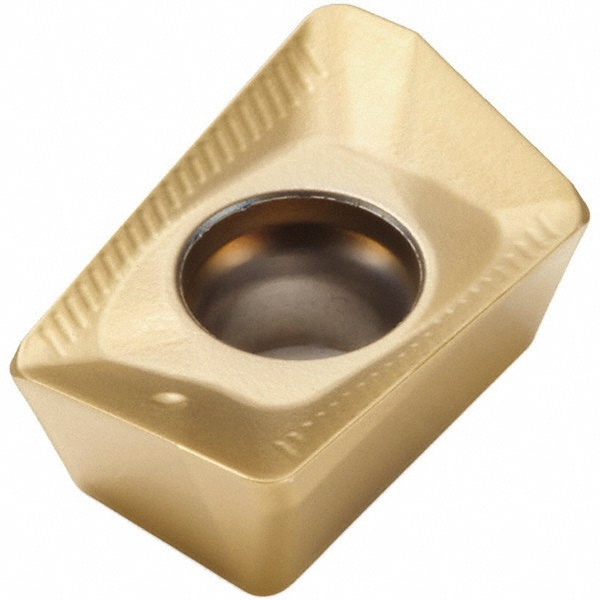

| Complete Insert Compatibility | XOEX 120404FR-E06; XOEX 120424R-M07; XOEX 120431R-M07; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120420FR-E06; XOEX 120408R-M07; XOEX 120440R-M07; XOEX 120408ZZR-M07; XOEX 120416R-M07; XOEX 120431FR-E06; XOEX 120402R-M07; XOEX 120416FR-E06; XOEX 120450R-M07 |
| Number Of Cutter Inserts | 9 |
| Coolant Through | Yes |
| Number Of Flutes | 3 |
| UNSPSC Code | 23291600 |
| Country of Origin | France |
| MSC Number | MSC# 35484864 |
