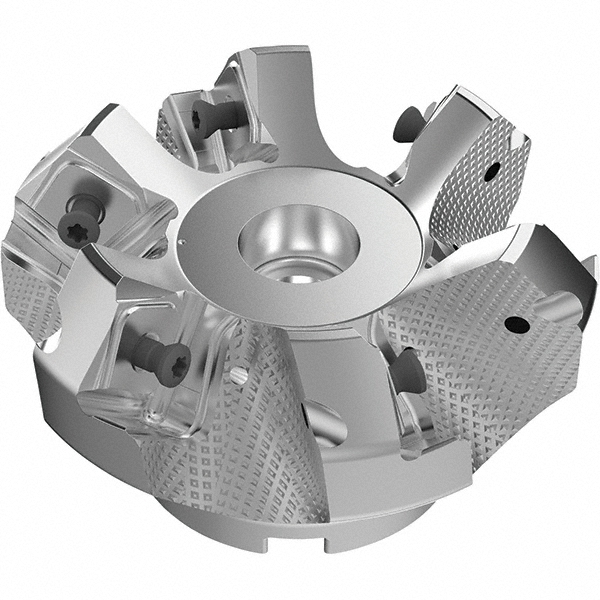

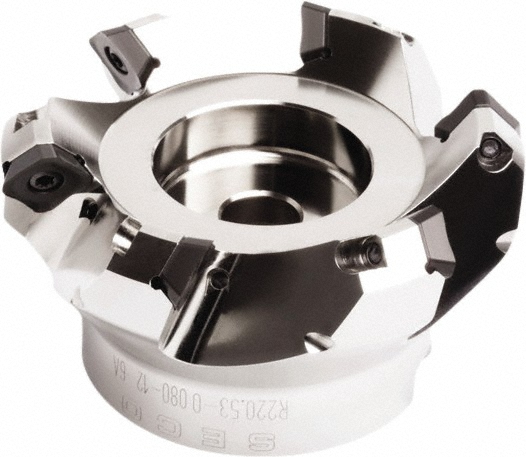

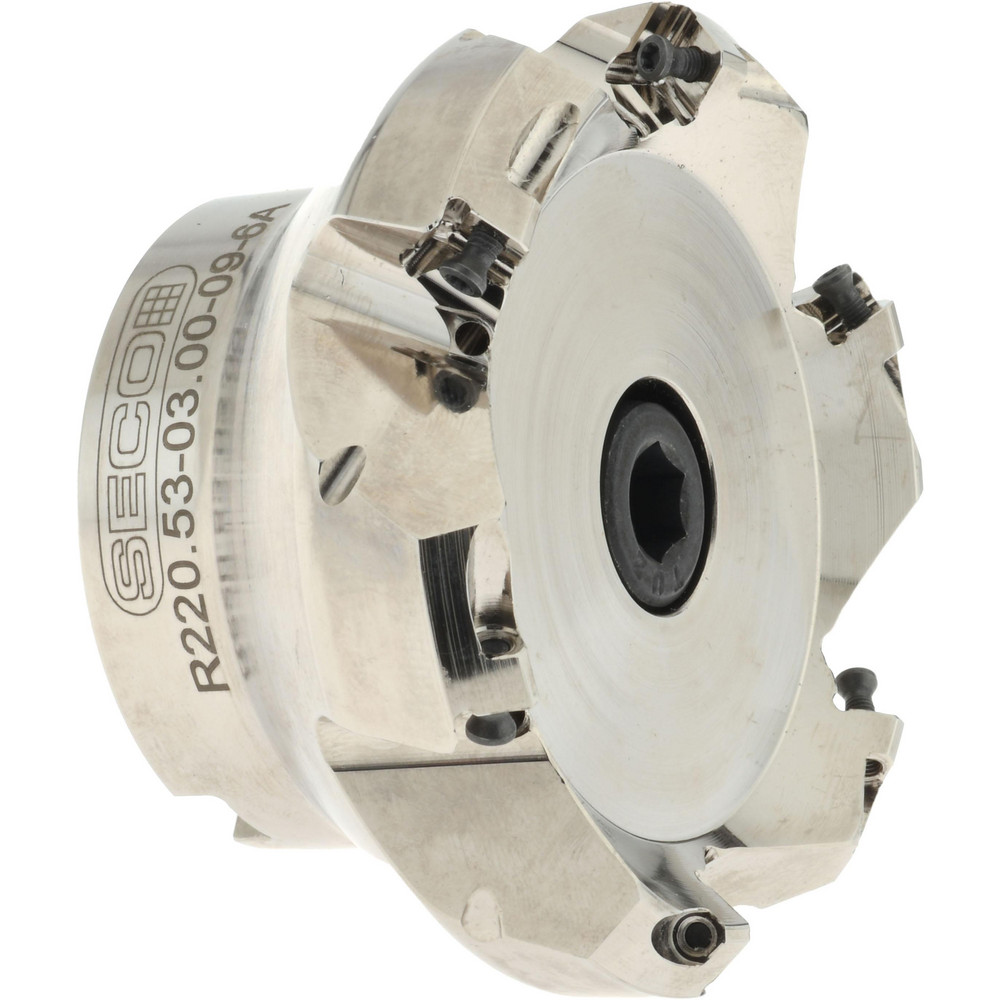

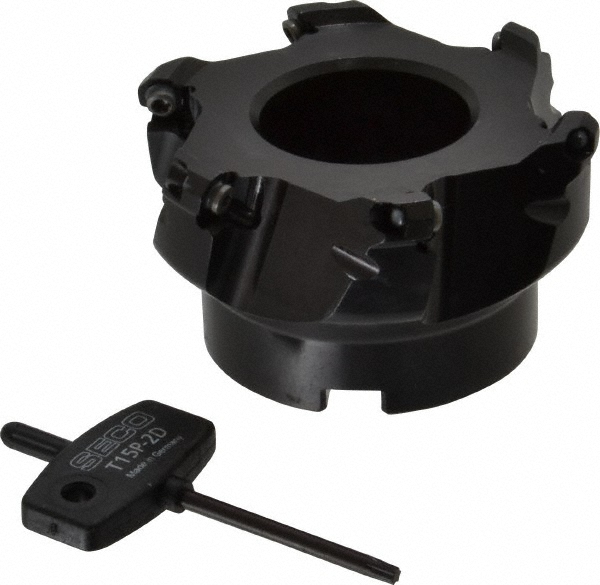

Takes 6 Inserts, SE.. 1505 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series QuattroMill

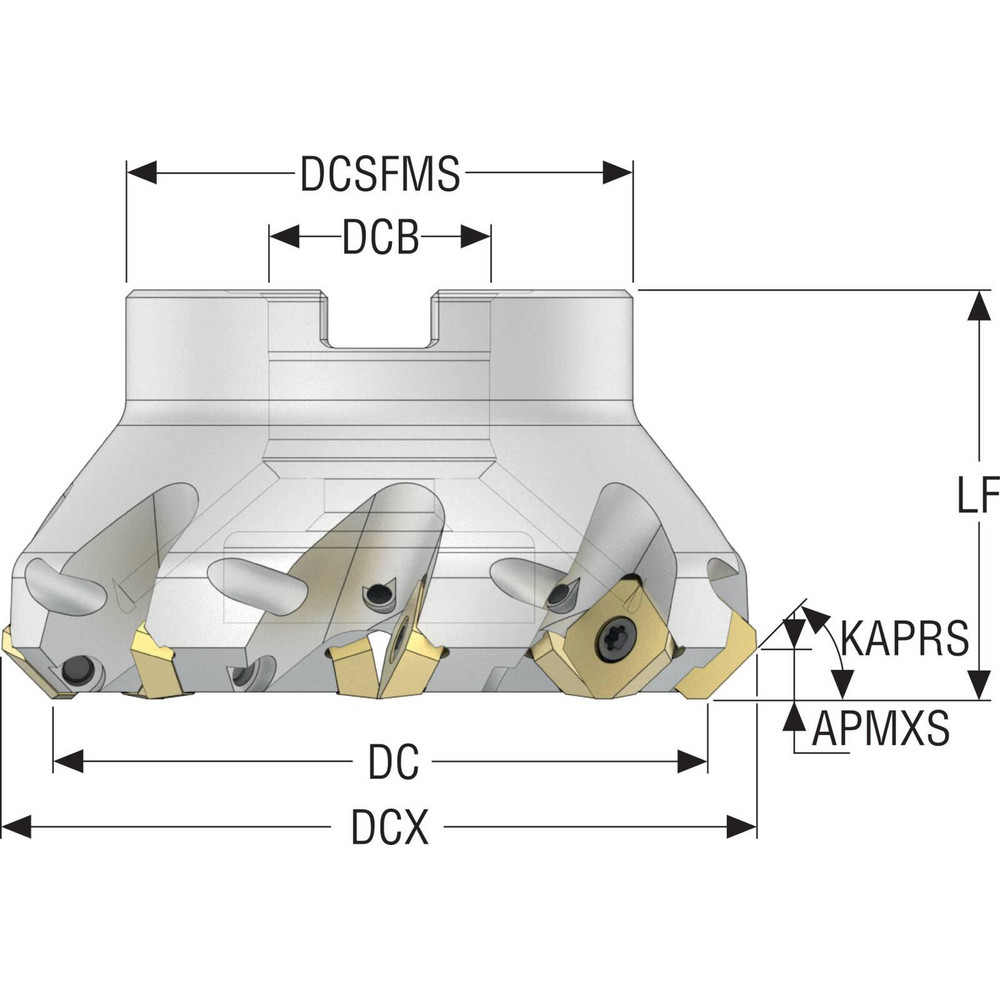

| Minimum Cutting Diameter (Decimal Inch) | 3.1500 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.7400 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | SE 1505 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 10 |
| Series | QuattroMill |
| Keyway Width (Decimal Inch) | 0.3800 |
| Overall Height (Decimal Inch) | 1.9700 |
| Maximum Body Diameter (Decimal Inch) | 3.1500 |
| Pitch Type | Normal |
| Maximum RPM | 7400 |

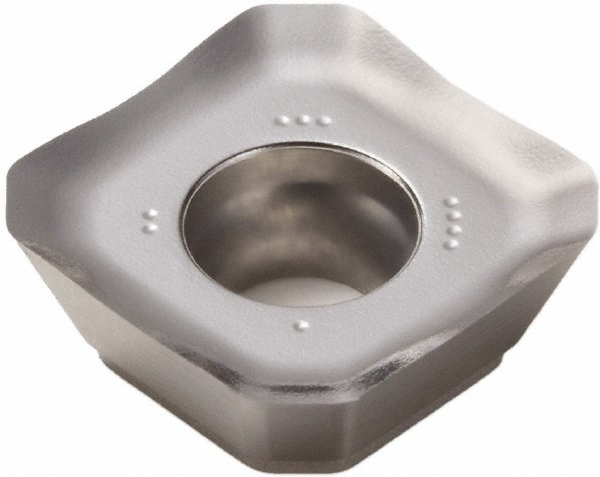

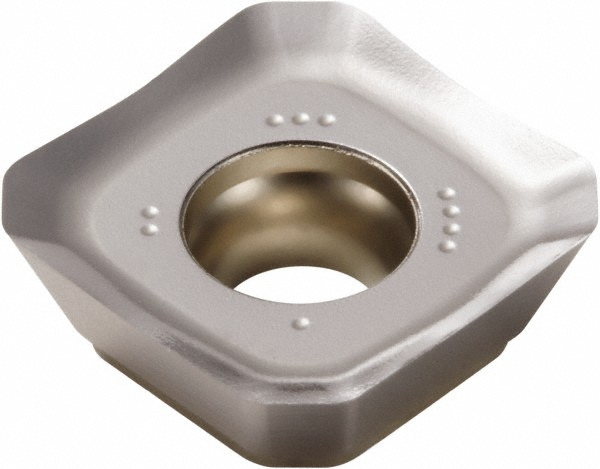

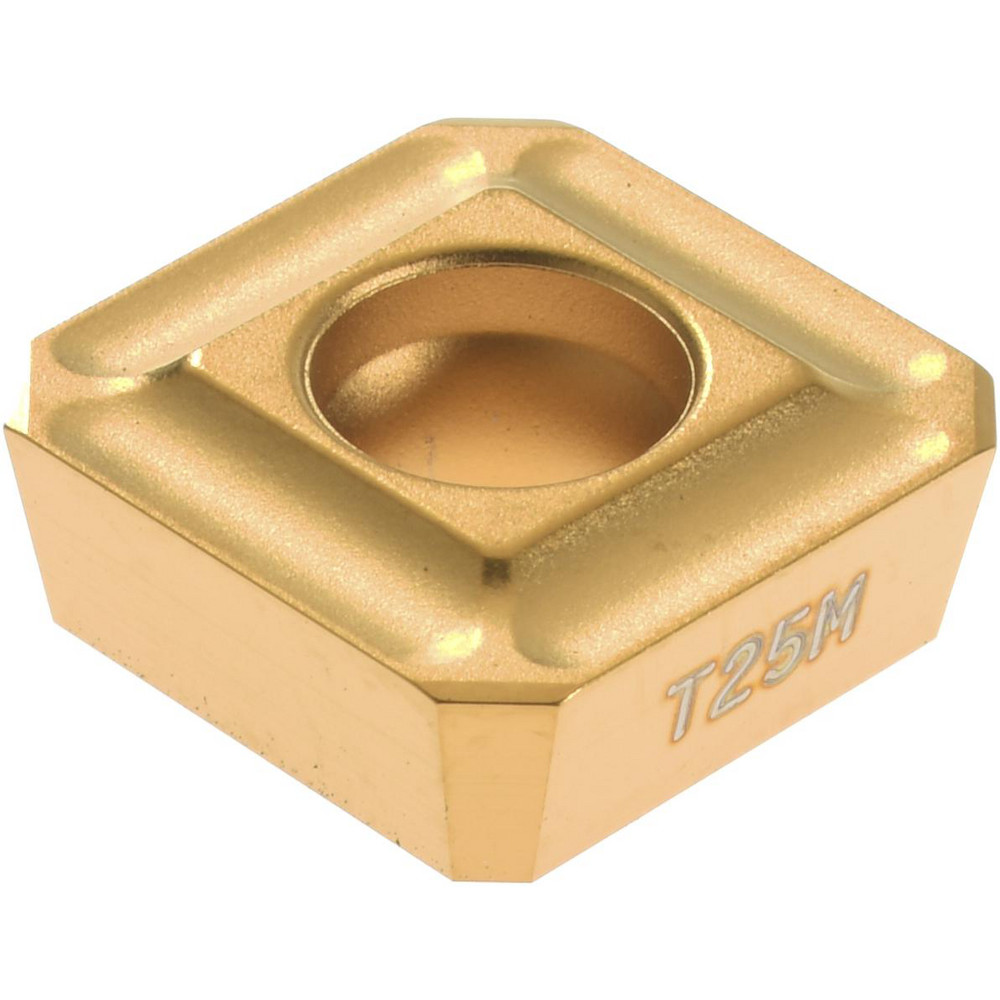

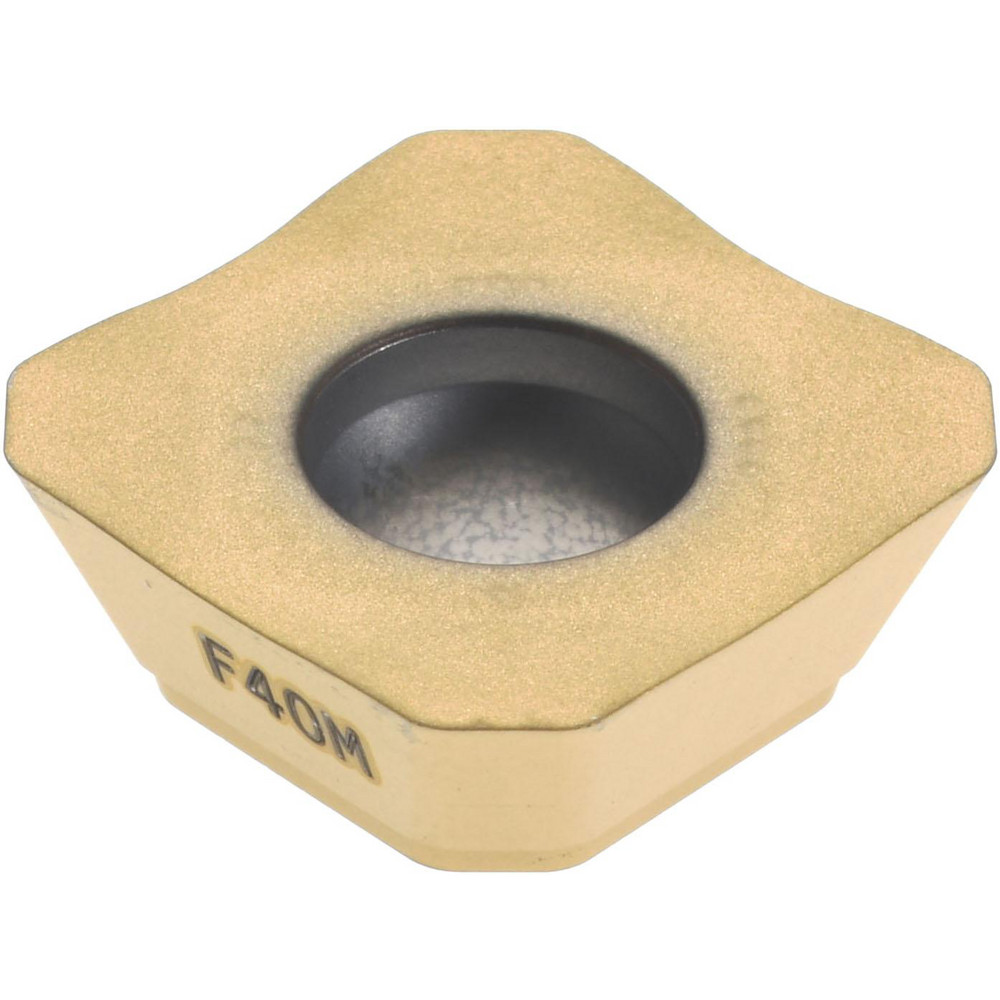

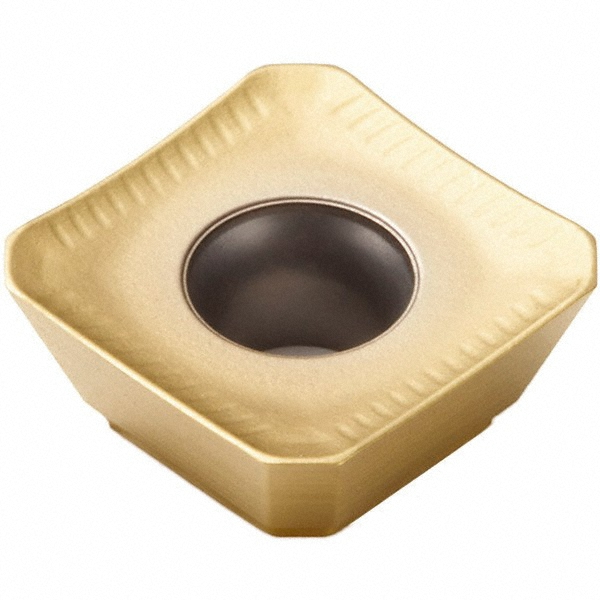

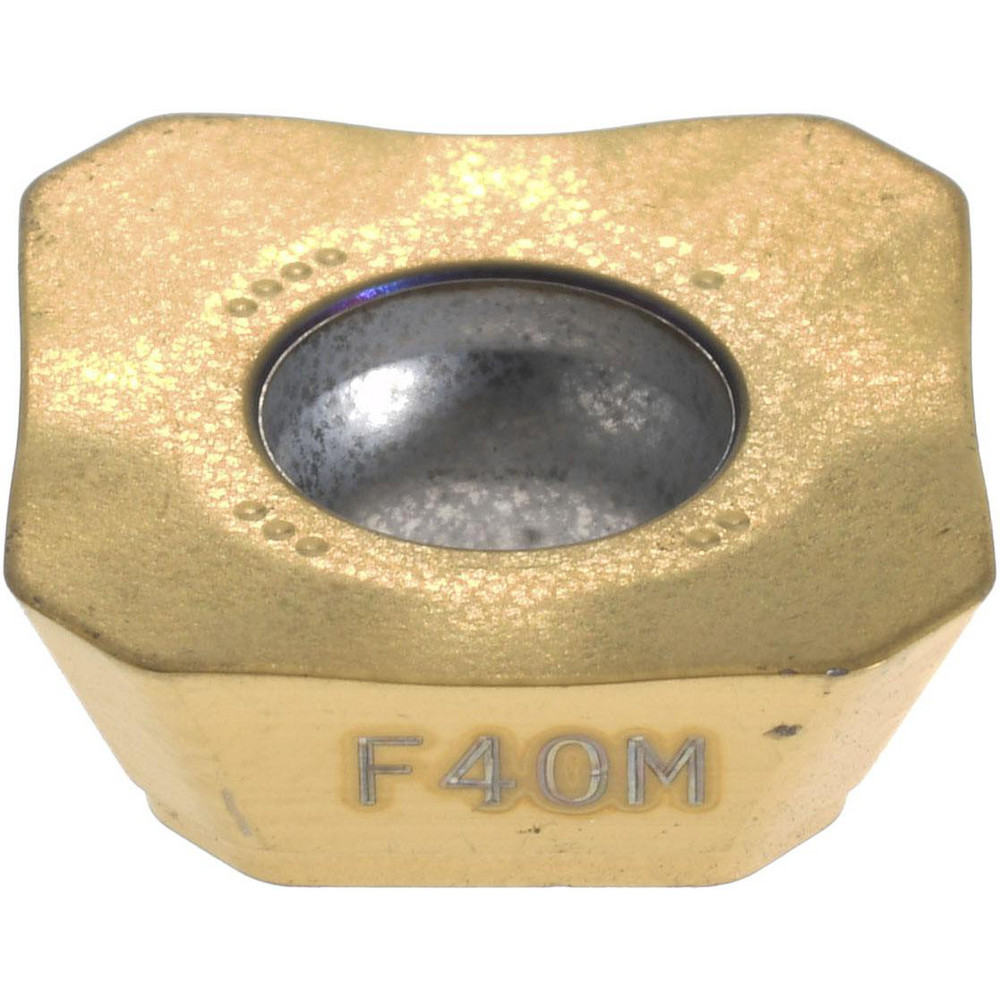

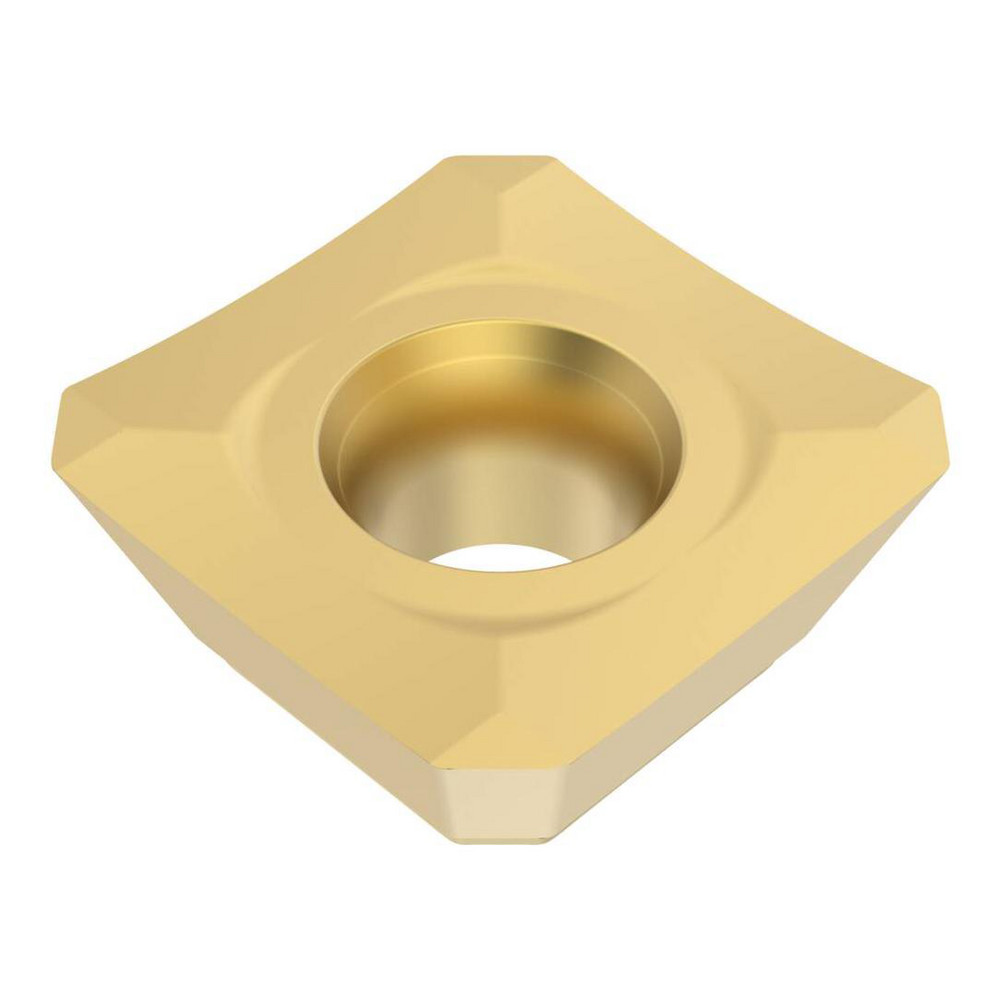

| Complete Insert Compatibility | SEMX 1505AFTN-M18; SEEX 1505ZZTN-M17; SEMX 1505AFTN-MD20; SEEX 1505AFN-E10; SEMX 1505AFTN-ME15; SEEX 1505AFN-M12; SEEX 1505AFTN-M17 |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
| Number Of Flutes | 6 |
| UNSPSC Code | 23291600 |
| Country of Origin | India |
| MSC Number | MSC# 07569445 |
