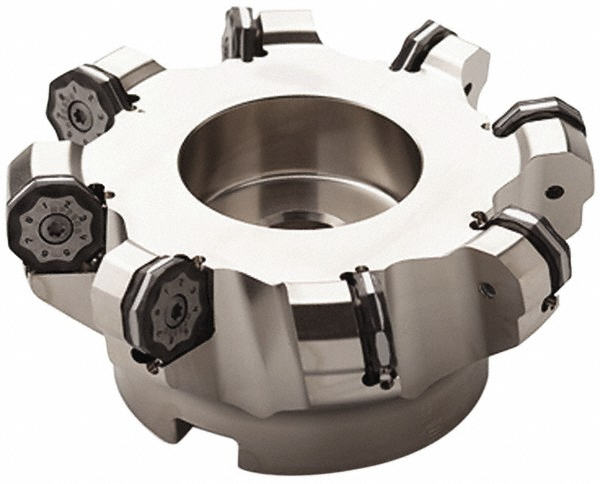

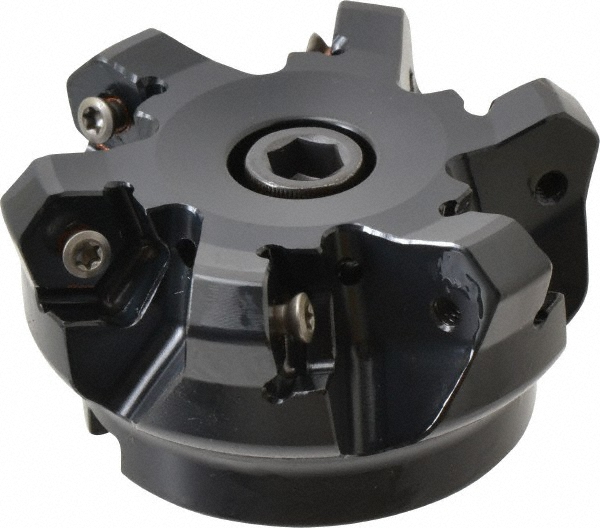

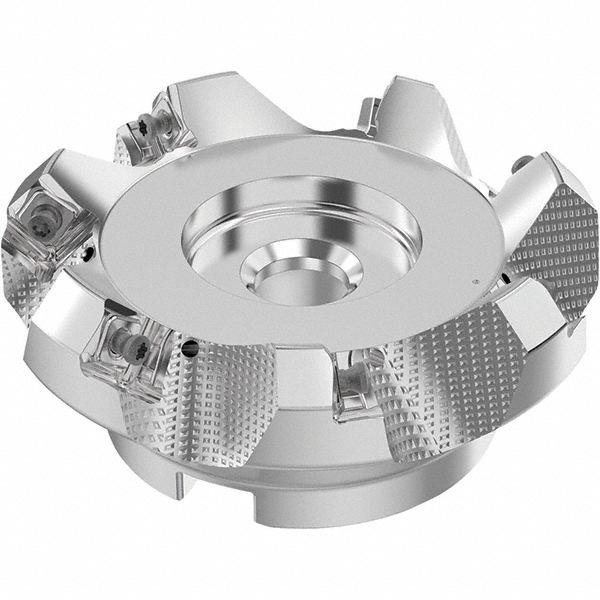

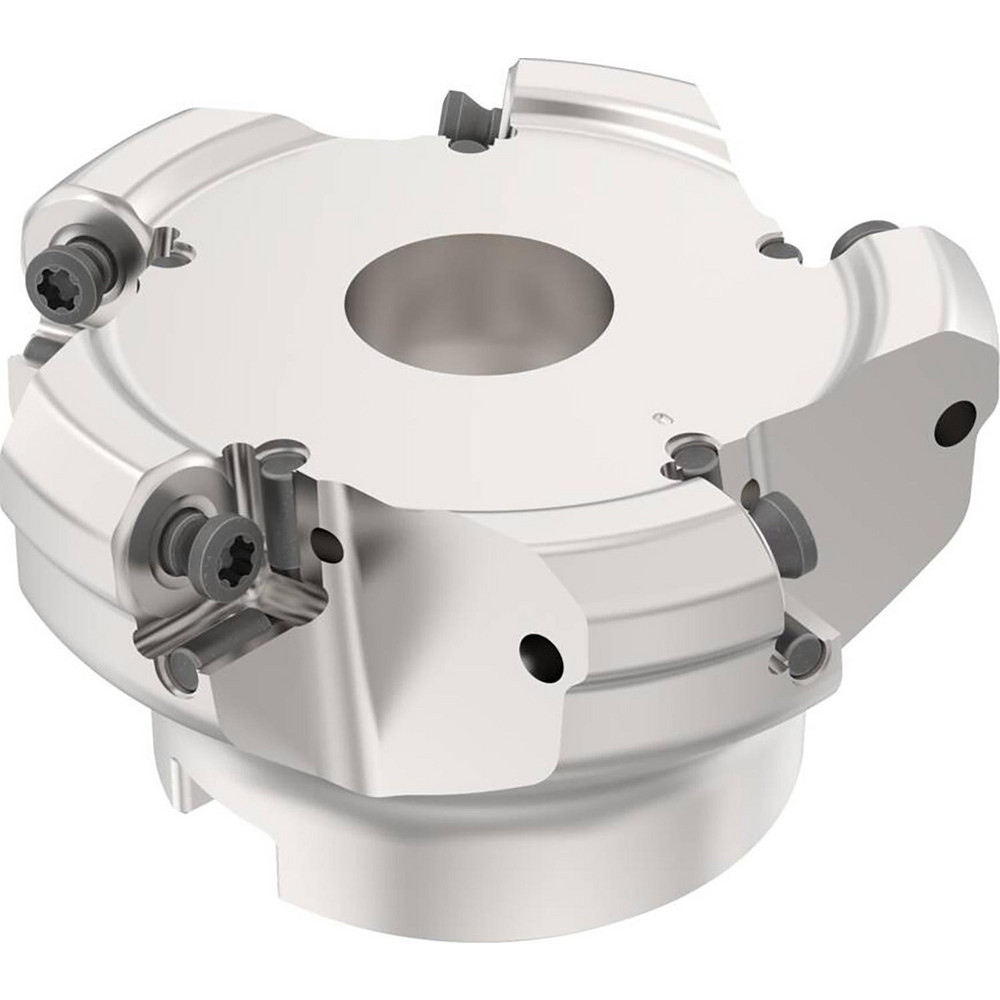

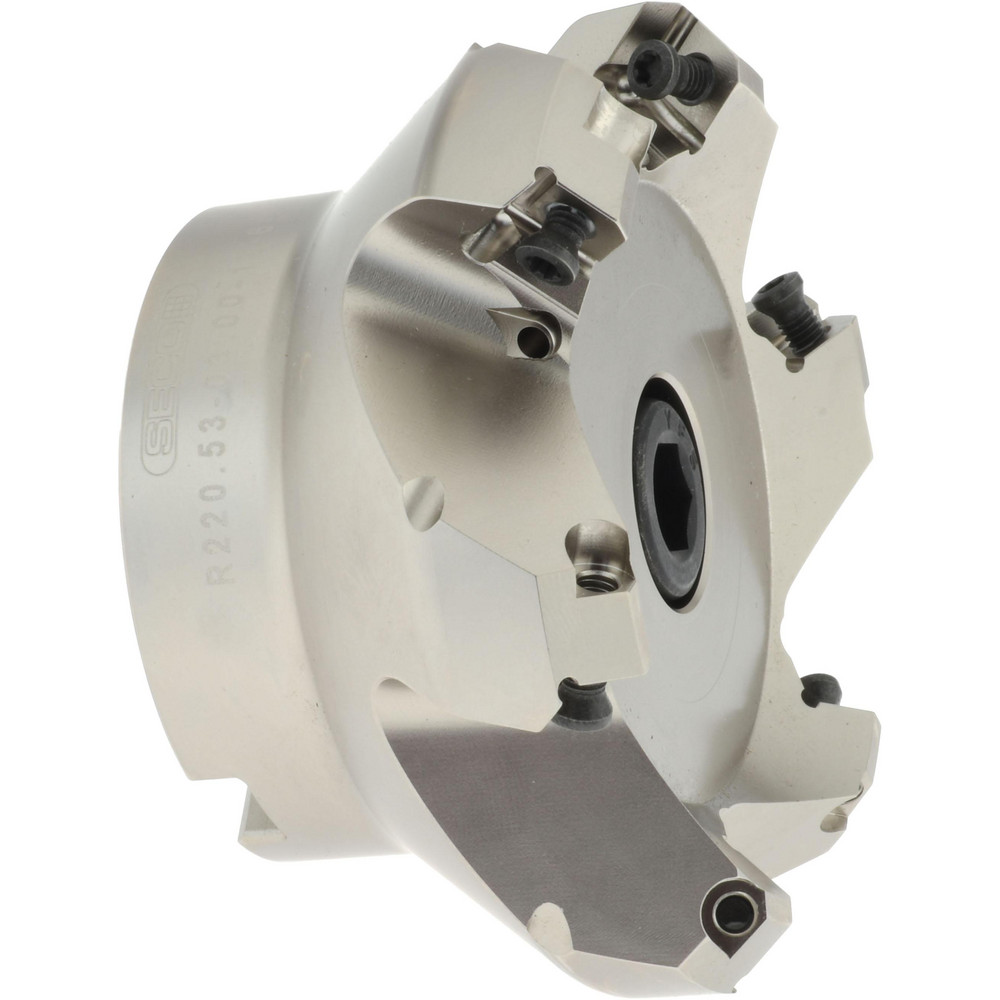

Takes 7 Inserts, ON.U.09 Insert, Right Hand Cut, 7 Flutes, Series R220.48

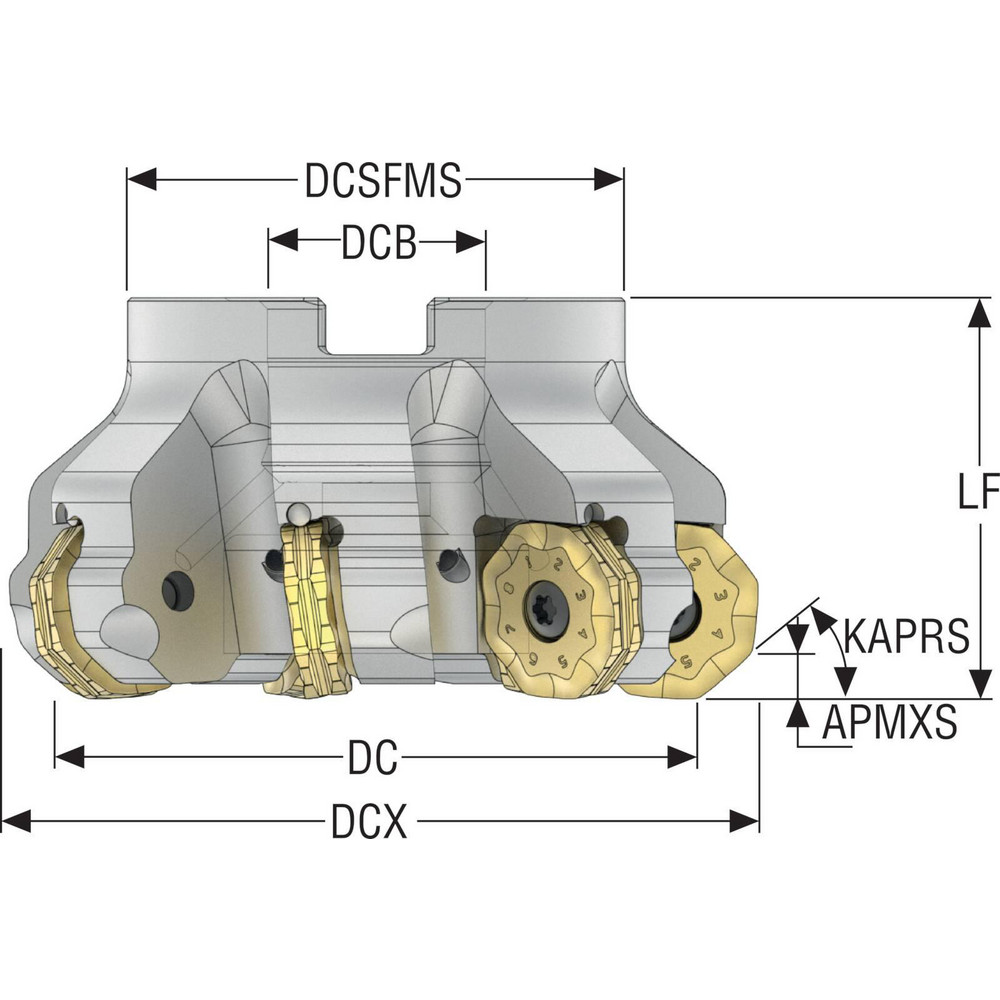

| Minimum Cutting Diameter (Decimal Inch) | 3.9400 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.5300 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |

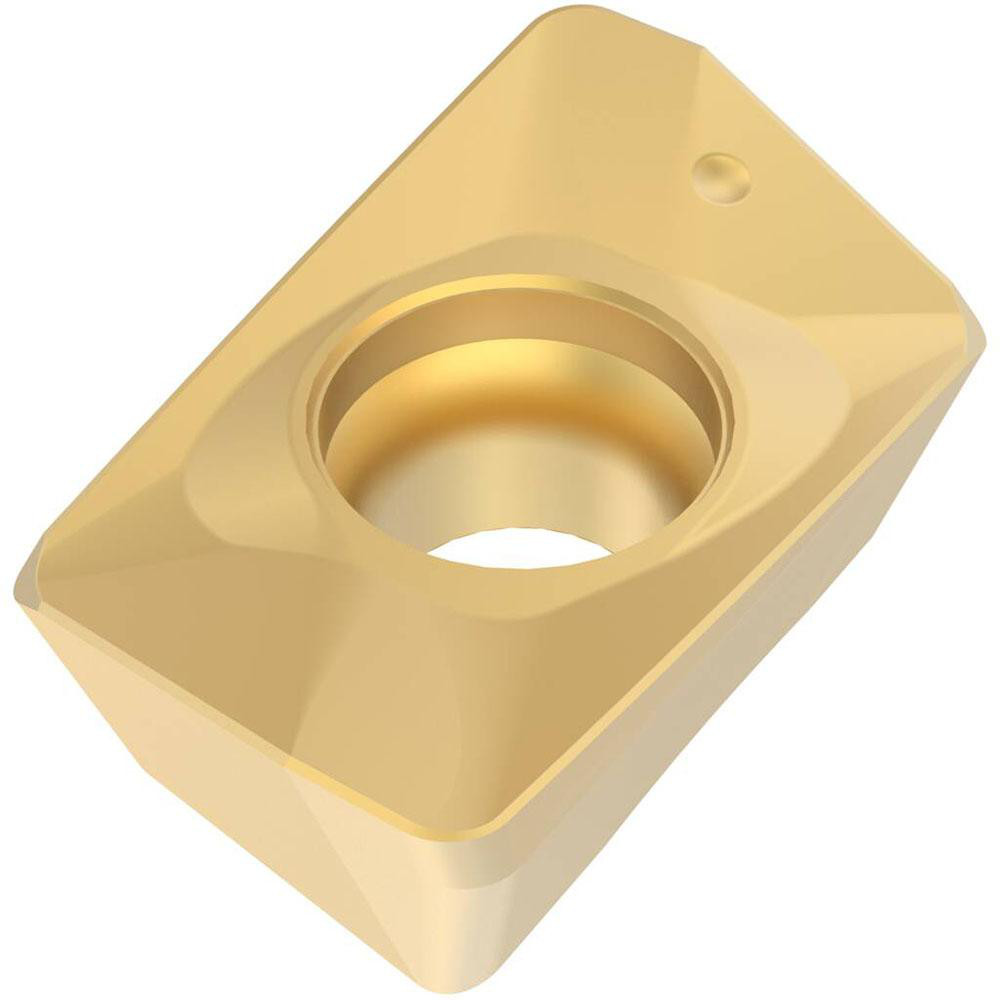

| Compatible Insert Size Code | ON.U09 |
| Cutter Style | R220.48 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Rake Angle | -8 |
| Series | R220.48 |
| Hub Diameter (Decimal Inch) | 3.5430 |
| Keyway Width (mm) | 16.00 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Overall Height (Decimal Inch) | 1.9690 |
| Maximum Body Diameter (Decimal Inch) | 4.5300 |
| Pitch Type | Normal |
| Maximum RPM | 3500 |
| Tool Application | Facing |
| Number Of Cutter Inserts | 7 |
| Coolant Through | No |
| Number Of Flutes | 7 |
| UNSPSC Code | 23291600 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 85054930 |
