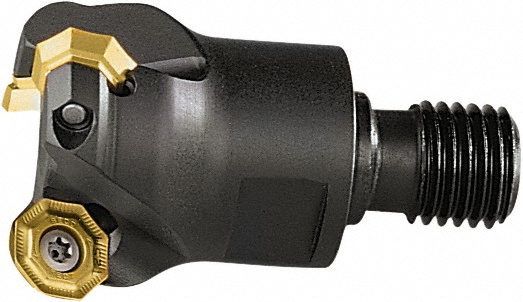

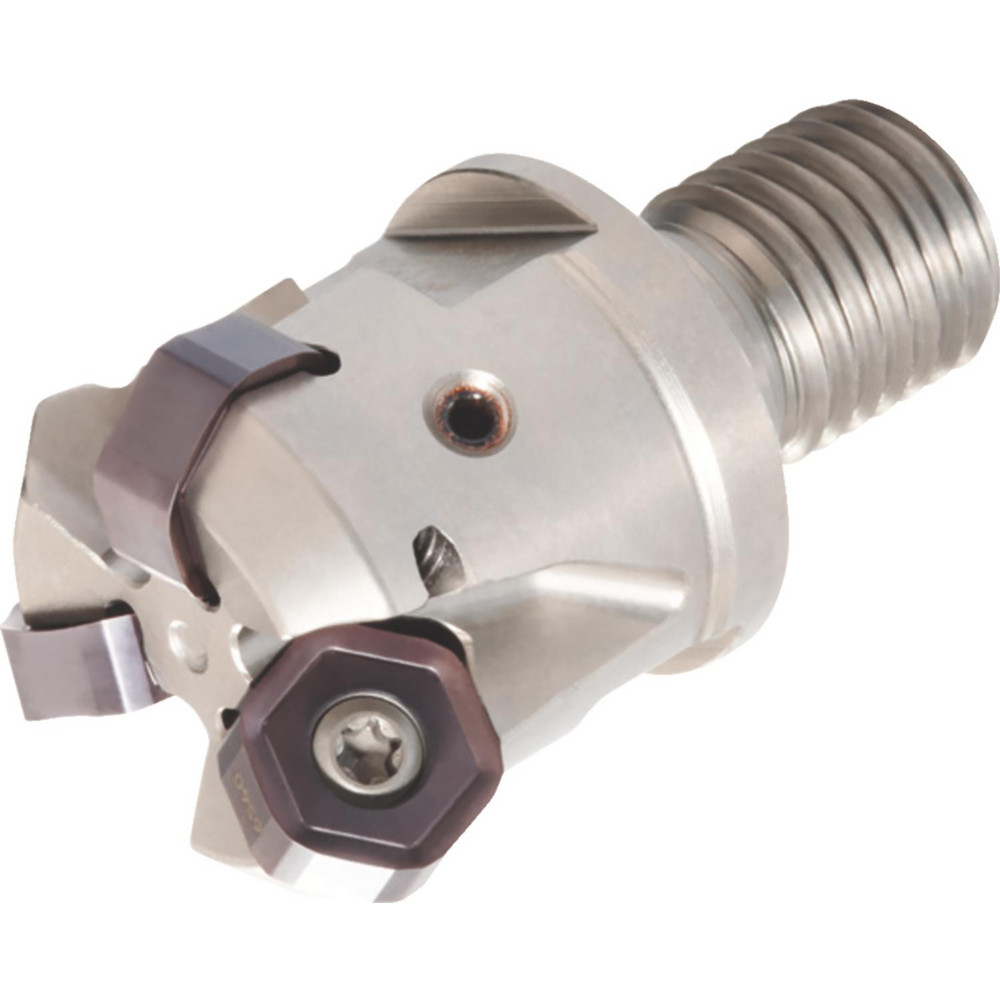

Takes 3 Inserts, OF.. 05.. Insert Style, R217.43 Toolholder, 40mm OAL, 0.1378" Max Depth of Cut

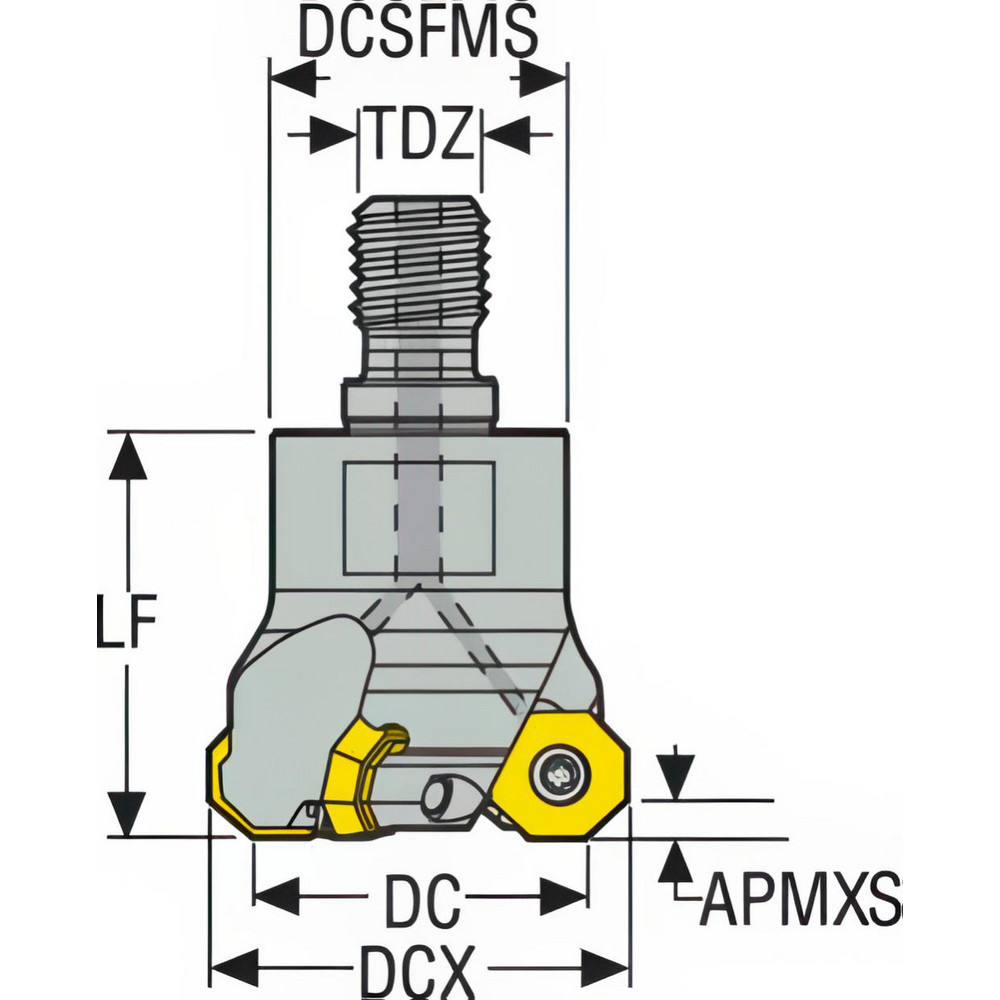

| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
|---|---|
| Minimum Cutting Diameter (mm) | 32.00 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Maximum Depth of Cut (mm) | 3.50 |
| Number Of Cutter Inserts | 3 |
| Insert Style | OF.. 05.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 40.00 |
| Series | OctoMill |
| Toolholder Style | R217.43 |
| Maximum RPM | 14800 |
| Modular Connection Size | M16 |
| UNSPSC Code | 23291600 |
| Coolant Through | Yes |
| Axial Rake Angle (Degrees) | 15 |
| Radial Rake Angle (Degrees) | 5 |
| Shank Type | Modular Connection |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 60142106 |
