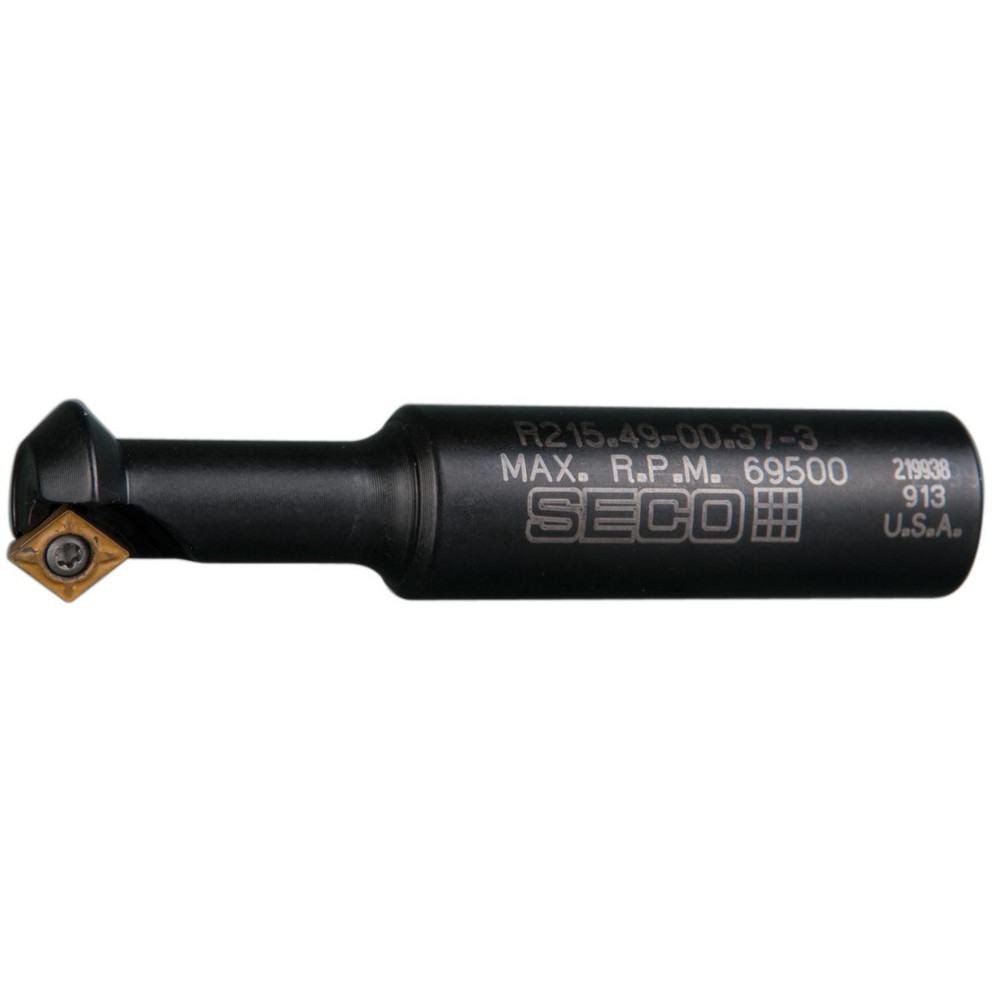

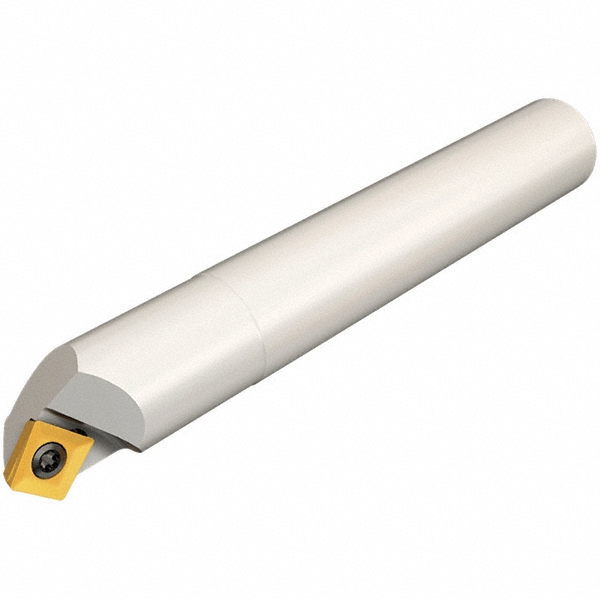

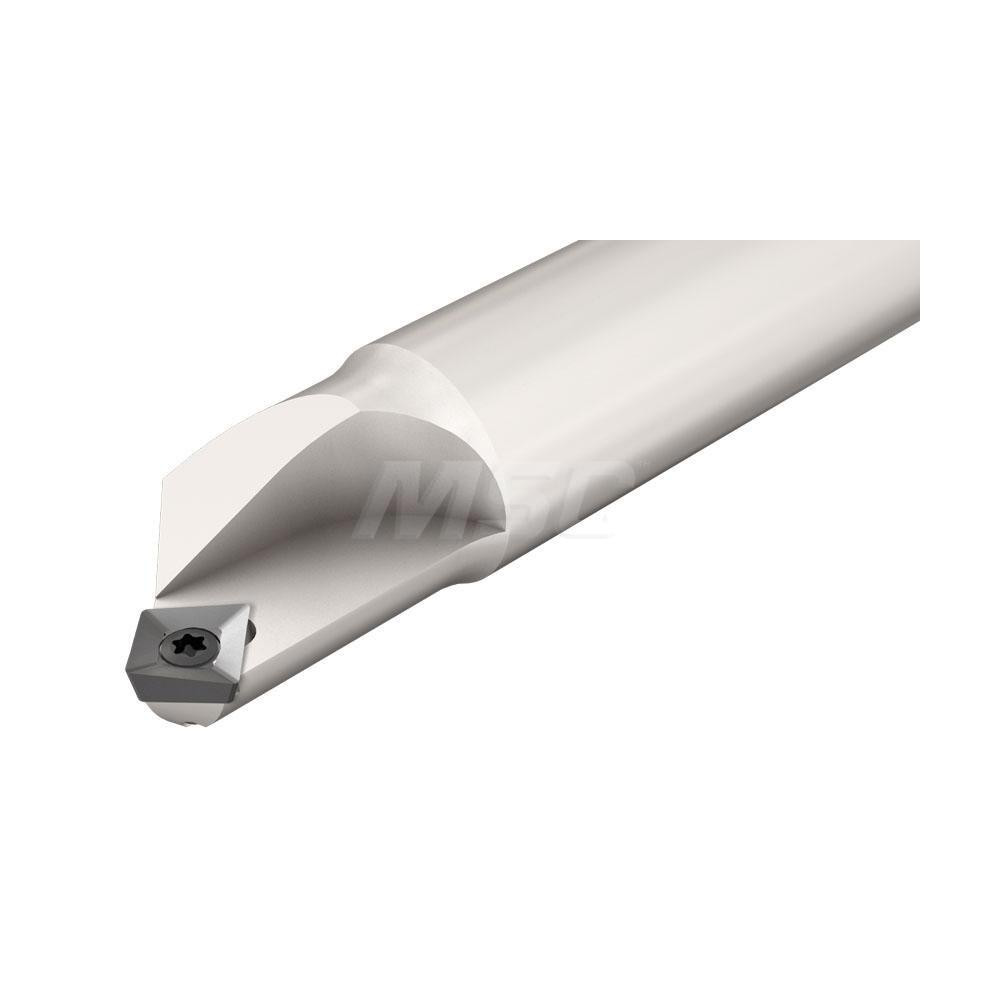

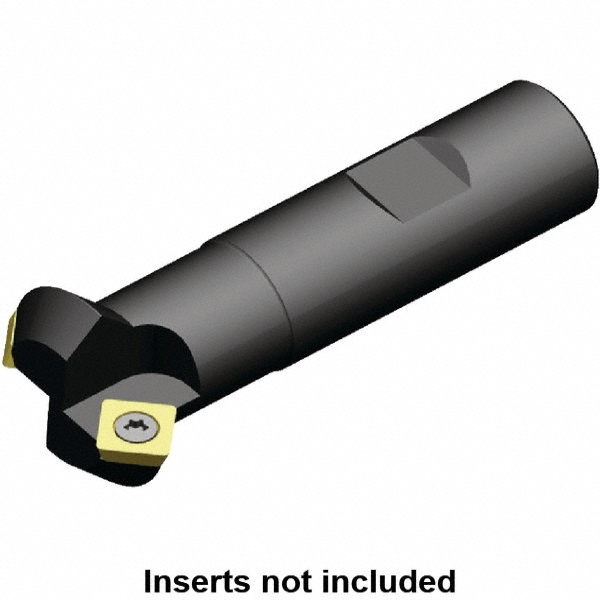

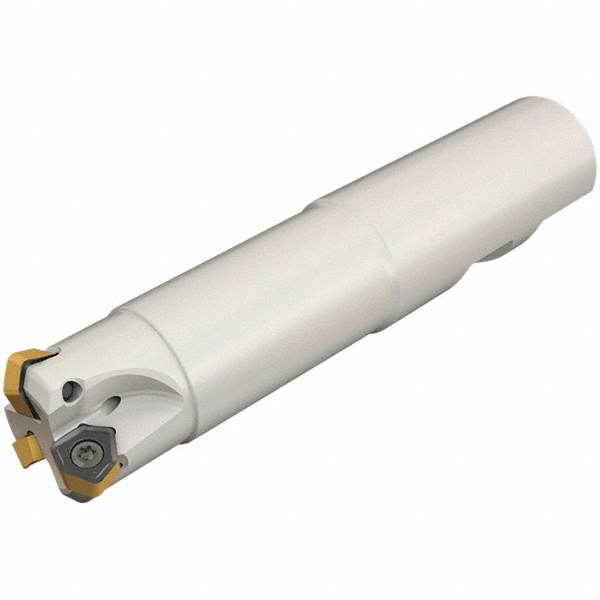

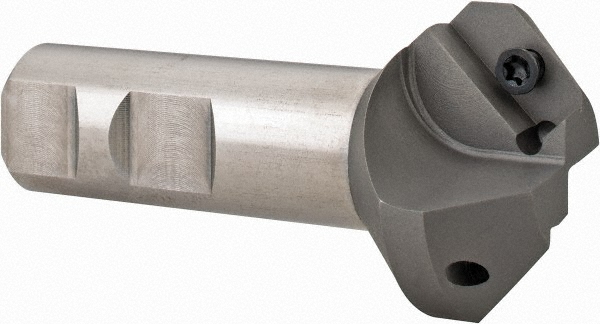

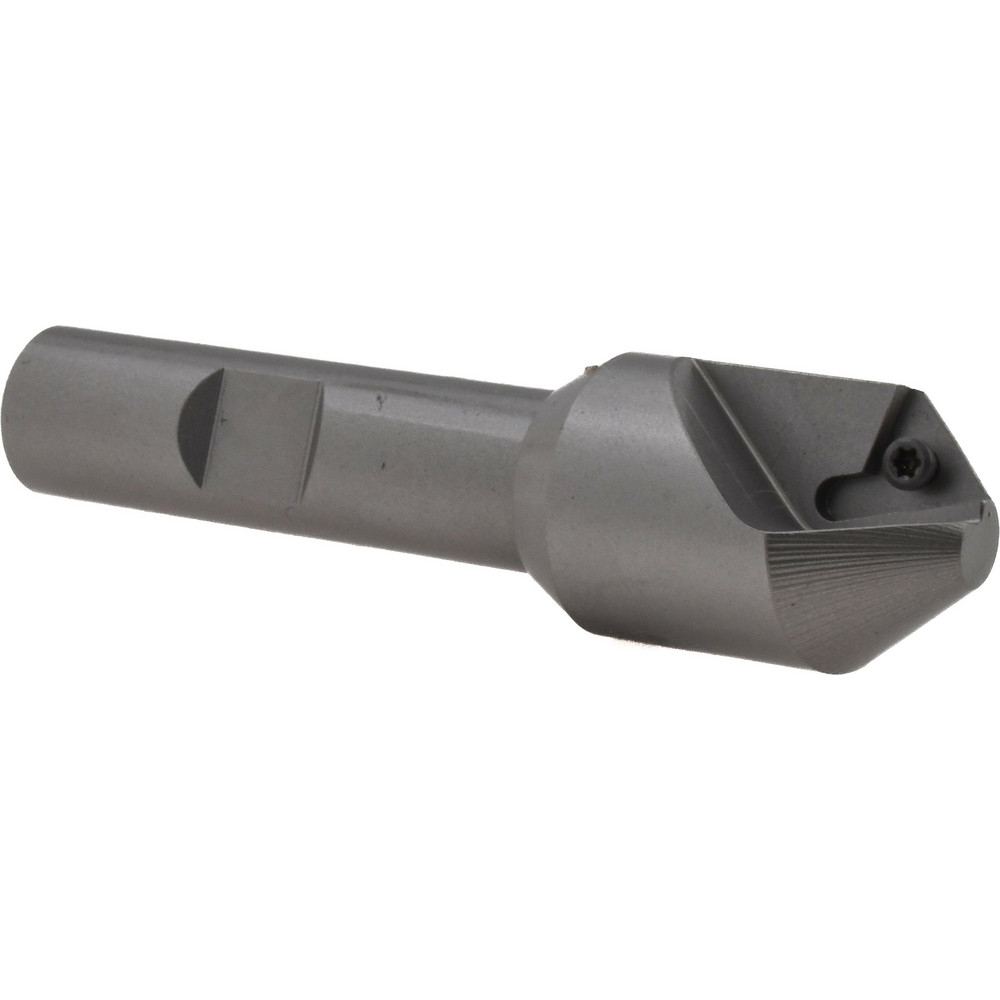

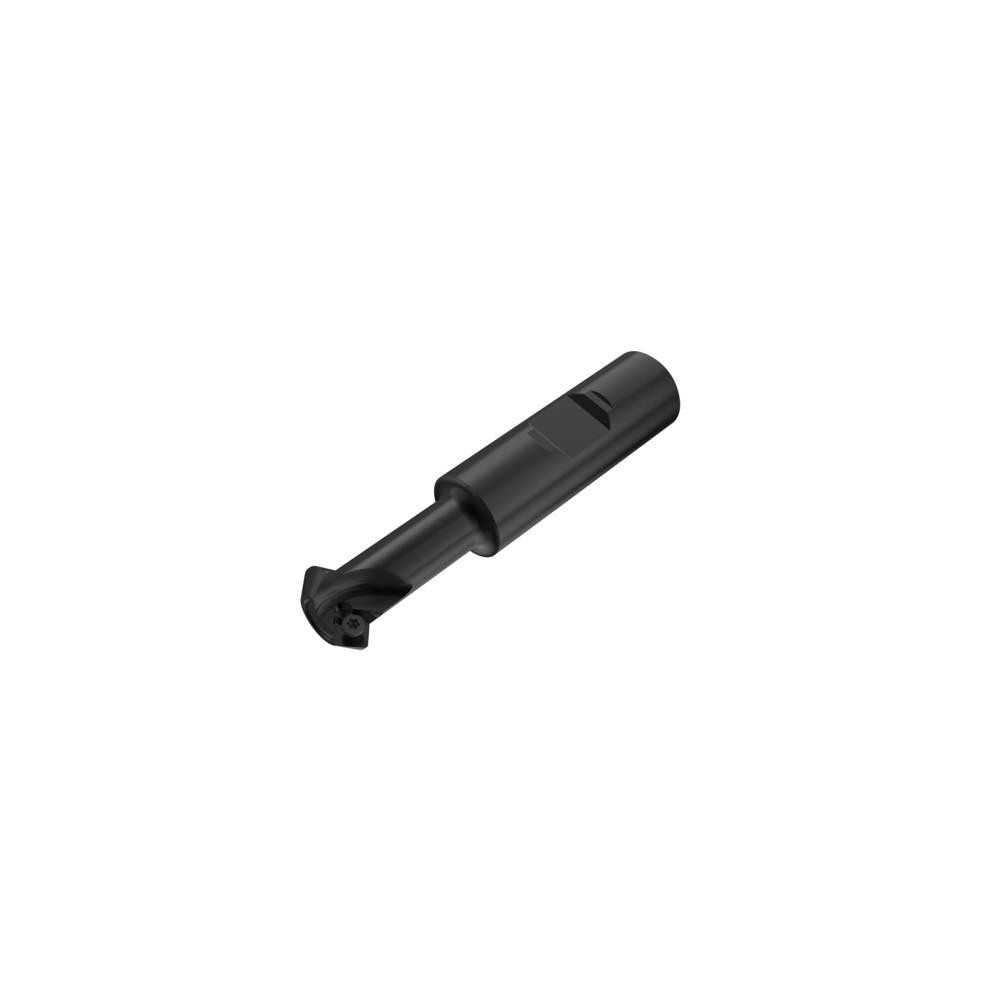

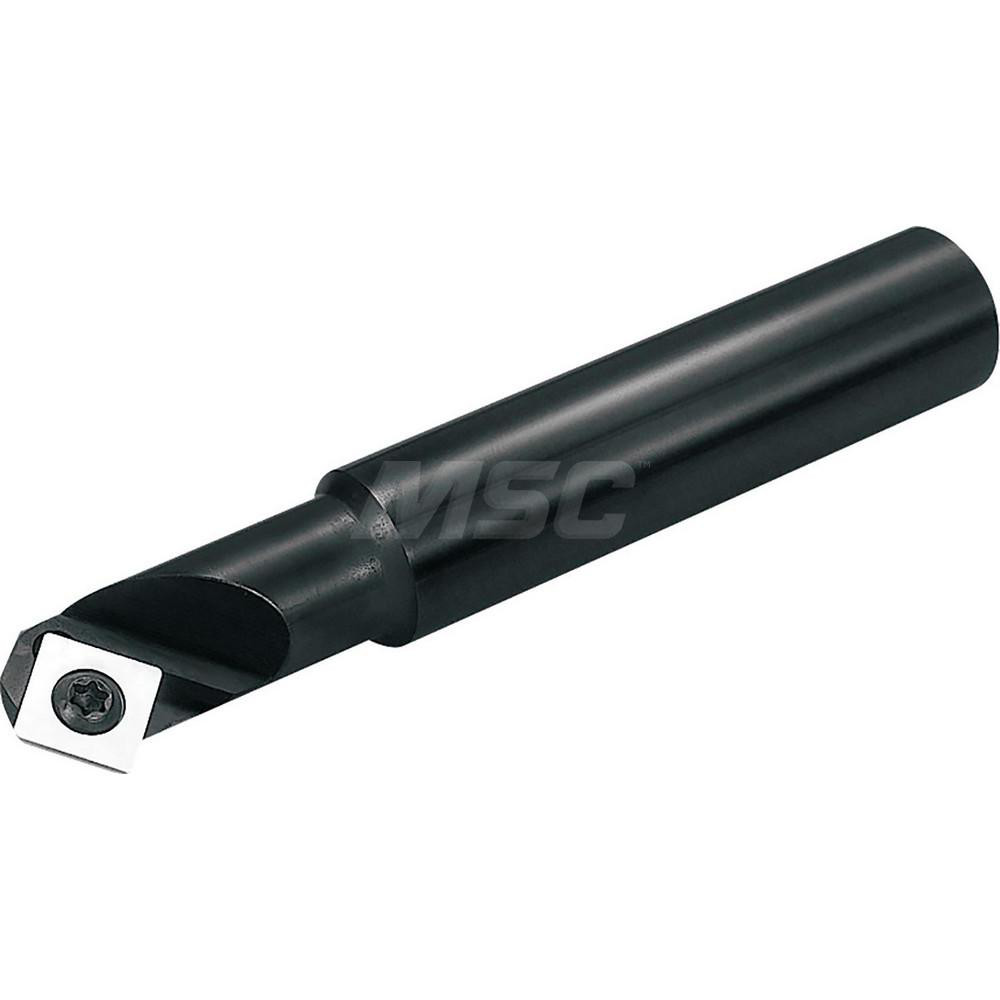

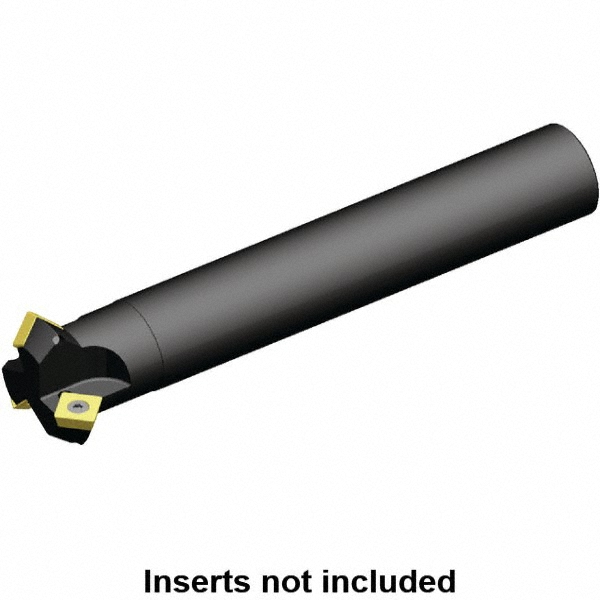

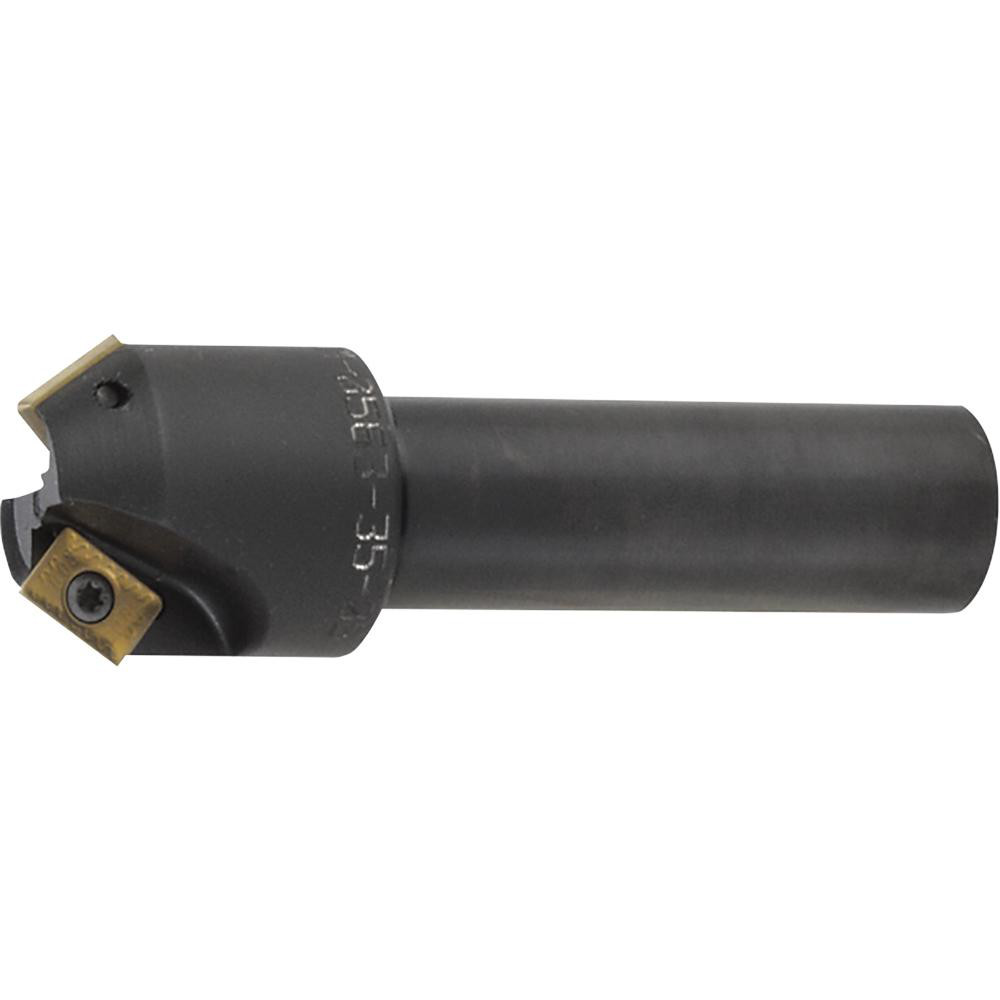

Takes 1 Insert, SPMX 0602.. Insert Style, R215.49 Toolholder, 80mm OAL, 0.1575" Max Depth of Cut
| Minimum Cutting Diameter (Decimal Inch) | 0.3543 |
|---|---|
| Minimum Cutting Diameter (mm) | 9.00 |
| Maximum Cutting Diameter (mm) | 16.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 4.00 |
| Compatible Insert Size Code | SPMX0602 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Number Of Cutter Inserts | 1 |
| Insert Style | SPMX 0602.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80.00 |
| Series | Milling Normal ISO |
| Toolholder Style | R215.49 |
| Functional Length (mm) | 32.00 |
| Maximum Body Diameter (Decimal Inch) | 0.6299 |
| Maximum Body Diameter (mm) | 16.00 |
| Maximum RPM | 55600 |
| Tool Application | Chamfering |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| UNSPSC Code | 23291600 |
| Coolant Through | No |
| Axial Rake Angle (Degrees) | 0 |
| Radial Rake Angle (Degrees) | 0 |
| Shank Type | Weldon Flat |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 64506850 |
