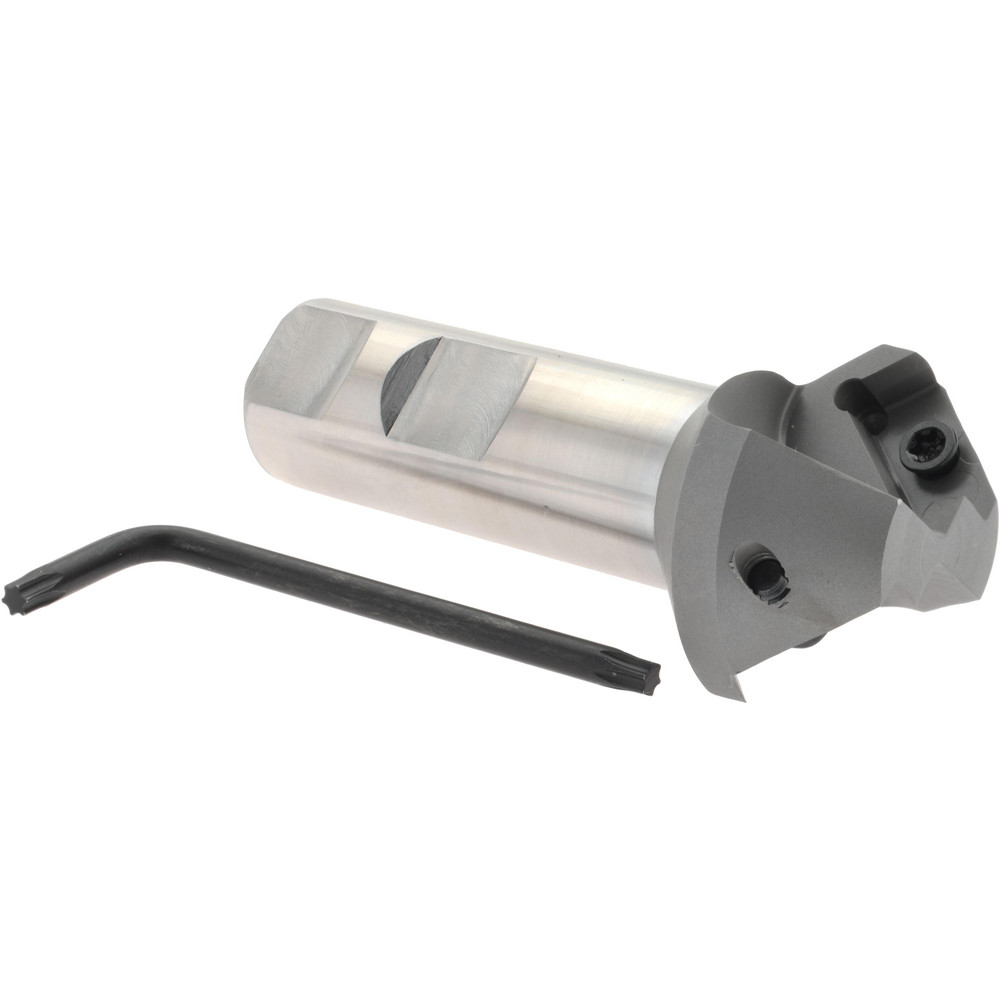

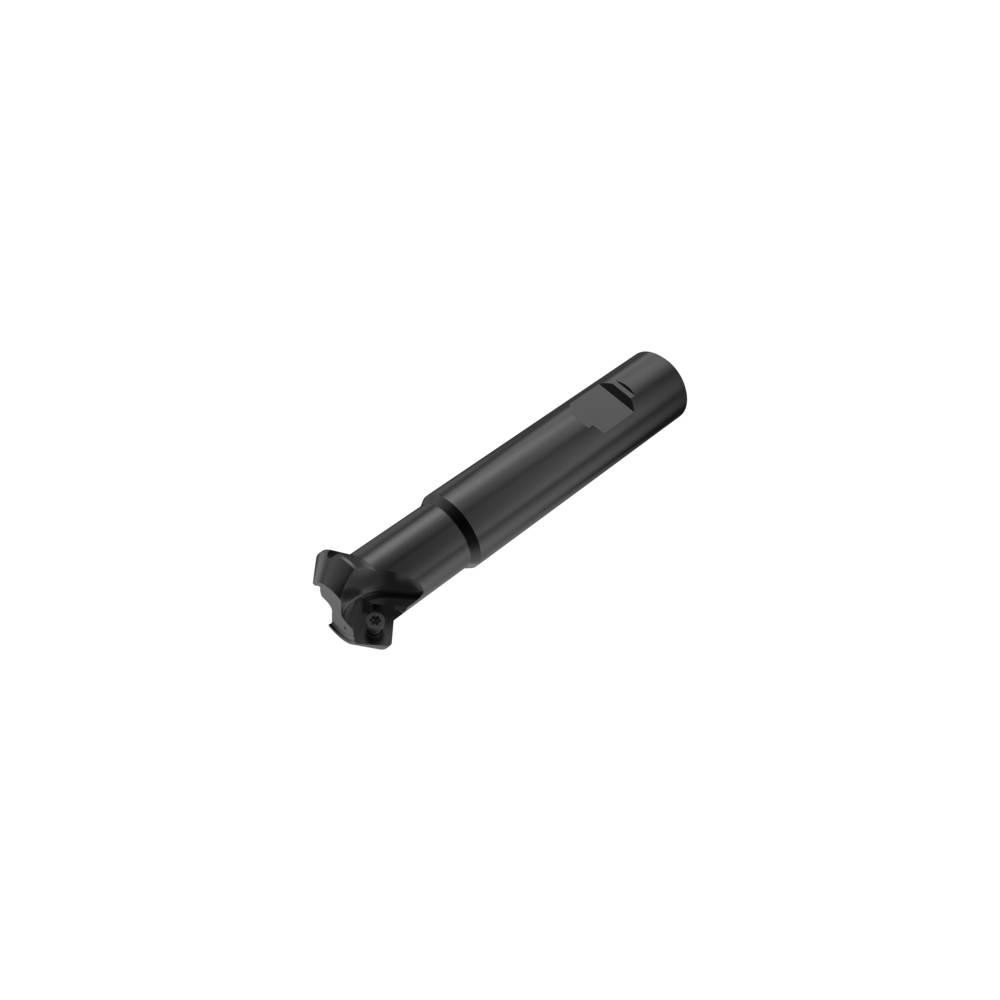

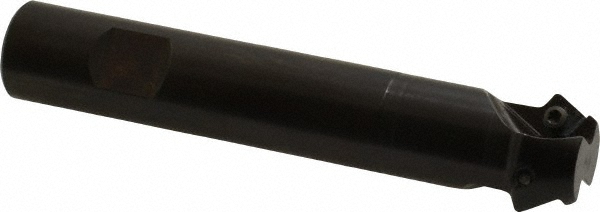

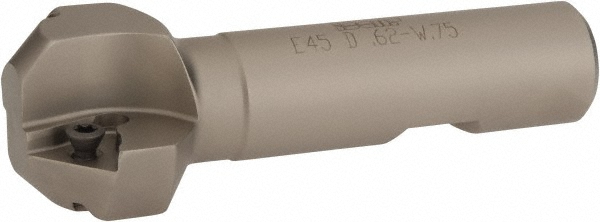

Takes 2 Inserts, SPMX 0903.. Insert Style, R215 Toolholder, 4.33" OAL, 0.2" Max Depth of Cut

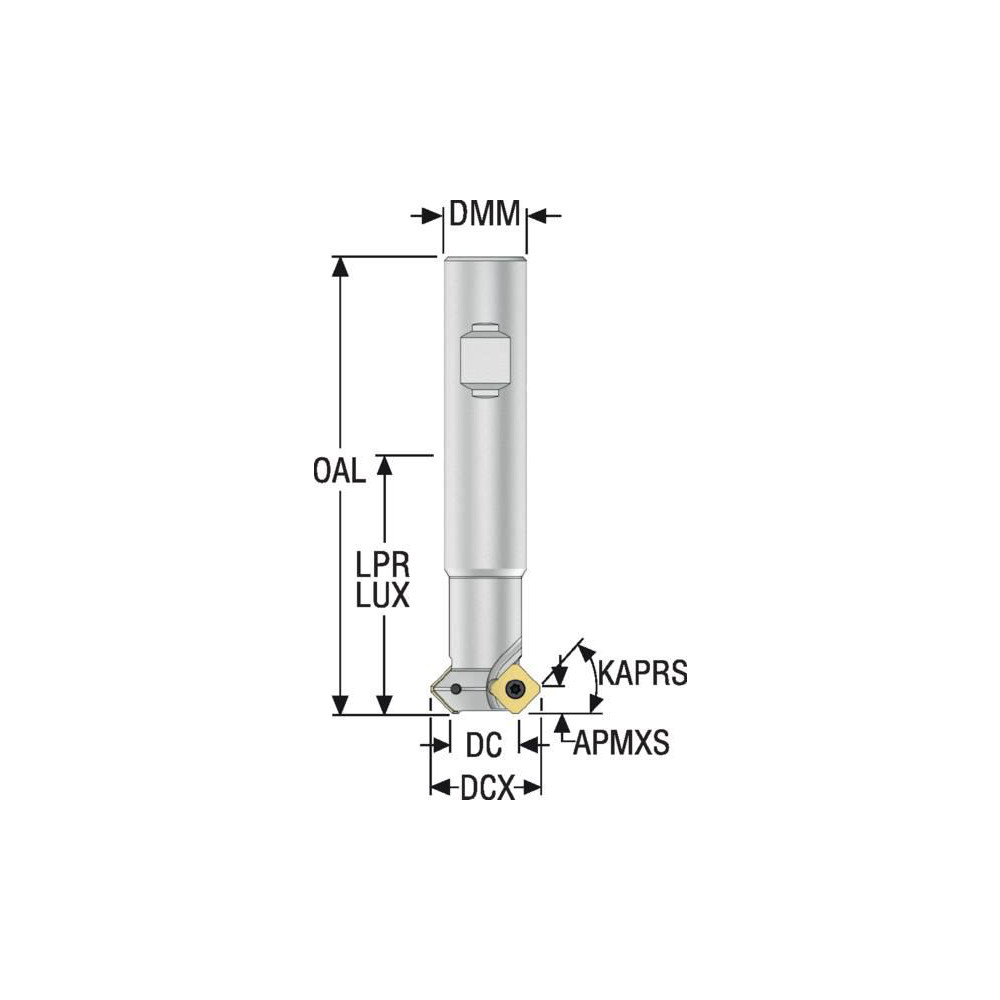

| Minimum Cutting Diameter (Inch) | 5/8 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0390 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Compatible Insert Size Code | SPMX0903 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 2 |
| Insert Style | SPMX 0903.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 4.3300 |
| Series | Milling Normal ISO |
| Toolholder Style | R215; R215.49 |
| Functional Length (mm) | 60.00 |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Maximum RPM | 27200 |
| Tool Application | Chamfering |
| Shank Length (Decimal Inch) | 2.9500 |
| Complete Insert Compatibility | SPMX 090304-75; SPMX 0903AP-75 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 2 |
| Included Angle Degree | 45 |
| Shank Type | Weldon Flat |
| Country of Origin | India |
| MSC Number | MSC# 57042210 |
