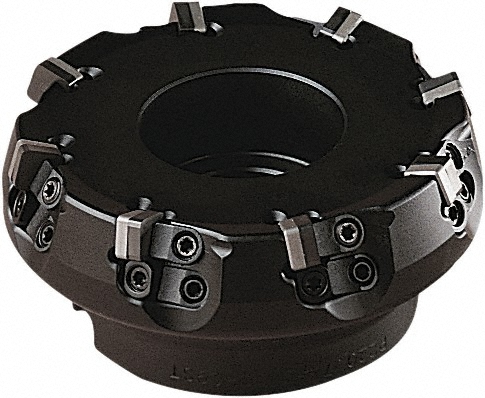

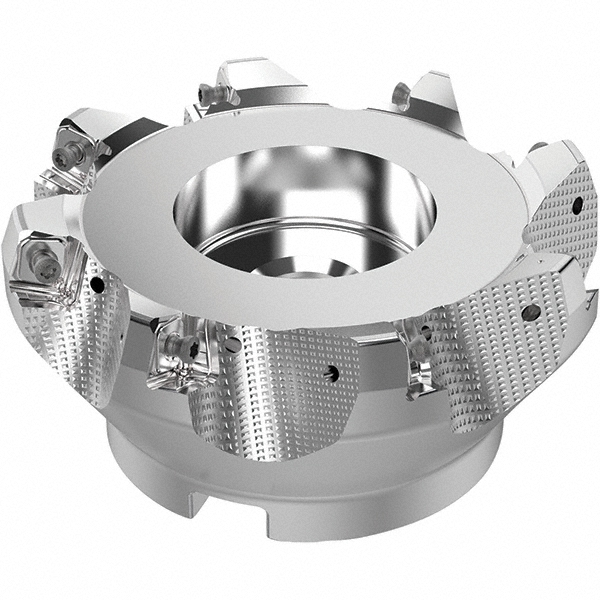

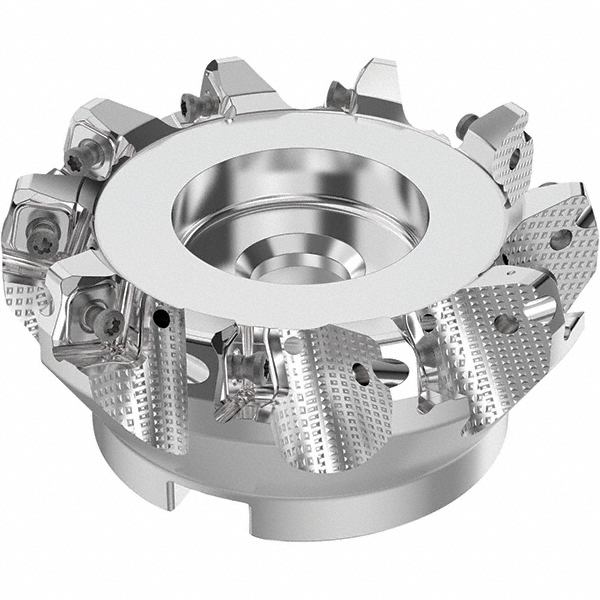

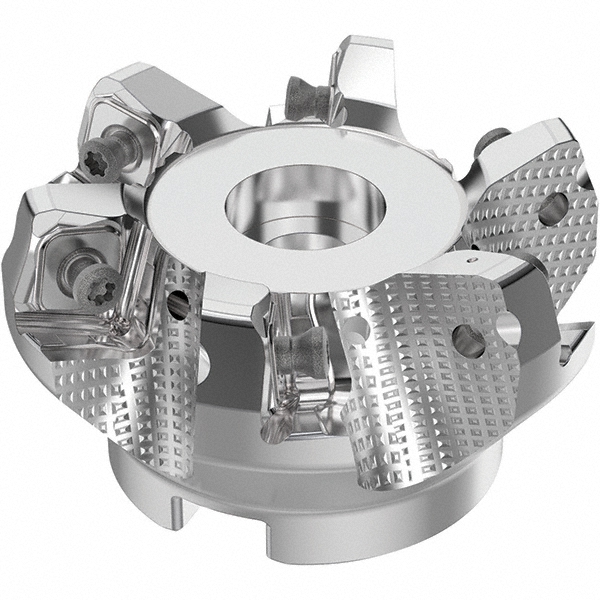

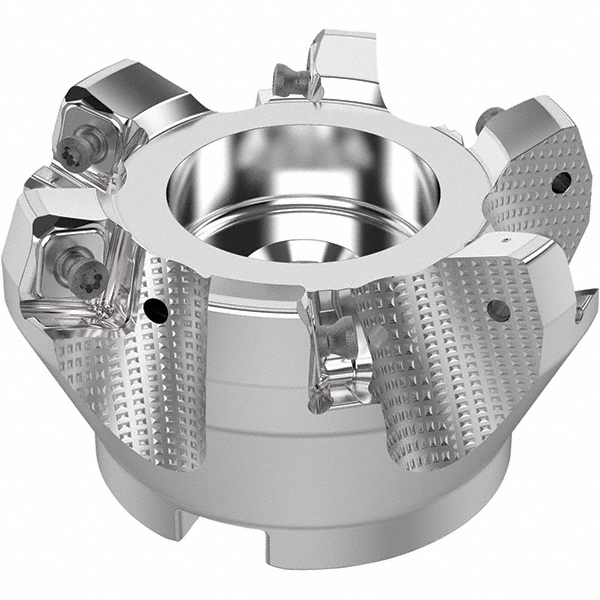

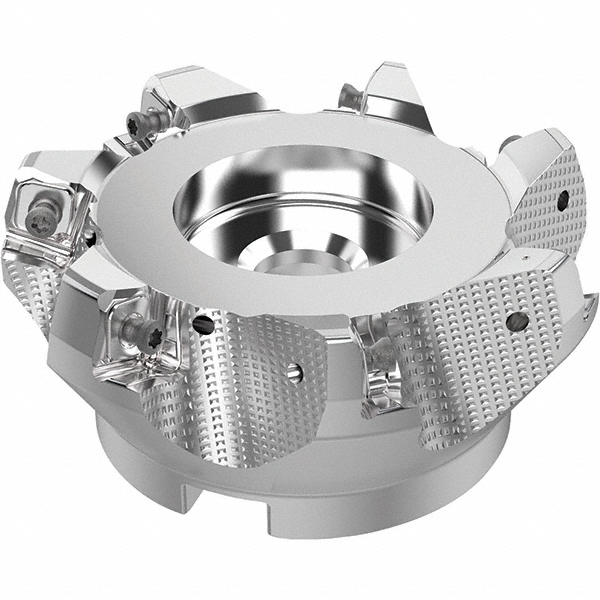

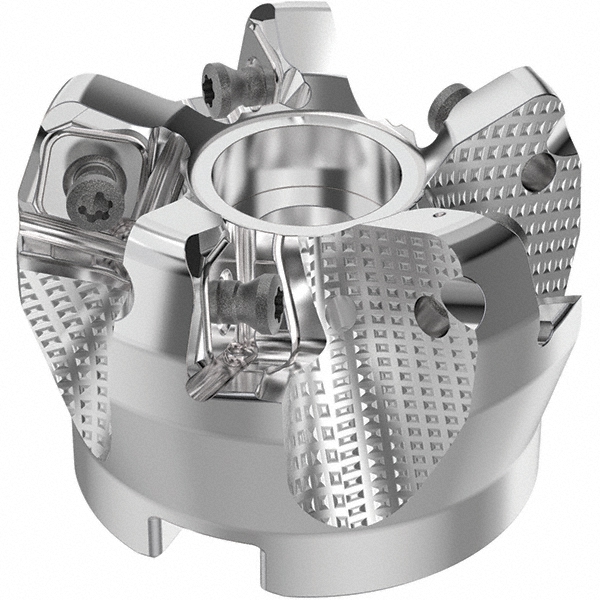

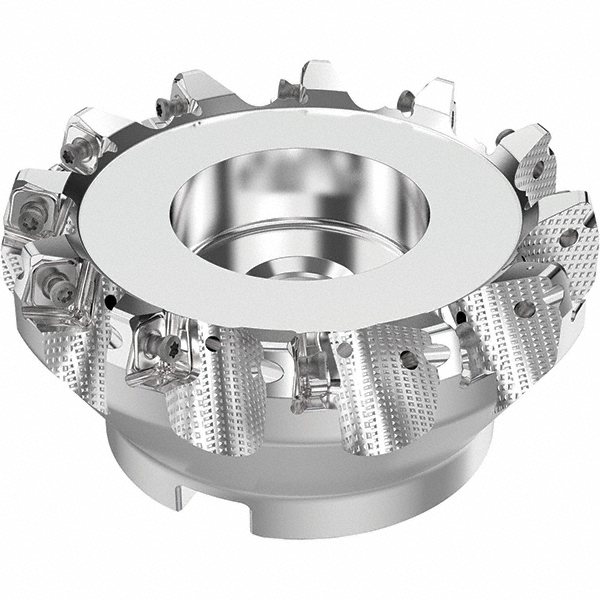

Takes 8 Inserts, SN.. Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series R220.56

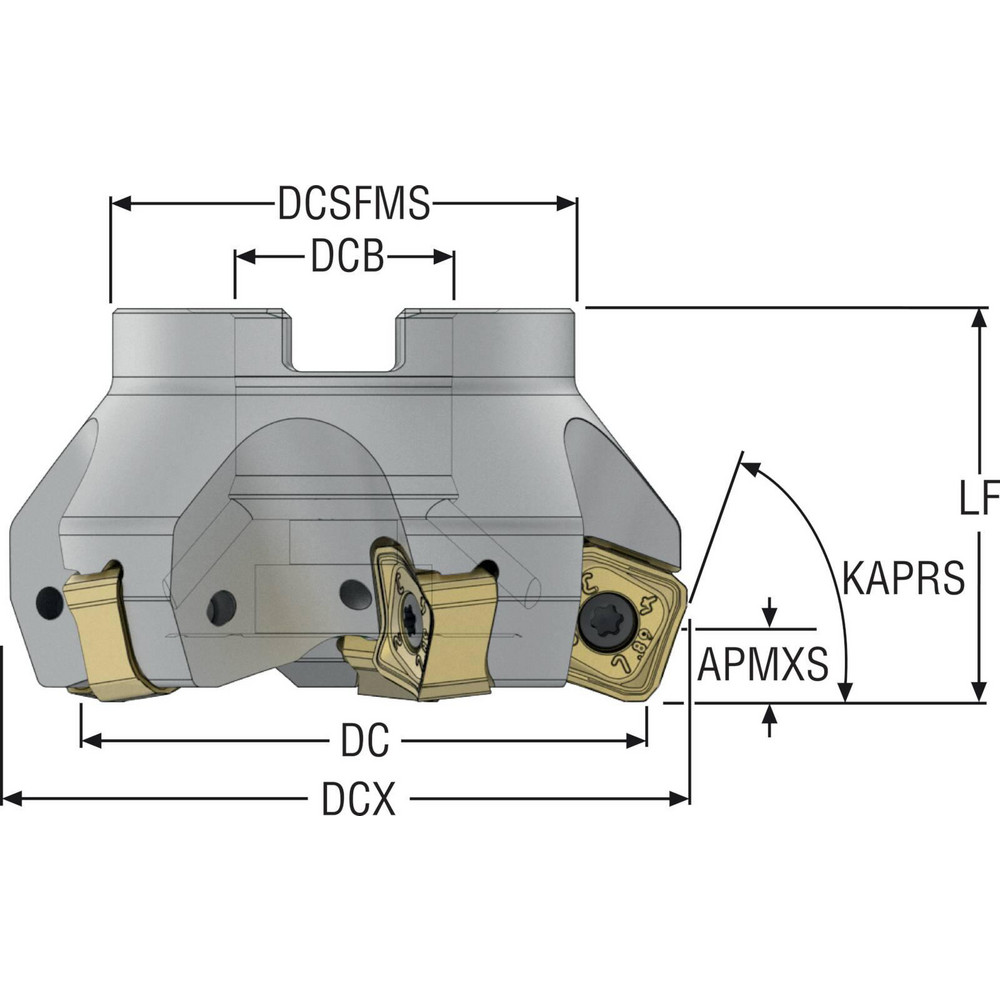

| Minimum Cutting Diameter (Decimal Inch) | 4.9213 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 5.5120 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | SN |
| Cutter Style | R220.56 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -6 |
| Series | R220.56 |
| Hub Diameter (Decimal Inch) | 3.5430 |
| Keyway Width (mm) | 16.00 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Overall Height (Decimal Inch) | 63.00 |
| Maximum Body Diameter (Decimal Inch) | 5.1180 |
| Pitch Type | Normal |
| Maximum RPM | 5400 |
| Tool Application | Facing |

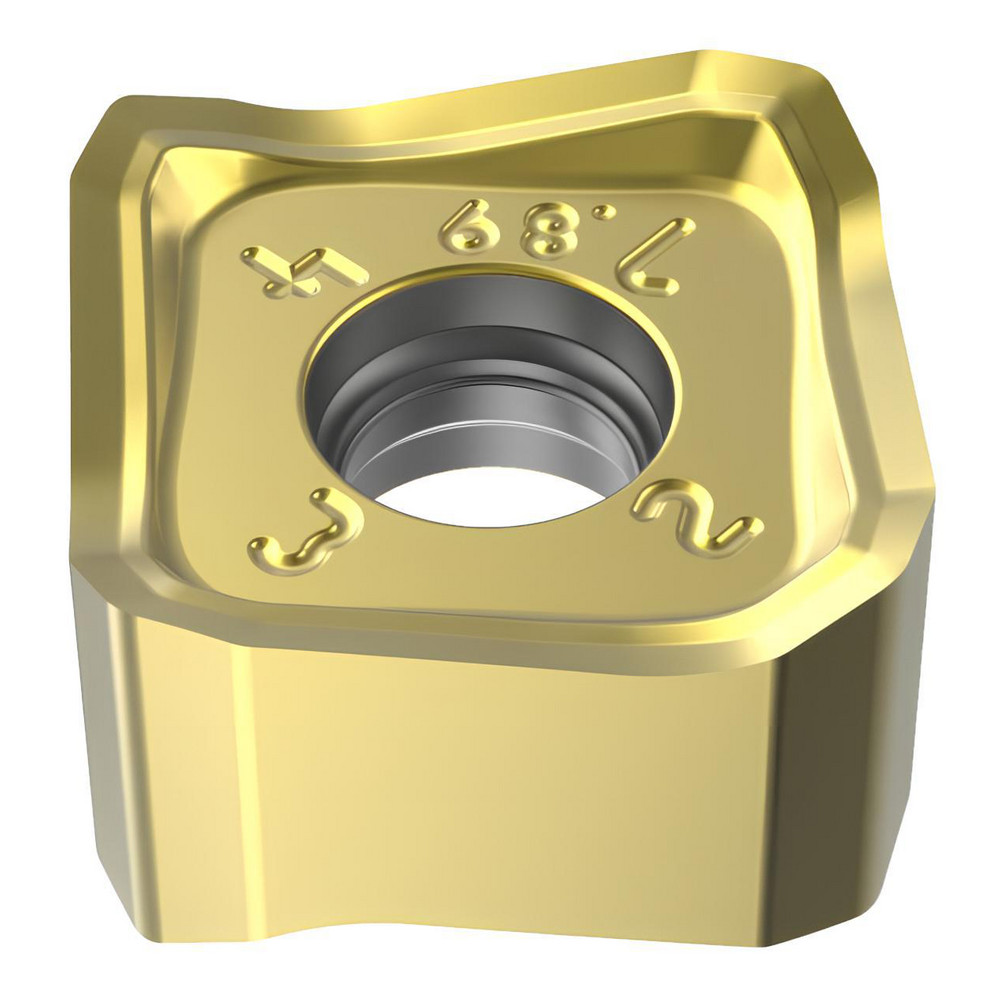

| Complete Insert Compatibility | SN..14..ZNTR |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Yes |
| Number Of Flutes | 8 |
| UNSPSC Code | 23291600 |
| Country of Origin | Sweden |
| MSC Number | MSC# 15879265 |
