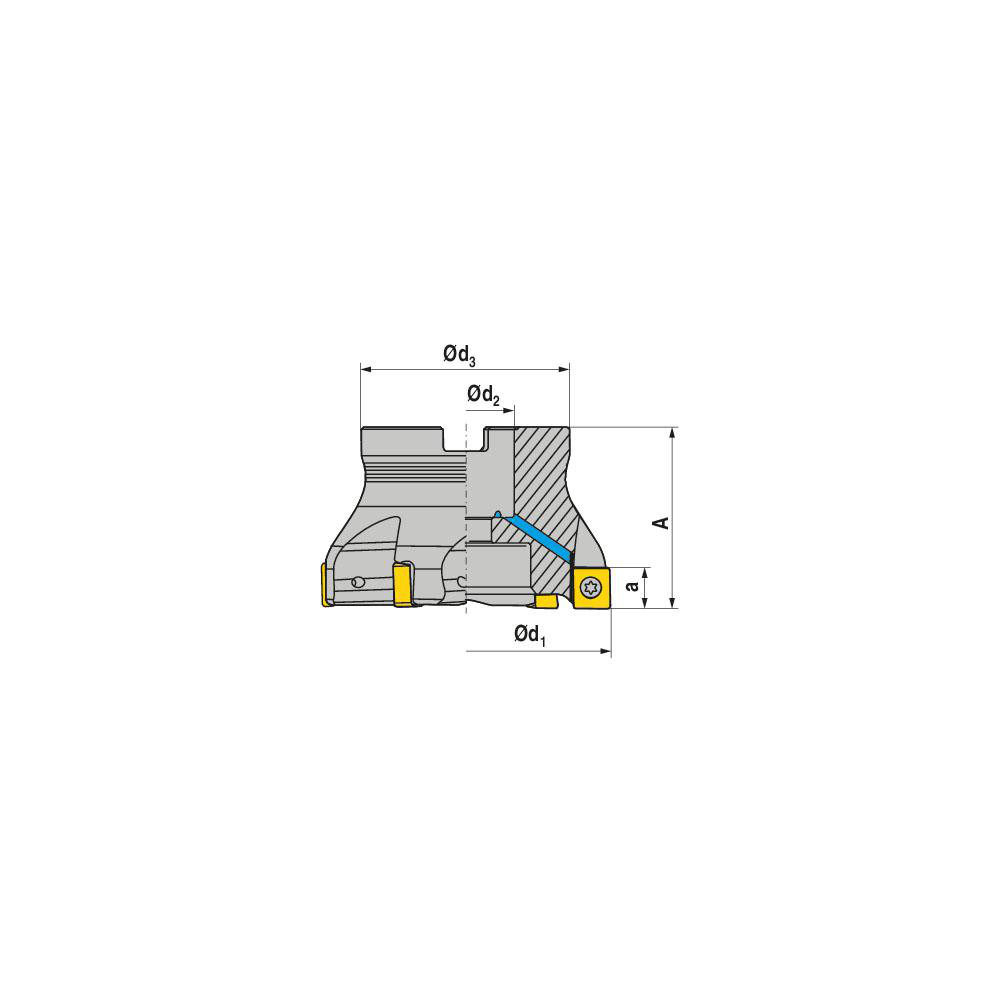

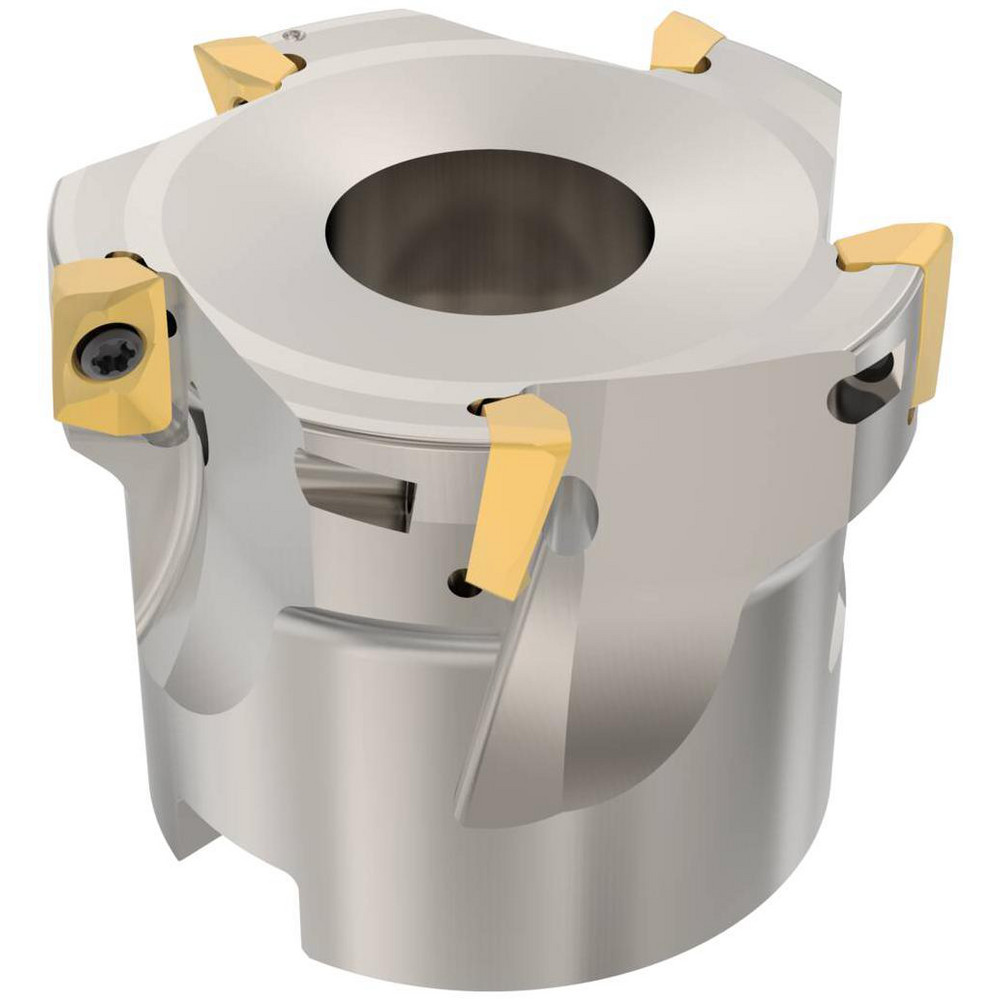

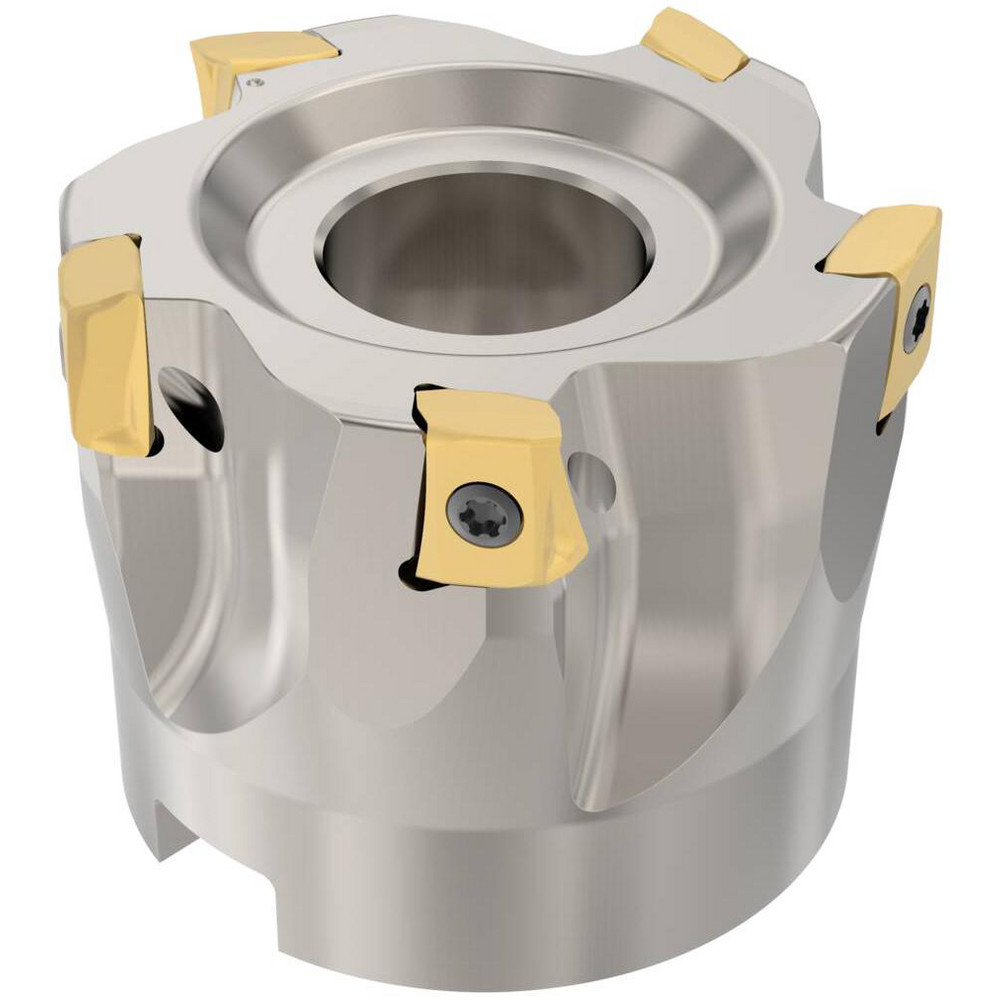

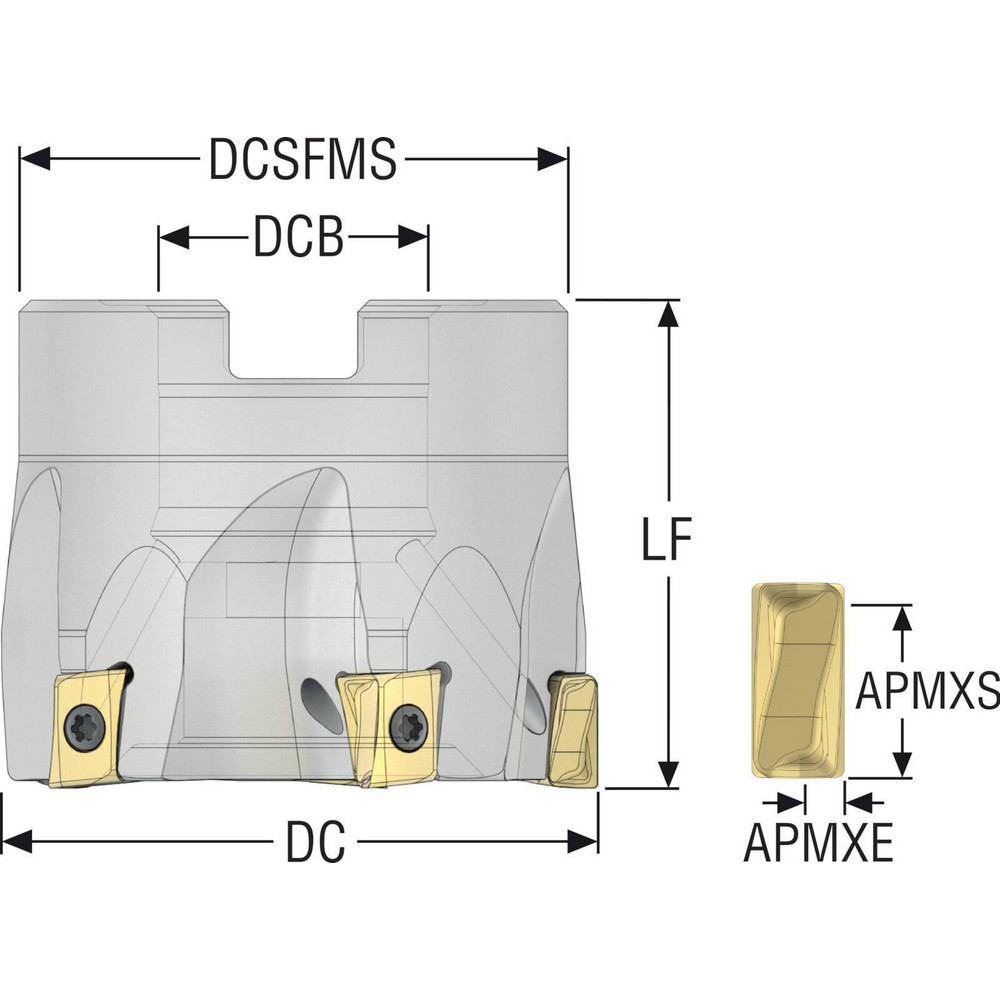

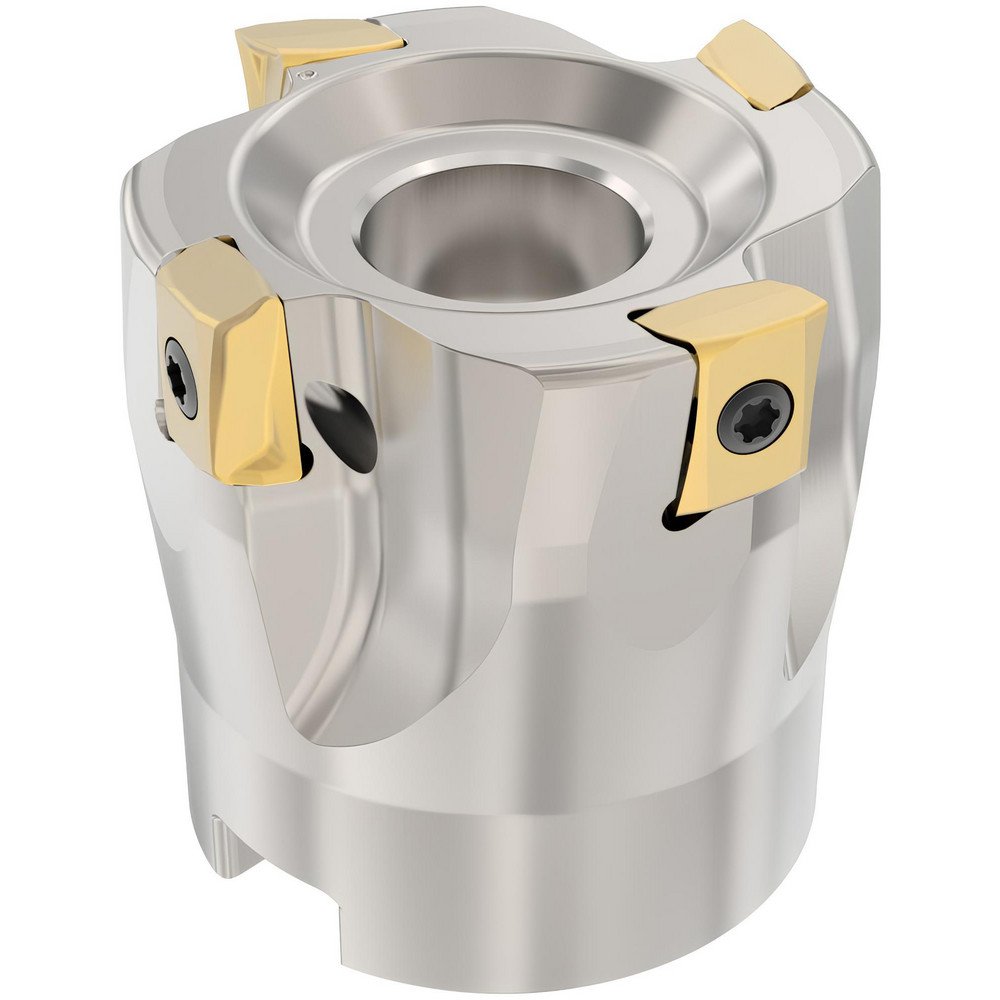

Takes 5 Inserts, 90° Lead Angle, 40mm High, LOEX08.. Insert Style, Through Coolant, Series 220.94-08
| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
|---|---|
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | LOEX08.. |
| Cutter Style | 220.94-08 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | 220.94-08 |
| Overall Height (Decimal Inch) | 40.00 |
| Keyway Width (mm) | 10.40 |
| Hub Diameter (mm) | 45.00 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 47969027 |
