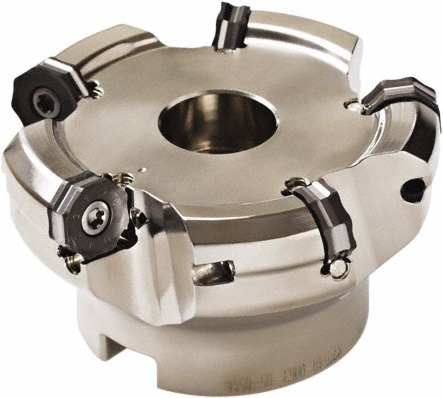

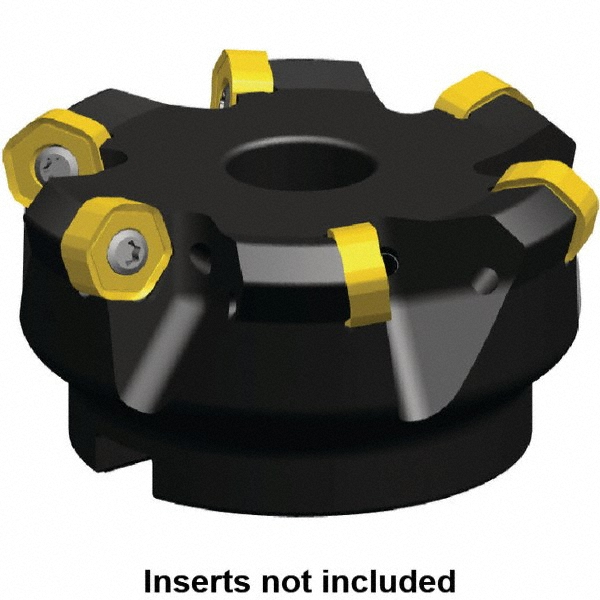

Takes 6 Inserts, ON.. 0504 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Double OctoMill

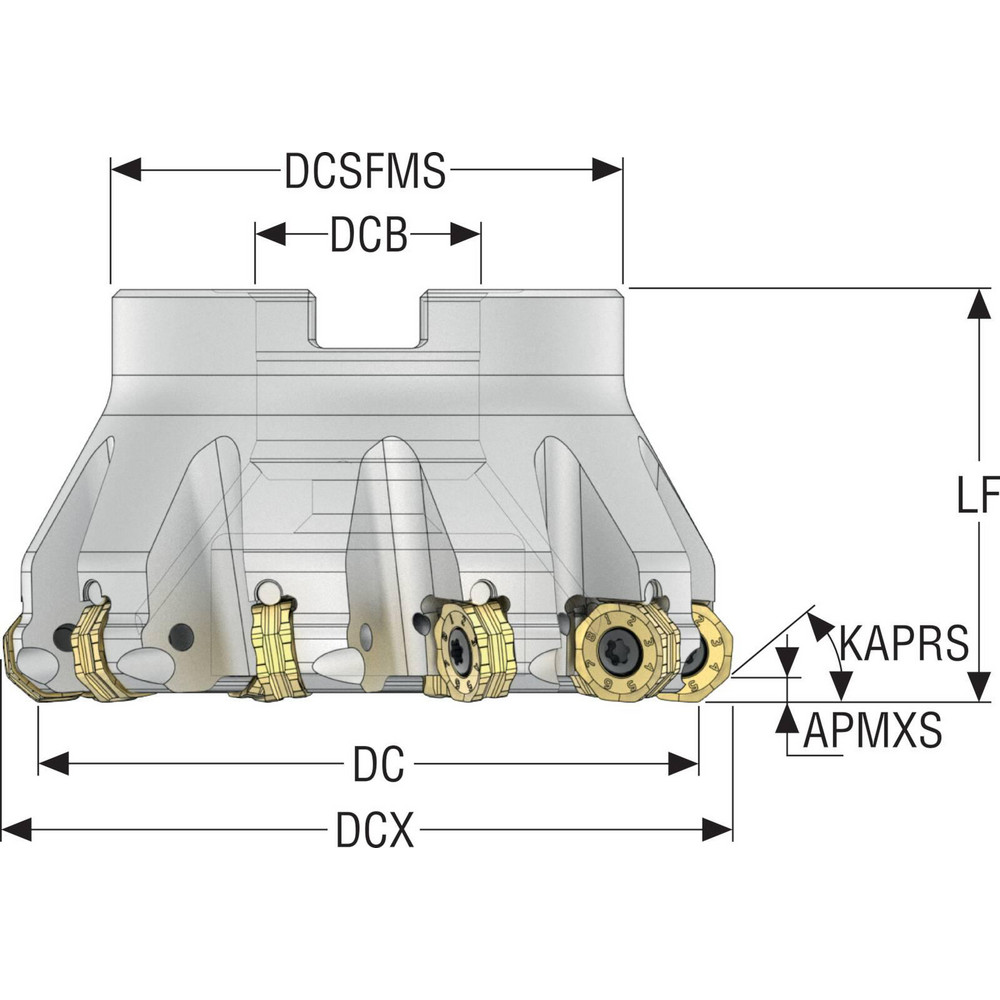

| Minimum Cutting Diameter (mm) | 50.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 58.35 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | ON 0504 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -8 |
| Series | Double OctoMill |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Overall Height (Decimal Inch) | 1.5748 |
| Maximum Body Diameter (Decimal Inch) | 1.9685 |
| Pitch Type | Close |
| Maximum RPM | 14400 |
| Complete Insert Compatibility | ONEU 050410ZZTN4-M10; ONMU 050410ANTN-ME10; ONMU 050410ANTN-ME11; ONMU 050410ANTN-M10; ONMU 050410ANTN-M11 |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
| Number Of Flutes | 6 |
| UNSPSC Code | 23291600 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 65941197 |
