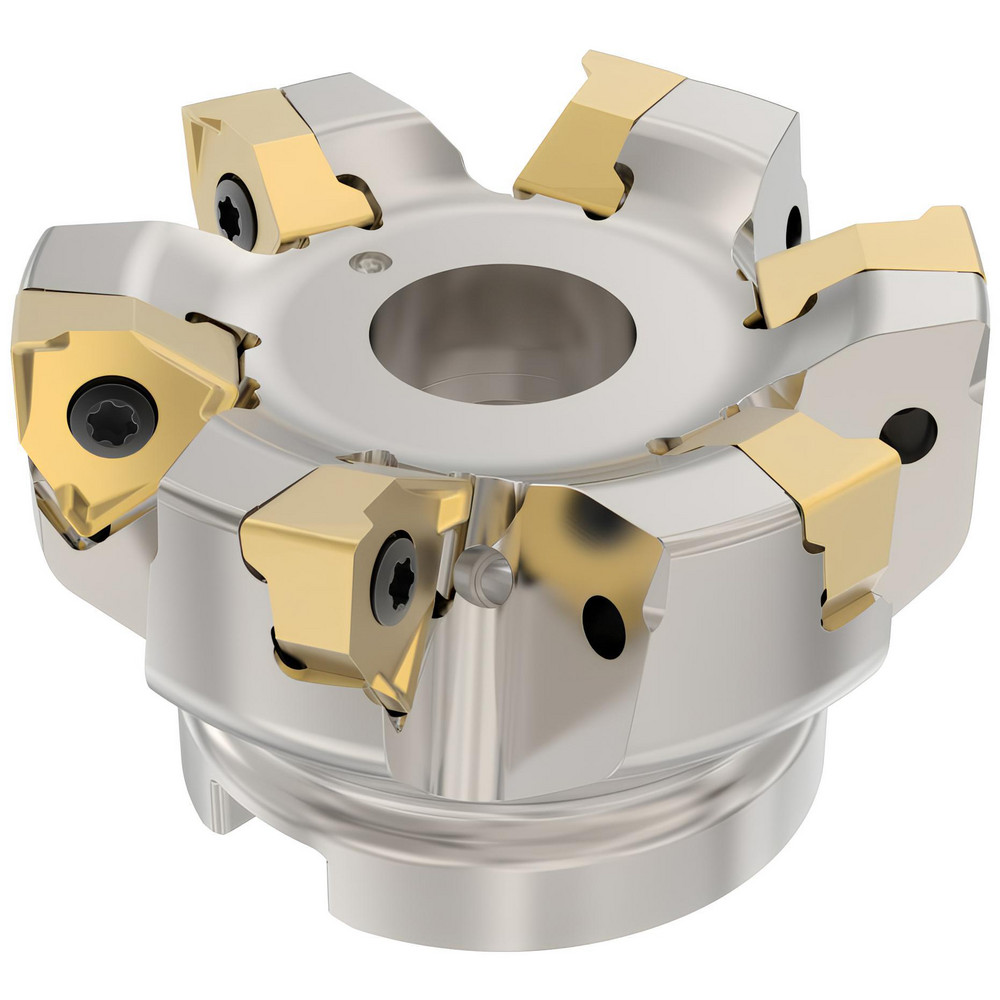

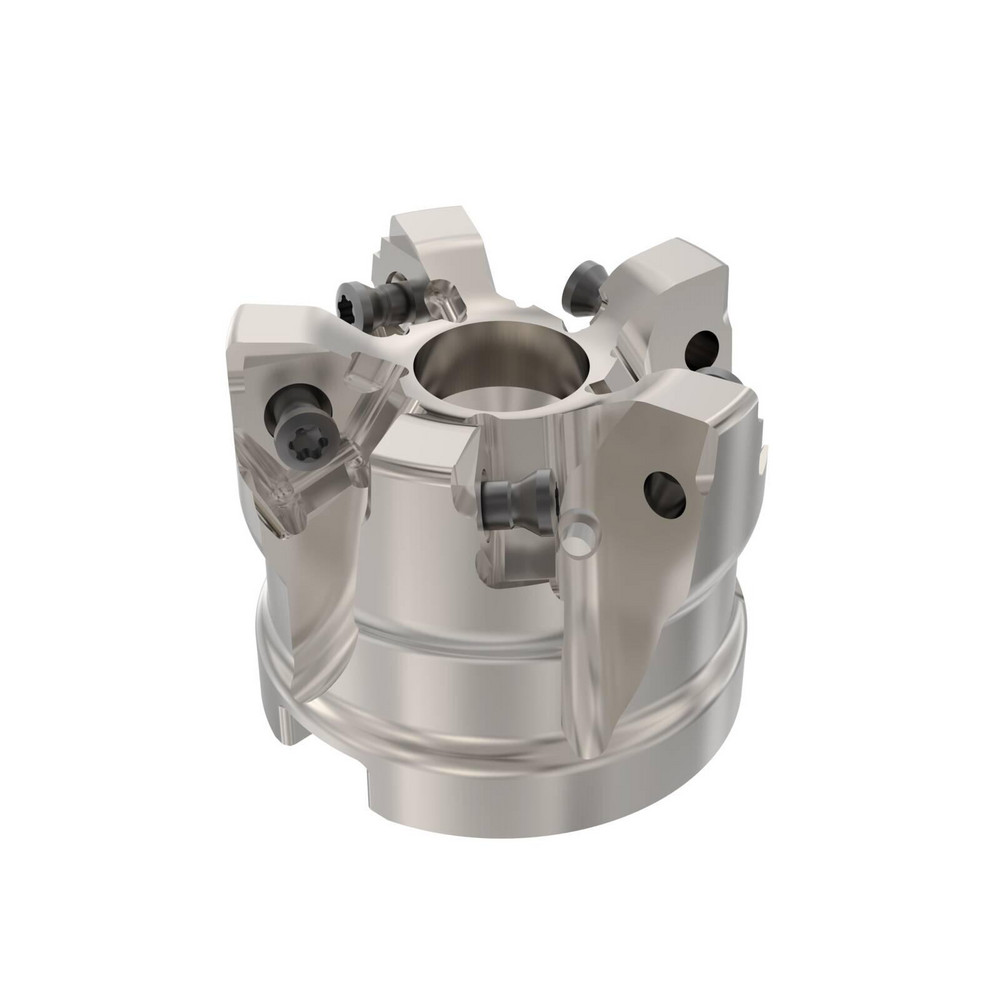

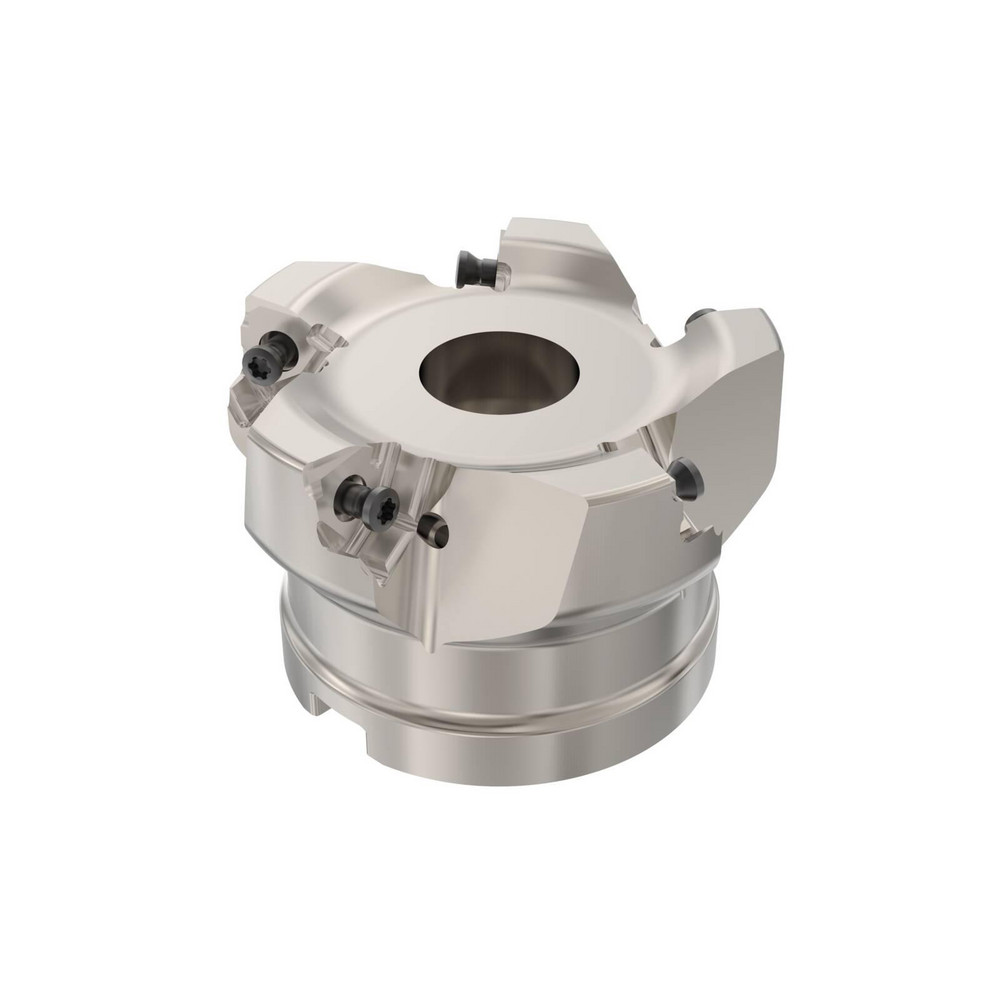

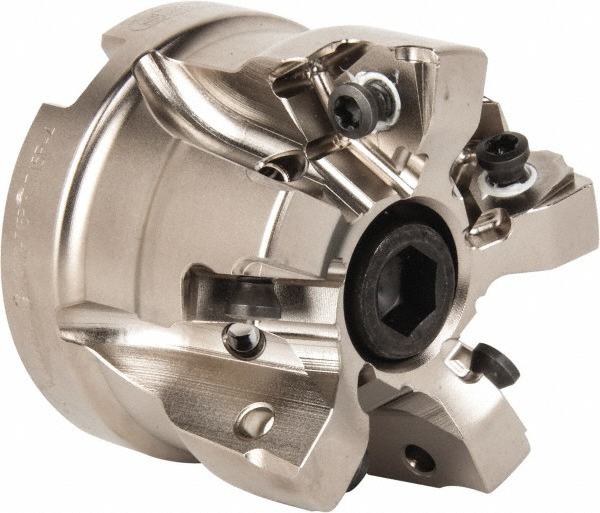

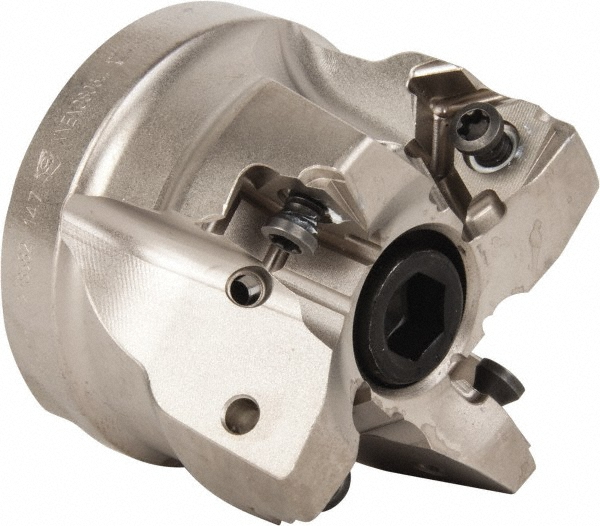

Takes 6 Inserts, 90° Lead Angle, 40mm High, XNEX 08 Insert Style, Through Coolant, Series R220.96

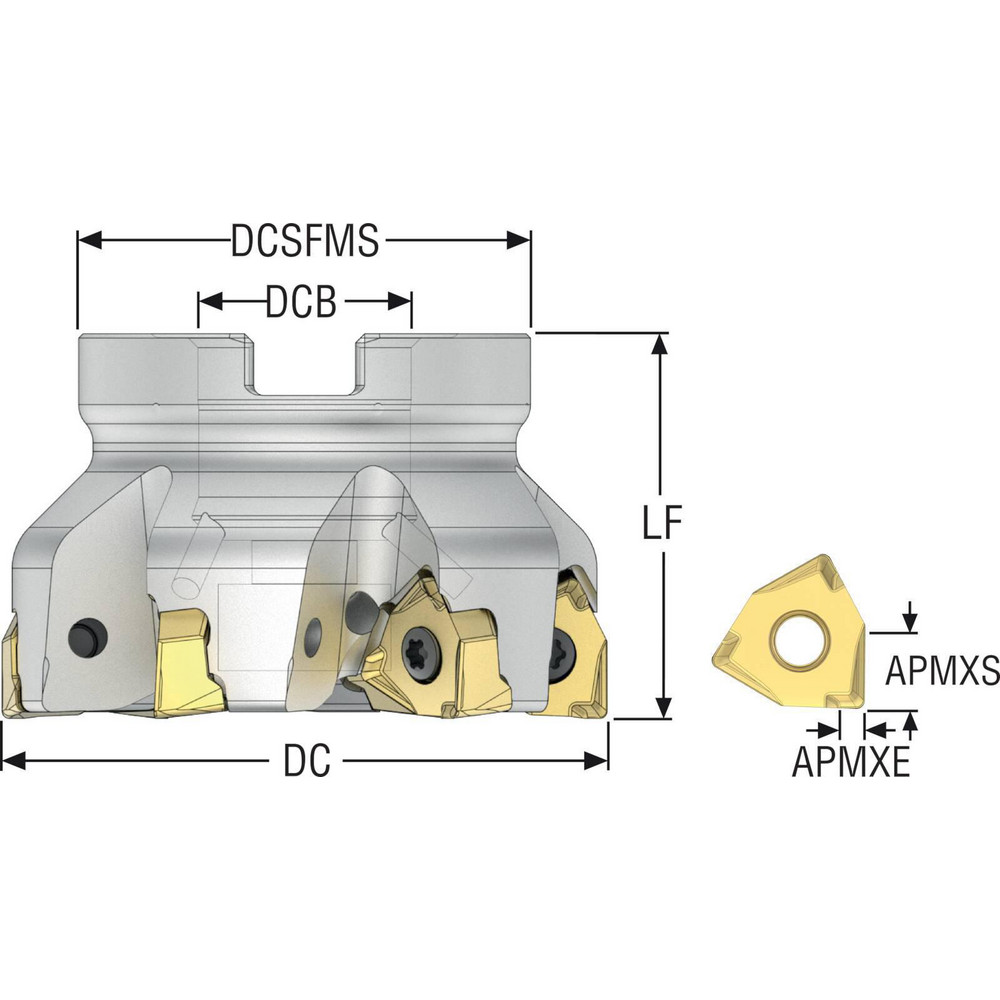

| Maximum Cutting Diameter (Decimal Inch) | 2.5984 |
|---|---|
| Maximum Cutting Diameter (mm) | 66.00 |
| Maximum Depth of Cut (mm) | 7.50 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | XNEX 08 |
| Cutter Style | R220.96 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Negative |
| Series | R220.96 |
| Maximum Ramping Angle | 0.00 |
| Overall Height (Decimal Inch) | 40.00 |
| Keyway Width (mm) | 10.45 |
| Hub Diameter (mm) | 47.00 |
| Tool Application | Slotting |
| Keyway Depth (mm) | 6.41 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49094501 |
