Takes 5 Inserts, 90° Lead Angle, 63mm High, TNGN 1604 Insert Style

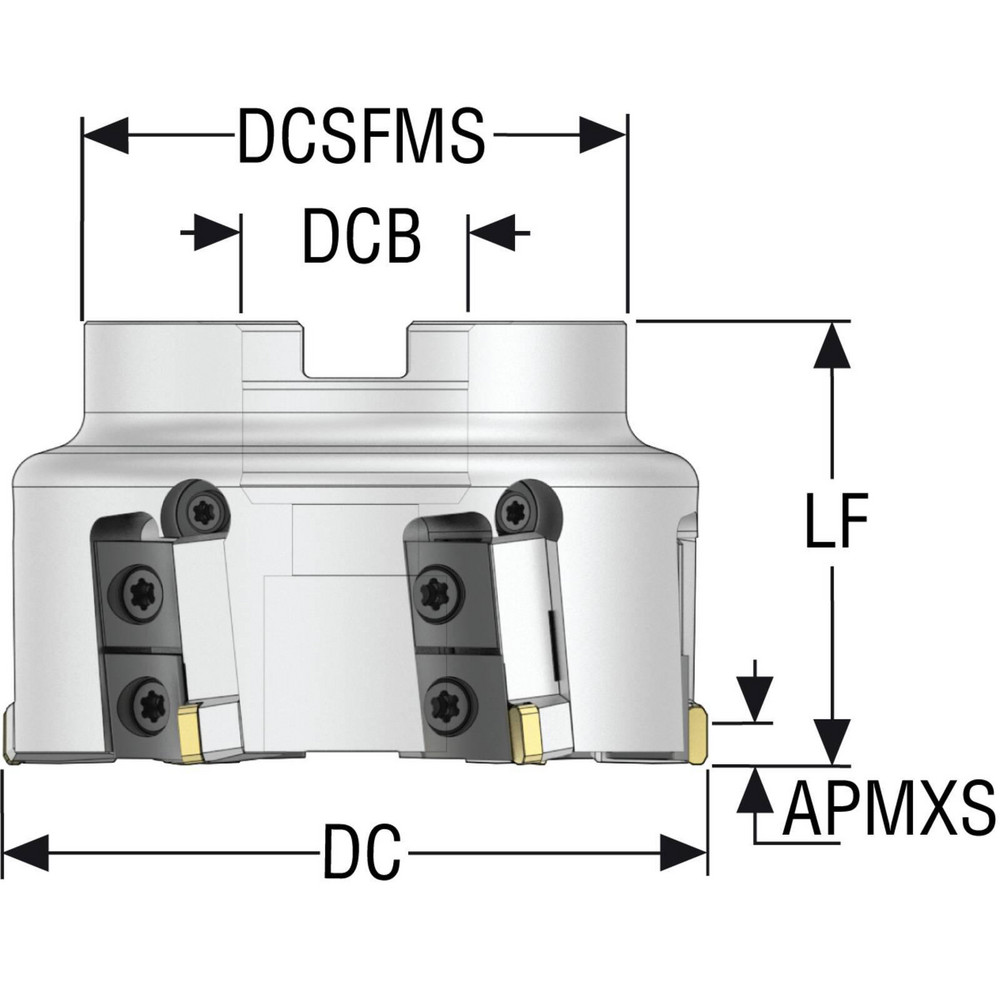

| Maximum Cutting Diameter (Decimal Inch) | 3.1496 |
|---|---|
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Compatible Insert Size Code | TNGN 1604 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Negative |
| Rake Angle | -6.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Hub Diameter (mm) | 62.00 |
| Hub Diameter (Decimal Inch) | 2.4409 |
| Complete Insert Compatibility | TNGN 1604PRS; TNGN 1604PNE; TNGN 1604PNS |
| UNSPSC Code | 27112803 |
| Coolant Through | No |
| Number Of Cutter Inserts | 5 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 45812831 |
