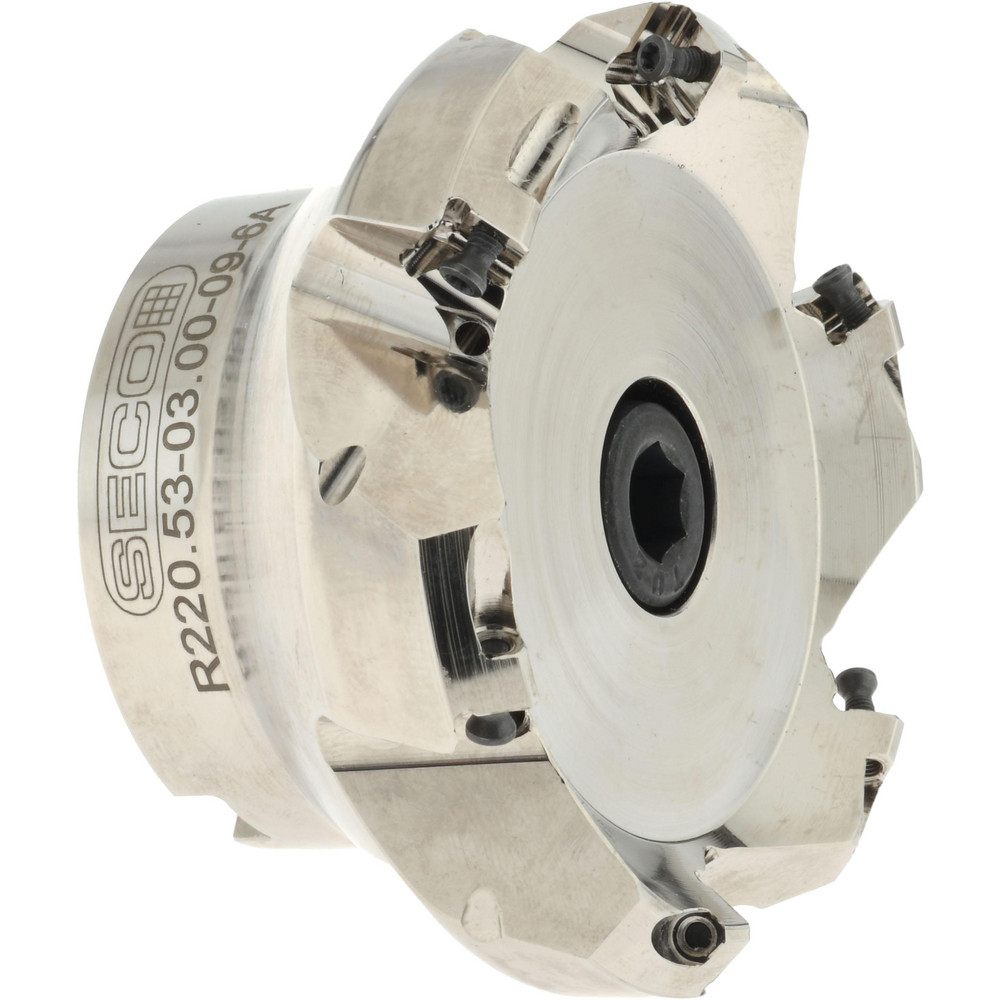

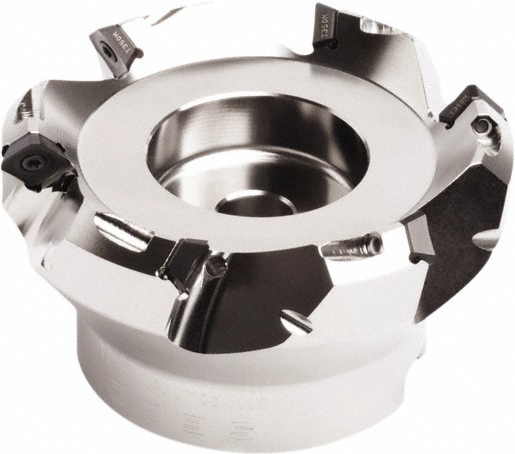

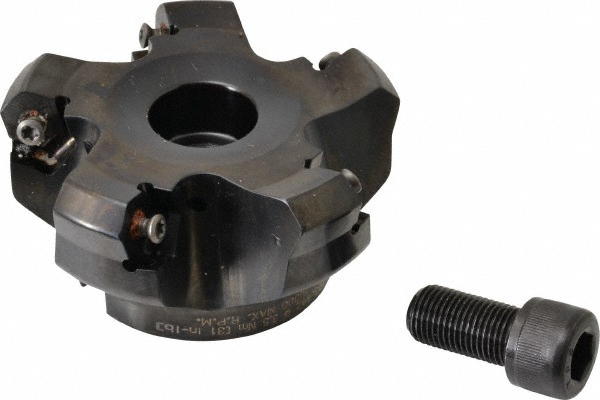

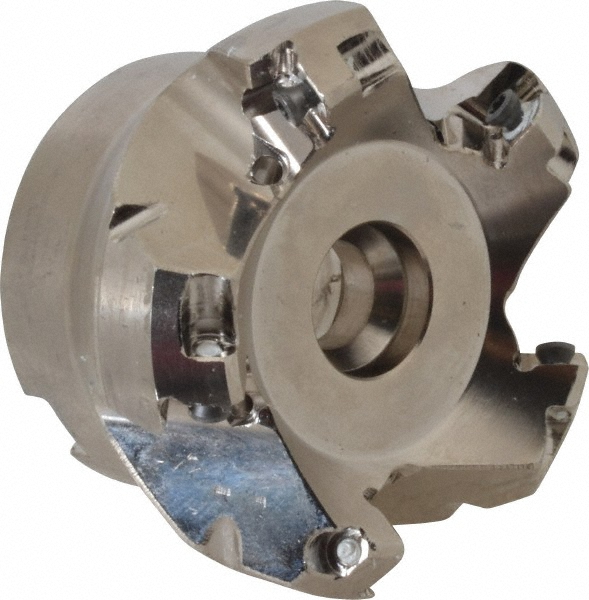

Takes 6 Inserts, SE.. 09T3 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series QuattroMill

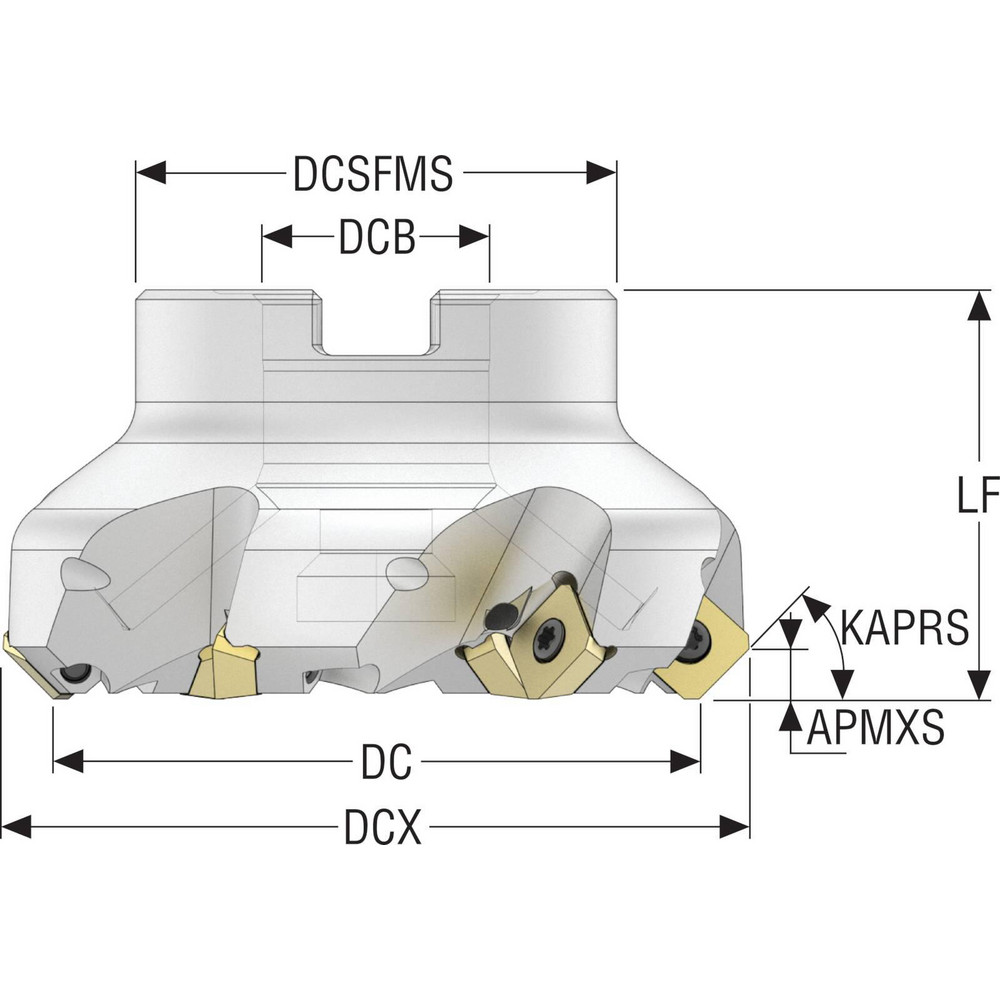

| Minimum Cutting Diameter (mm) | 80.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 90.00 |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Compatible Insert Size Code | SE 09T3 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 10 |
| Series | QuattroMill |
| Hub Diameter (mm) | 62.00 |
| Hub Diameter (Decimal Inch) | 2.4409 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Overall Height (Decimal Inch) | 1.9685 |
| Maximum Body Diameter (Decimal Inch) | 3.1496 |
| Pitch Type | Normal |
| Maximum RPM | 12500 |
| Complete Insert Compatibility | SEEX 09T3AFTN-D09; SEEX 09T3AFN-M05; SEEX 09T3AFTN-ME07; SEMX 09T3AFTN-ME06; SEEX 09T3AFN-E04; SEMX 09T3AFTN-M08; SEEX 09T3AFTN-M08 |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
| Number Of Flutes | 6 |
| UNSPSC Code | 23291600 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 73178188 |
