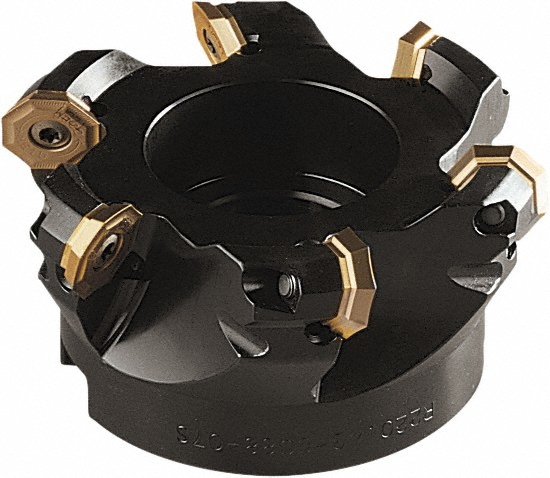

Takes 5 Inserts, OF.. 0704 Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series OctoMill

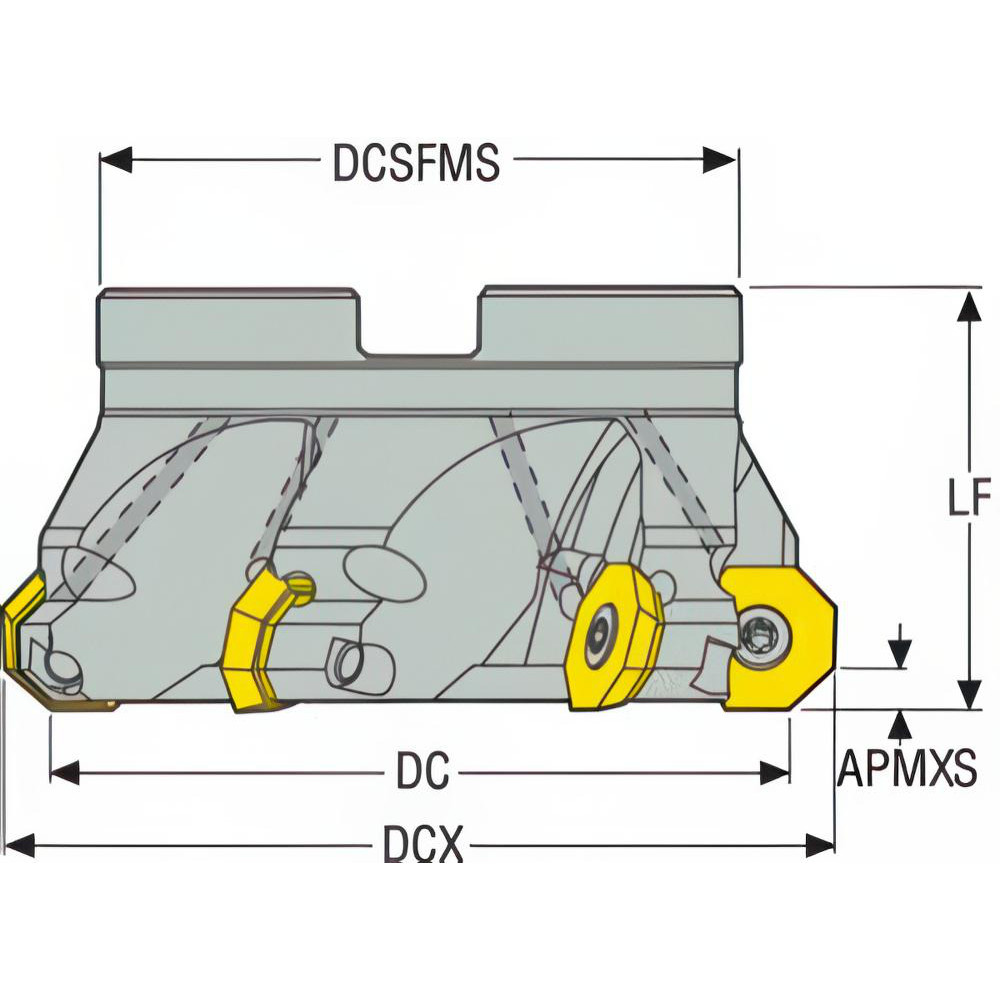

| Minimum Cutting Diameter (mm) | 80.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 92.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Compatible Insert Size Code | OF 0704 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 15 |
| Series | OctoMill |
| Hub Diameter (mm) | 62.00 |
| Hub Diameter (Decimal Inch) | 2.4409 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Overall Height (Decimal Inch) | 1.9685 |
| Maximum Body Diameter (Decimal Inch) | 3.1496 |
| Maximum RPM | 6200 |
| Complete Insert Compatibility | OFMT 070405TR-M15; OFMT 070405TN-ME13; OFEW 070405TN-D18; OFMT 070405TR-ME13; OFET 070405TN-M16; OFET 070405TN-ME15; OFMT 070405TN-M15; OFET 070405TN-ME10 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| Number Of Flutes | 5 |
| UNSPSC Code | 23291600 |
| Country of Origin | Sweden |
| MSC Number | MSC# 60145182 |
