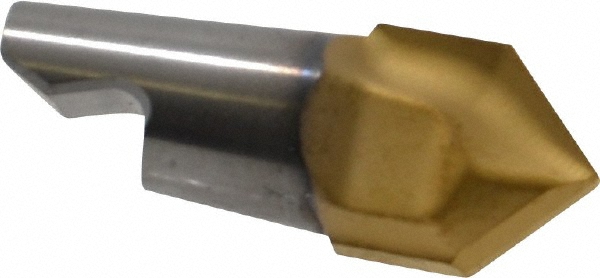

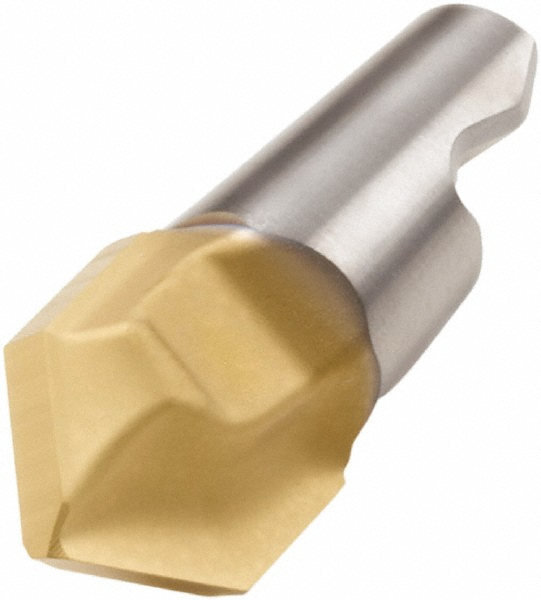

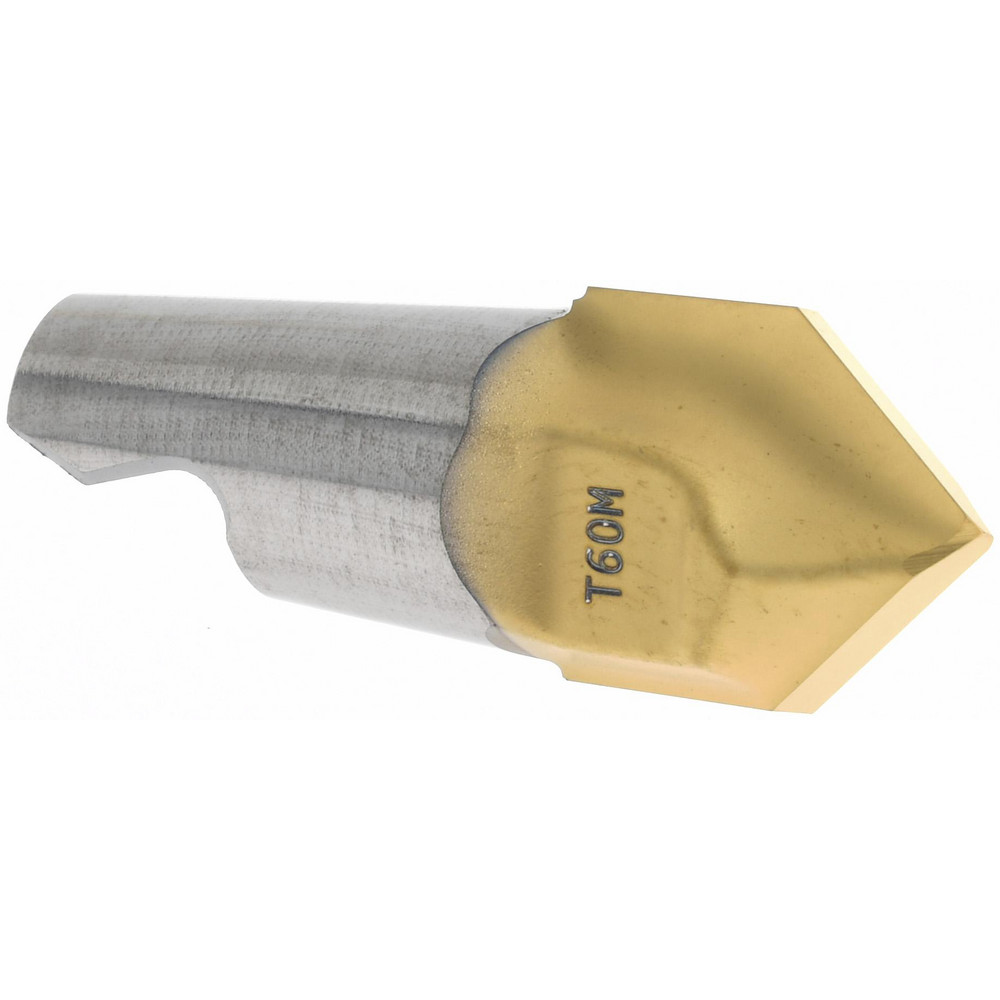

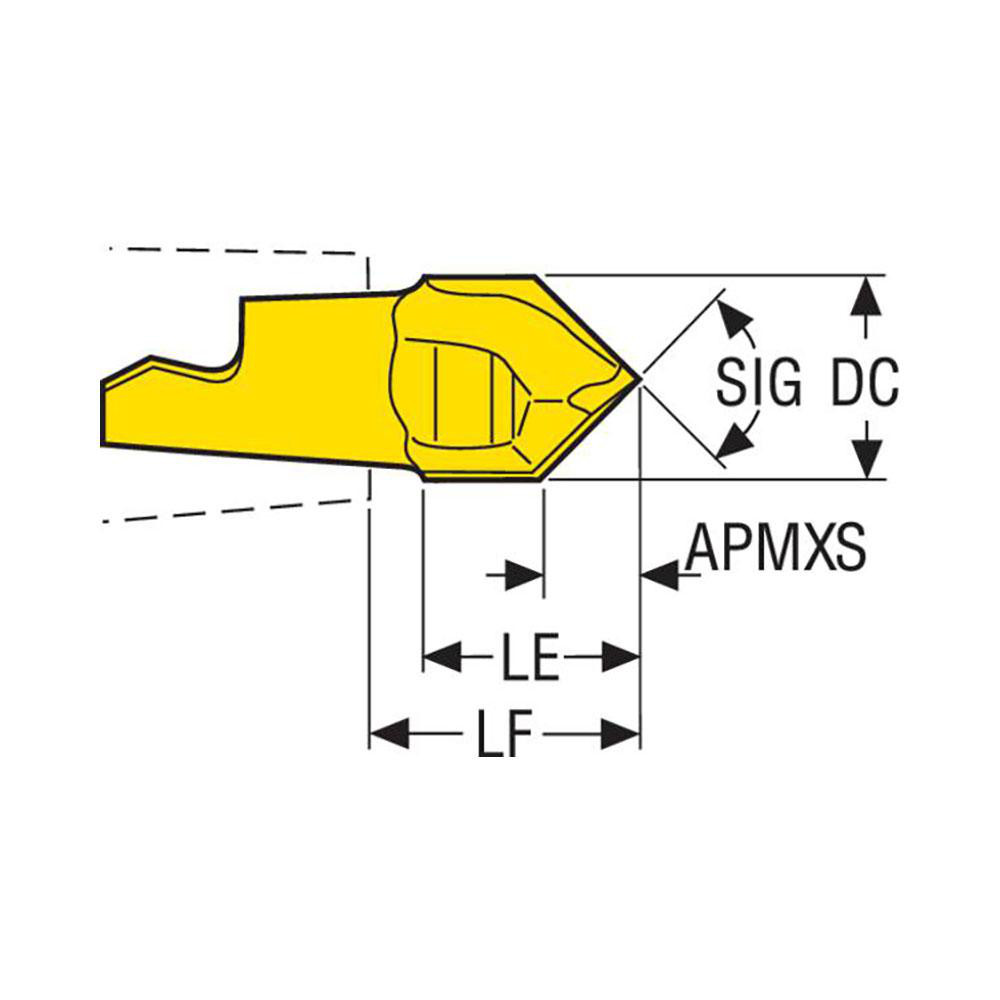

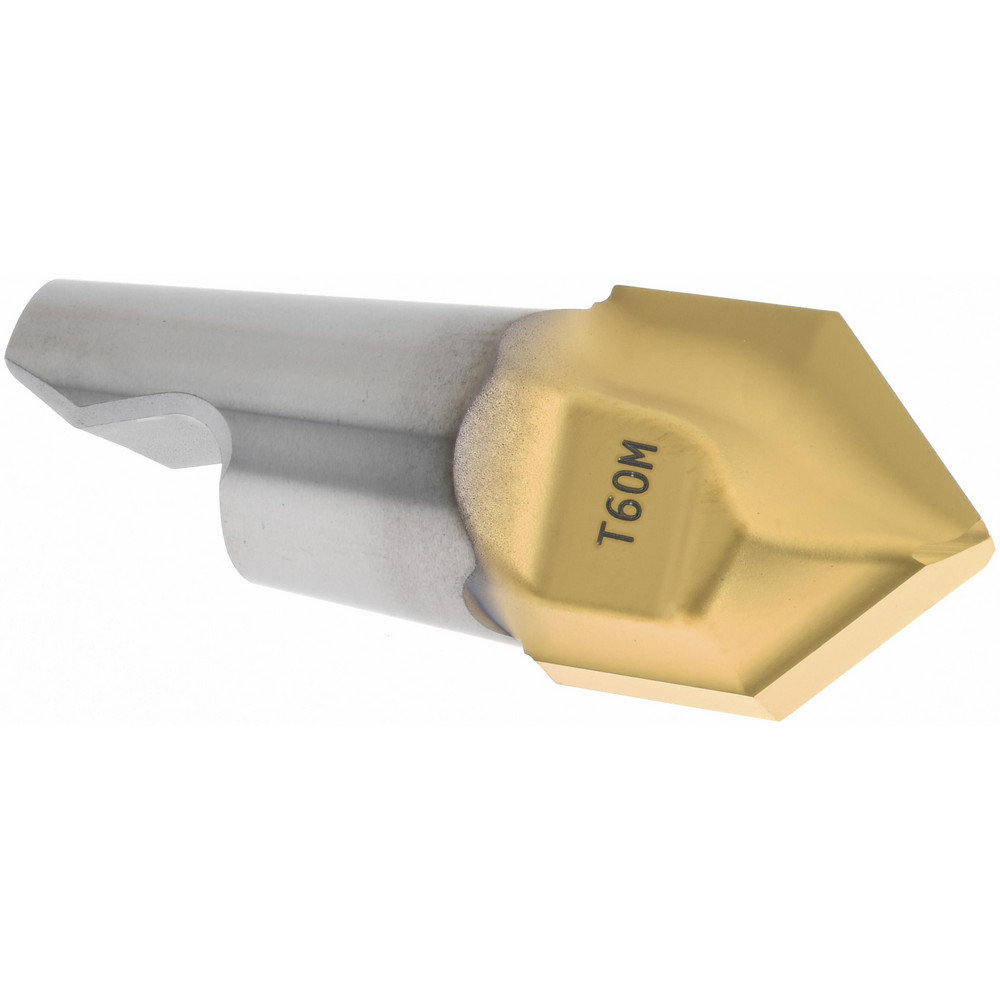

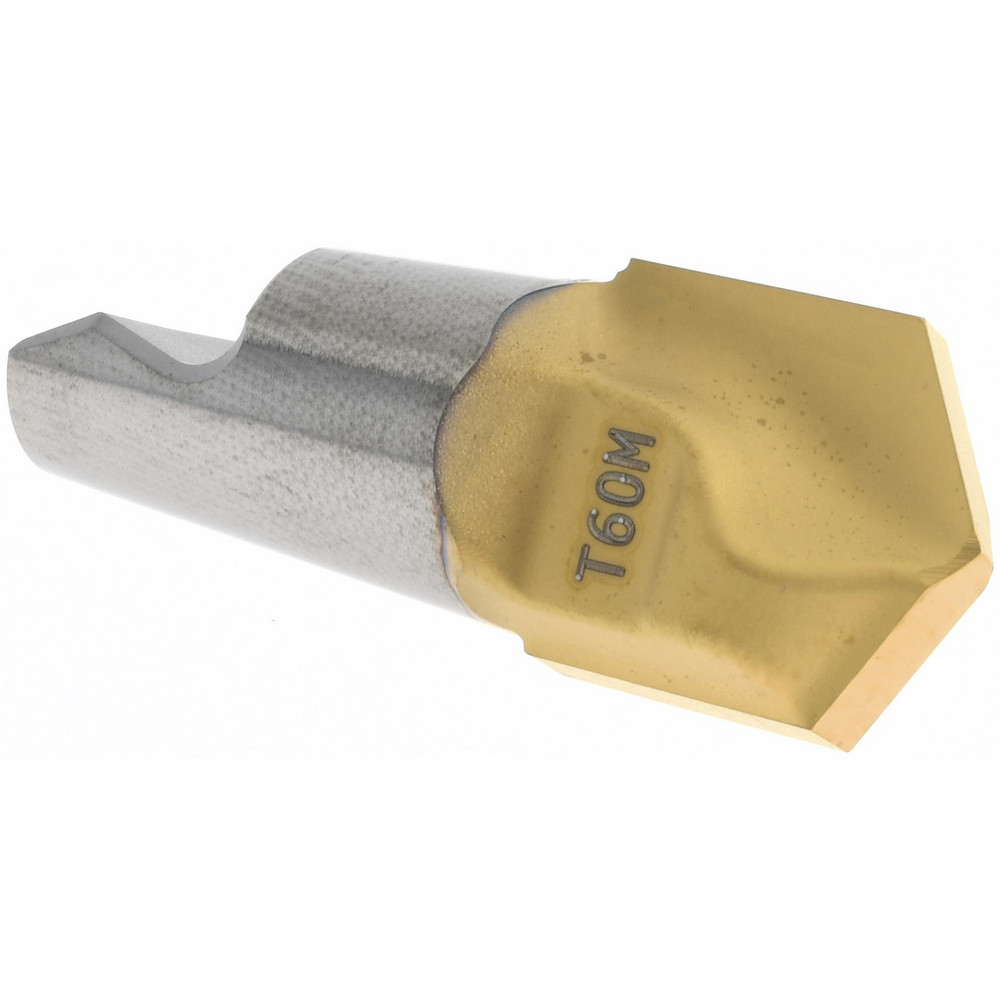

TiAlN, 2 Flutes, 0.4720" Cutting Dia, 0.2220" Max Depth of Cut, Series MM12
| Milling Tip Type | Chamfer |
|---|---|
| Milling Tip Style | MM12 |
| Maximum Depth of Cut (Decimal Inch) | 0.2220 |
| Maximum Depth of Cut (mm) | 5.7 |
| Cutting Diameter (Decimal Inch) | 0.4720 |
| Tool Material | Carbide |
| Manufacturer Grade | T60M |
| Insert Hand | Right Hand |
| Chipbreaker | M04 |
| Series | MM12 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.2600 |
| Cutting Width (Decimal Inch) | 0.472 |
| Functional Length (mm) | 14.64 |
| Functional Length (Decimal Inch) | 0.5760 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | ANSI |
| Milling Tip Full Description | MM12-0.472-C90-M04 |
| Lead Angle | 45 |
| Manufacturers Catalog Number | 74034542 |
| Chamfer Angle | 45 |
| Overall Length (Decimal Inch) | 0.576 |
| Insert Size | 0.472-C90 |
| Coolant Through | No |
| Material Grade | C5 |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291601 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2220 |
| Number Of Flutes | 2 |
| Extension From Holder (Inch) | 0.5760 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 99715690 |
