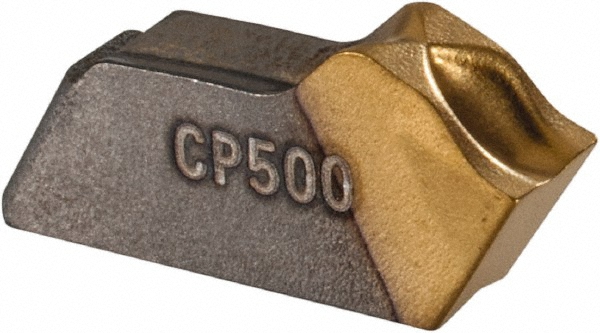

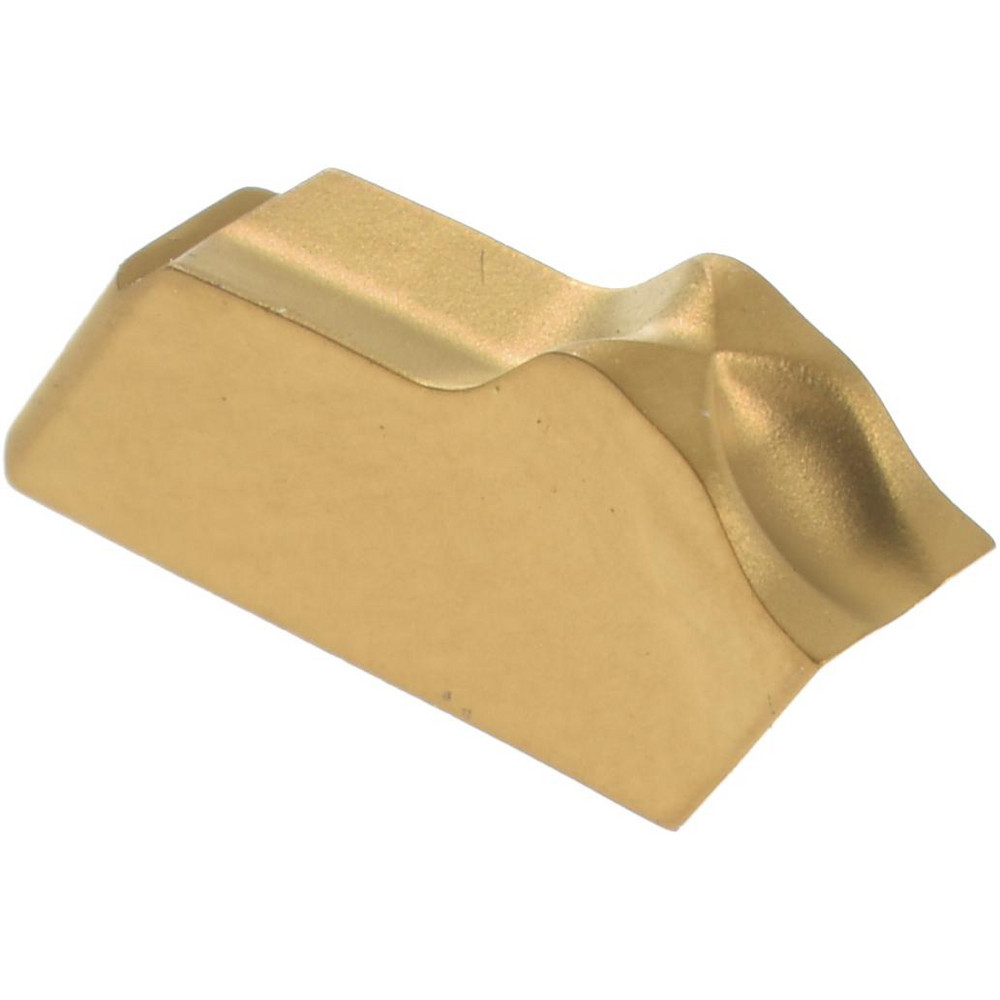

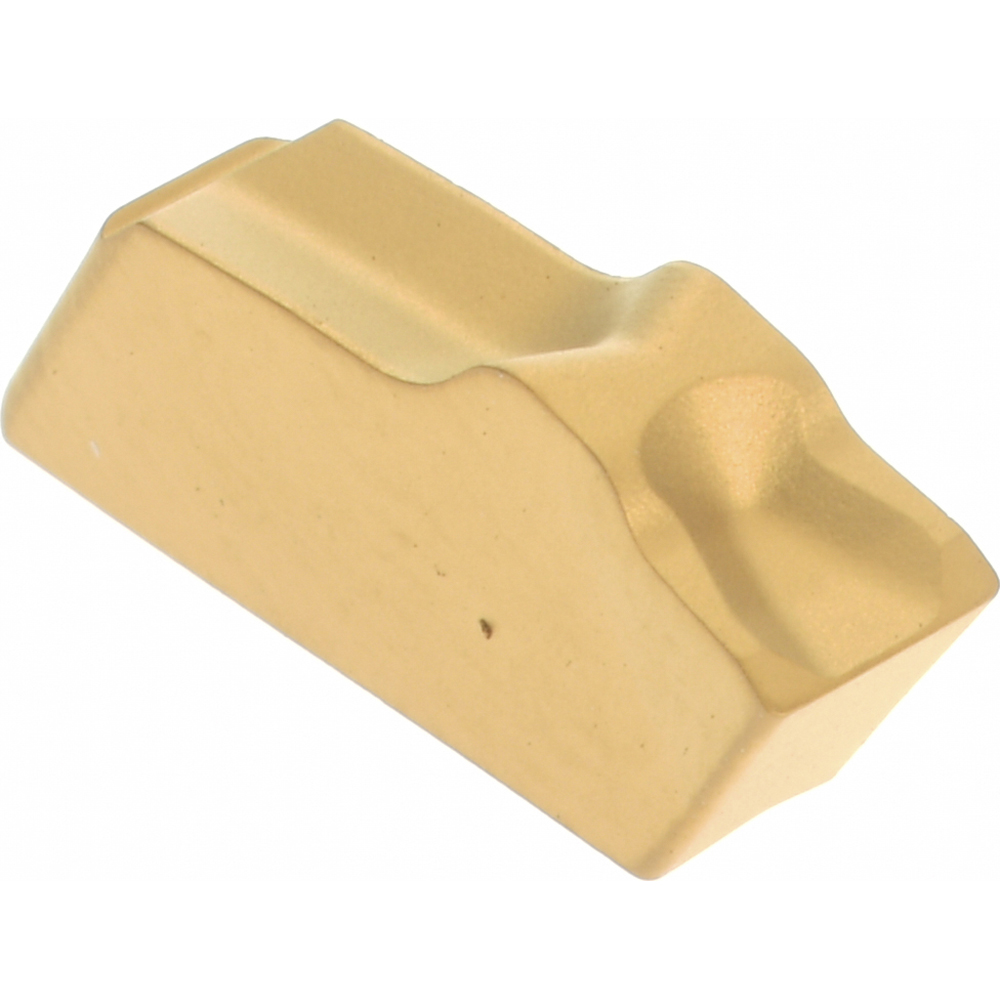

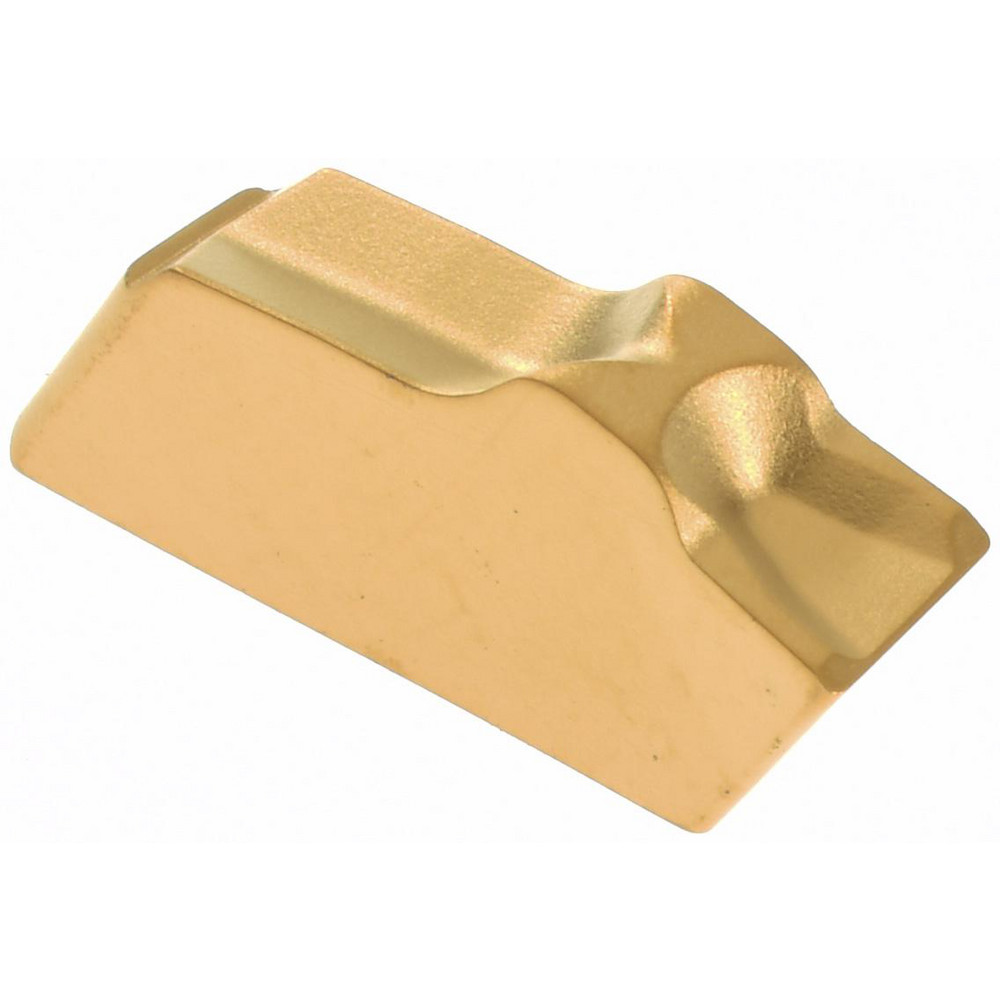

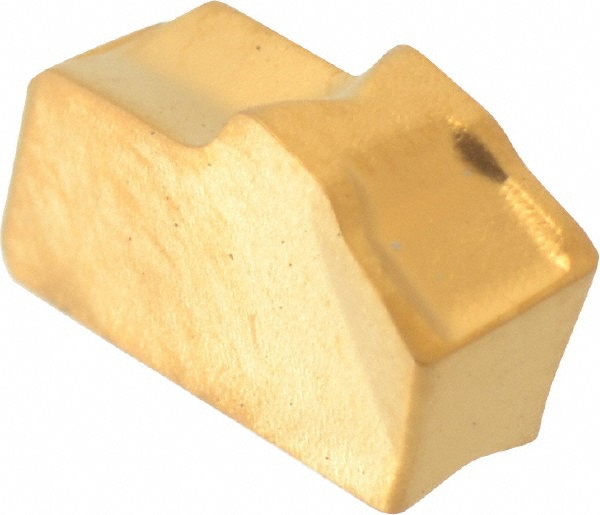

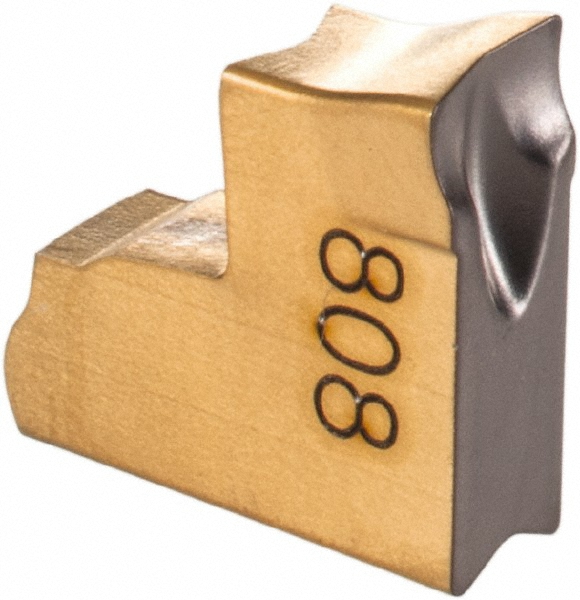

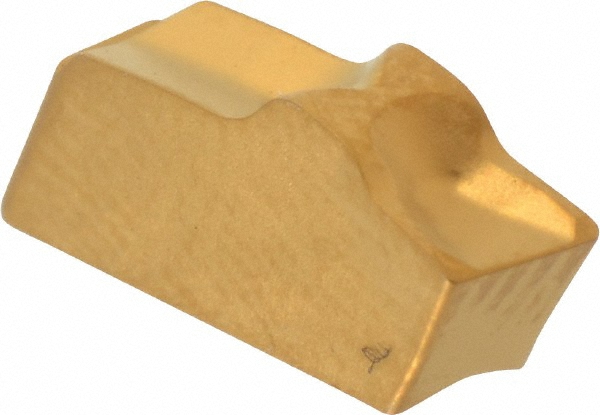

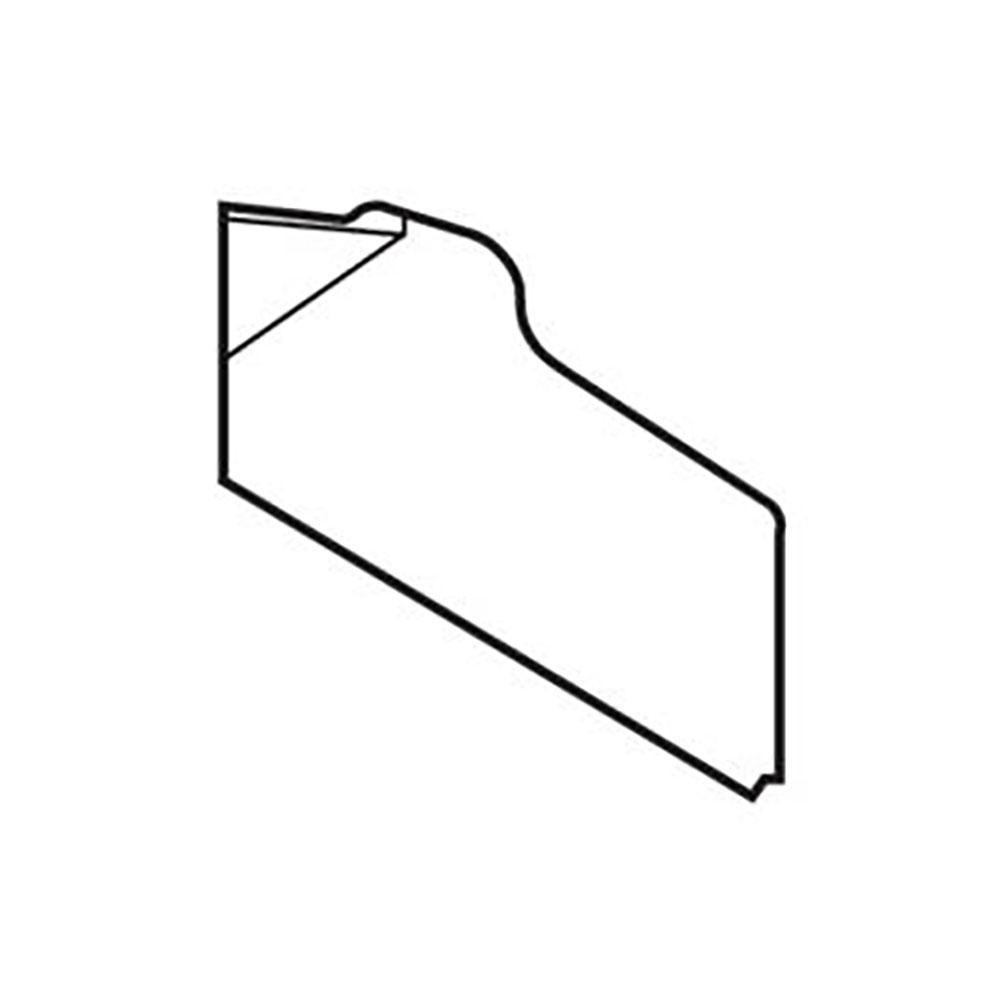

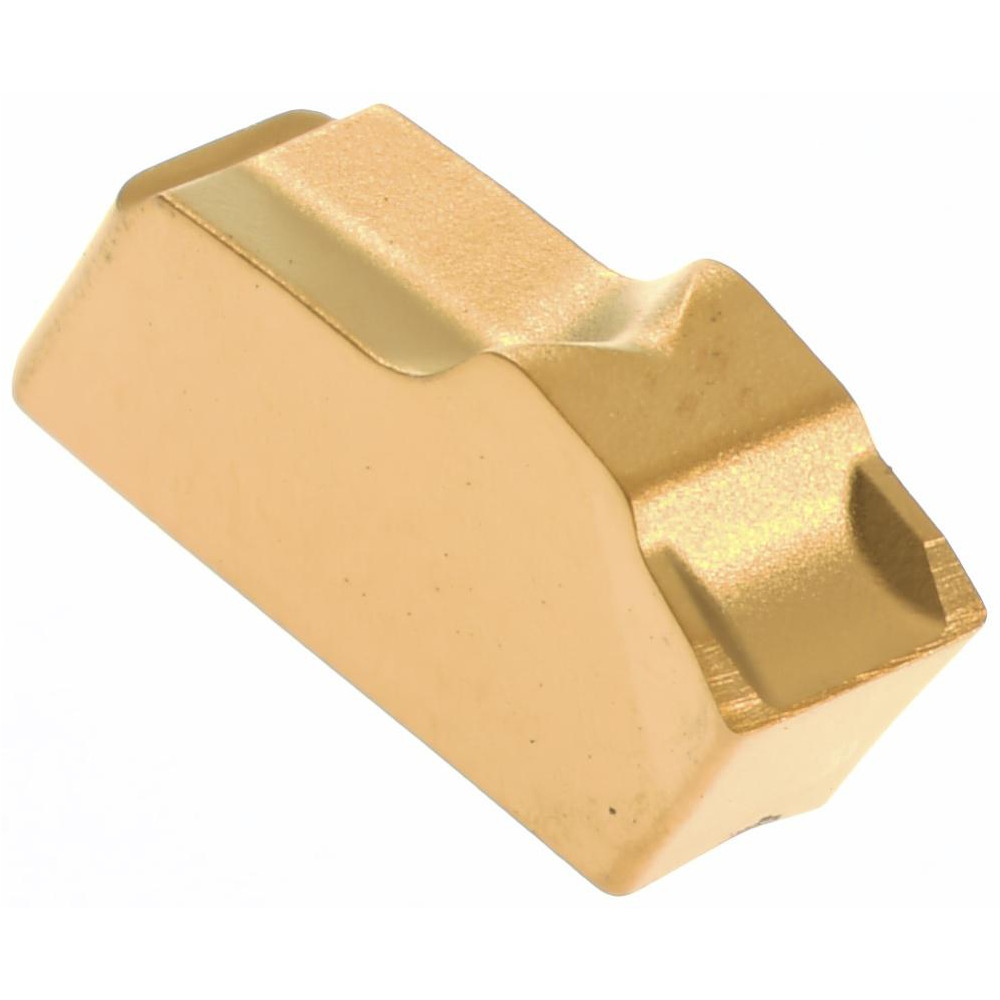

6 deg Right Hand Lead Angle, Series 150.10
| Insert Size Code | 3 |
|---|---|
| Insert Material | Carbide |
| Manufacturer Grade | T25M |

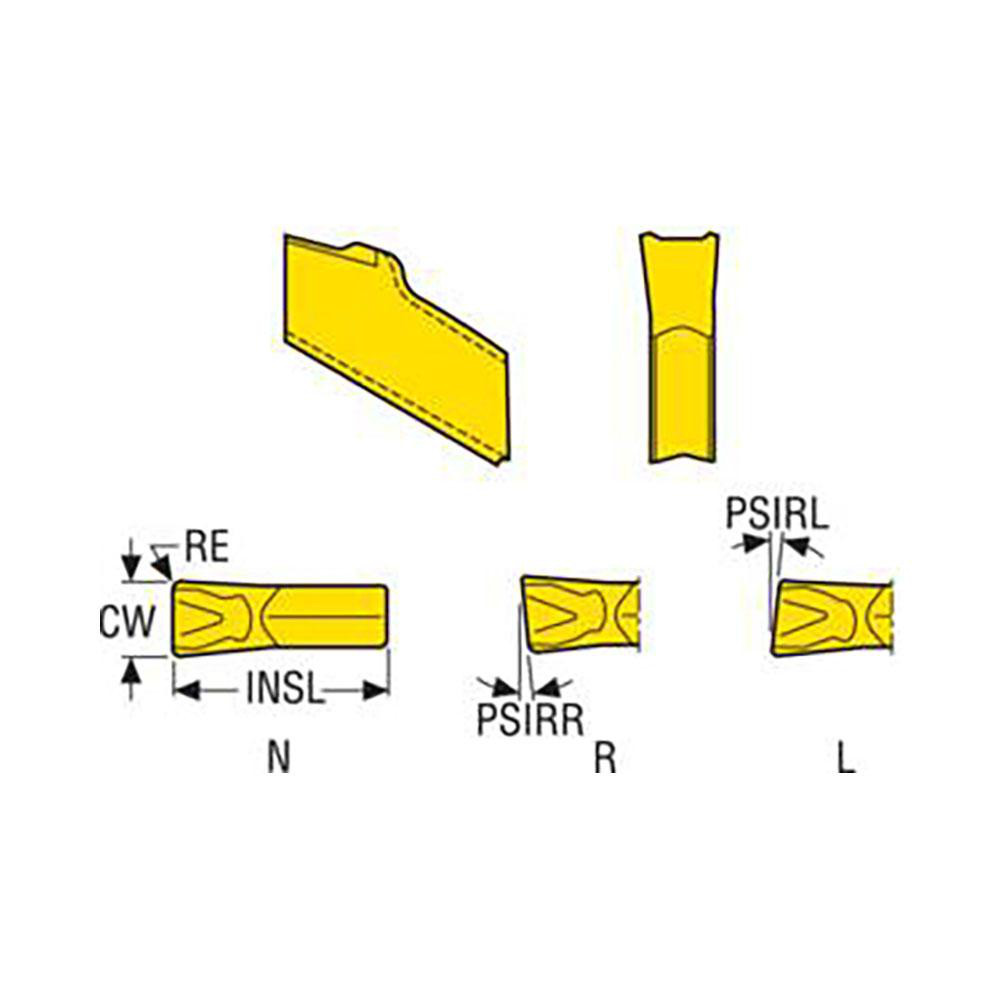

| Cutting Width (Decimal Inch) | 0.1220 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 6 |
| Relief Angle | 6.00 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | 12 |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-Off |
| Series | 150.10 |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.3540 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Width Tolerance | ±0.003 |
| Material Grade | C5 |
| MSC/Manufacturer Number | 150.10-3R6-12 |
| Coating/Finish | TiC/TiCN/TiN |
| Single Or Double End | Single |
| UNSPSC Code | 23242105 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 56944663 |
