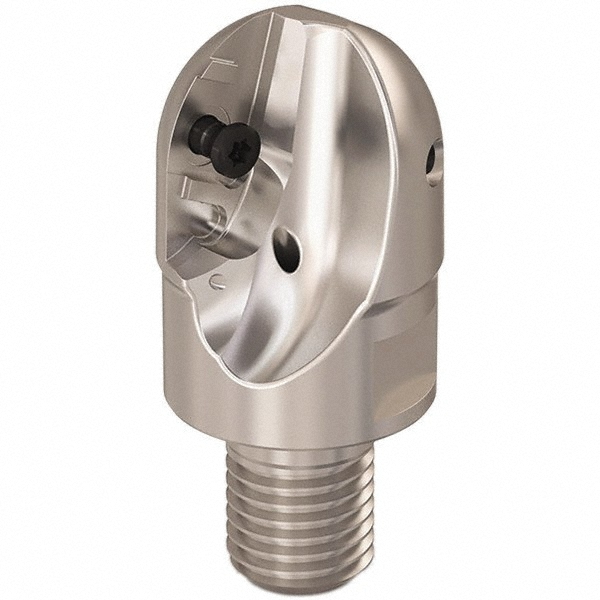

Uses (2) 218.20 Inserts, Cylindrical Shank, Through Coolant
| Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.7323 |
| Maximum Depth of Cut (mm) | 44.00 |
| Maximum Ramping Angle | 45 |
| Shank Type | Cylindrical |
| Insert Holding Method | Screw |
| Modular Connection Thread Size | M20 |
| Compatible Insert Style | 218.20 |
| Toolholder Style | R218.20 |
| Tapered Neck | No |
| Overall Length (mm) | 65.00 |
| Series | R218.20 |
| Head Length (mm) | 65.00 |
| Maximum RPM | 5000 |
| Tool Application | Milling |
| Weldon Flat | No |
| Cutting Diameter (Inch) | 2 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| Number Of Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | France |
| MSC Number | MSC# 32426942 |
