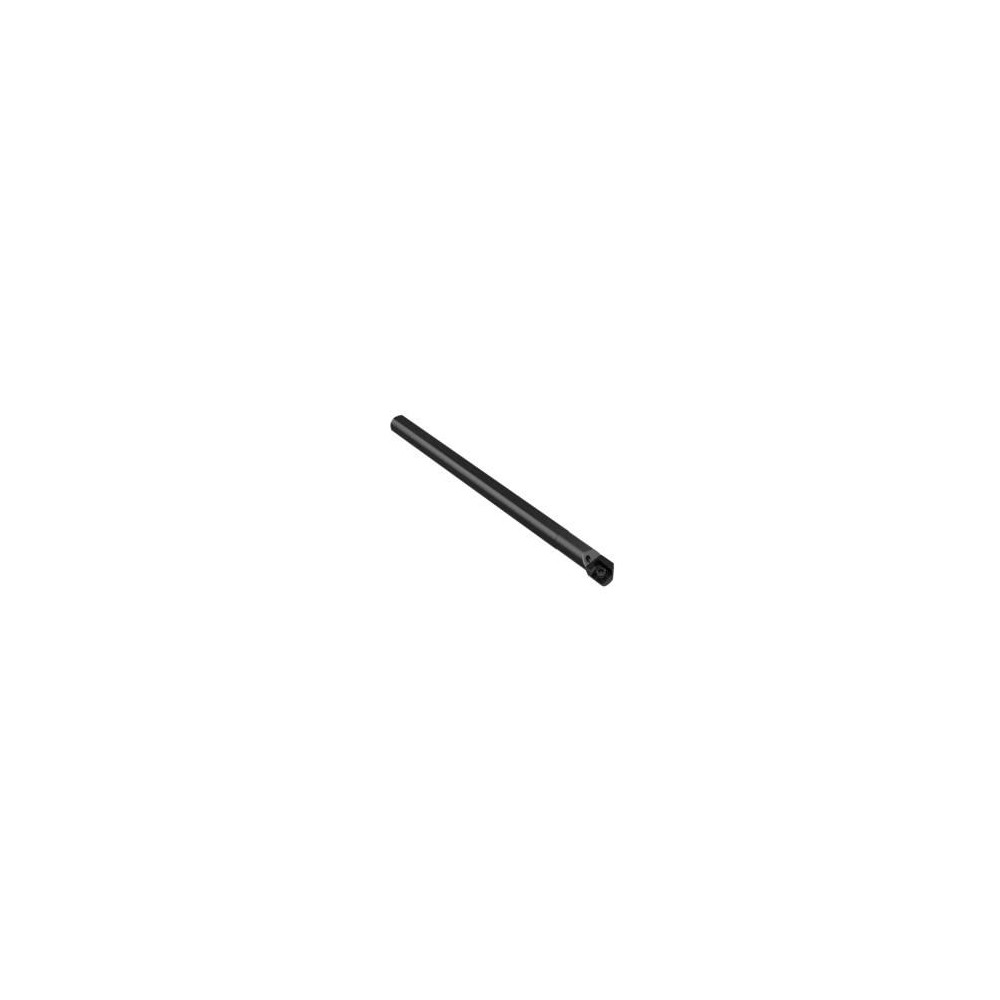

Screw, Uses CC..3 Inserts
| Minimum Bore Diameter (mm) | 16.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Maximum Bore Depth (Decimal Inch) | 1.5000 |
| Maximum Bore Depth (Inch) | 1-1/2 |

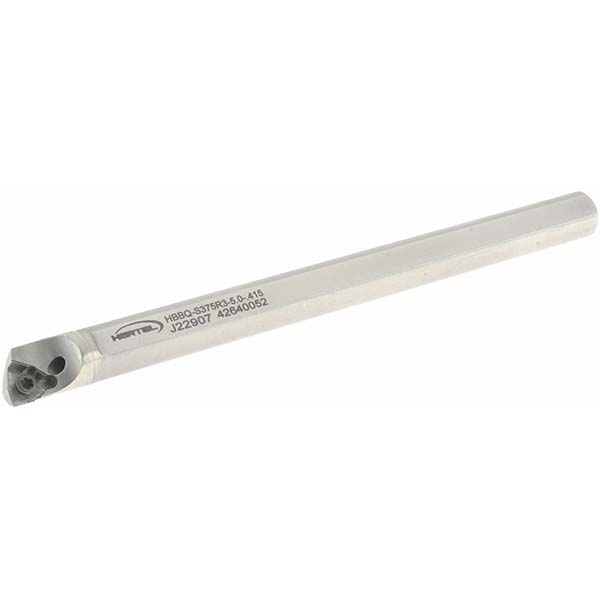

| Toolholder Style | A08-SCLCL; A08-SCLCR |
| Tool Material | Steel |

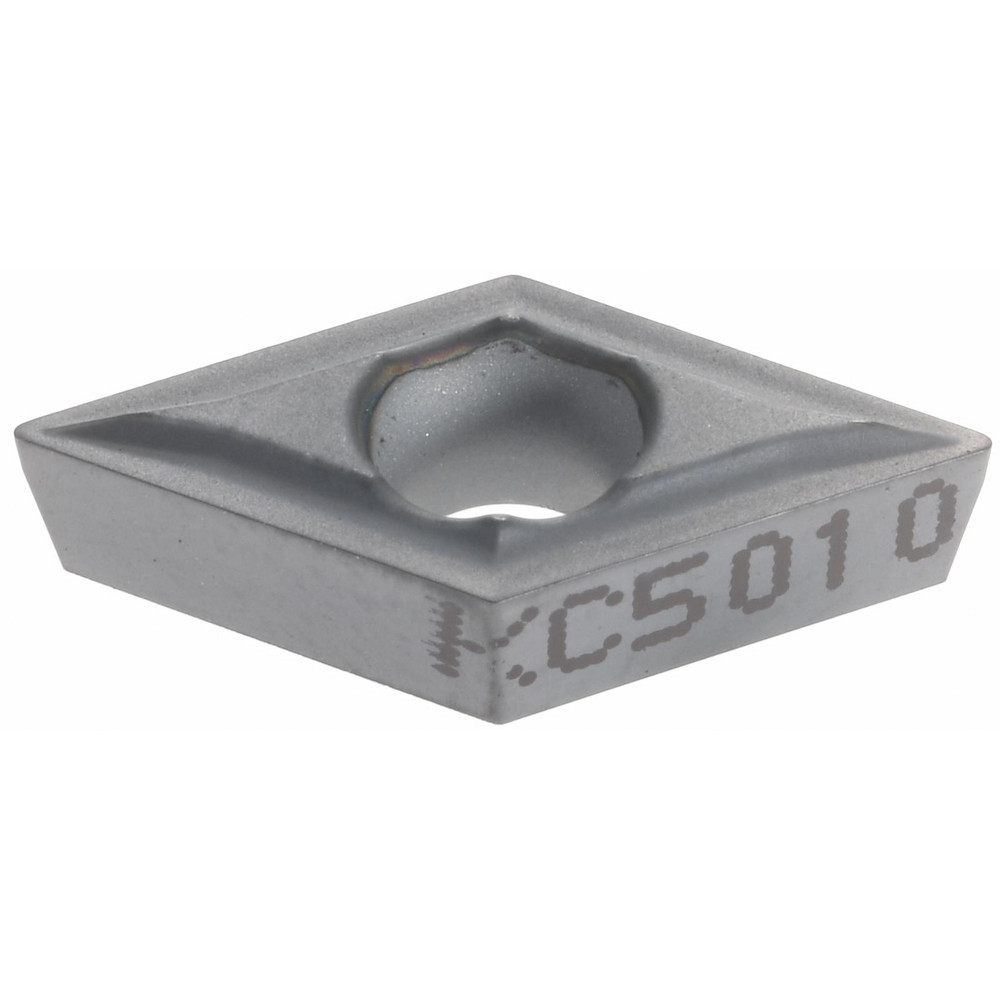

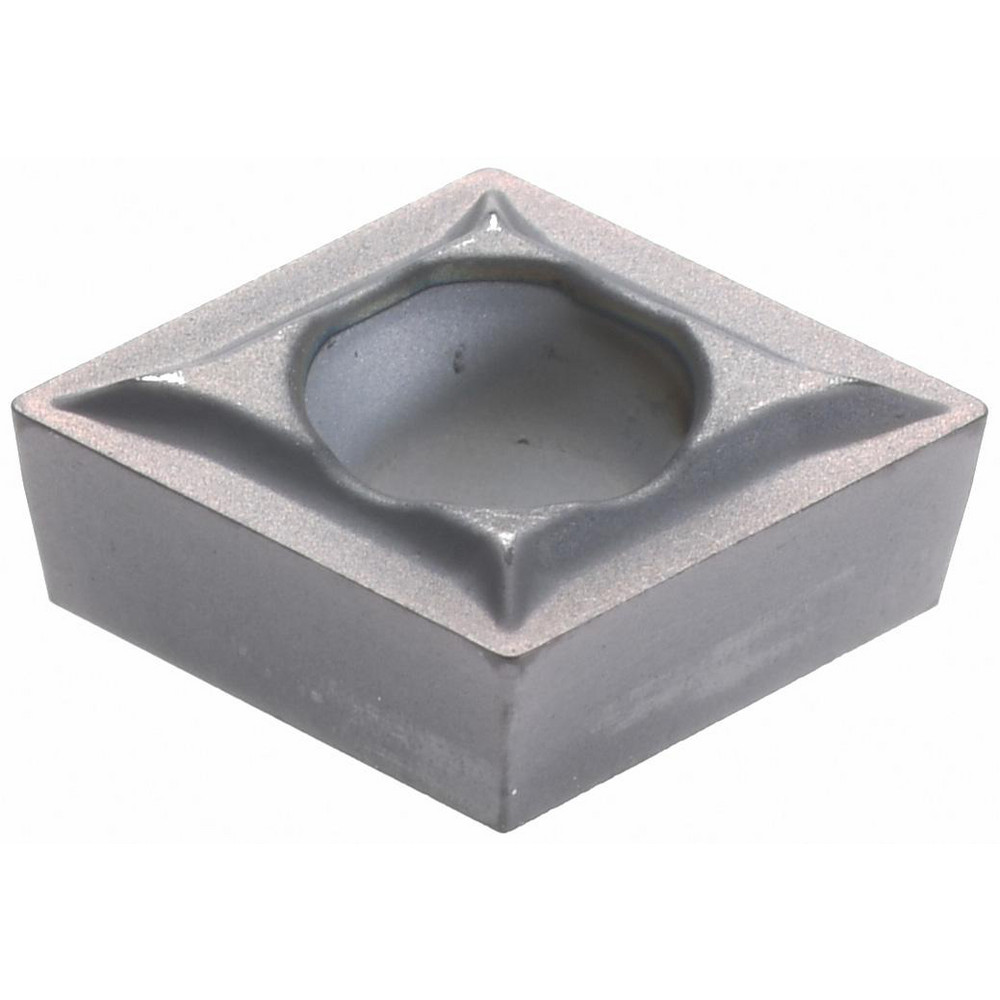

| Insert Compatibility | CC..3 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Compatible Insert Size Code | 32.5. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral (Axial); Negative (Radial) |
| Rake Angle | 0.00 |
| Lead Angle | 95 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (mm) | 9.53 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5650 |
| Back of Bar to Cutting Edge (mm) | 14.35 |
| Center to Cutting Edge (Decimal Inch) | 0.3150 |
| Center to Cutting Edge (mm) | 8.00 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Coolant Through | Yes |
| Country of Origin | Italy |
| undefined | undefined |
| MSC Number | MSC# 37745189 |
